Isuzu WW
▶
TRUCKS
▶
NMR
▶
51508 - NMR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#139367) — 13 parça
◀

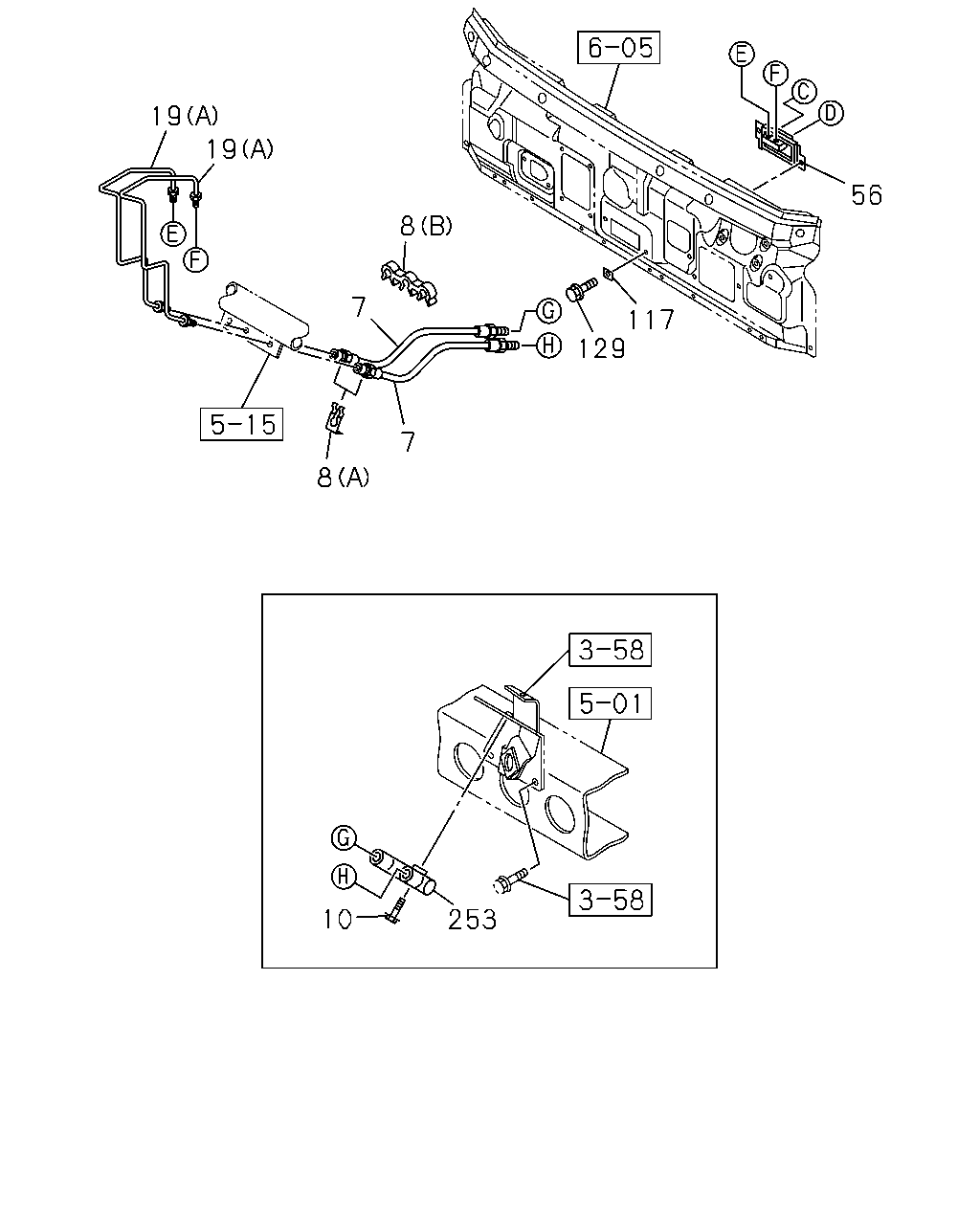

[350A] CAB OUTSIDE (10 parça)

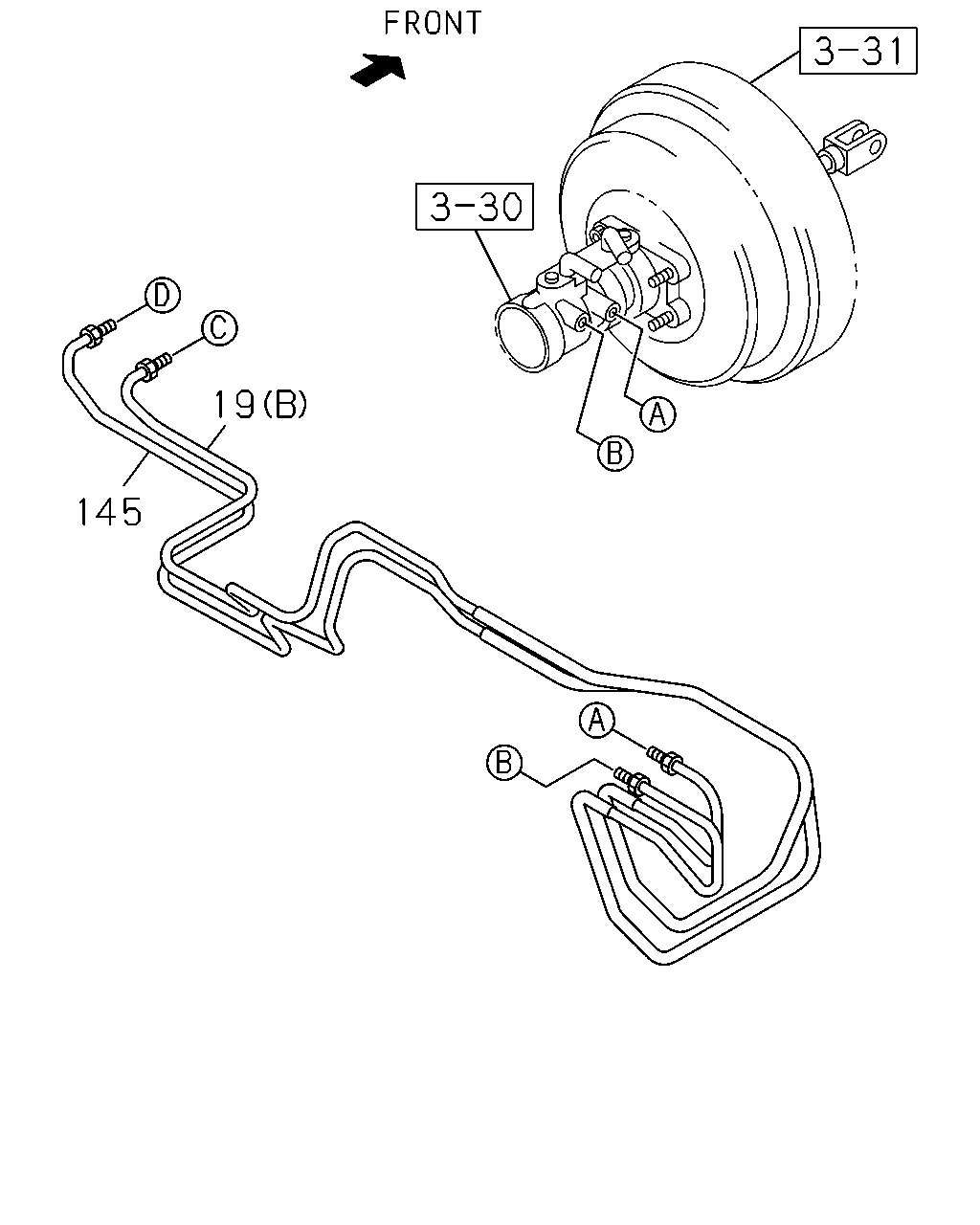

[350A] CAB INSIDE (3 parça)
▶
56
117
129
8
19
19
7
7
8
253
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
HOSE; FLEX,PIPE TO 5 WAY JOINT
8-98033-732-0
02
1
1405-
8
CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
1405-
8
CLIP; FLEX HOSE,CABLE SIDE
(B)
8-98056-614-0
01
1
1405-
10
BOLT; JOINT
M6X40 FLANGE
0-28650-640-0
01
1
1405-
19
PIPE; BRK,M/CYL TO UNION
(B) THA
8-97389-337-3
01
1
1405-
19
PIPE; BRK,M/CYL TO UNION
(A) THA
8-98012-095-1
02
1
1405-
56
BRACKET; UNION,BRK
8-98154-264-1
01
1
1405-
117
SEAL; UNION,BRK PIPE JOINT
8-97856-616-0
02
1
1405-
129
BOLT; BRKT
M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
1405-
253
JOINT
5-47456-009-1
01
1
1405-
19
145
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
PIPE; BRK,M/CYL TO UNION
(B) THA
8-97389-337-3
01
1
1405-
19
PIPE; BRK,M/CYL TO UNION
(A) THA
8-98012-095-1
02
1
1405-
145
PIPE; BRK,METERING VLV TO UNION
THA
8-97389-295-3
01
1
1405-
