Isuzu WW
▶
TRUCKS
▶
NMR
▶
51508 - NMR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#139363) — 32 parça
◀

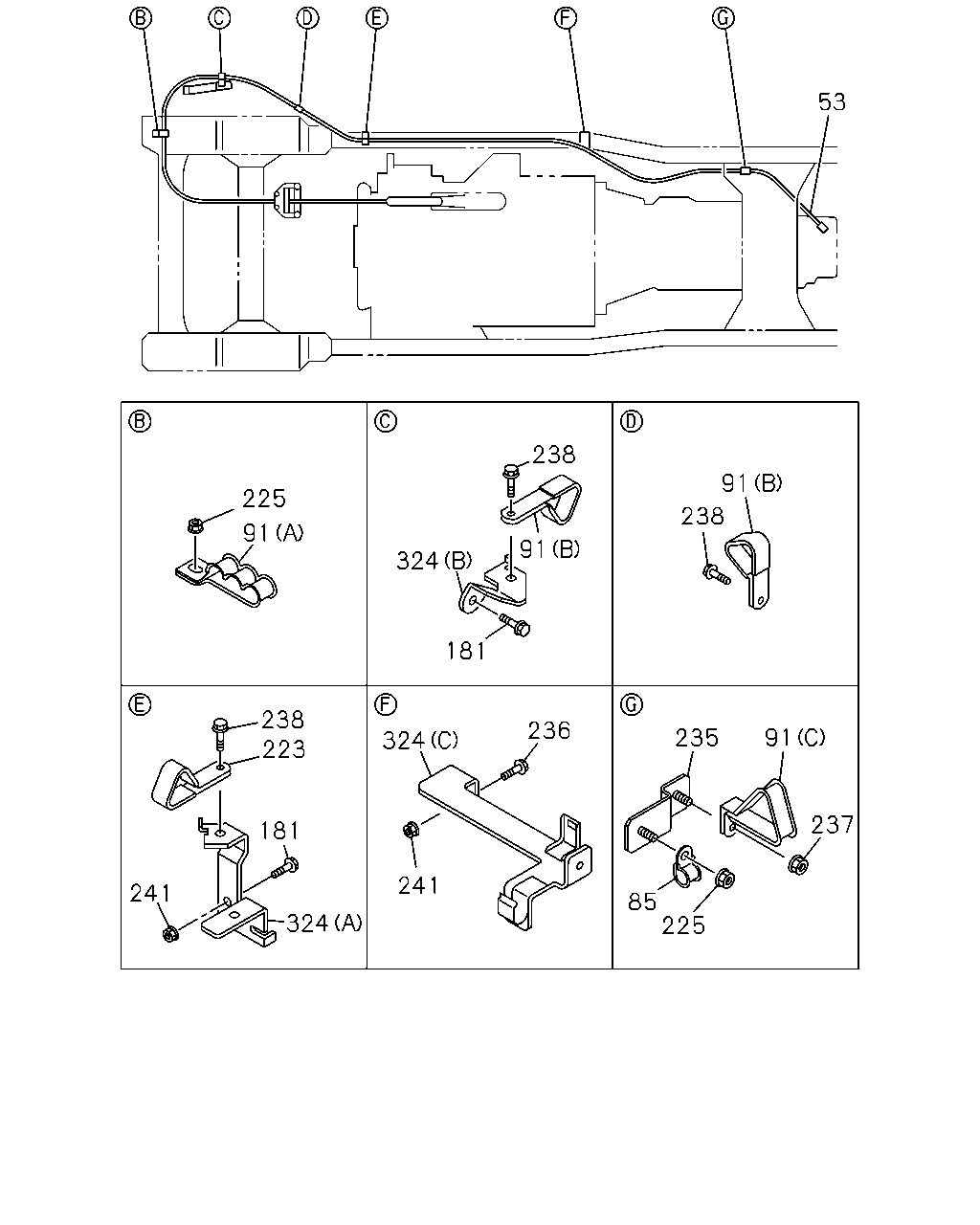

[311A] FIXING PARTS (17 parça)

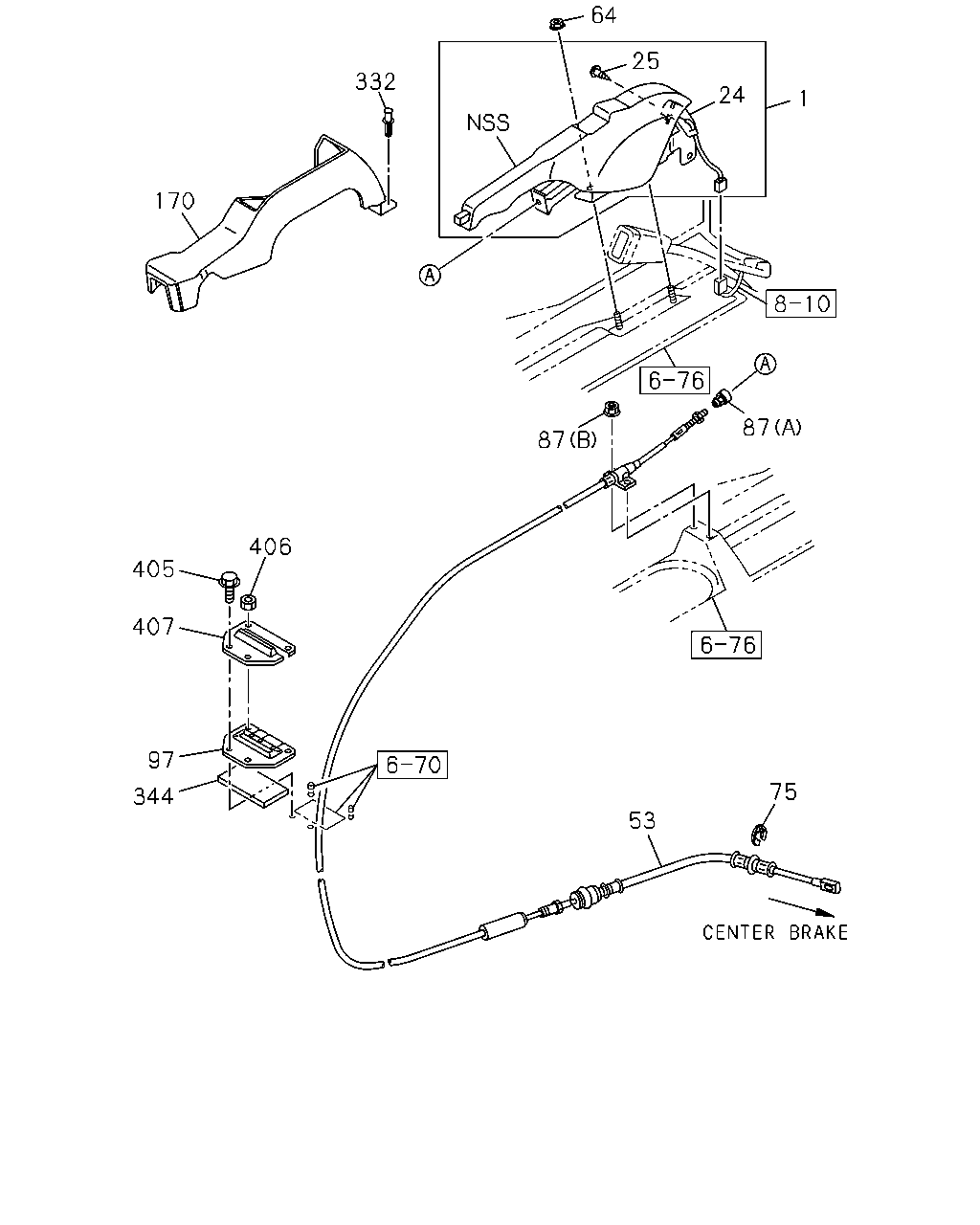

[311A] STEM AND CABLE (15 parça)
▶
225
91
324
181
91
53
91
238
235
91
237
225
85
241
181
324
241
223
238
238
324
236
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
CABLE; PARK BRK,FRT LWR
THA
8-97948-446-0
01
1
1405-
85
CLIP; BRKT
ID=14.5 L=20
1-09701-012-0
01
1
1405-
91
CLIP; PARKING BRK CABLE
(B)
8-97036-333-1
02
1
1405-
91
CLIP; PARKING BRK CABLE
(C)
8-97039-295-0
01
1
1405-
91
CLIP; PARKING BRK CABLE
(A)
8-98023-622-0
01
1
1405-
181
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
01
1
1405-
181
BOLT; BRKT
M8X25 FLANGE THA
0-28650-825-0
01
1
1405-
223
CLIP; PARKING BRK CABLE
8-97036-333-1
01
1
1405-
225
NUT; CABLE CLIP
M8 FLANGE THA
0-91180-108-0
03
1
1405-
235
BRACKET; CONT CABLE TO FRAME
8-98034-352-0
01
1
1405-
236
BOLT; BRKT TO FRAME
M8X25 FLANGE THA
0-28650-825-0
01
1
1405-
237
NUT; BRKT TO FRAME
M8 FLANGE THA
0-91180-108-0
01
1
1405-
238
BOLT; CLIP TO BRKT
M8X25 FLANGE THA
0-28650-825-0
03
1
1405-
241
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
01
1
1405-
324
BRACKET
(A)
8-98003-642-1
01
1
1405-
324
BRACKET
(B)
8-98034-115-0
01
1
1405-
324
BRACKET
(C)
8-98053-874-1
01
1
1405-
332
64
25
1
24
170
405
407
97
344
53
75
87
87
406
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEM ASM; PARKING BRK
GRAY
8-97426-513-0
01
1
1405-
24
SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1405-
25
SCREW; SW,PARKING BRK
8-98152-463-0
01
1
1405-
53
CABLE; PARK BRK,FRT LWR
THA
8-97948-446-0
01
1
1405-
64
NUT; PARKING BRK
M8 LOCK NUT FLANGE
0-91380-008-0
02
1
1405-
75
RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
1405-
87
NUT
(B) M8 FLANGE THA
0-91180-108-0
02
1
1405-
87
NUT
(A) M6
8-98034-313-1
01
1
1405-
97
GROMMET; PARKING BRK CABLE
8-97065-212-1
01
1
1405-
170
COVER; PARKING BRK LEVER
GRAY
8-97406-170-1
01
1
1405-
332
CLIP; COVER
GRAY
8-97406-179-0
01
1
1405-
344
GASKET; DASH LWR
8-97096-753-0
01
1
1405-
405
BOLT; GROMMET
M6X20 FLANGE
0-28450-620-0
02
1
1405-
406
NUT; GROMMET
M6 FLANGE THA
0-91180-106-0
02
1
1405-
407
RETAINER; GROMMET
1-33657-674-0
01
1
1405-
