Isuzu WW
▶
TRUCKS
▶
NMR
▶
51508 - NMR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

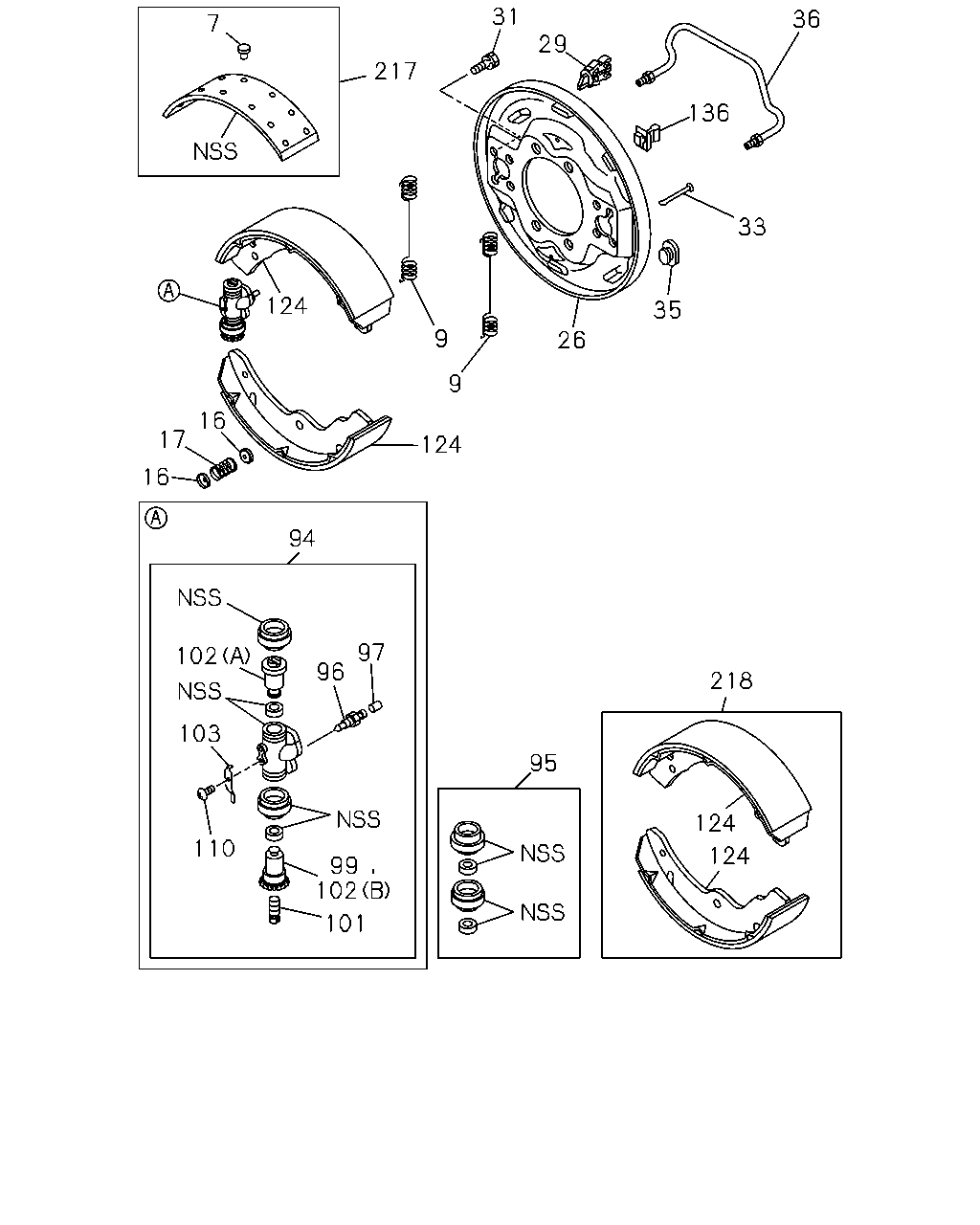

3-05 — REAR WHEEL BRAKE
(#139360) — 27 parça
36
33
35
26
136
29
31
217
7
124
9
9
124
16
17
16
94
218
124
124
95
101
102
99
110
103
102
96
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
RIVET; LINING,RR BRK
THA
8-97520-926-0
48
1
1405-
9
SPRING; RETURN,BRK SHOE
8-97520-674-0
04
1
1405-
16
CUP; SHOE HOLDING
8-97520-676-0
08
1
1405-
17
SPRING; SHOE HOLD DOWN
8-97520-675-0
04
1
1405-
26
PLATE; BACK,RR BRK
8-97520-680-0
01
1
1405-
26
PLATE; BACK,RR BRK
8-97520-681-0
01
1
1405-
29
CLIP; PIPE,BRK
8-97022-086-0
02
1
1405-
31
BOLT; RR WHEEL CYL
8-97520-678-0
16
1
1405-
33
PIN; SHOE HOLD DOWN
8-97520-677-0
04
1
1405-
35
GROMMET; CHECK HOLE
8-97520-679-0
02
1
1405-
36
PIPE; OIL,RR BRK
THA
8-97943-810-0
02
1
1405-
94
CYLINDER; WHEEL,RR BRK
REAR
8-97520-766-0
01
1
1405-
94
CYLINDER; WHEEL,RR BRK
FRONT
8-97520-767-0
01
1
1405-
94
CYLINDER; WHEEL,RR BRK
8-97520-768-0
02
1
1405-
95
CUP SET; RR WHEEL CYL
5-87832-330-0
02
1
1405-
96
SCREW; BLEEDER,RR BRK
8-98050-476-0
01
1
1405-
97
CAP; BLEEDER,RR WHEEL CYL
8-97520-782-0
01
1
1405-
99
PISTON; RR WHEEL CYL
8-97520-773-0
03
1
1405-
101
SCREW; ADJ,RR WHEEL CYL
8-97520-774-0
04
1
1405-
102
PISTON; REAR WHEEL CYL
(B)
8-97520-773-0
01
1
1405-
102
PISTON; REAR WHEEL CYL
(A)
8-97520-780-0
04
1
1405-
103
SPRING; LK,RR WHEEL CYL,ADJ
8-97520-776-0
04
1
1405-
110
SCREW; LOCK SPRING,RR WHEEL CYL
8-97520-777-0
04
1
1405-
124
SHOE ASM; BRK,RR
8-97520-673-0
04
1
1405-
136
GROMMET
8-97044-742-1
04
1
1405-
217
LINING KIT; RR BRK
5-88300-004-0
01
1
1405-
218
SHOE KIT; BRK,RR
5-87832-329-0
01
1
1405-
