1 |

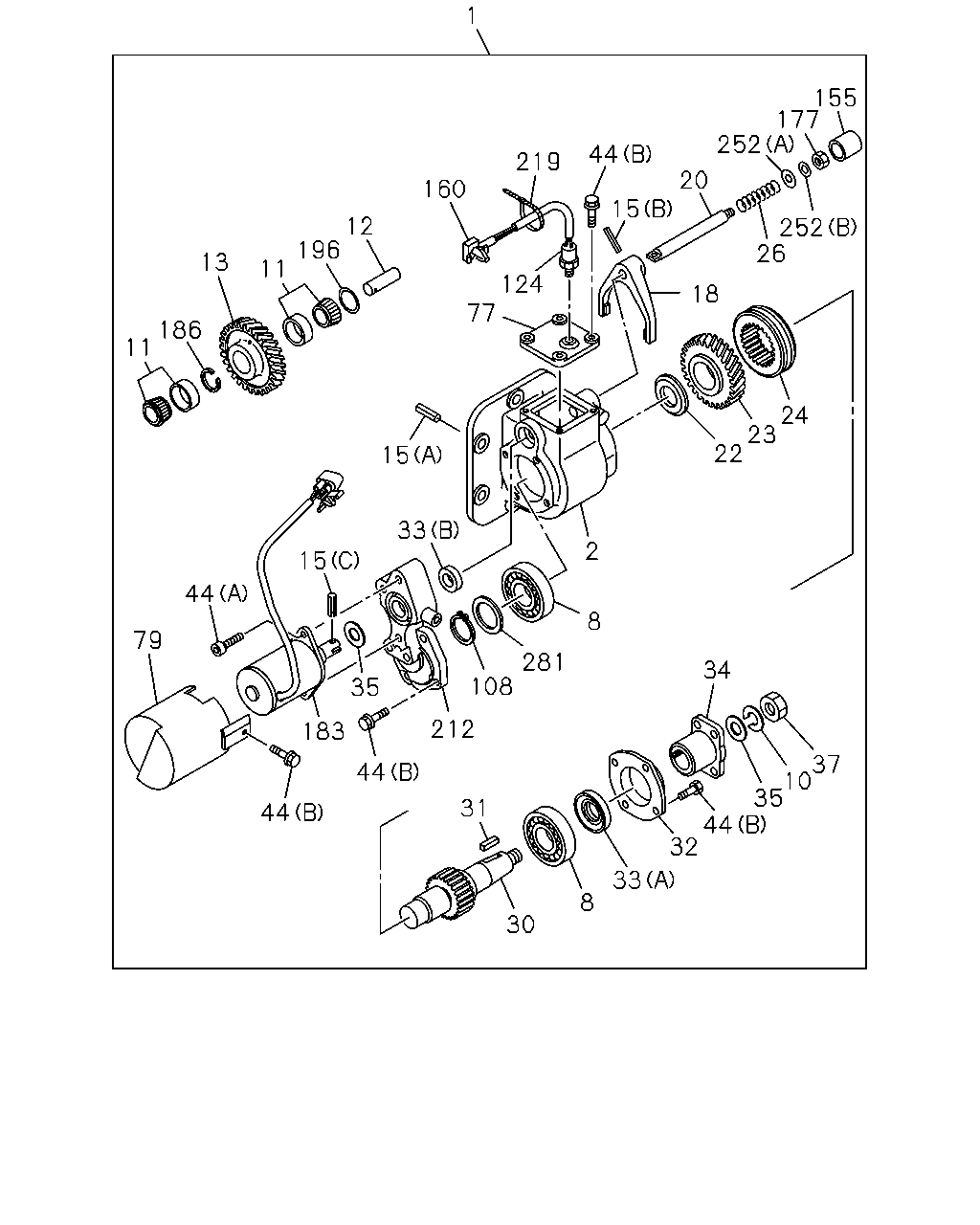

POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
IDENTIFICATION=YT
|
8-98233-785-1 |
01 |
1 |
1405- |
| |
2 |
CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-97308-692-2 |
01 |
1 |
1405-1409 |
| |
2 |
CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-98282-383-0 |
01 |
1 |
1410- |
| |
8 |
BEARING; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
ID=25 OD=62
|
8-94343-031-1 |
02 |
1 |
1405- |
| |
10 |
WASHER; OUTPUT SHAFT COVER,SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
ID=14.2
|
0-91510-814-0 |
01 |
1 |
1405- |
| |
11 |
BEARING; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
NSK
|
8-97106-734-0 |
02 |
1 |
1405- |
| |
12 |
SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
9-38211-606-0 |
01 |
1 |
1405- |
| |
13 |
GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
Z=31
|
8-97308-700-0 |
01 |
1 |
1405- |
| |
15 |
PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
(B)
L=25 OD=5
|
8-94135-771-0 |
01 |
1 |
1405- |
| |
15 |
PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
(C)
L=14
|
8-97175-890-0 |
01 |
1 |
1405- |
| |
15 |
PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
(A)
L=16
|
9-09878-613-0 |
01 |
1 |
1405- |
| |
18 |
ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-98088-695-0 |
01 |
1 |
1405- |
| |
20 |
ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-97308-709-1 |
01 |
1 |
1405- |
| |
22 |
COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
9-38245-603-1 |
01 |
1 |
1405- |
| |
23 |
GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
Z=27
|
8-98120-609-0 |
01 |
1 |
1405- |
| |
24 |
SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-97231-316-1 |
01 |
1 |
1405- |
| |
26 |
SPRING; SHIFTER ROD,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-97175-987-0 |
01 |
1 |
1405- |
| |
30 |
SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-98233-777-0 |
01 |
1 |
1405- |
| |
31 |
KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
L=25
|
8-98068-088-0 |
01 |
1 |
1405- |
| |
32 |
COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-97305-794-0 |
01 |
1 |
1405- |
| |
33 |
SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
(A)
|
1-38159-007-0 |
01 |
1 |
1405- |
| |
33 |
SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
(B)
|
8-98028-789-0 |
01 |
1 |
1405- |
| |
34 |
FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-98223-519-0 |
01 |
1 |
1405- |
| |
35 |
WASHER; PL,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
ID=15
|
0-91610-514-0 |
02 |
1 |
1405- |
| |
37 |
NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
M14
|
0-91111-514-0 |
01 |
1 |
1405- |
| |
44 |
BOLT; COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
(B)
M8X20 FLANGE
THA
|
0-28050-820-0 |
15 |
1 |
1405- |
| |
44 |
BOLT; COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
(A)
M8X16 HEX SOCKET
|
0-58330-816-0 |
03 |
1 |
1405- |
| |
77 |
COVER; OUTPUT,RR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-97308-719-0 |
01 |
1 |
1405- |
| |
79 |
COVER; DUST,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-97308-728-0 |
01 |
1 |
1405- |
| |
108 |
RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
ID=23.2
|
9-09180-025-0 |
01 |
1 |
1405- |
| |
124 |
SWITCH; PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-98031-760-1 |
01 |
1 |
1405- |
| |
155 |
PLUG; SHIFTER ROD
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-98037-770-0 |
01 |
1 |
1405- |
| |
160 |
CLIP; PTO A/T SIDE
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
L=15
|
8-94315-436-1 |
01 |
1 |
1405- |
| |
177 |
NUT; SHIFT ROD
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
M8
|
0-91110-508-0 |
01 |
1 |
1405- |
| |
183 |
SOLENOID ASM; PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-98136-076-1 |
01 |
1 |
1405- |
| |
186 |
RING; SNAP,IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-97106-730-0 |
01 |
1 |
1405- |
| |
196 |
PIECE; THRUST
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
T=1.50
|
8-97106-724-0 |
02 |
1 |
1405- |
| |
196 |
PIECE; THRUST
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
T=1.60
|
8-97106-725-0 |
02 |
1 |
1405- |
| |
196 |
PIECE; THRUST
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
T=1.65
|
8-97106-726-0 |
02 |
1 |
1405- |
| |
196 |
PIECE; THRUST
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
T=1.70
|
8-97106-727-0 |
02 |
1 |
1405- |
| |
196 |
PIECE; THRUST
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
T=1.80
|
8-97106-728-0 |
02 |
1 |
1405- |
| |
196 |
PIECE; THRUST
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
T=1.85
|
8-97106-729-0 |
02 |
1 |
1405- |
| |
212 |
ADAPTER; SOLENOID
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-98233-779-0 |
01 |
1 |
1405- |
| |
219 |
CLIP; CABLE
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
|
8-97221-218-0 |
02 |
1 |
1405- |
| |
252 |
WASHER; PL,SHIFTER ROD
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
(B)
ID=8.4 OD=16
THA
|
0-91610-508-0 |
01 |
1 |
1405- |
| |
252 |
WASHER; PL,SHIFTER ROD
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
(A)
|
8-97308-737-1 |
01 |
1 |
1405- |
| |
281 |
SHIM; OUTPUT SHAFT
PTO TRANSMISSION SIDE<V66>
POWER TAKE OFF CONTROL ELECTRIC<7GR>
T=1.85
|
8-97106-729-0 |
01 |
1 |
1405- |
