Isuzu WW
▶
TRUCKS
▶
NMR
▶
51508 - NMR CNG(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶

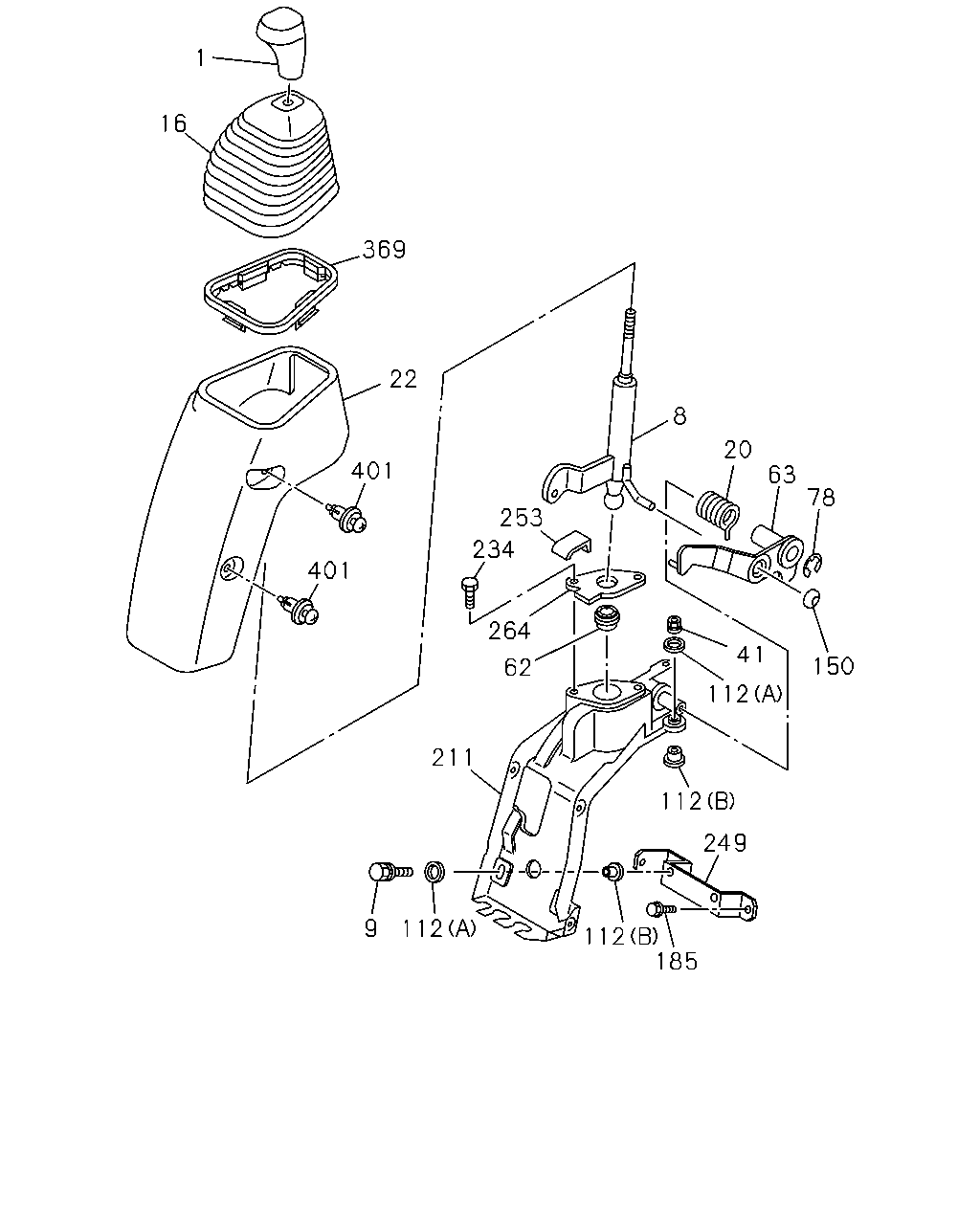

2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#139356) — 21 parça
1
16
369
22
401
401
211
112
9
62
264
234
253
8
63
20
150
78
41
112
112
249
112
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
BLACK
8-97196-286-1
01
1
1405-
8
LEVER; CHANGE
8-97204-506-0
01
1
1405-
9
BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER
8-94438-324-1
02
1
1405-
16
BOOT; CHANGE LEVER
8-98035-063-0
01
1
1405-
20
SPRING; CHANGE LEVER
8-97204-514-1
01
1
1405-
22
COVER; DUST,CHANGE LEVER
GRAY
8-97408-726-1
01
1
1405-
41
NUT; CHANGE LEVER
M8 W/DISHED WASHER
8-97329-625-0
02
1
1405-
62
SEAT; BALL,CHANGE LEVER
8-97011-895-1
01
1
1405-
63
LEVER; RELAY,SELECT
8-97143-199-0
01
1
1405-
78
RING; SNAP,CHANGE LEVER
ID=10
0-91805-510-0
01
1
1405-
112
RUBBER; CUSHION
(A)
8-97091-426-0
04
1
1405-
112
RUBBER; CUSHION
(B)
8-97091-427-0
04
1
1405-
150
BALL; DETENT,CONT LEVER
8-97049-147-0
01
1
1405-
185
BOLT; BRKT,COVER
M8X20 FLANGE THA
0-28650-820-0
02
1
1405-
211
BRACKET; CHANGE LEVER
8-97204-505-1
01
1
1405-
234
BOLT; BRKT
M6X12 FLANGE
1-33739-842-0
02
1
1405-
249
BRACKET; COVER
8-97387-767-0
01
1
1405-
253
STOPPER; CHANGE LEVER
8-97204-510-0
01
1
1405-
264
PLATE; COVER
8-97204-511-0
01
1
1405-
369
RETAINER; REINF
8-98032-213-1
01
1
1405-
401
CLIP; COVER
GRAY
8-97406-179-0
04
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
