2-26 — MANUAL TRANSMISSION GEAR (#139354) — 69 parça

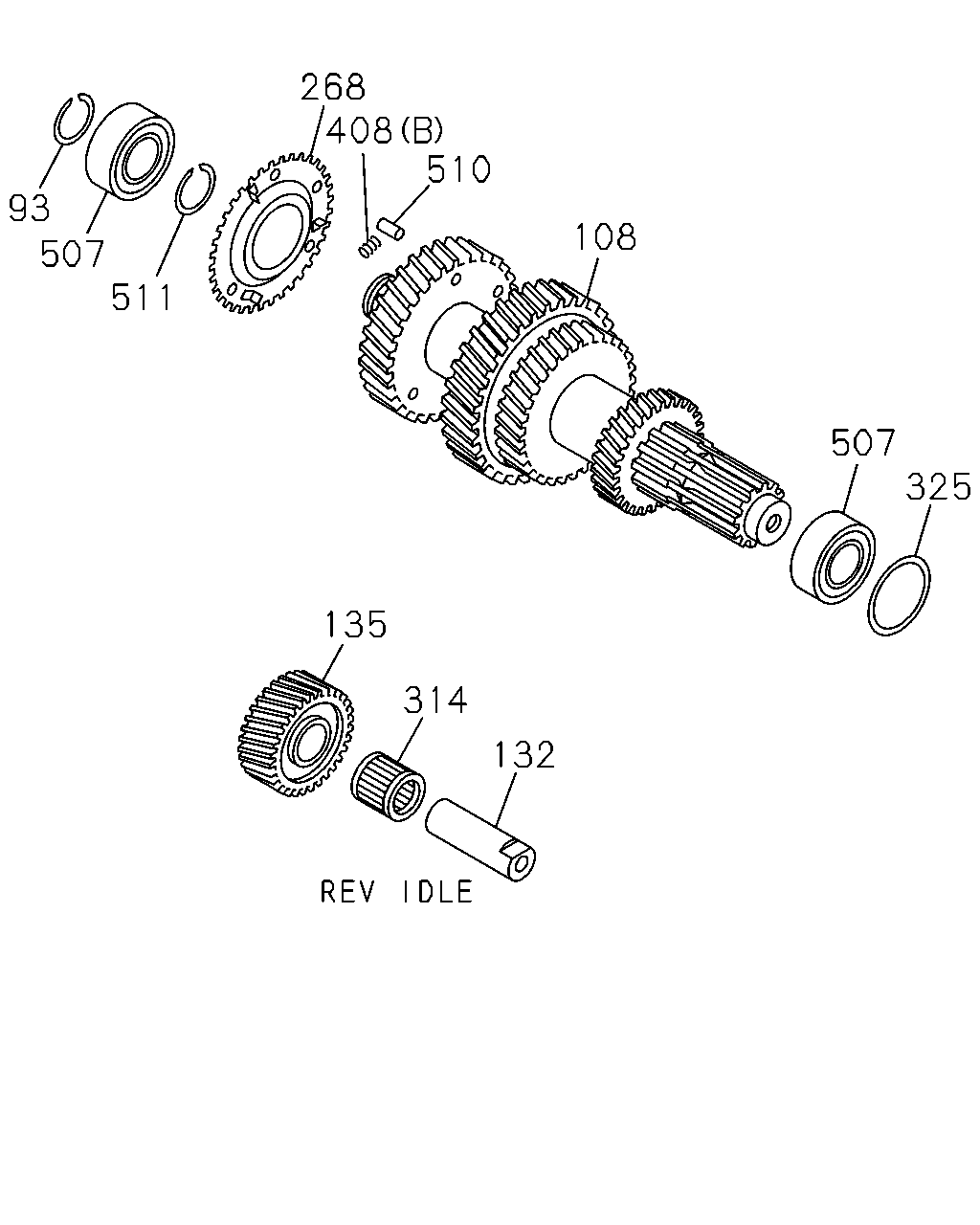

çizim 420041
268 408 510 108 507 325 132 314 135 511 507 93
BalonParca AdiParca NoAdetTipApplied Date
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 1405-
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 1405-
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 1405-
108 SHAFT; COUNTER
Z=45-49-33-20 		8-97380-630-1 01 1 1405-
132 SHAFT; REV 8-97252-655-0 01 1 1405-
135 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 1405-
268 PLATE; ANTI LASH,COUNTER 8-97257-300-1 01 1 1405-
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 1405-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 1405-
408 SPRING
(B) 		8-94148-196-0 03 1 1405-
408 SPRING
(A) 		8-97366-040-1 02 1 1405-
507 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 1405-
510 PIN; STRAIGHT,ANTI LASH 9-08160-825-0 03 1 1405-
511 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 1405-

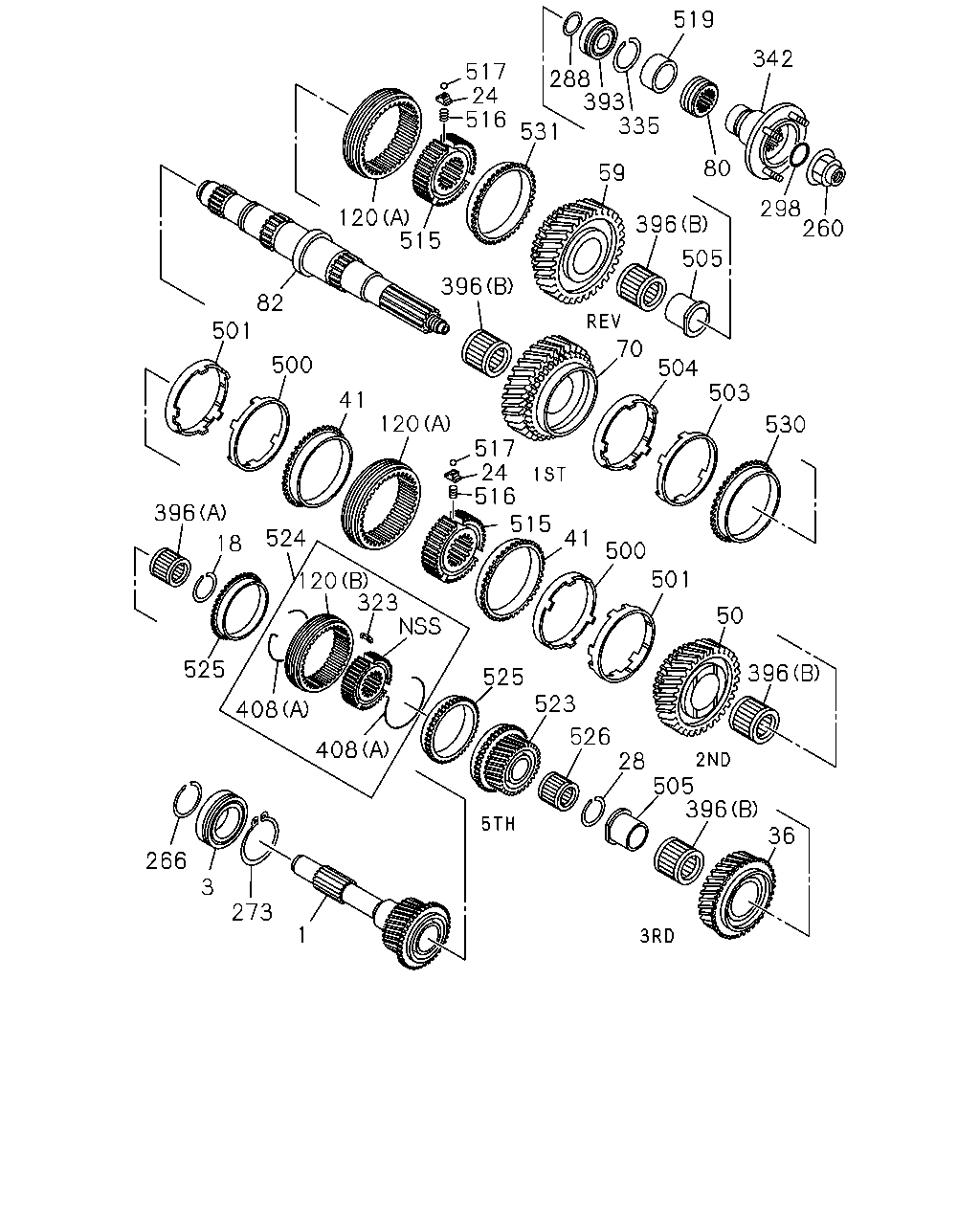

çizim 421279
519 342 80 298 260 505 396 59 335 393 288 517 24 516 531 120 515 396 70 504 503 530 82 501 500 41 120 517 24 516 515 41 500 501 50 396 36 396 505 28 526 523 525 1 273 3 266 408 408 525 396 524 18 120 323
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
Z=28 		8-98031-848-0 01 1 1405-
3 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 1405-
18 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 1405-
24 BLOCK; INDEX,SYN 8-97241-313-1 06 1 1405-
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1405-
36 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 1405-
41 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 1405-
50 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 1405-
59 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1405-
70 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 1405-
80 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 1405-
82 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-117-3 01 1 1405-
120 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1405-
120 SLEEVE
(B) Z=45 		8-94421-871-1 01 1 1405-
260 NUT; MAINSHAFT END
M27 H=25 		8-97360-410-0 01 1 1405-
266 RING; SNAP,BRG INNER 8-97286-916-0 01 1 1405-
273 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 1405-
288 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 1405-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 1405-
323 INSERT 8-94448-202-2 03 1 1405-
335 RING; SNAP,BEARING 8-97254-722-0 01 1 1405-
342 FLANGE; OUTPUT 8-98031-640-0 01 1 1405-
393 BEARING; MAINSHAFT END 8-97253-105-1 01 1 1405-
396 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 1405-
396 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1405-
408 SPRING
(B) 		8-94148-196-0 03 1 1405-
408 SPRING
(A) 		8-97366-040-1 02 1 1405-
500 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 1405-
501 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 1405-
503 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 1405-
504 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 1405-
505 COLLAR; 3RD & REV 8-97253-119-2 02 1 1405-
515 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 1405-
516 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 1405-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 1405-
519 COLLAR; MAINSHAFT END,5TH 8-97252-940-0 01 1 1405-
523 GEAR; OD,MAINSHAFT
Z=22 		8-97241-231-0 01 1 1405-
524 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 1405-
525 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 1405-
526 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 1405-
530 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 1405-
531 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 1405-
