Isuzu WW
▶
TRUCKS
▶
FVM
▶
11129 - FVM(THAI)EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-84 - BACK TRIM
▶

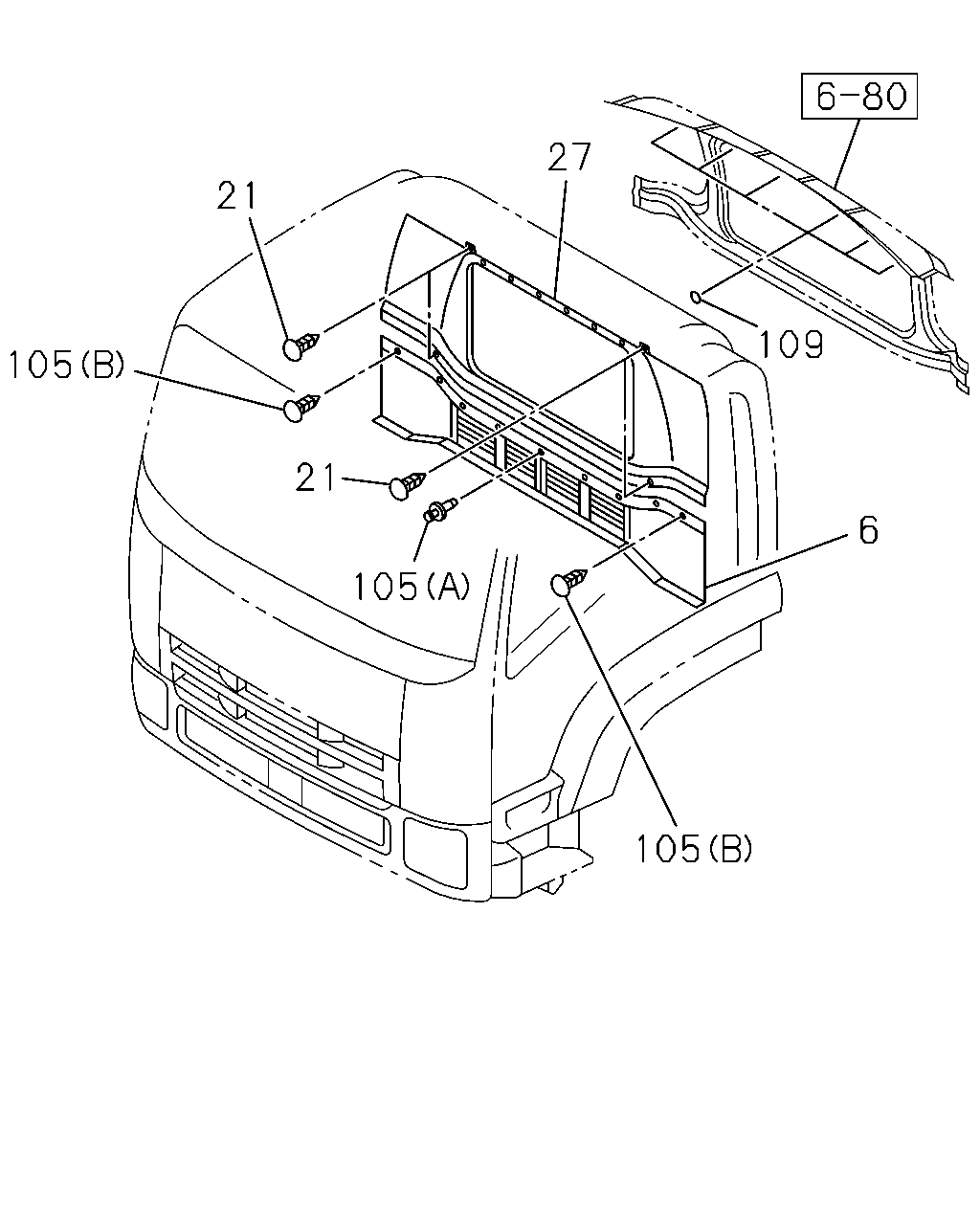

6-84 — BACK TRIM
(#13935) — 10 parça
27
21
109
105
21
6
105
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
MAT; SILENCER,CAB BACK
THA
8-97923-850-1
01
1
0807-1102
6
MAT; SILENCER,CAB BACK
THA
8-97925-565-0
01
1
1103-
21
RETAINER; TRIM,BED ROOM
GRAY
8-97407-467-0
04
1
0807-1003
21
RETAINER; TRIM,BED ROOM
INTERIOR FULL TRIM<WM3> GRAY
8-97407-467-0
04
1
1004-1102
27
COVER; TRIM,BACK
DARK GRAY
8-97407-464-2
01
1
0807-1003
27
COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> DARK GRAY
8-97407-464-2
01
1
1004-1102
105
CLIP; BACK TRIM
(A) GRAY
8-97408-022-0
07
1
0807-
105
CLIP; BACK TRIM
(B) GRAY
8-97407-467-0
02
1
0807-
109
SEAL; HOLE
EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE
8-98059-421-0
06
1
1004-1102
109
SEAL; HOLE
OD=20 T=0.05 WHITE
8-98059-421-0
06
1
1103-
