Isuzu WW
▶
TRUCKS
▶
NMR
▶
51508 - NMR CNG(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#139342) — 31 parça
◀

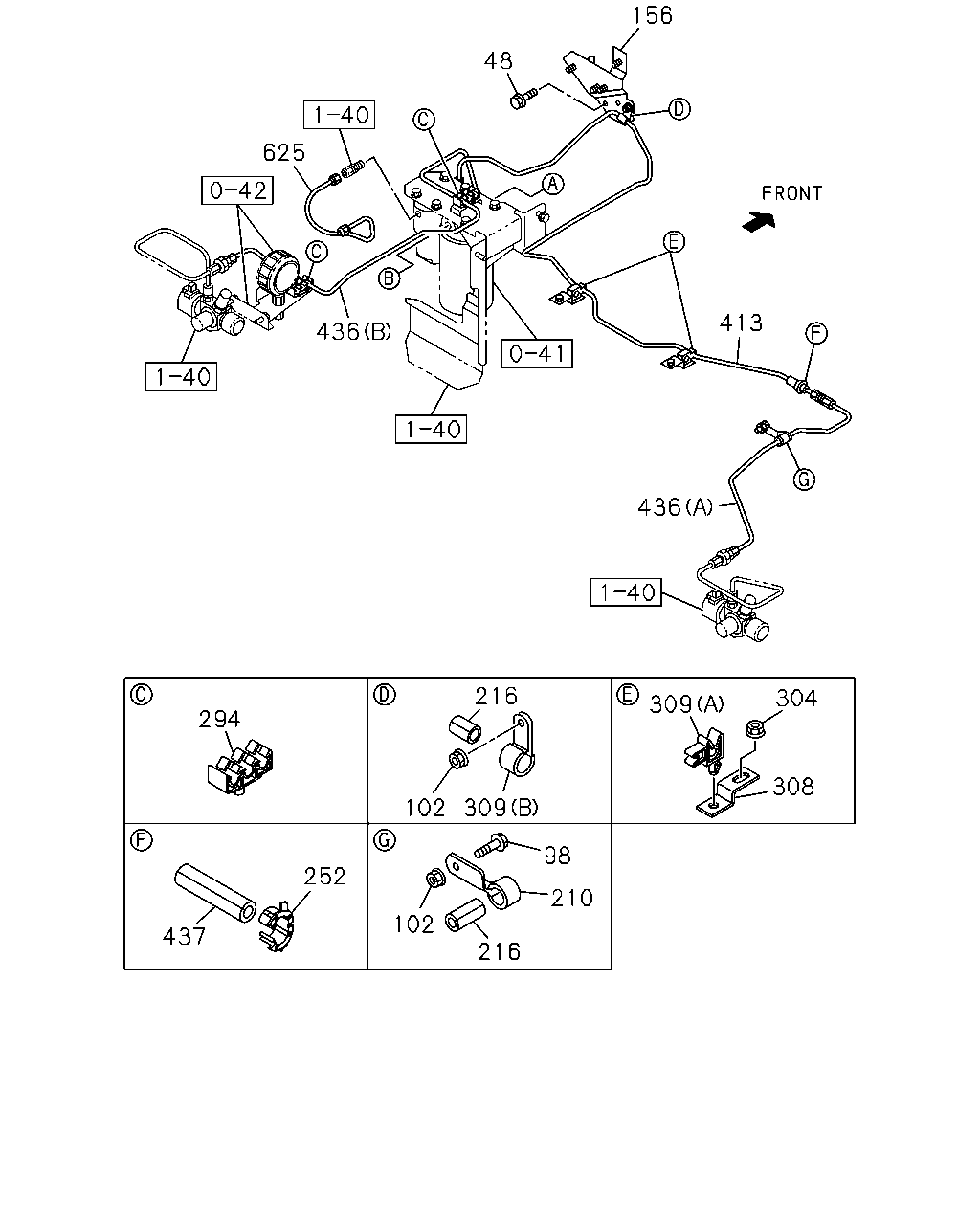

[141A] NO.1 (19 parça)
[141A] NO.2 (12 parça)
▶
156
48
625
436
413
436
304
309
308
216
102
309
294
252
437
98
210
216
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; BRKT
M8X20 FLANGE THA
0-28650-820-0
02
1
1405-
98
BOLT; BRKT,FUEL PIPE
M8X25 FLANGE THA
0-28650-825-0
01
1
1405-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE THA
0-91180-108-0
01
1
1405-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE THA
0-91180-108-0
01
1
1405-
156
BRACKET; FUEL HOSE
8-98054-311-2
01
1
1405-
210
CLIP; FEED PIPE
ID=13 L=50
1-09700-027-1
01
1
1405-
216
INSULATION; FUEL PIPE
OD=15 L=50
8-97066-274-0
01
1
1405-
216
INSULATION; FUEL PIPE
OD=16 L=20
8-97254-836-0
01
1
1405-
252
GROMMET
ID=17
8-94128-319-2
01
1
1405-
294
CLIP; FUEL PIPE
ID=10 & 6.8X2 OR 8.4X3 THA
8-97249-906-1
02
1
1405-
304
NUT; BRKT
M10
0-91111-510-0
02
1
1405-
308
BRACKET; FUEL PIPE
8-98034-748-1
02
1
1405-
309
CLIP; PIPE
(B) ID=13 L=28
0-95235-255-0
01
1
1405-
309
CLIP; PIPE
(A) ID=12 & 6.35
8-97215-437-0
02
1
1405-
413
PIPE; FUEL,CENTER
THA
8-97927-117-0
01
1
1405-
436
PIPE; FUEL,REGULATOR
(A) THA
8-97927-118-0
01
1
1405-
436
PIPE; FUEL,REGULATOR
(B) THA
8-97927-119-0
01
1
1405-
437
RUBBER; INSULATOR
OD=16 L=20
8-97254-836-0
01
1
1405-
625
HOSE; FUEL,CNG
THA
8-97927-120-0
01
1
1405-
340
633
132
132
24
132
429
29
24
343
29
429
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
CLIP; FUEL HOSE
(B) ID=15.5 & 19.5 THA
8-98137-046-0
01
1
1405-
24
CLIP; FUEL HOSE
(A) ID=14 L=20
8-98144-944-0
01
1
1405-
29
HOSE; FUEL
(A)
8-98144-592-0
01
1
1405-
29
HOSE; FUEL
(B)
8-98165-276-0
01
1
1405-
132
BOLT; FUEL HOSE
(B) M6X25 FLANGE
0-28050-625-0
01
1
1405-
132
BOLT; FUEL HOSE
(B) M6X60 FLANGE
0-28050-660-0
01
1
1405-
132
BOLT; FUEL HOSE
(C) M8X20 FLANGE THA
0-28650-820-0
01
1
1405-
132
BOLT; FUEL HOSE
(A) M8X25 FLANGE THA
0-28650-825-0
01
1
1405-
340
CONNECTOR; CNG
8-98144-429-0
01
1
1405-
343
UNION; ELBOW
8-98144-428-0
01
1
1405-
429
GASKET; JOINT
8-98140-336-0
02
1
1405-
633
NUT; FUEL HOSE
M8 FLANGE THA
0-91180-108-0
01
1
1405-
