1-11 — RADIATOR HOSE AND SUB TANK
(#139338) — 14 parça
◀

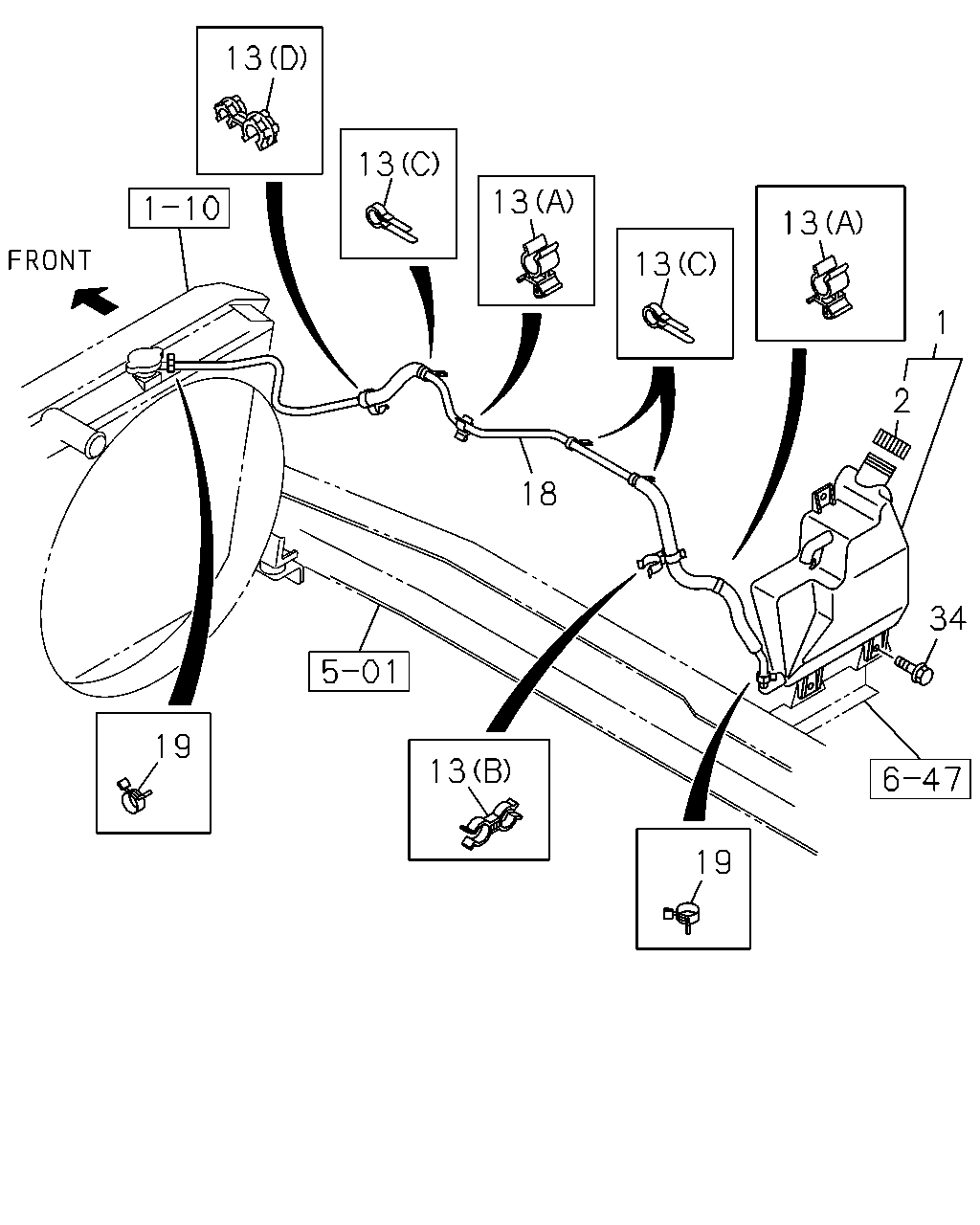

[111A] SURGE TANK AND HOSE (9 parça)
[111A] RAD HOSE AND CLIP (5 parça)
▶
13
13
13
13
13
1
2
34
18
19
13
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-98178-179-0
01
1
1405-
2
CAP; SURGE TANK
8-98178-074-0
01
1
1405-
13
CLIP; HOSE,SURGE TANK
(C) ID=14 L=47
5-09700-319-0
02
1
1405-
13
CLIP; HOSE,SURGE TANK
(D) ID=10 & 12
8-94416-613-0
01
1
1405-
13
CLIP; HOSE,SURGE TANK
(B) ID=13.2 & 11.5 THA
8-97230-081-0
01
1
1405-
13
CLIP; HOSE,SURGE TANK
(A) ID=12
8-98029-256-0
02
1
1405-
18
HOSE; RAD TO SURGE TANK
8-98059-268-0
01
1
1405-
19
CLIP; HOSE,SURGE TANK
ID=12
8-98150-358-0
02
1
1405-
34
BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER
1-09030-042-0
03
1
1405-
56
56
128
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
HOSE; WATER,RAD OUTLET
8-98086-989-0
01
1
1405-
56
CLIP; WATER HOSE,RAD
(B) ID=52
1-09704-057-0
01
1
1405-
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
02
1
1405-
56
CLIP; WATER HOSE,RAD
(C) ID=62
8-98133-957-0
01
1
1405-
128
HOSE; WATER,RAD INL
8-97264-675-0
01
1
1405-
