◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51508 - NMR CNG(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#139332) — 24 parça

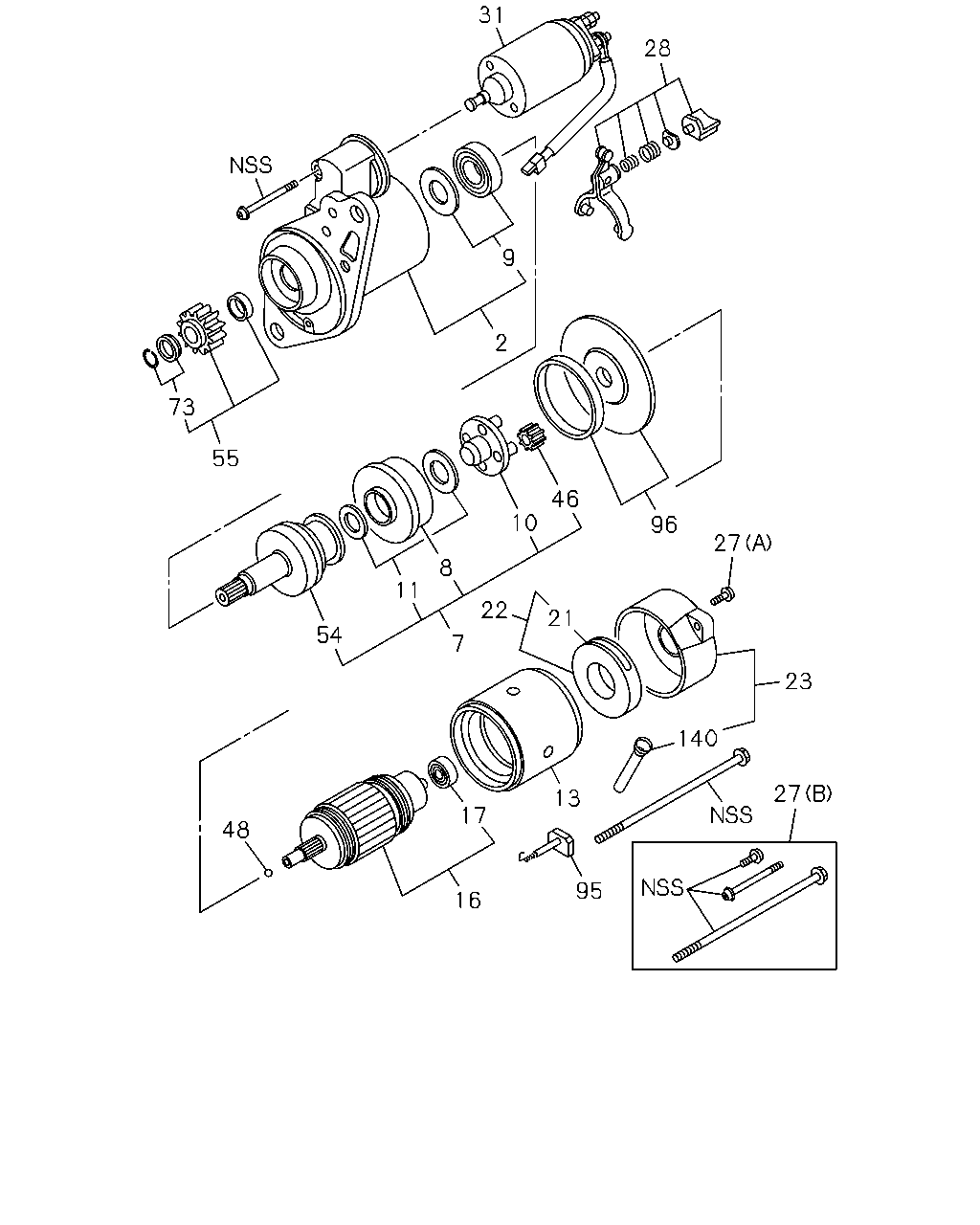

çizim 420257
16 17 13 95 140 23 27 21 22 7 8 11 54 48 10 46 96 27 2 9 55 73 31 28
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
THA ASM PART: A = 8-97948-121-1 		8-98246-657-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
THA ASM PART: A = 8-97948-121-1 		8-98246-658-0 01 1 -
8 BRACKET; CENTER STARTER
THA ASM PART: A = 8-97948-121-1 		8-97116-485-0 01 1 -
9 BEARING; GEAR SHAFT STARTER
THA ASM PART: A = 8-97948-121-1 		8-97116-481-0 01 1 -
10 SHAFT; GEAR STARTER
THA ASM PART: A = 8-97948-121-1 		8-97178-152-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
THA ASM PART: A = 8-97948-121-1 		8-97116-484-0 01 1 -
13 YOKE; STARTER
THA ASM PART: A = 8-97948-121-1 		8-98252-443-0 01 1 -
16 ARMATURE; STARTER
THA ASM PART: A = 8-97948-121-1 		8-97231-280-0 01 1 -
17 BEARING; ARMATURE,STARTER
THA ASM PART: A = 8-97948-121-1 		1-81129-837-0 01 1 -
21 SPRING; BRUSH HOLDER STARTER
THA ASM PART: A = 8-97948-121-1 		8-97116-516-0 04 1 -
22 HOLDER; BRUSH STARTER
THA ASM PART: A = 8-97948-121-1 		8-98252-445-0 01 1 -
23 COVER; RR COVER STARTER
THA ASM PART: A = 8-97948-121-1 		8-98252-446-0 01 1 -
27 BOLT; THROUGH,STARTER
(A), THA ASM PART: A = 8-97948-121-1 		8-97116-495-0 01 1 -
27 BOLT; THROUGH,STARTER
(B), THA ASM PART: A = 8-97948-121-1 		8-97116-514-0 01 1 -
28 LEVER; SHIFT,STARTER
THA ASM PART: A = 8-97948-121-1 		8-97116-492-0 01 1 -
31 SWITCH; ENGAGE STARTER
THA ASM PART: A = 8-97948-121-1 		8-98252-441-1 01 1 -
46 GEAR; CLU STARTER
THA ASM PART: A = 8-97948-121-1 		8-97116-490-0 04 1 -
48 BALL; PINION,STARTER
THA ASM PART: A = 8-97948-121-1 		8-97116-515-0 01 1 -
54 CLUTCH; PINION,STARTER
THA ASM PART: A = 8-97948-121-1 		8-98246-659-0 01 1 -
55 PINION; CLU,STARTER
THA ASM PART: A = 8-97948-121-1 		8-98246-660-0 01 1 -
73 STOPPER SET; PINION
THA ASM PART: A = 8-97948-121-1 		8-94475-688-0 01 1 -
95 BRUSH ASM; STARTER
THA ASM PART: A = 8-97948-121-1 		8-98252-448-0 02 1 -
96 GASKET; FRT CASE
THA ASM PART: A = 8-97948-121-1 		8-98252-442-0 01 1 -
140 GROMMET; RR COVER
THA ASM PART: A = 8-97948-121-1 		8-98252-447-0 01 1 -
