◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51508 - NMR CNG(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#139328) — 11 parça
çizim 420242
86 341 89 340 202 202 46 27 46 202 202 83
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; OIL PIPE FIX
M8X16 FLANGE THA 		0-28050-816-0 01 1 1405-
46 BOLT; JOINT,OIL FEED PIPE,VAC PUMP
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1405-
46 BOLT; JOINT,OIL FEED PIPE,VAC PUMP
(A) M10X21 FLANGE 		8-97372-239-0 01 1 1405-
83 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 1405-
86 PIPE; OIL,VAC PUMP RETURN
THA 		8-94455-311-1 01 1 1405-
89 CLIP; VAC HOSE
ID=17.1 		8-94122-679-0 01 1 1405-
202 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 1405-
202 GASKET; OIL PIPE
(B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1405-
340 HOSE; VAC PUMP,RETURN 8-94339-073-3 01 1 1405-
341 CLIP; HOSE,VAC PUMP
ID=17.1 		8-94122-679-0 01 1 1405-

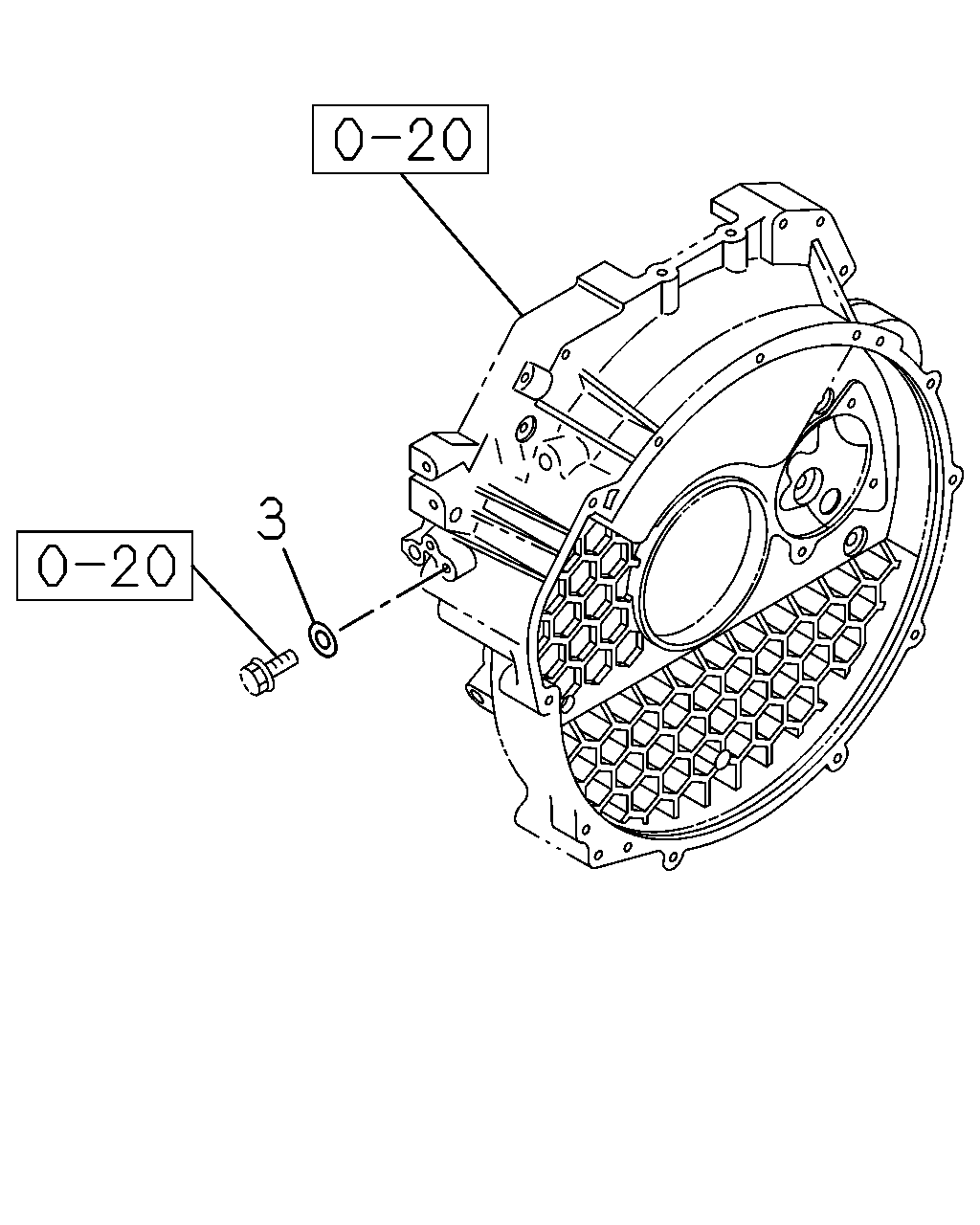

çizim 421206
3
BalonParca AdiParca NoAdetTipApplied Date
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 1405-
