Isuzu WW
▶
TRUCKS
▶
NMR
▶
51508 - NMR CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#139312) — 28 parça
◀

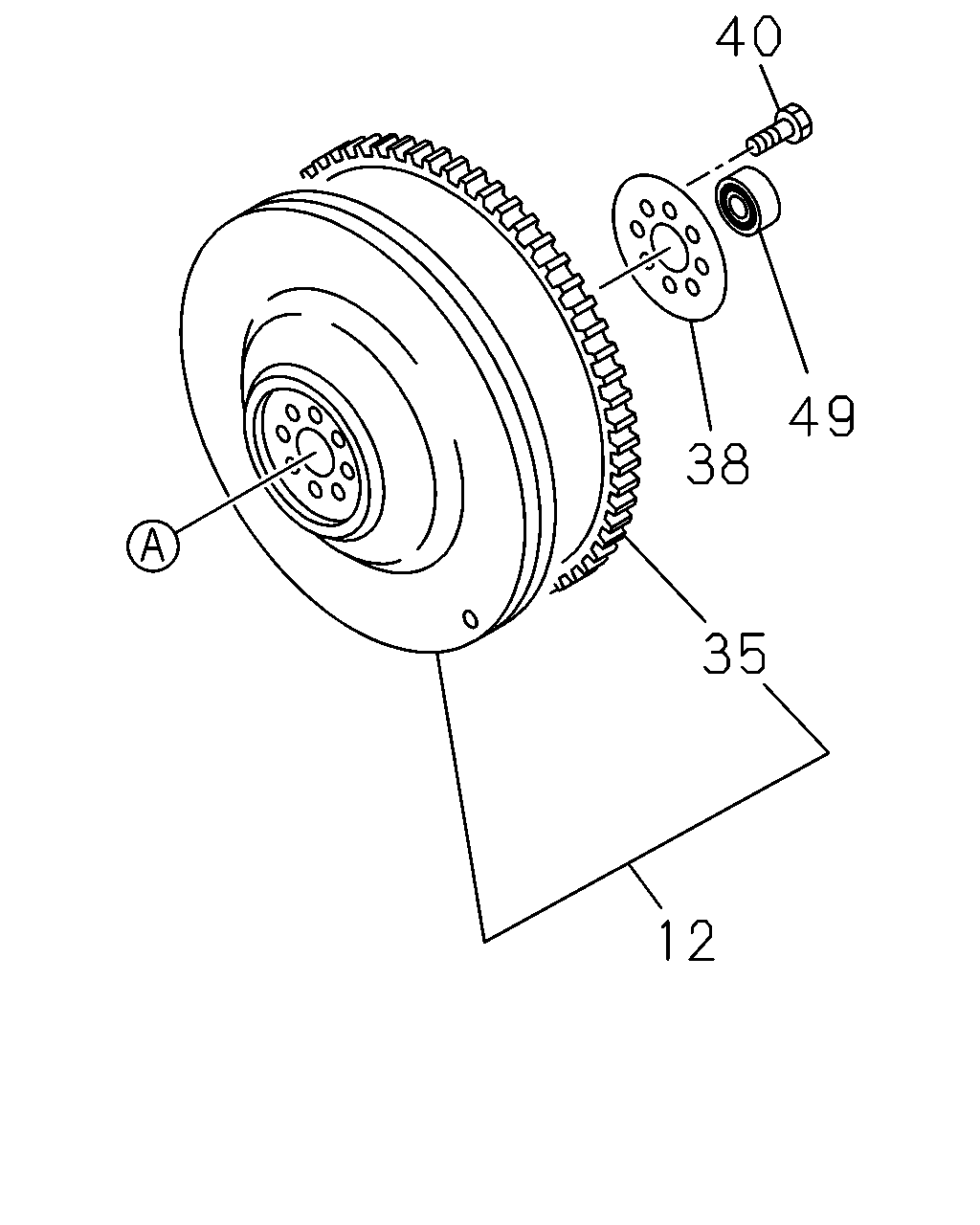

[015A] FLYWHEEL (5 parça)

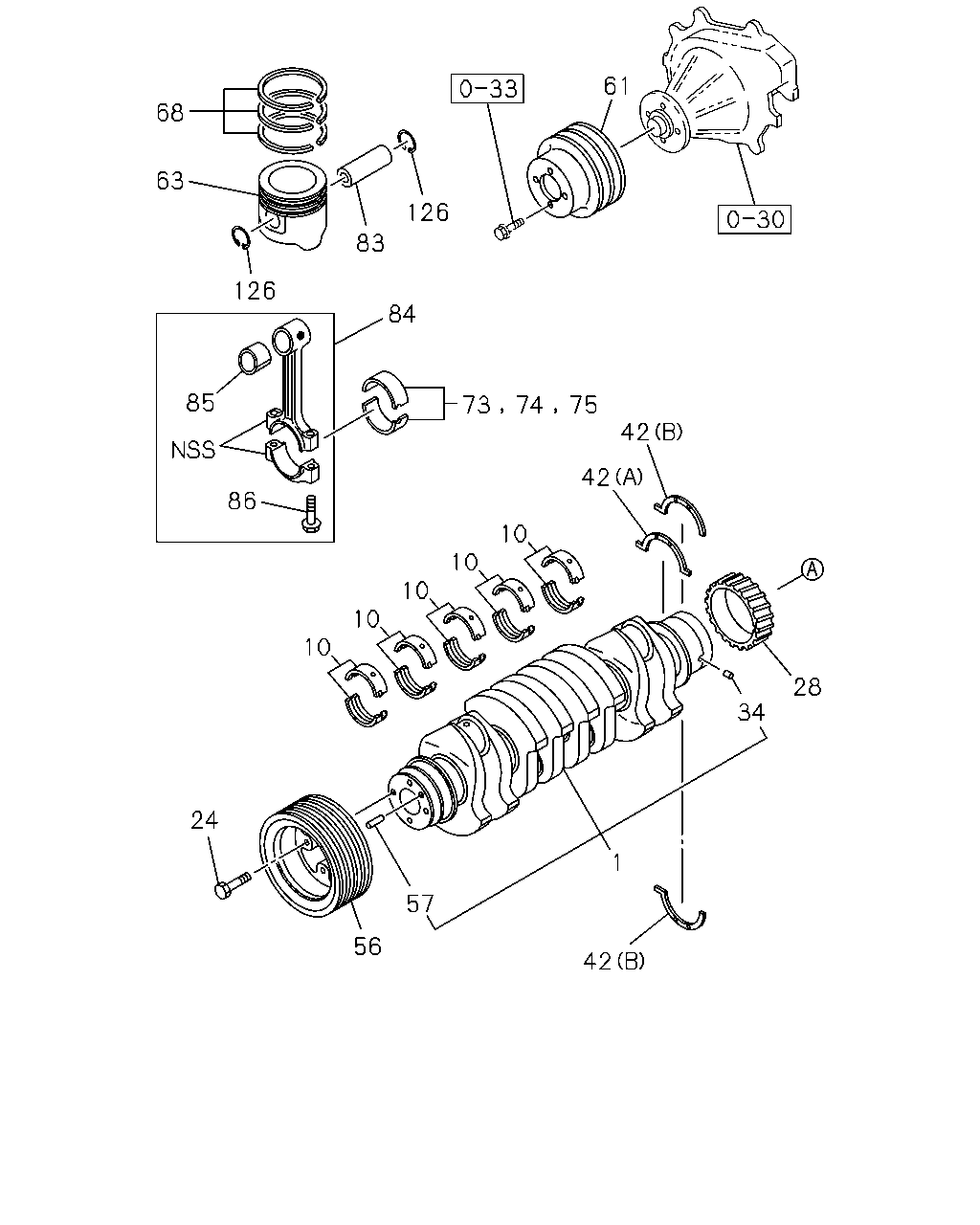

[015A] CRANKSHAFT AND PISTON (23 parça)
▶
40
49
38
35
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
FLYWHEEL
8-97366-601-1
01
1
1405-
35
GEAR; RING
Z=138
8-97046-366-1
01
1
1405-
38
WASHER; FLYWHEEL
ID=55 OD=110
8-94397-496-1
01
1
1405-
40
BOLT; FLYWHEEL
M16X42
8-97178-013-0
08
1
1405-
49
BEARING; PILOT
8-97258-239-0
01
1
1405-
68
63
126
85
86
83
126
61
84
73
75
74
42
42
10
10
10
10
10
24
57
56
1
42
34
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-97112-981-3
01
1
1405-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
05
1
1405-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
05
1
1405-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
05
1
1405-
24
BOLT; DAMPER
M16X42
8-97028-733-0
04
1
1405-
28
GEAR; CR/SHF
Z=42
8-97109-626-1
01
1
1405-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
02
1
1405-
42
WASHER; THRUST,CR/SHF
(A) FRONT
8-97386-548-0
01
1
1405-
42
WASHER; THRUST,CR/SHF
(B) REAR
8-97386-549-0
02
1
1405-
56
PULLEY; CR/SHF DAMPER
4-GROOVE
8-97222-031-3
01
1
1405-
57
PIN; PULLEY
OD=8 L=20
9-08150-820-0
04
1
1405-
61
PULLEY; FAN DRIVE
2-GROOVE
8-97174-757-3
01
1
1405-
63
PISTON
ALSO INCLUDED IN LINER SET.
8-98235-600-0
04
1
1405-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98233-350-0
04
1
1405-
73
METAL SET; CONN ROD,STANDARD
YELLOW
8-97045-800-0
04
1
1405-
73
METAL SET; CONN ROD,STANDARD
GREEN
8-97045-801-0
04
1
1405-
74
METAL SET; CONN ROD,U/S=0.25
8-97175-127-0
04
1
1405-
75
METAL SET; CONN ROD,U/S=0.50
8-97175-128-0
04
1
1405-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-94396-589-1
04
1
1405-
84
ROD ASM; CONN
8-97135-032-5
04
1
1405-
85
BUSHING; CONNROD
8-98121-309-0
04
1
1405-
86
BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
08
1
1405-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
8-94318-798-2
08
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
