9-01 — TOOLS (#139304) — 35 parça

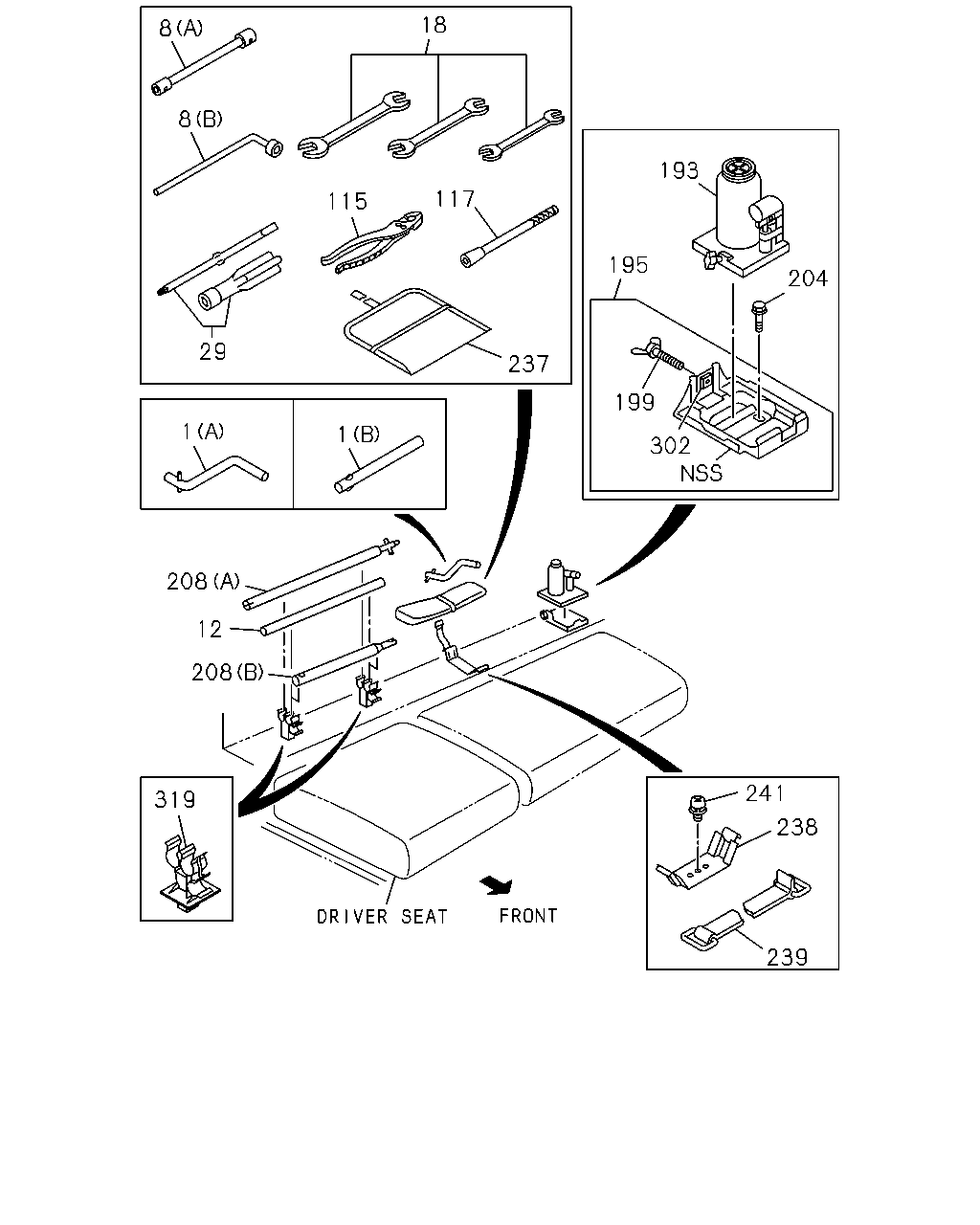

çizim 421802
8 8 115 117 18 29 1 1 237 195 193 204 302 199 208 12 208 319 241 238 239
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 1405- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM<24W> (A) 		8-97218-985-0 01 1 1405- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM<33W> (B) L=280 		8-98181-251-0 01 1 1405- ●
8 WRENCH; WHEEL
SINGLE RR TIRE<6TD> (B) B=23 L=300 		9-85113-935-0 01 1 1405- ●
8 WRENCH; WHEEL
EXC. SINGLE RR TIRE<6TD> (A) B=41X19 L=330 		8-94386-490-1 01 1 1405- ●
8 WRENCH; WHEEL
(A) B=41X19 L=330 		8-94386-490-1 01 1 1405- ●
12 HANDLE; WRENCH,WHEEL PIN
EXC. SINGLE RR TIRE<6TD> OD=25 L=480 		1-85116-011-0 01 1 1405-1407 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM<24W> OD=25 L=480 		1-85116-011-0 01 1 1405-1407 ●
12 HANDLE; WRENCH,WHEEL PIN
EXC. SINGLE RR TIRE<6TD> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM<24W> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
18 WRENCH KIT 9-85161-902-0 01 1 1405- ● ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1405- ● ●
115 PLIER 5-85171-002-0 01 1 1405-1410 ● ●
115 PLIER
THA 		8-98282-845-0 01 1 1411- ● ●
117 WRENCH; VALVE CAP
EXC. SINGLE RR TIRE<6TD> 		9-85163-906-1 01 1 1405- ●
117 WRENCH; VALVE CAP 9-85163-906-1 01 1 1405- ●
193 JACK ASM
SINGLE RR TIRE<6TD> 5TON 		8-98114-047-0 01 1 1405- ●
193 JACK ASM
EXC. SINGLE RR TIRE<6TD> 4TON 		8-98012-285-0 01 1 1405- ●
193 JACK ASM
4TON 		8-98012-285-0 01 1 1405- ●
195 BRACKET; JACK
SINGLE RR TIRE<6TD> 		8-97589-376-2 01 1 1405- ●
195 BRACKET; JACK
EXC. SINGLE RR TIRE<6TD> 		8-98033-737-2 01 1 1405- ●
195 BRACKET; JACK 8-98033-737-2 01 1 1405- ●
199 BOLT; JACK
SINGLE RR TIRE<6TD> M8X30 WING 		8-98005-536-0 01 1 1405- ●
199 BOLT; JACK
EXC. SINGLE RR TIRE<6TD> M8X50 WING 		8-98005-537-0 01 1 1405- ●
199 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 1405- ●
204 BOLT; BRKT,JACK
M8X25 FLANGE THA 		0-28650-825-0 01 1 1405- ● ●
208 HANDLE; JACK
(A) L=642 		8-98181-477-0 01 1 1405- ●
208 HANDLE; JACK
WHEEL BASE 2400MM<24W> (A) L=642 		8-98181-477-0 01 1 1405- ●
208 HANDLE; JACK
WHEEL BASE 3300MM<33W> (B) L=580 		8-98181-249-0 01 1 1405- ●
237 BAG; TOOL 8-97130-903-1 01 1 1405- ● ●
238 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1405- ● ●
239 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1405- ● ●
241 SCREW; TOOL BAG SUPPORT
M6X16 		0-38050-616-0 01 1 1405- ● ●
302 NUT; JACK BRKT 8-98021-556-0 01 1 1405- ● ●
319 CLIP; TOOL BAR 8-97853-077-2 02 1 1405- ● ●
