0-39 — AIR COMPRESSOR; BRAKE (#1393) — 32 parça

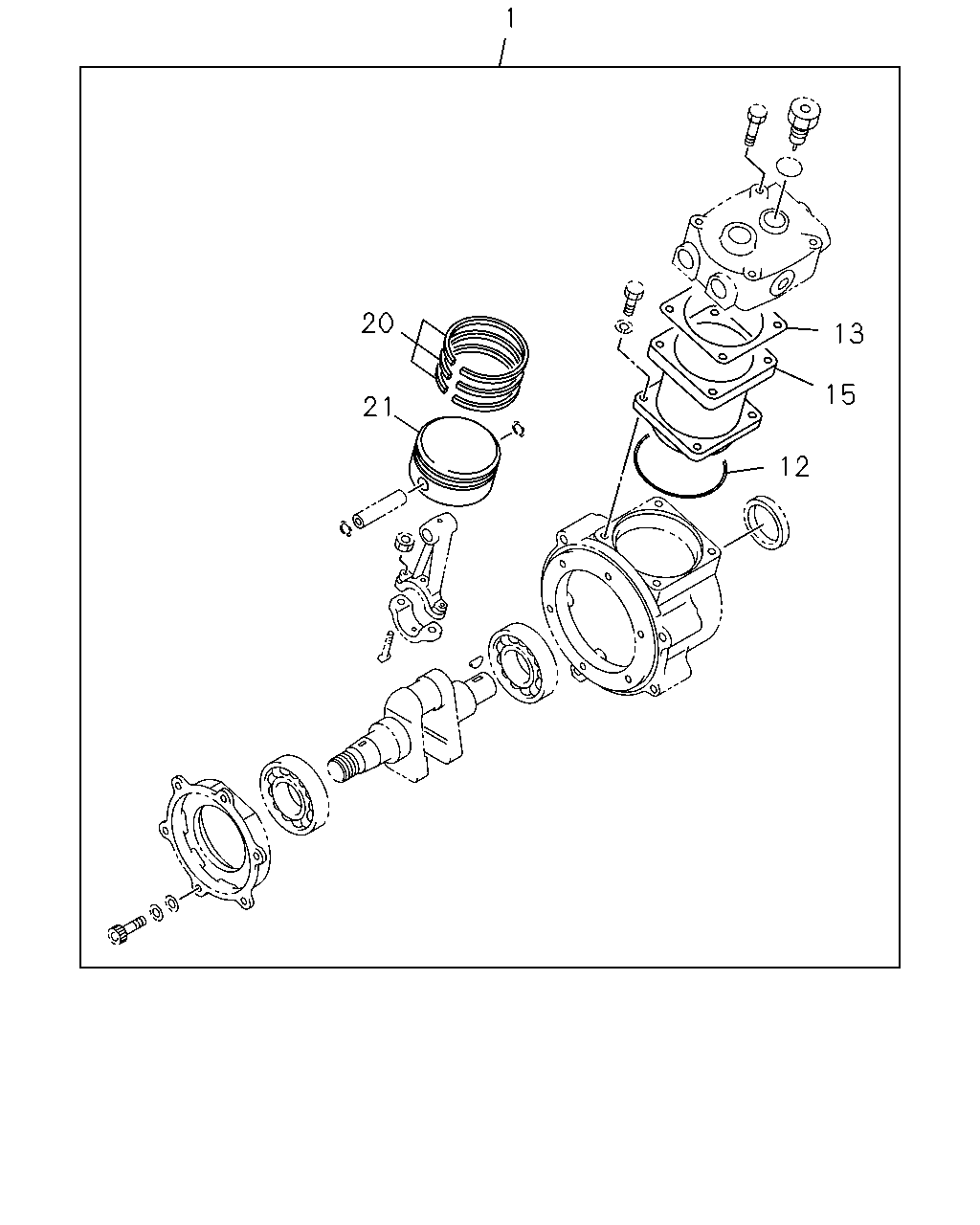

çizim 94951
1 20 13 15 21 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINER KIT; CYL,AIR CMPR 1-19163-038-0 01 1 9203- ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9203- ● ●
13 GASKET; AIR CMPR 1-19139-001-0 01 1 9203- ● ●
15 CYLINDER; AIR CMPR 1-19151-251-0 01 1 9203- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-034-0 01 1 9203- ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 9203- ● ●

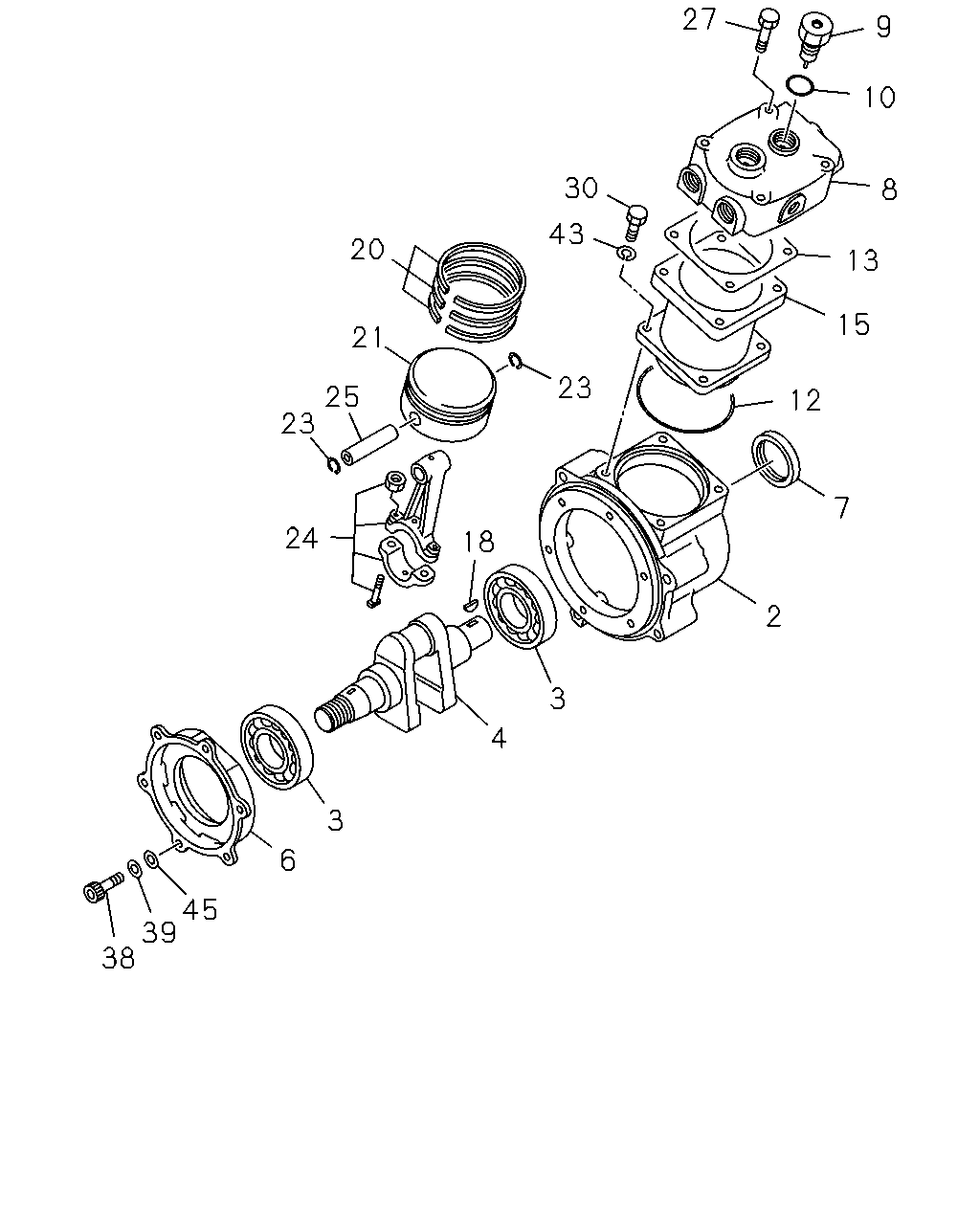

çizim 96506
27 9 10 30 8 43 20 13 15 21 23 25 23 12 7 24 18 2 3 4 3 6 45 39 38
BalonParca AdiParca NoAdetTipApplied Date A B
2 CRANKCASE; AIR CMPR 1-19151-231-0 01 1 9203-9507 ● ●
2 CRANKCASE; AIR CMPR 1-19151-277-0 01 1 9508- ● ●
3 BEARING; AIR CMPR 1-09800-232-0 02 1 9203- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-055-0 01 1 9203- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-043-0 01 1 9203- ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-187-0 01 1 9203- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-016-0 01 1 9203- ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-002-0 01 1 9203-9204 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-021-1 01 1 9205- ● ●
10 SHIM; AIR CMPR 9-19139-021-0 01 1 9203- ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9203- ● ●
13 GASKET; AIR CMPR 1-19139-001-0 01 1 9203- ● ●
15 CYLINDER; AIR CMPR 1-19151-251-0 01 1 9203- ● ●
18 KEY; AIR CMPR 9-08055-516-0 01 1 9203- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-034-0 01 1 9203- ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 9203- ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9203- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 9203- ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 9203- ● ●
27 BOLT; HD
M10X60 		9-01066-060-0 04 1 9203- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9203- ● ●
38 BOLT; COVER FIX
M6X16 		9-02050-616-0 06 1 9203- ● ●
39 WASHER; LK,COVER FIX
ID=10.2 		9-09150-510-0 06 1 9203-9507 ● ●
39 WASHER; LK,COVER FIX
ID=6.1 		9-09150-506-0 06 1 9508- ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9203- ● ●
45 WASHER; PL,COVER FIX,AIR CMPR 1-19159-005-0 06 1 9203- ● ●
