8-60 — HEATER UNIT; FRONT (#139297) — 28 parça

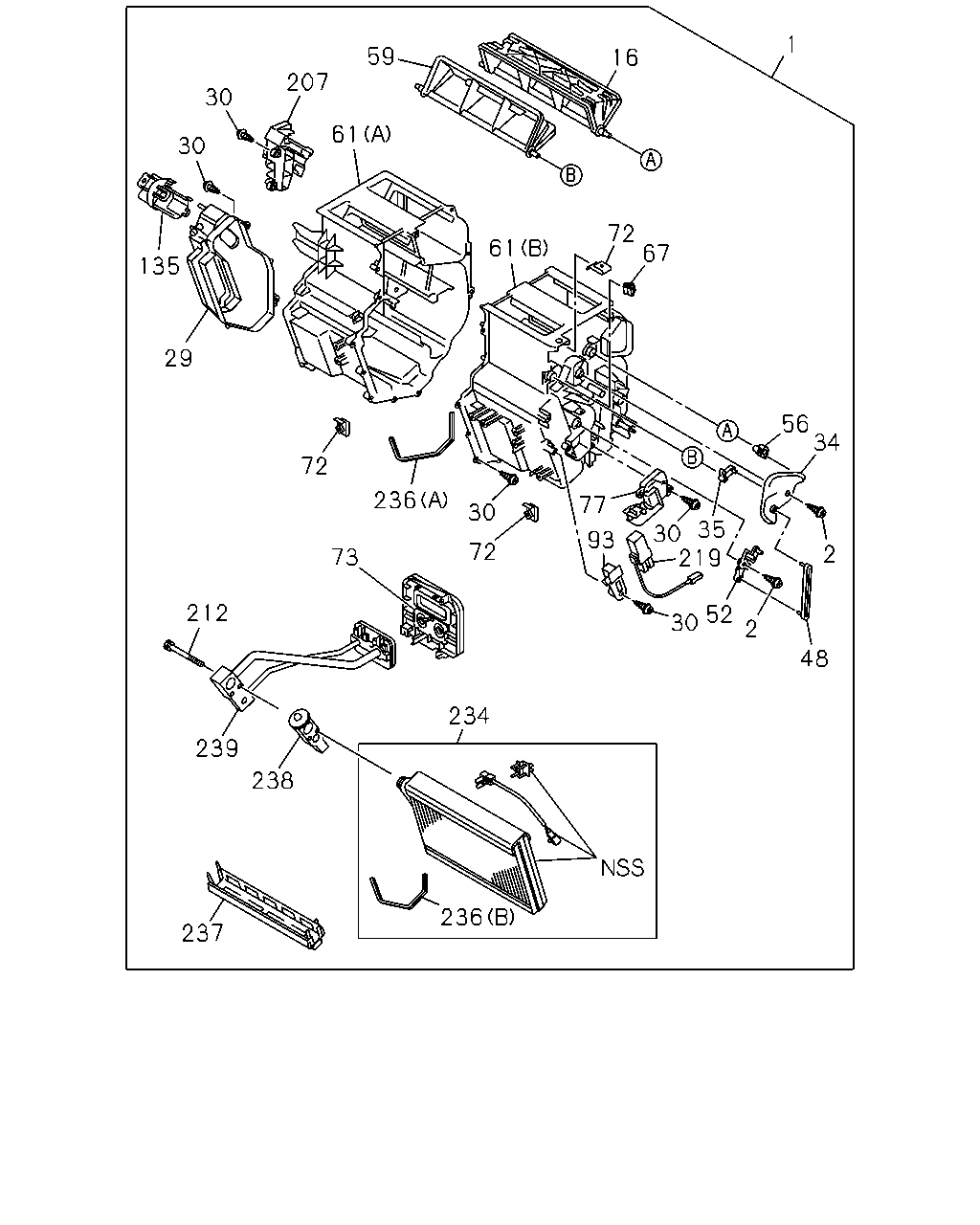

çizim 422004
1 56 34 2 48 2 52 219 30 35 30 93 77 67 72 16 59 61 61 30 72 236 72 29 135 30 30 207 73 234 236 237 238 212 239
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
COOLER WO/HEATER<C65> 		8-98057-980-2 01 1 1405- ● ●
2 SCREW; LEVER
COOLER WO/HEATER<C65> M4X16 		8-98047-416-0 02 1 1405- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
COOLER WO/HEATER<C65> 		8-98047-387-0 01 1 1405- ● ●
29 COVER; HTR UNIT
COOLER WO/HEATER<C65> 		8-98074-119-0 01 1 1405- ● ●
30 SCREW; HTR UNIT
COOLER WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 27 1 1405- ● ●
34 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-389-0 01 1 1405- ● ●
35 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-392-0 01 1 1405- ● ●
48 LEVER; HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-391-0 01 1 1405- ● ●
52 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-390-0 01 1 1405- ● ●
56 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-393-0 01 1 1405- ● ●
59 SHUTTER; HTR UNIT,SIDE
COOLER WO/HEATER<C65> 		8-98047-386-0 01 1 1405- ● ●
61 CASE; HTR UNIT
COOLER WO/HEATER<C65> (A) 		8-98077-422-0 01 1 1405- ● ●
61 CASE; HTR UNIT
COOLER WO/HEATER<C65> (B) 		8-98077-423-0 01 1 1405- ● ●
67 CLIP; HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-417-0 01 1 1405- ● ●
72 NUT; CASE,HTR UNIT
COOLER WO/HEATER<C65> M6 		8-98047-428-0 03 1 1405- ● ●
73 PLATE; HTR UNIT
COOLER WO/HEATER<C65> 		8-98077-420-0 01 1 1405- ● ●
77 COVER; HTR CASE
COOLER WO/HEATER<C65> 		8-98047-414-0 01 1 1405- ● ●
93 PLATE; HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-427-0 01 1 1405- ● ●
135 COVER; HTR
COOLER WO/HEATER<C65> 		8-98047-384-0 01 1 1405- ● ●
207 CLAMP; HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-379-0 01 1 1405- ● ●
212 BOLT; HTR UNIT
COOLER WO/HEATER<C65> M5X61 		8-98047-415-0 02 1 1405- ● ●
219 AMPLIFIER; HEATER UNIT
COOLER WO/HEATER<C65> 		8-98064-733-0 01 1 1405- ● ●
234 EVAPORATOR ASM; HEATER
COOLER WO/HEATER<C65> 		8-98074-116-1 01 1 1405- ● ●
236 GASKET; HEATER
COOLER WO/HEATER<C65> (A) 		8-98047-420-0 01 1 1405- ● ●
236 GASKET; HEATER
COOLER WO/HEATER<C65> (B) 		8-98047-421-0 01 1 1405- ● ●
237 INSULATOR; EVAPORATOR
COOLER WO/HEATER<C65> 		8-98047-382-0 01 1 1405- ● ●
238 VALVE; EXPANSION
COOLER WO/HEATER<C65> 		8-98047-383-0 01 1 1405- ● ●
239 TUBE ASM; HEATER
COOLER WO/HEATER<C65> 		8-98074-115-0 01 1 1405- ● ●
