Isuzu WW
▶
TRUCKS
▶
NLR
▶
51507 - NLR/NMR(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#139296) — 35 parça
Tümü
A - NMR5SE
B - NMR5SN
◀

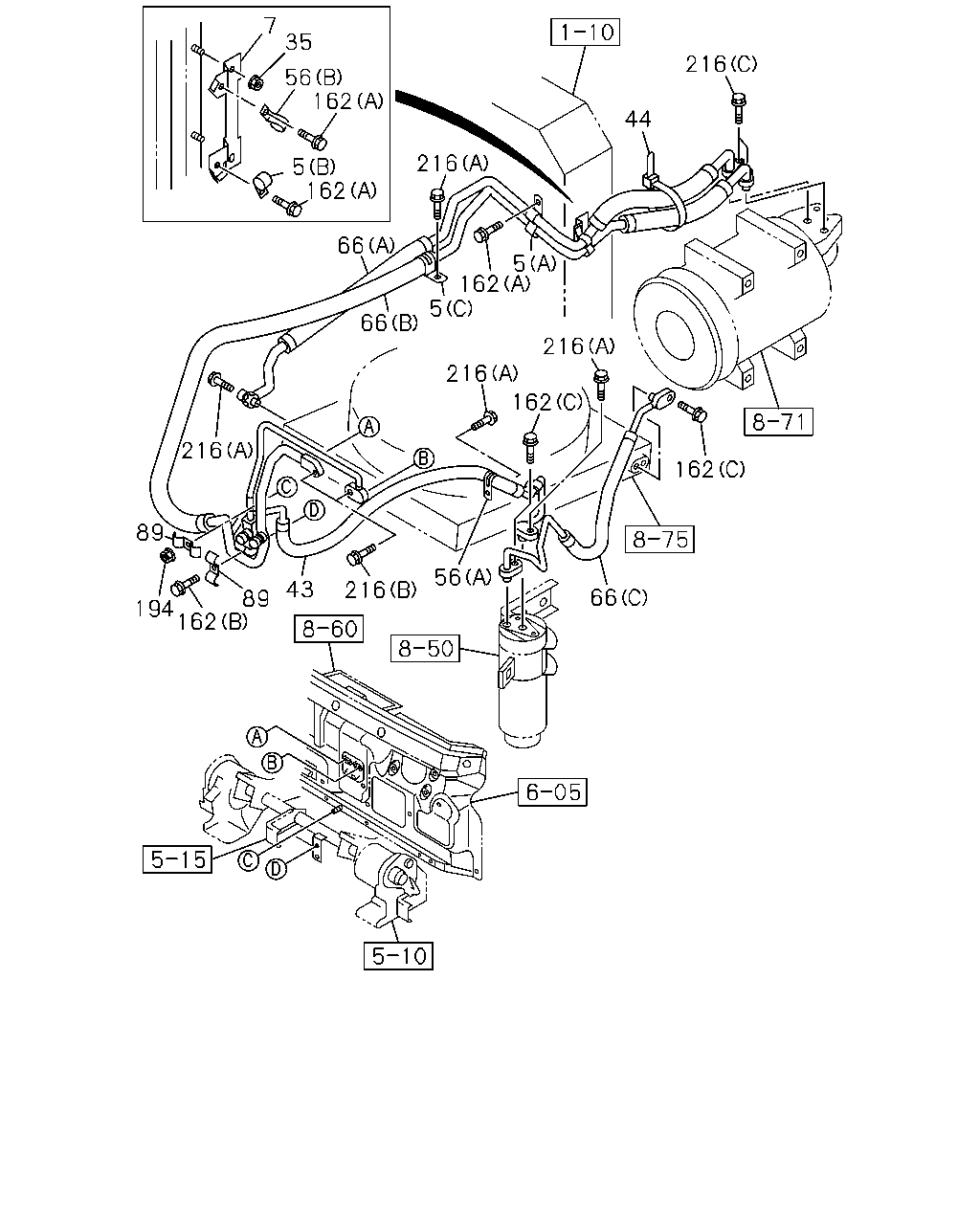

[852A] PIPING (21 parça)
[852A] COMPONENT (14 parça)
▶
216
44
216
7
56
35
162
5
162
66
5
162
5
66
216
216
216
89
194
43
89
162
216
56
66
162
162
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
CLIP; FLEX HOSE,A/C
COOLER WO/HEATER<C65> (B) ID=16 L=20
0-95235-532-0
01
1
1405-
●
●
5
CLIP; FLEX HOSE,A/C
COOLER WO/HEATER<C65> (C)
8-98038-798-0
01
1
1405-
●
●
5
CLIP; FLEX HOSE,A/C
COOLER WO/HEATER<C65> (A)
8-98052-857-0
01
1
1405-
●
●
7
BRACKET; FLEX HOSE,A/C
COOLER WO/HEATER<C65>
8-97388-130-1
01
1
1405-
●
●
35
NUT; FLEX HOSE,A/C
COOLER WO/HEATER<C65> M6 FLANGE THA
0-91180-106-0
02
1
1405-
●
●
43
HOSE; FLEX,A/C,EVAP TO CMPR
COOLER WO/HEATER<C65> HIGH PRESSURE
8-98088-340-0
01
1
1405-
●
●
44
CLIP; FLEX HOSE
COOLER WO/HEATER<C65> L=250
5-09707-030-1
01
1
1405-
●
●
44
CLIP; FLEX HOSE
COOLER WO/HEATER<C65> L=140
5-09707-031-1
01
1
1405-
●
●
56
CLIP; PIPE,A/C
COOLER WO/HEATER<C65> (A)
8-98032-641-0
01
1
1405-
●
●
56
CLIP; PIPE,A/C
COOLER WO/HEATER<C65> (B) ID=13 H=12 L=20
8-98038-485-0
01
1
1405-
●
●
66
HOSE; FLEX,A/C
COOLER WO/HEATER<C65> (A) HIGH PRESSURE THA
8-97926-677-0
01
1
1405-
●
●
66
HOSE; FLEX,A/C
COOLER WO/HEATER<C65> (B) LOW PRESSURE THA
8-97926-683-0
01
1
1405-
●
●
66
HOSE; FLEX,A/C
COOLER WO/HEATER<C65> (C) HIGH PRESSURE
8-98038-579-3
01
1
1405-
●
●
89
BRACKET; A/C PIPE
COOLER WO/HEATER<C65>
8-98151-264-0
02
1
1405-
●
●
162
BOLT; FLEX HOSE
COOLER WO/HEATER<C65> (A) M6X12 FLANGE THA
0-28050-612-0
03
1
1405-
●
●
162
BOLT; FLEX HOSE
COOLER WO/HEATER<C65> (B) M6X20 FLANGE THA
0-28650-620-0
01
1
1405-
●
●
162
BOLT; FLEX HOSE
COOLER WO/HEATER<C65> (C) M6X25 FLANGE THA
0-28650-625-0
02
1
1405-
●
●
194
NUT; HOSE
COOLER WO/HEATER<C65> M6 FLANGE THA
0-91180-106-0
02
1
1405-
●
●
216
BOLT; HOSE FIX
COOLER WO/HEATER<C65> (A) M6X25 FLANGE THA
0-28650-625-0
04
1
1405-
●
●
216
BOLT; HOSE FIX
COOLER WO/HEATER<C65> (B) M6X30 FLANGE THA
0-28650-630-0
02
1
1405-
●
●
216
BOLT; HOSE FIX
COOLER WO/HEATER<C65> (C) M8X25 FLANGE THA
0-28650-825-0
02
1
1405-
●
●
43
66
66
66
67
67
67
67
67
67
50
50
148
147
202
147
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
43
HOSE; FLEX,A/C,EVAP TO CMPR
COOLER WO/HEATER<C65> HIGH PRESSURE
8-98088-340-0
01
1
1405-
●
●
50
GASKET; FLEX HOSE,A/C
COOLER WO/HEATER<C65> ID=7.5
1-83539-316-0
02
1
1405-
●
●
66
HOSE; FLEX,A/C
COOLER WO/HEATER<C65> (A) HIGH PRESSURE THA
8-97926-677-0
01
1
1405-
●
●
66
HOSE; FLEX,A/C
COOLER WO/HEATER<C65> (B) LOW PRESSURE THA
8-97926-683-0
01
1
1405-
●
●
66
HOSE; FLEX,A/C
COOLER WO/HEATER<C65> (C) HIGH PRESSURE
8-98038-579-3
01
1
1405-
●
●
67
GASKET; FLEX HOSE
COOLER WO/HEATER<C65> (D) ID=7.5
1-83539-316-0
02
1
1405-
●
●
67
GASKET; FLEX HOSE
COOLER WO/HEATER<C65> (A) ID=11.7 THA
8-97095-907-0
02
1
1405-
●
●
67
GASKET; FLEX HOSE
COOLER WO/HEATER<C65> (B) ID=14.5 THA
8-97095-908-0
01
1
1405-
●
●
67
GASKET; FLEX HOSE
COOLER WO/HEATER<C65> (C) ID=17.6 THA
8-98036-895-0
01
1
1405-
●
●
147
CAP; FLEX HOSE
COOLER WO/HEATER<C65> (A) CAP MARK L THA
1-83539-331-0
01
1
1405-
●
●
147
CAP; FLEX HOSE
COOLER WO/HEATER<C65> (B) CAP MARK H THA
8-97095-911-0
01
1
1405-
●
●
148
VALVE; FLEX HOSE
COOLER WO/HEATER<C65> (A) THA
8-97095-909-0
01
1
1405-
●
●
148
VALVE; FLEX HOSE
COOLER WO/HEATER<C65> (B)
8-98031-629-0
01
1
1405-
●
●
202
SWITCH; PRESSURE
COOLER WO/HEATER<C65>
1-83564-392-1
01
1
1405-
●
●
