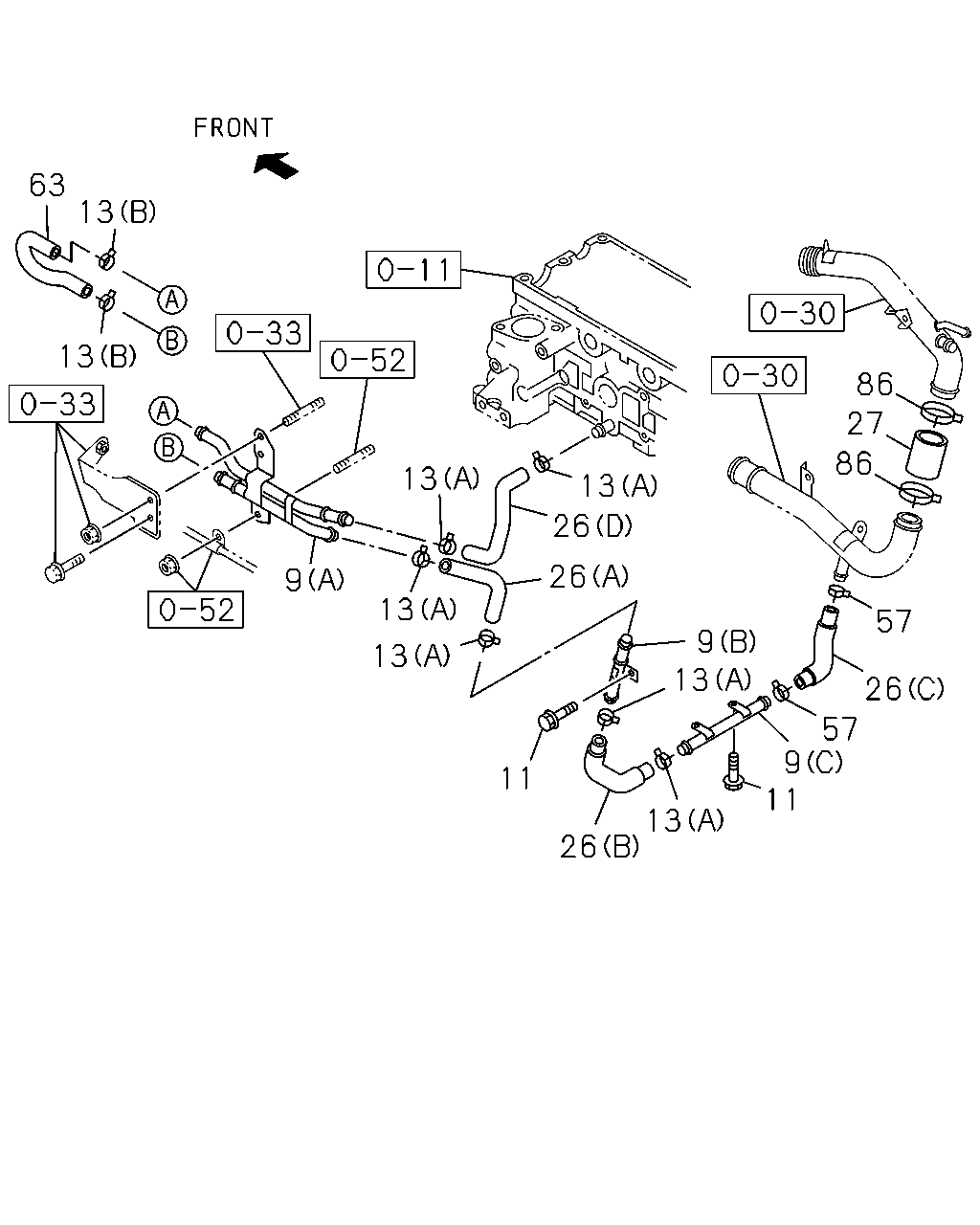

8-45 — HEATER PIPING (#139294) — 14 parça

63 13 13 9 13 11 26 26 13 86 27 86 57 26 57 9 11 13 26 13 9 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	PIPE; HTR KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> (B)	8-97381-481-3	01	1	1405-	●	●
9	PIPE; HTR KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> (C)	8-97383-035-1	01	1	1405-	●	●
9	PIPE; HTR KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> (A)	8-98028-829-1	01	1	1405-	●	●
11	BOLT; HTR PIPE KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> M8X16 FLANGE THA	0-28050-816-0	03	1	1405-	●	●
13	CLIP; HTR HOSE KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> (A) ID=20.8 THA	8-97944-127-0	06	1	1405-	●	●
13	CLIP; HTR HOSE (B) ID=20.8	8-94125-862-1	02	1	1405-	●	●
26	HOSE; HTR KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> (D)	8-97383-048-1	01	1	1405-	●	●
26	HOSE; HTR KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> (B)	8-98000-099-1	01	1	1405-	●	●
26	HOSE; HTR KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> (C)	8-98000-101-2	01	1	1405-	●	●
26	HOSE; HTR KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> (A)	8-98143-868-0	01	1	1405-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP>	8-98009-701-0	01	1	1405-	●	●
57	CLIP; HOSE KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> ID=20.8 THA	8-97944-127-0	02	1	1405-	●	●
63	HOSE; WATER THA	8-98015-119-3	01	1	1405-	●	●
86	CLIP; HTR HOSE KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> ID=40.5	8-97313-472-0	02	1	1405-	●	●
