Isuzu WW
▶
TRUCKS
▶
NLR
▶
51507 - NLR/NMR(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#139287) — 70 parça
Tümü
A - NMR5SE
B - NMR5SN
◀

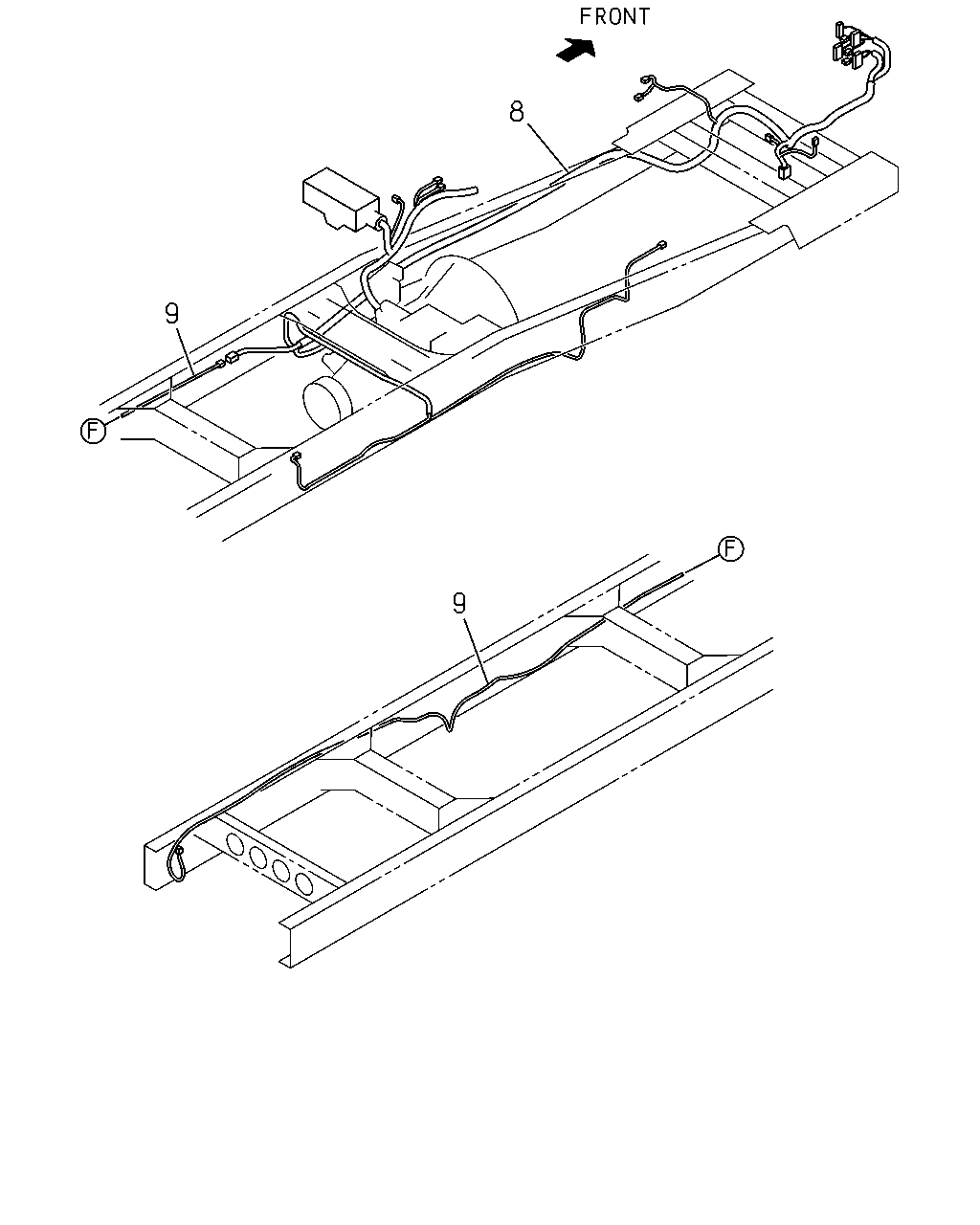

[810A] FRAME HARNESS(NO.2) (6 parça)
[810A] DOOR,ROOM AND FLOOR HARNESS (4 parça)
[810A] CAB HARNESS (20 parça)
[810A] OTHER HARNESS AND PLUG (1 parça)
[810A] RELAY;CAB HARNESS (2 parça)
[810A] FRAME HARNESS(NO.1) (23 parça)
[810A] ENG HARNESS (3 parça)
[810A] OTHER PARTS (11 parça)
▶
8
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
HARNESS; FRAME,FRT
THA
8-97924-460-1
01
1
1405-
●
8
HARNESS; FRAME,FRT
WHEEL BASE 2400MM<24W> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA
8-97924-460-1
01
1
1405-
●
8
HARNESS; FRAME,FRT
WHEEL BASE 3300MM<33W> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA
8-97924-461-1
01
1
1405-
●
9
HARNESS; FRAME,RR
THA
8-97923-864-1
01
1
1405-
●
9
HARNESS; FRAME,RR
WHEEL BASE 2400MM<24W> THA
8-97923-864-1
01
1
1405-
●
9
HARNESS; FRAME,RR
WHEEL BASE 3300MM<33W> THA
8-97923-865-1
01
1
1405-
●

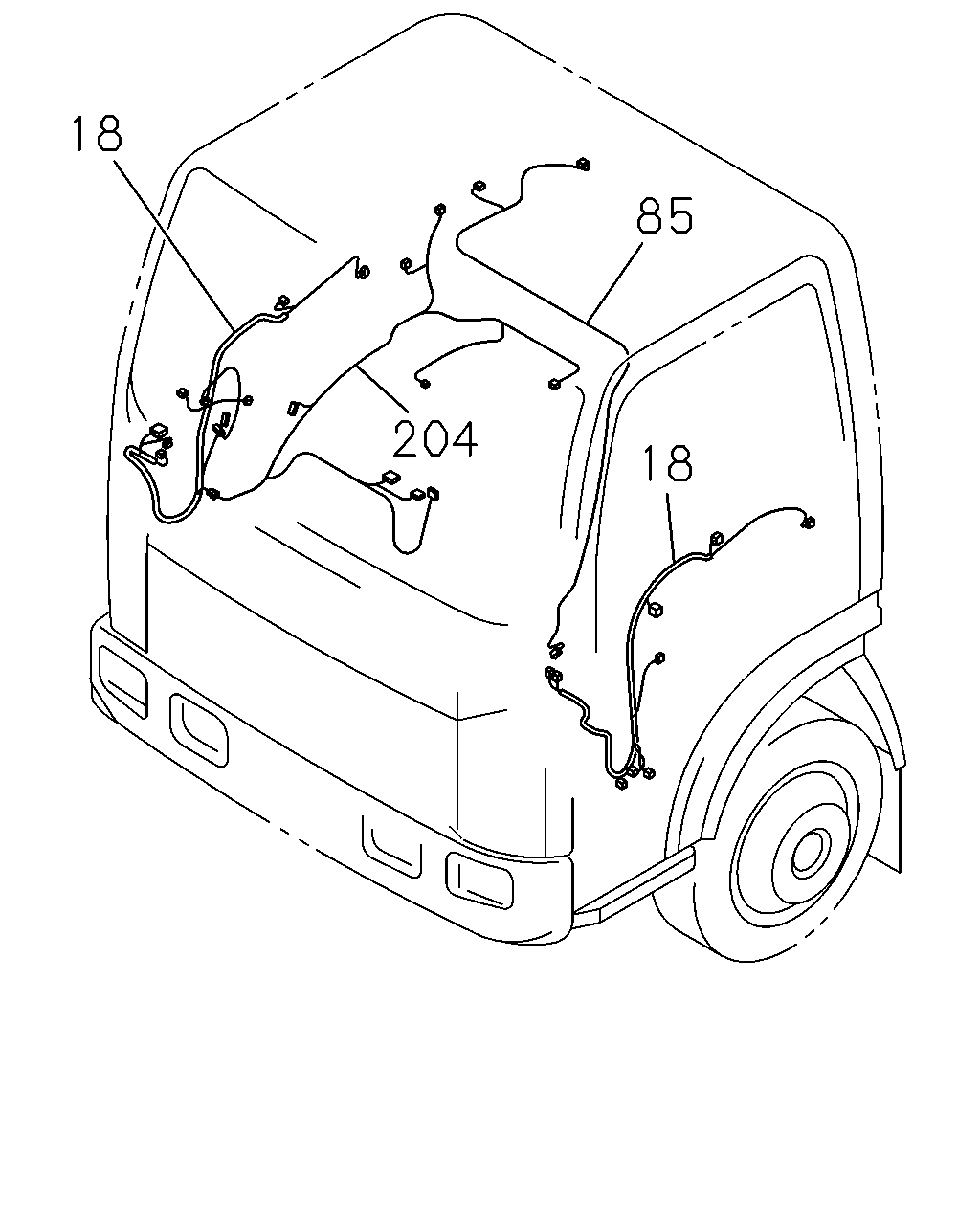

18
204
85
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
18
HARNESS; DOOR
THA
8-98071-075-2
01
1
1405-
●
●
18
HARNESS; DOOR
THA
8-98071-083-2
01
1
1405-
●
●
85
HARNESS; ROOM LAMP
THA
8-98049-963-3
01
1
1405-
●
●
204
HARNESS; CABLE,FLOOR
THA
8-98070-787-4
01
1
1405-
●
●

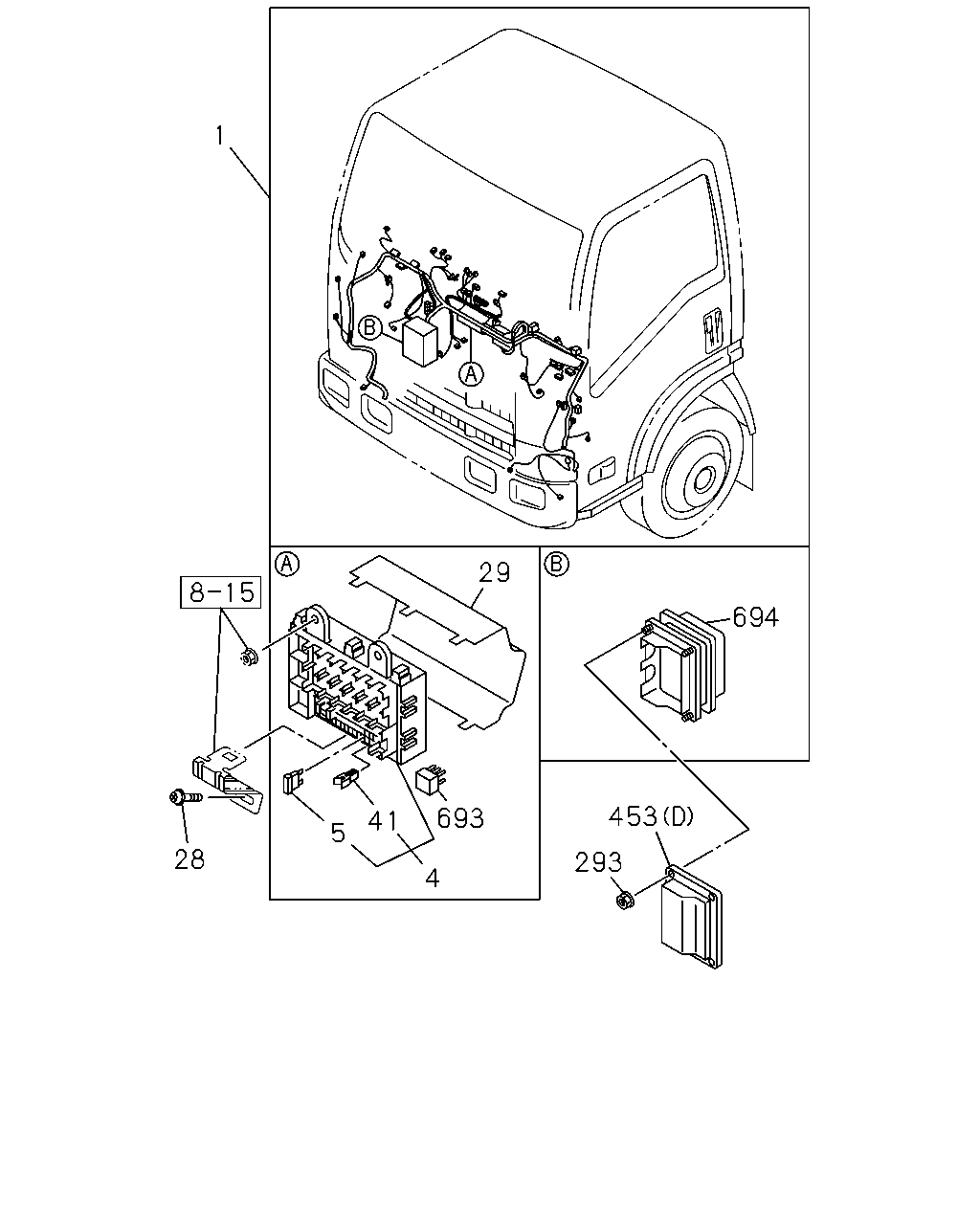

1
29
694
453
293
693
4
41
5
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HARNESS; CAB
THA
8-97926-443-0
01
1
1405-
●
●
4
BOX ASM; FUSE,HARNESS
THA
8-98067-619-1
01
1
1405-
●
●
5
FUSE; FACIA HARNESS
10A RED THA
8-98054-257-0
AR
1
1405-
●
●
5
FUSE; FACIA HARNESS
15A BLUE THA
8-98054-258-0
AR
1
1405-
●
●
5
FUSE; FACIA HARNESS
20A YELLOW THA
8-98054-259-0
AR
1
1405-
●
●
28
SCREW; FUSE BOX
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1405-
●
●
29
COVER; FUSE BOX
THA
8-98056-968-0
01
1
1405-
●
●
41
PULLER; FUSE
THA
8-98054-260-0
01
1
1405-
●
●
293
NUT
M6 FLANGE THA
0-91180-106-0
04
1
1405-
●
●
453
PROTECTOR; HARNESS
(A) THA
8-94417-716-0
01
1
1405-
●
453
PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA
8-94417-716-0
01
1
1405-
●
453
PROTECTOR; HARNESS
(E) THA
8-94452-553-0
01
1
1405-
●
453
PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (E) THA
8-94452-553-0
01
1
1405-
●
453
PROTECTOR; HARNESS
(B) THA
8-98031-850-1
01
1
1405-
●
453
PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA
8-98031-850-1
01
1
1405-
●
453
PROTECTOR; HARNESS
(C) THA
8-98031-851-2
01
1
1405-
●
453
PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) THA
8-98031-851-2
01
1
1405-
●
453
PROTECTOR; HARNESS
(D)
8-98034-039-1
01
1
1405-
●
●
693
RELAY; FUSE BOX
24V 10A PANASONIC
8-97173-035-1
AR
1
1405-
●
●
694
BOX ASM; CONNECTOR
THA
8-98057-772-0
01
1
1405-
●
●

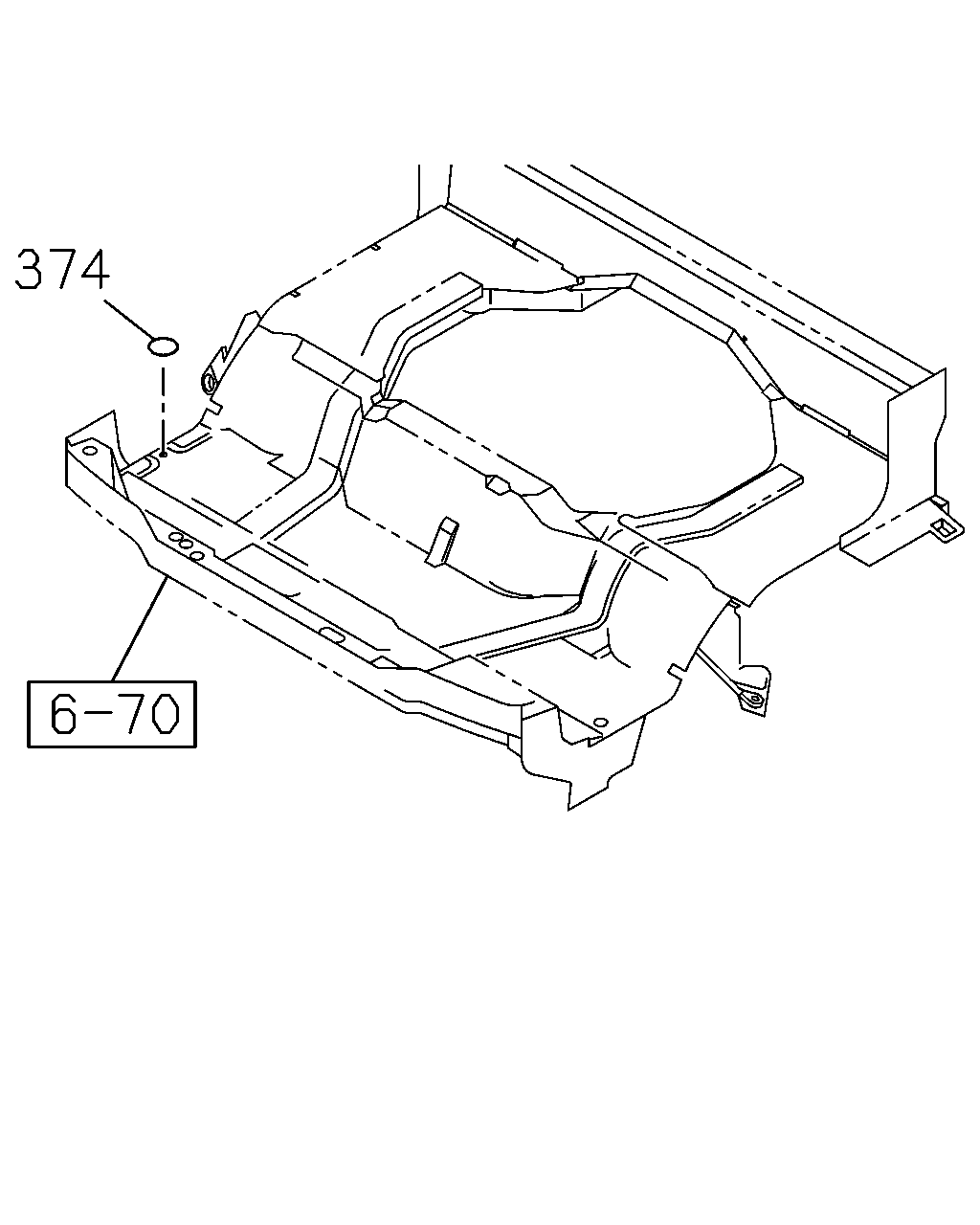

374
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
374
PLUG; HARNESS CONNECTOR
OD=32 BLACK
8-98031-126-0
01
1
1405-
●
●

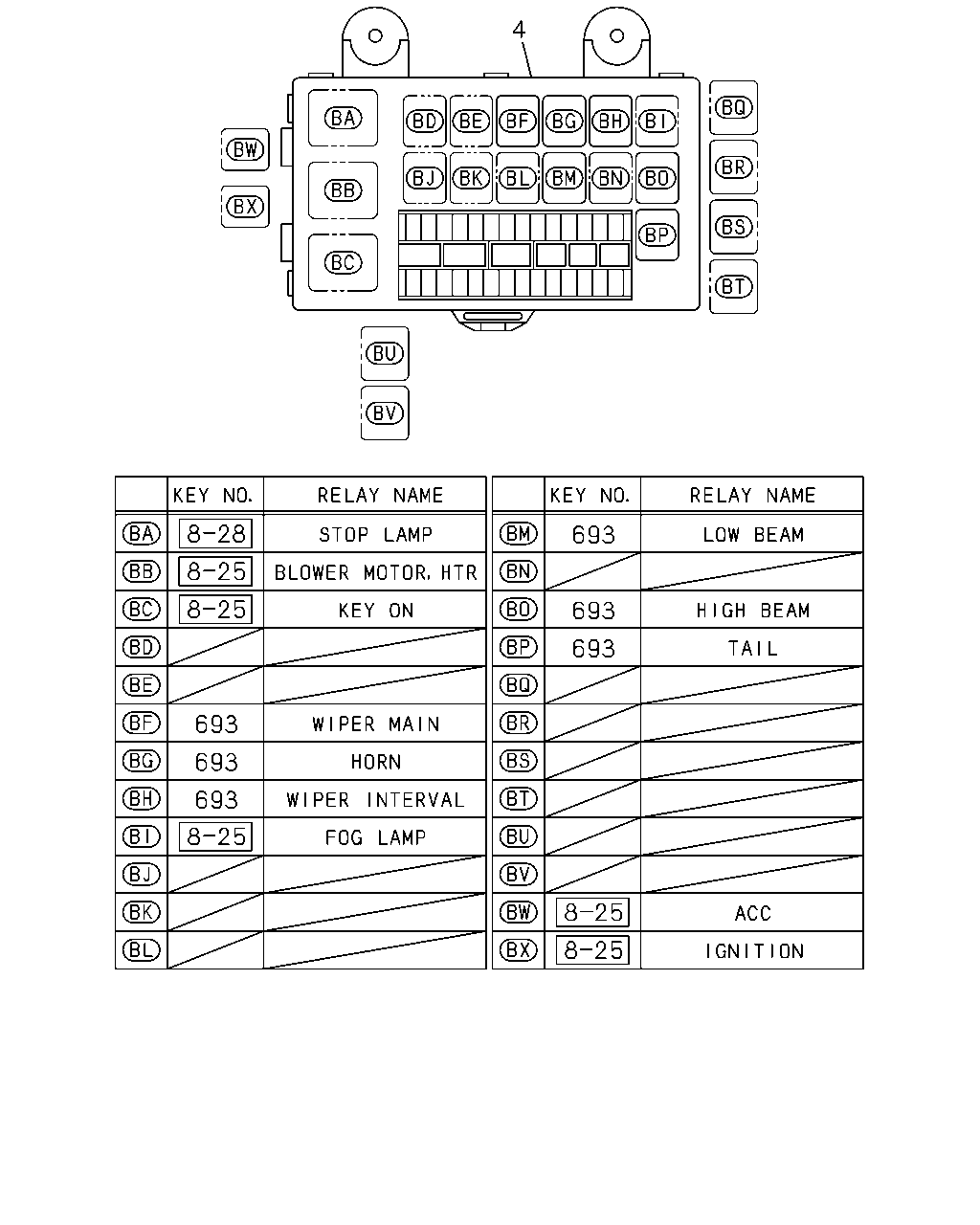

4
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
BOX ASM; FUSE,HARNESS
THA
8-98067-619-1
01
1
1405-
●
●
693
RELAY; FUSE BOX
24V 10A PANASONIC
8-97173-035-1
AR
1
1405-
●
●
453
453
453
453

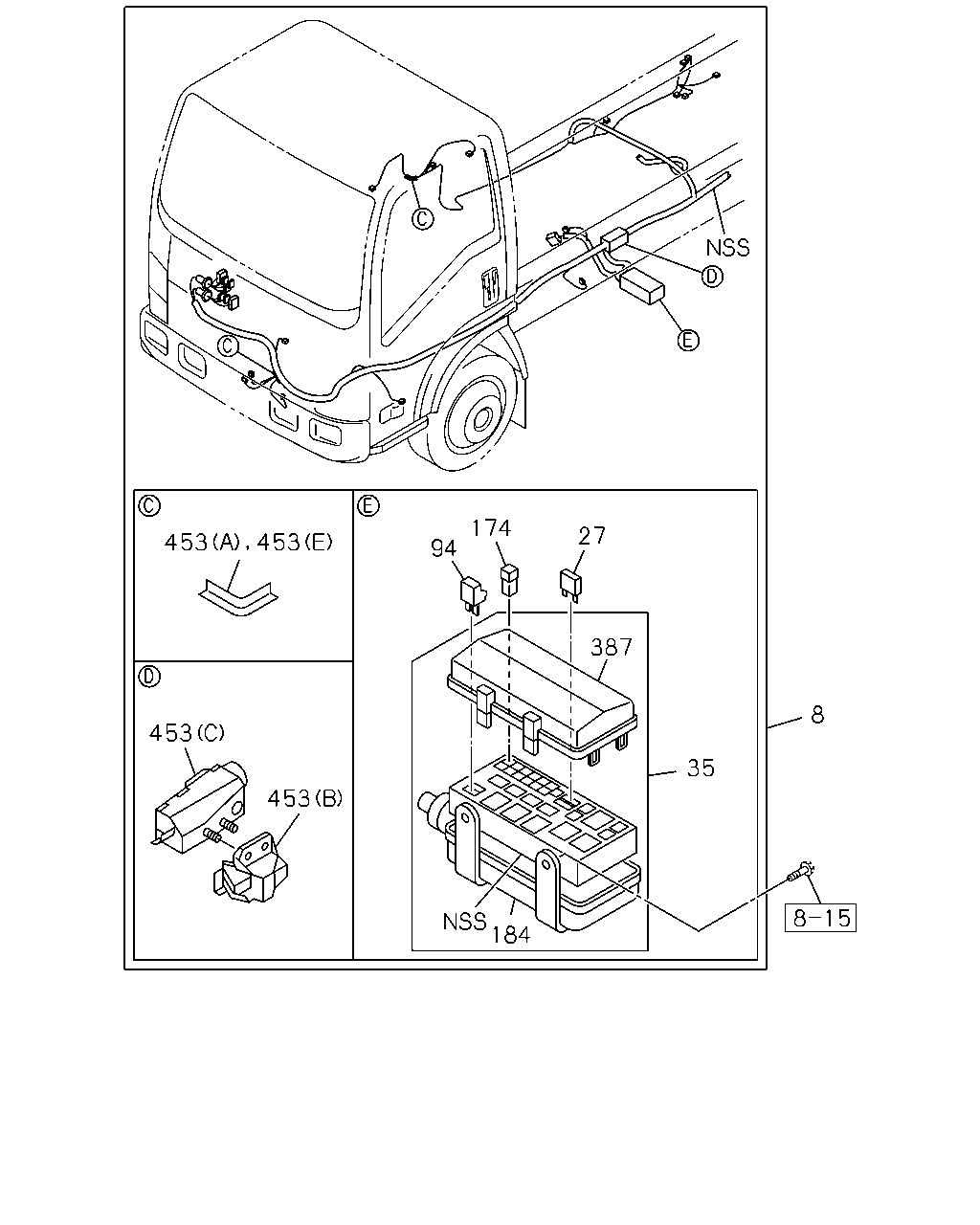

94
27
174
387
35
8
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
HARNESS; FRAME,FRT
THA
8-97924-460-1
01
1
1405-
●
8
HARNESS; FRAME,FRT
WHEEL BASE 2400MM<24W> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA
8-97924-460-1
01
1
1405-
●
8
HARNESS; FRAME,FRT
WHEEL BASE 3300MM<33W> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA
8-97924-461-1
01
1
1405-
●
27
FUSE UNIT
10A RED THA
8-98054-257-0
AR
1
1405-
●
●
35
BOX; RELAY & FUSE
THA
8-98030-763-0
01
1
1405-
●
35
BOX; RELAY & FUSE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA
8-98030-763-0
01
1
1405-
●
94
DIODE; FRAME HARNESS
BLACK 2P-1.5A THA
8-94422-639-1
AR
1
1405-
●
●
174
FUSE; SLOW BLOW
30A PINK THA
8-98079-191-0
AR
1
1405-
●
●
174
FUSE; SLOW BLOW
40A GREEN THA
8-98079-192-0
AR
1
1405-
●
●
174
FUSE; SLOW BLOW
50A RED THA
8-98079-193-0
AR
1
1405-
●
●
174
FUSE; SLOW BLOW
60A YELLOW THA
8-97219-407-0
AR
1
1405-
●
●
184
COVER; RELAY & FUSE BOX
THA
8-98030-766-0
01
1
1405-
●
184
COVER; RELAY & FUSE BOX
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA
8-98030-766-0
01
1
1405-
●
387
COVER; RELAY BOX
8-98081-367-0
01
1
1405-
●
●
453
PROTECTOR; HARNESS
(A) THA
8-94417-716-0
01
1
1405-
●
453
PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA
8-94417-716-0
01
1
1405-
●
453
PROTECTOR; HARNESS
(E) THA
8-94452-553-0
01
1
1405-
●
453
PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (E) THA
8-94452-553-0
01
1
1405-
●
453
PROTECTOR; HARNESS
(B) THA
8-98031-850-1
01
1
1405-
●
453
PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA
8-98031-850-1
01
1
1405-
●
453
PROTECTOR; HARNESS
(C) THA
8-98031-851-2
01
1
1405-
●
453
PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) THA
8-98031-851-2
01
1
1405-
●
453
PROTECTOR; HARNESS
(D)
8-98034-039-1
01
1
1405-
●
●

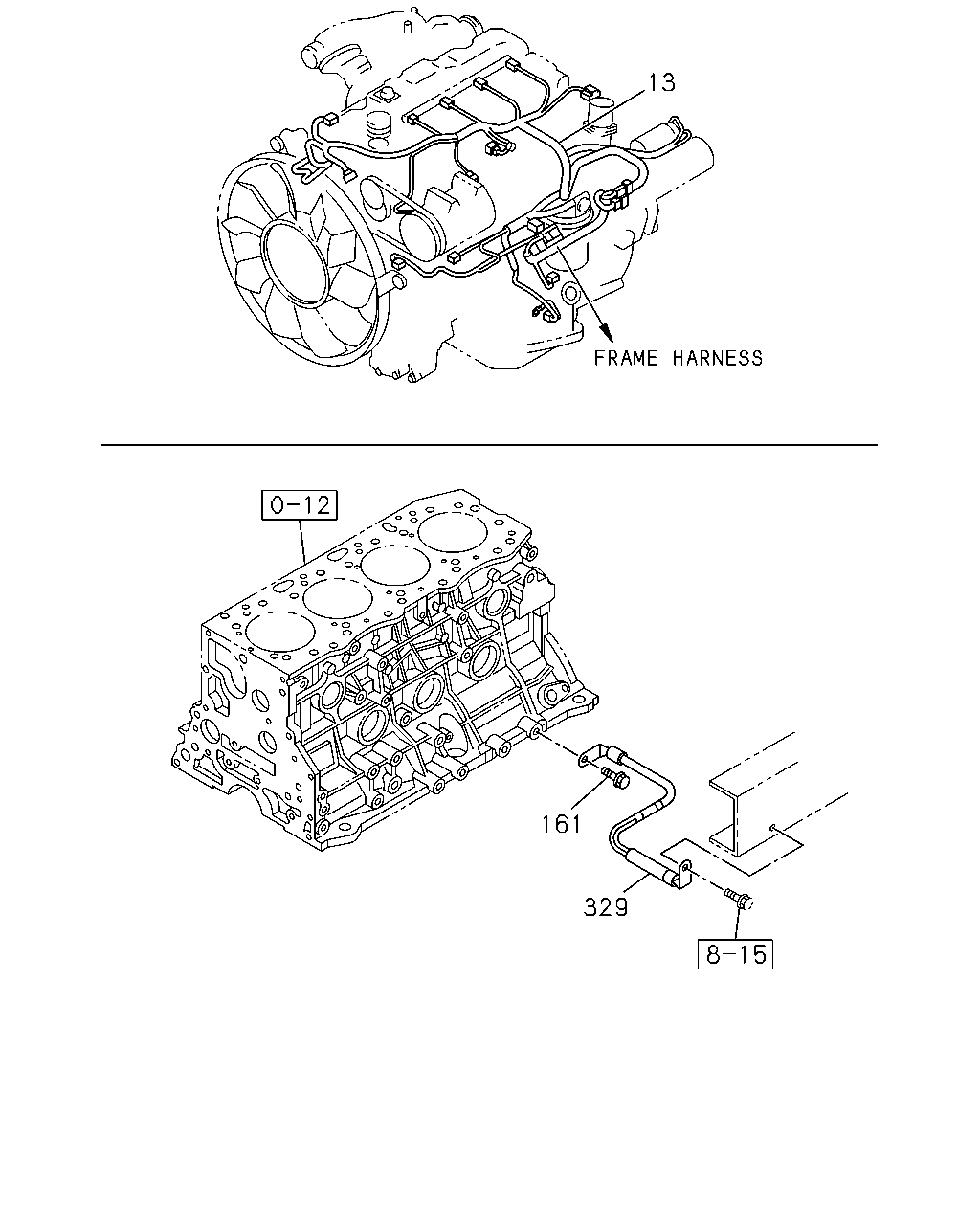

13
161
329
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
HARNESS; ENG
KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> THA
8-98252-451-1
01
1
1405-
●
●
161
BOLT; GROUND,HARNESS
M10X16 FLANGE THA
0-28051-016-0
01
1
1405-
●
●
329
CABLE; ENG TO FRAME
THA
8-97924-246-0
01
1
1405-
●
●

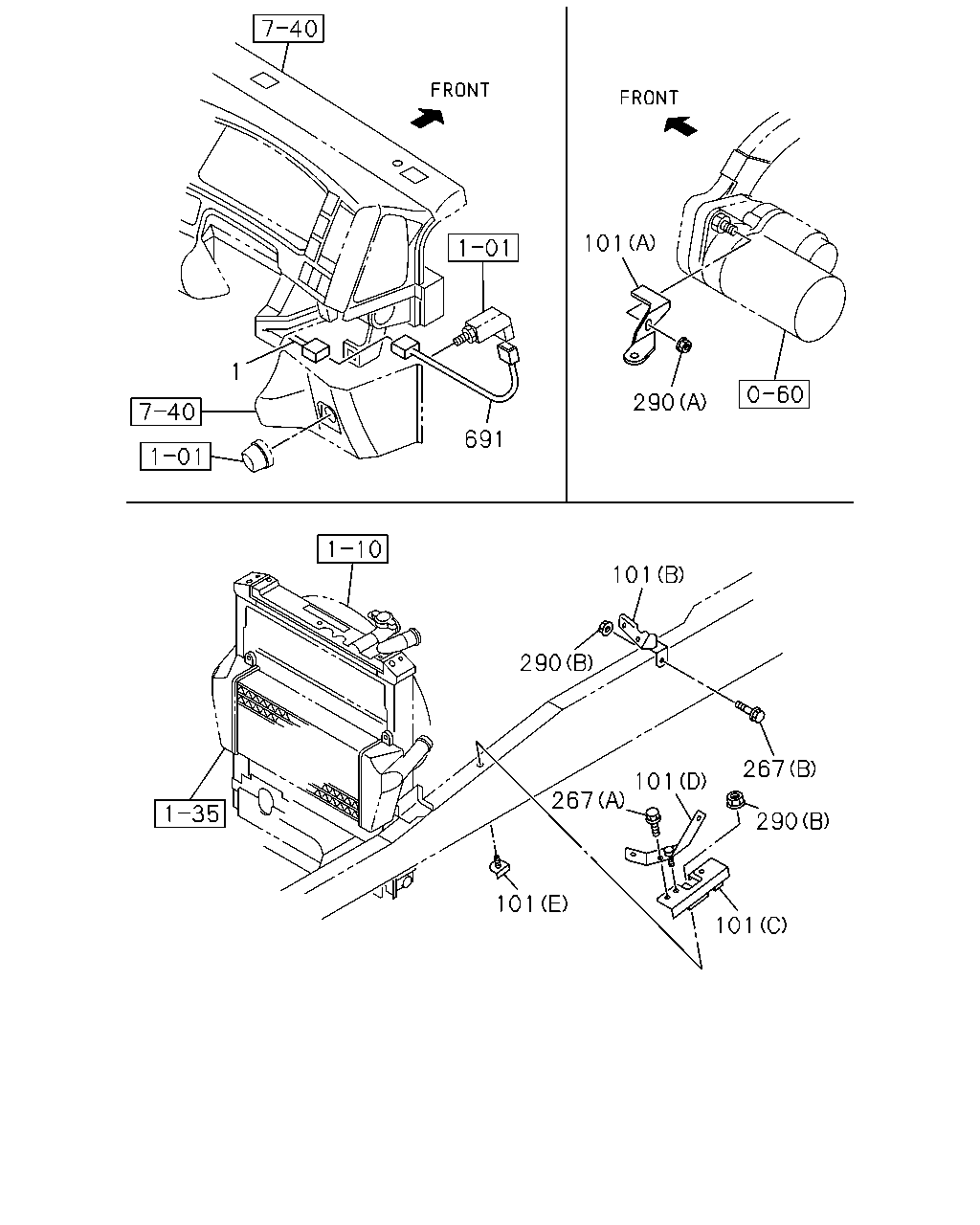

1
691
290
101
290
101
267
290
101
101
267
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HARNESS; CAB
THA
8-97926-443-0
01
1
1405-
●
●
101
BRACKET; HARNESS CONNECTOR
(A)
8-98030-725-1
01
1
1405-
●
●
101
BRACKET; HARNESS CONNECTOR
(C)
8-98078-070-1
01
1
1405-
●
●
101
BRACKET; HARNESS CONNECTOR
(D)
8-98078-071-1
01
1
1405-
●
●
101
BRACKET; HARNESS CONNECTOR
(E)
8-98093-465-1
01
1
1405-
●
●
101
BRACKET; HARNESS CONNECTOR
(B)
8-98217-757-0
01
1
1405-
●
●
267
BOLT; BRKT
(A) M6X25 FLANGE THA
0-28650-625-0
01
1
1405-
●
●
267
BOLT; BRKT
WHEEL BASE 3300MM<33W> (B) M8X25 FLANGE THA
0-28650-825-0
01
1
1405-
●
290
NUT; BRKT
(B) M8 FLANGE THA
0-91180-108-0
02
1
1405-
●
●
290
NUT; BRKT
(A) M10 FLANGE THA
0-91180-110-0
01
1
1405-
●
●
691
HARNESS; IDLE CONT
THA
8-97948-238-0
01
1
1405-
●
●
