7-43 — SUN VISOR AND ASSIST GRIP (#139281) — 32 parça

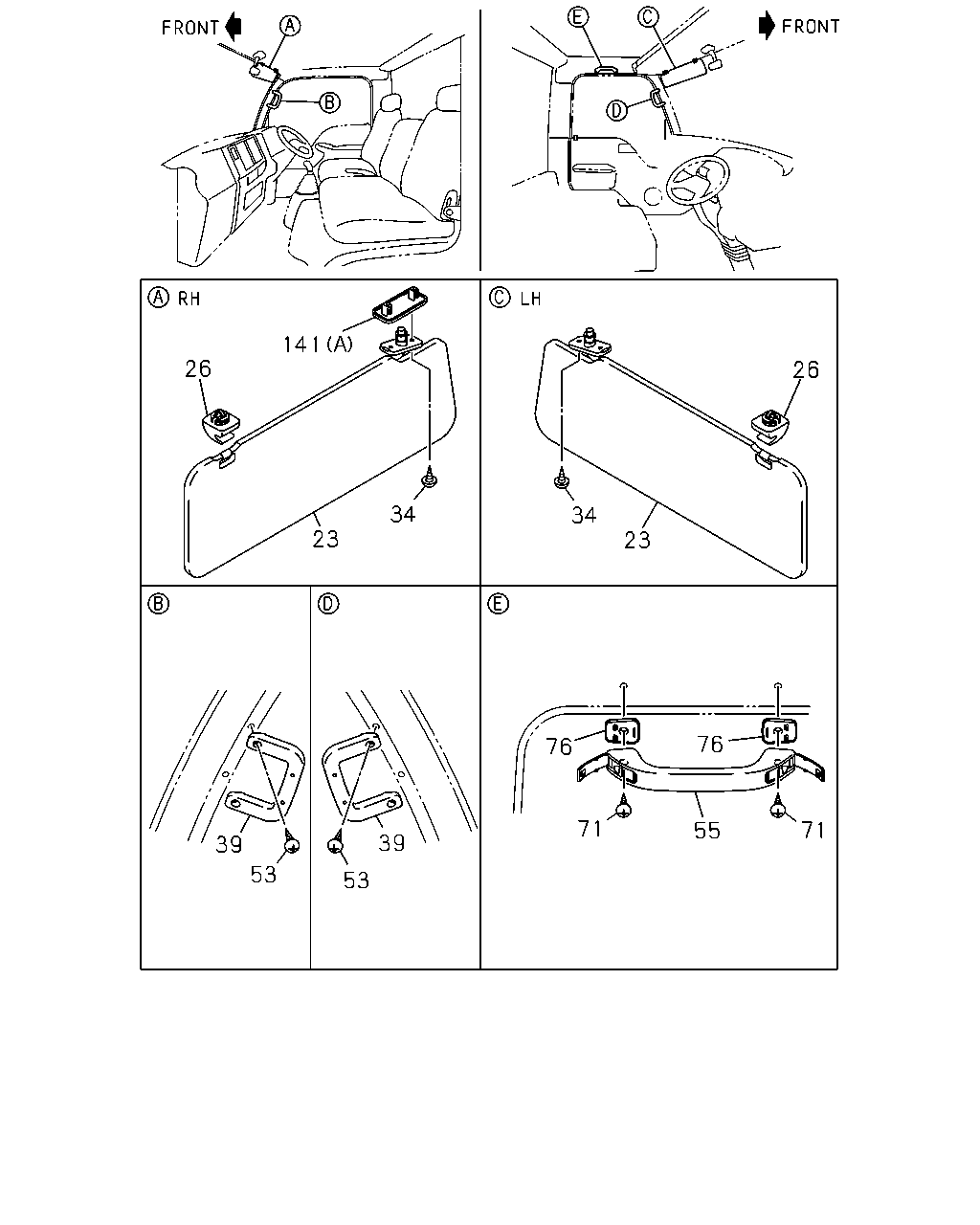

26 141 34 23 39 53 53 39 26 23 34 76 71 55 76 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> THA	8-97923-799-2	01	1	1405-	●	●
23	SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> THA	8-97923-800-2	01	1	1405-	●	●
26	HOLDER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	1405-	●	●
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	1405-	●	●
34	SCREW; SUN VISOR M6X26	8-98033-674-0	02	1	1405-	●	●
34	SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	02	1	1405-	●	●
34	SCREW; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	02	1	1405-	●	●
39	HANDLE; ASSIST,A-POST DARK GRAY	8-97405-249-2	02	1	1405-	●	●
53	SCREW; ASSIST HANDLE M6X28	8-98004-344-0	04	1	1405-	●	●
55	GRIP; ASSIST,CAB SIDE UPR DARK GRAY	8-97405-285-2	01	1	1405-	●	●
71	SCREW M6X28	8-98004-344-0	02	1	1405-	●	●
76	SPACER; ASSIST GRIP DARK GRAY	8-97405-286-0	02	1	1405-	●	●
141	COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1405-	●	●
141	COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1405-	●	●

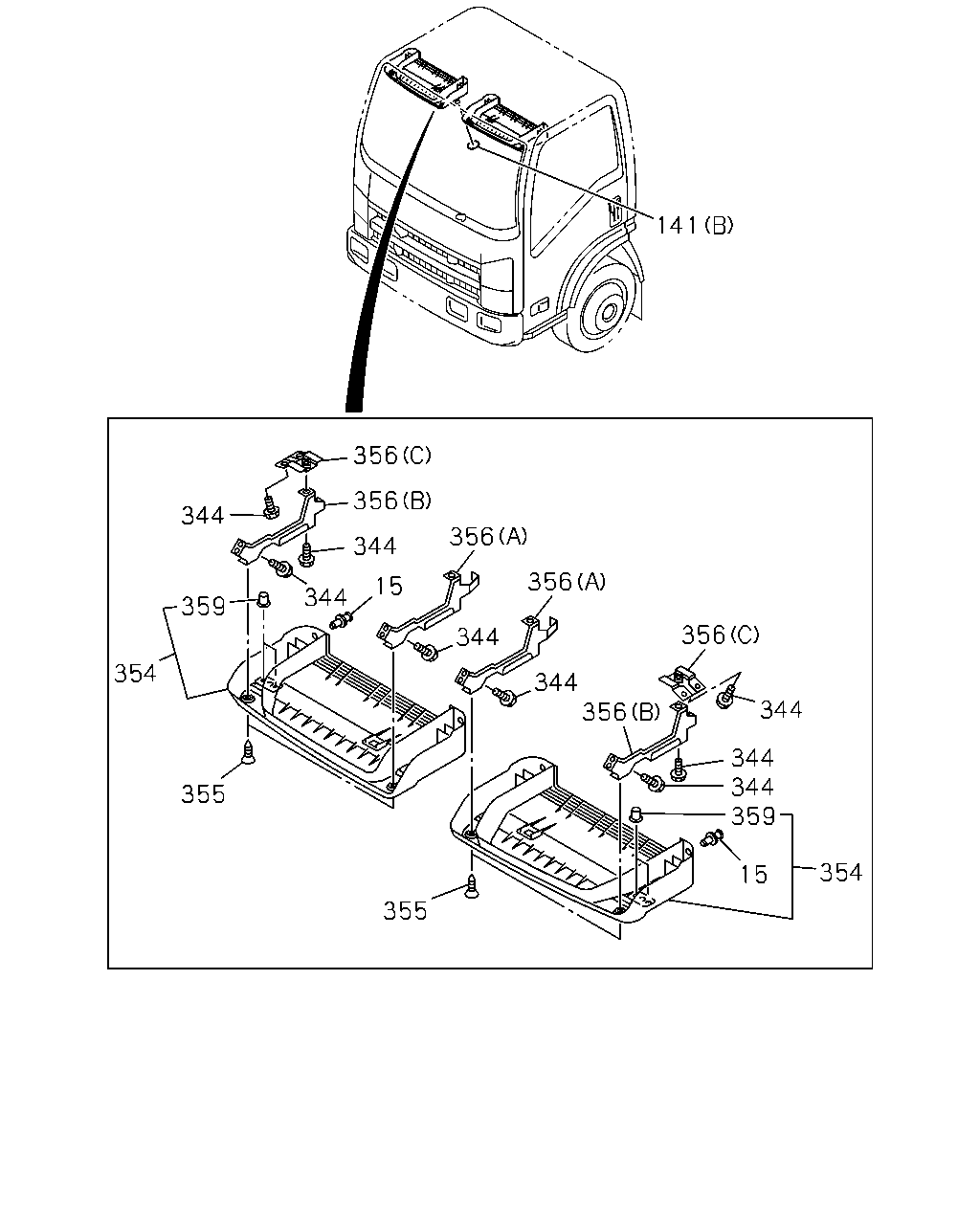

141 356 356 344 344 359 354 355 344 15 356 356 344 344 356 356 344 344 344 359 15 354 355

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-299-0	02	1	1405-	●	●
15	FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-299-0	02	1	1405-	●	●
141	COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1405-	●	●
141	COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1405-	●	●
344	BOLT; BRKT,FRT HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE	8-97108-669-0	06	1	1405-	●	●
344	BOLT; BRKT,FRT HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE	8-97108-669-0	06	1	1405-	●	●
354	TRAY; HEADER ROOF HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-061-2	01	1	1405-	●	●
354	TRAY; HEADER ROOF HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-060-2	01	1	1405-	●	●
355	SCREW; TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> T25 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1405-	●	●
355	SCREW; TRAY HEADER TRAY DRIVER & PASSENGER<8LY> T25 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1405-	●	●
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C)	8-97386-874-1	01	1	1405-	●	●
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (C)	8-97386-874-1	01	1	1405-	●	●
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B)	8-97585-576-4	01	1	1405-	●	●
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (B)	8-97585-576-4	01	1	1405-	●	●
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A)	8-98036-022-4	01	1	1405-	●	●
356	BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (A)	8-98036-023-4	01	1	1405-	●	●
359	HOLDER; HEADER TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY>	8-98041-754-0	02	1	1405-	●	●
359	HOLDER; HEADER TRAY HEADER TRAY DRIVER & PASSENGER<8LY>	8-98041-754-0	02	1	1405-	●	●
