0-36 — TURBOCHARGER SYSTEM (#13928) — 106 parça

309

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	309	BOLT; TURBOCHARGER M6X20 FLANGE	0-28650-620-0	02	1	1108-	●

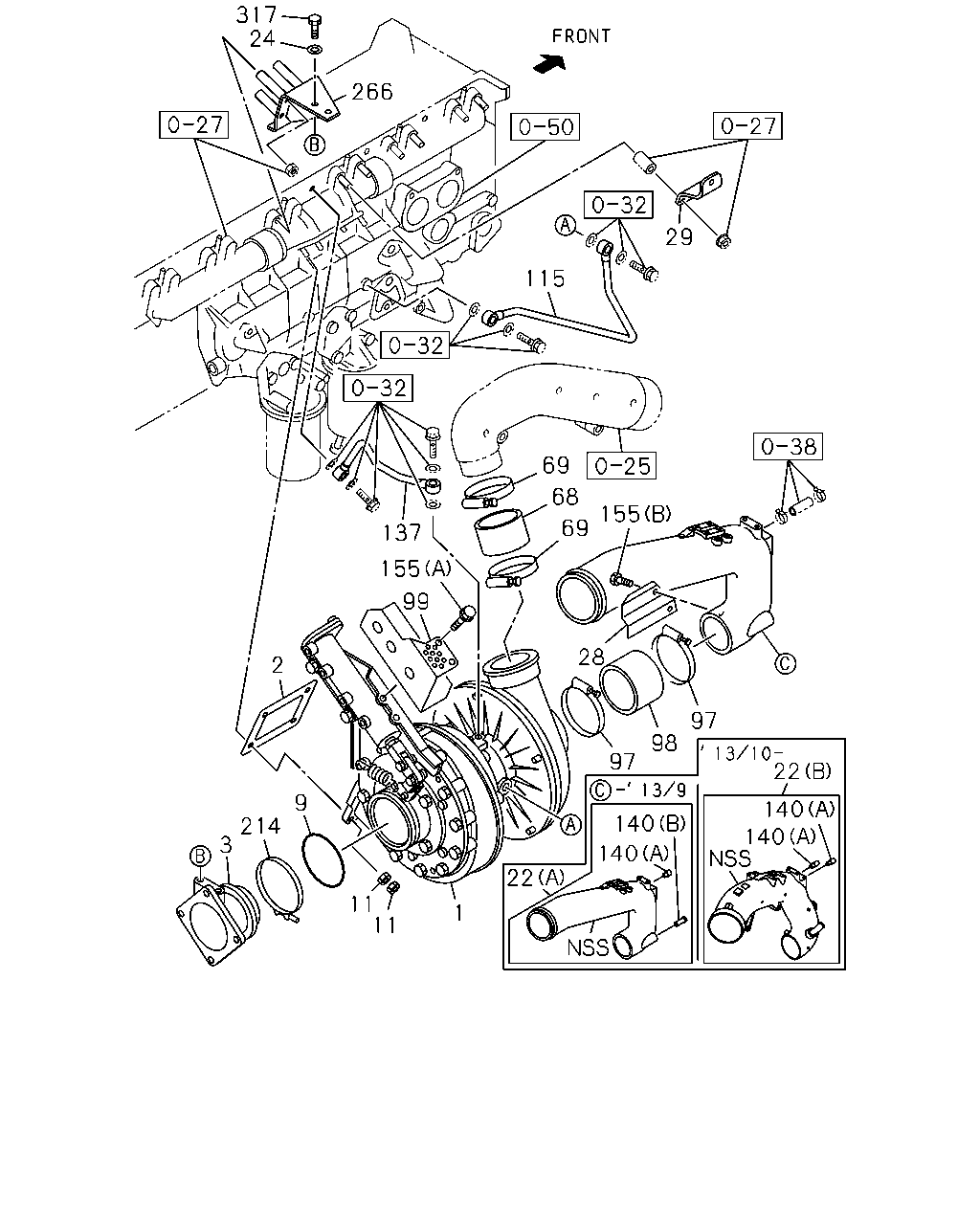

317 266 24 29 115 137 69 68 155 69 97 28 98 97 22 140 140 140 140 22 1 11 11 3 2 9 214

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM	1-14400-457-7	01	1	1108-	●
1	TURBOCHARGER ASM	1-14400-447-5	01	1	0710-		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-208-1	01	1	0710-0804		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98116-466-0	01	1	0805-1001		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98162-161-0	01	1	1002-1107		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98162-161-0	01	1	1108-	●	●
3	PIPE; EXH,TURBOCHARGER	1-14144-658-1	01	1	0710-1107		●
3	PIPE; EXH,TURBOCHARGER	1-14144-658-1	01	1	1108-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84	8-97618-761-1	01	1	0710-1107		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84	8-97618-761-1	01	1	1108-	●	●
11	NUT; TURBOCHARGER M10	1-09420-005-0	08	1	0710-1107		●
11	NUT; TURBOCHARGER M10	1-09420-005-0	08	1	1108-	●	●
22	DUCT; INL,ACL TO TURBOCHARGER (A)	8-97613-690-3	01	1	0710-1107		●
22	DUCT; INL,ACL TO TURBOCHARGER (A)	8-97613-690-3	01	1	1108-1309	●	●
22	DUCT; INL,ACL TO TURBOCHARGER (B)	8-98254-521-1	01	1	1310-	●	●
24	WASHER; PL,PIPE ID=10.5 OD=22	1-09500-007-0	02	1	0710-1107		●
24	WASHER; PL,PIPE ID=10.5 OD=22	1-09500-007-0	02	1	1108-	●	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	1-14181-272-0	01	1	0710-1107		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	1-14181-272-0	01	1	1108-	●	●
29	BRACKET; INL PIPE,ACL TO TURBOCHARGER	1-14119-473-0	01	1	0710-1107		●
29	BRACKET; INL PIPE,ACL TO TURBOCHARGER	1-14119-473-0	01	1	1108-	●	●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER	1-09361-116-1	01	1	0710-1007		●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER	8-98169-678-0	01	1	1008-1107		●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER	8-98169-678-0	01	1	1108-	●	●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=87-111	8-97375-039-0	02	1	0710-1007		●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=68-85	8-98096-592-0	02	1	1008-1107		●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=68-85	8-98096-592-0	02	1	1108-	●	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-139	1-09707-200-0	04	1	0710-0809		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-139	1-09707-200-0	02	1	0810-0812		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=120-140	8-98133-367-0	02	1	0901-0902		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-139-0	02	1	0903-1107		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-139-0	02	1	1108-	●	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-988-0	01	1	0710-1107		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-988-0	01	1	1108-	●	●
115	PIPE; WATER,TURBOCHARGER OUT	1-13722-040-0	01	1	0710-1107		●
115	PIPE; WATER,TURBOCHARGER OUT	1-13722-040-0	01	1	1108-	●	●
137	PIPE; WATER,TURBOCHARGER IN	1-13722-041-1	01	1	0710-1107		●
137	PIPE; WATER,TURBOCHARGER IN	1-13722-041-2	01	1	1108-1412	●	●
137	PIPE; WATER,TURBOCHARGER IN	8-98300-237-0	01	1	1501-	●	●
140	PIPE; AIR PIPE (B)	8-97603-427-1	01	1	0710-1107		●
140	PIPE; AIR PIPE (B)	8-97603-427-1	01	1	1108-1309	●	●
140	PIPE; AIR PIPE (A)	9-14119-228-1	02	1	0710-1107		●
140	PIPE; AIR PIPE (A)	9-14119-228-1	02	1	1108-	●	●
155	BOLT; HEAT PROTECTOR (A) M6X10 FLANGE	0-28050-610-0	04	1	0710-		●
155	BOLT; HEAT PROTECTOR (B) M8X12 FLANGE	0-28050-812-0	02	1	0710-1107		●
155	BOLT; HEAT PROTECTOR (B) M8X12 FLANGE	0-28050-812-0	02	1	1108-	●	●
214	BAND; "V",TURBOCHARGER TO EXH PIPE	8-98006-007-0	01	1	0710-1107		●
214	BAND; "V",TURBOCHARGER TO EXH PIPE	8-98006-007-1	01	1	1108-	●	●
266	BRACKET; EXH PIPE	8-97606-662-1	01	1	0710-1107		●
266	BRACKET; EXH PIPE	8-97606-662-1	01	1	1108-	●	●
317	BOLT; EXH PIPE M10X20	1-09020-073-2	02	1	0710-1107		●
317	BOLT; EXH PIPE M10X20	1-09020-073-2	02	1	1108-	●	●

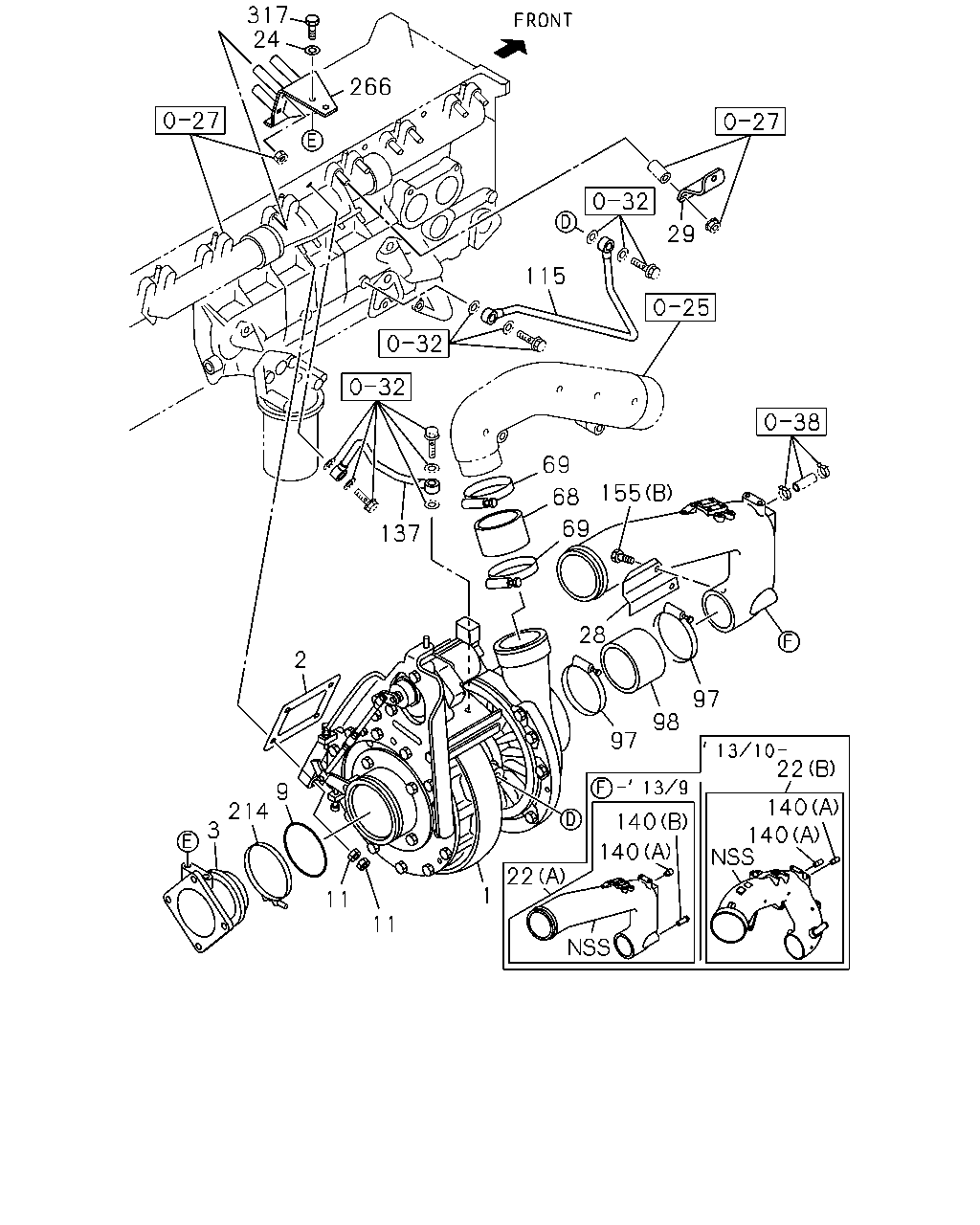

317 24 266 115 29 69 69 68 155 137 155 99 2 9 214 3 11 11 1 22 140 140 97 28 97 98 22 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM	1-14400-457-7	01	1	1108-	●
1	TURBOCHARGER ASM	1-14400-447-5	01	1	0710-		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-208-1	01	1	0710-0804		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98116-466-0	01	1	0805-1001		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98162-161-0	01	1	1002-1107		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98162-161-0	01	1	1108-	●	●
3	PIPE; EXH,TURBOCHARGER	1-14144-658-1	01	1	0710-1107		●
3	PIPE; EXH,TURBOCHARGER	1-14144-658-1	01	1	1108-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84	8-97618-761-1	01	1	0710-1107		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84	8-97618-761-1	01	1	1108-	●	●
11	NUT; TURBOCHARGER M10	1-09420-005-0	08	1	0710-1107		●
11	NUT; TURBOCHARGER M10	1-09420-005-0	08	1	1108-	●	●
22	DUCT; INL,ACL TO TURBOCHARGER (A)	8-97613-690-3	01	1	0710-1107		●
22	DUCT; INL,ACL TO TURBOCHARGER (A)	8-97613-690-3	01	1	1108-1309	●	●
22	DUCT; INL,ACL TO TURBOCHARGER (B)	8-98254-521-1	01	1	1310-	●	●
24	WASHER; PL,PIPE ID=10.5 OD=22	1-09500-007-0	02	1	0710-1107		●
24	WASHER; PL,PIPE ID=10.5 OD=22	1-09500-007-0	02	1	1108-	●	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	1-14181-272-0	01	1	0710-1107		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	1-14181-272-0	01	1	1108-	●	●
29	BRACKET; INL PIPE,ACL TO TURBOCHARGER	1-14119-473-0	01	1	0710-1107		●
29	BRACKET; INL PIPE,ACL TO TURBOCHARGER	1-14119-473-0	01	1	1108-	●	●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER	1-09361-116-1	01	1	0710-1007		●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER	8-98169-678-0	01	1	1008-1107		●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER	8-98169-678-0	01	1	1108-	●	●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=87-111	8-97375-039-0	02	1	0710-1007		●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=68-85	8-98096-592-0	02	1	1008-1107		●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=68-85	8-98096-592-0	02	1	1108-	●	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-139	1-09707-200-0	04	1	0710-0809		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-139	1-09707-200-0	02	1	0810-0812		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=120-140	8-98133-367-0	02	1	0901-0902		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-139-0	02	1	0903-1107		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-139-0	02	1	1108-	●	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-988-0	01	1	0710-1107		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-988-0	01	1	1108-	●	●
99	PROTECTOR; HEAT	1-14181-350-0	01	1	0710-		●
115	PIPE; WATER,TURBOCHARGER OUT	1-13722-040-0	01	1	0710-1107		●
115	PIPE; WATER,TURBOCHARGER OUT	1-13722-040-0	01	1	1108-	●	●
137	PIPE; WATER,TURBOCHARGER IN	1-13722-041-1	01	1	0710-1107		●
137	PIPE; WATER,TURBOCHARGER IN	1-13722-041-2	01	1	1108-1412	●	●
137	PIPE; WATER,TURBOCHARGER IN	8-98300-237-0	01	1	1501-	●	●
140	PIPE; AIR PIPE (B)	8-97603-427-1	01	1	0710-1107		●
140	PIPE; AIR PIPE (B)	8-97603-427-1	01	1	1108-1309	●	●
140	PIPE; AIR PIPE (A)	9-14119-228-1	02	1	0710-1107		●
140	PIPE; AIR PIPE (A)	9-14119-228-1	02	1	1108-	●	●
155	BOLT; HEAT PROTECTOR (A) M6X10 FLANGE	0-28050-610-0	04	1	0710-		●
155	BOLT; HEAT PROTECTOR (B) M8X12 FLANGE	0-28050-812-0	02	1	0710-1107		●
155	BOLT; HEAT PROTECTOR (B) M8X12 FLANGE	0-28050-812-0	02	1	1108-	●	●
214	BAND; "V",TURBOCHARGER TO EXH PIPE	8-98006-007-0	01	1	0710-1107		●
214	BAND; "V",TURBOCHARGER TO EXH PIPE	8-98006-007-1	01	1	1108-	●	●
266	BRACKET; EXH PIPE	8-97606-662-1	01	1	0710-1107		●
266	BRACKET; EXH PIPE	8-97606-662-1	01	1	1108-	●	●
317	BOLT; EXH PIPE M10X20	1-09020-073-2	02	1	0710-1107		●
317	BOLT; EXH PIPE M10X20	1-09020-073-2	02	1	1108-	●	●
