◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51507 - NLR/NMR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#139279) — 92 parça

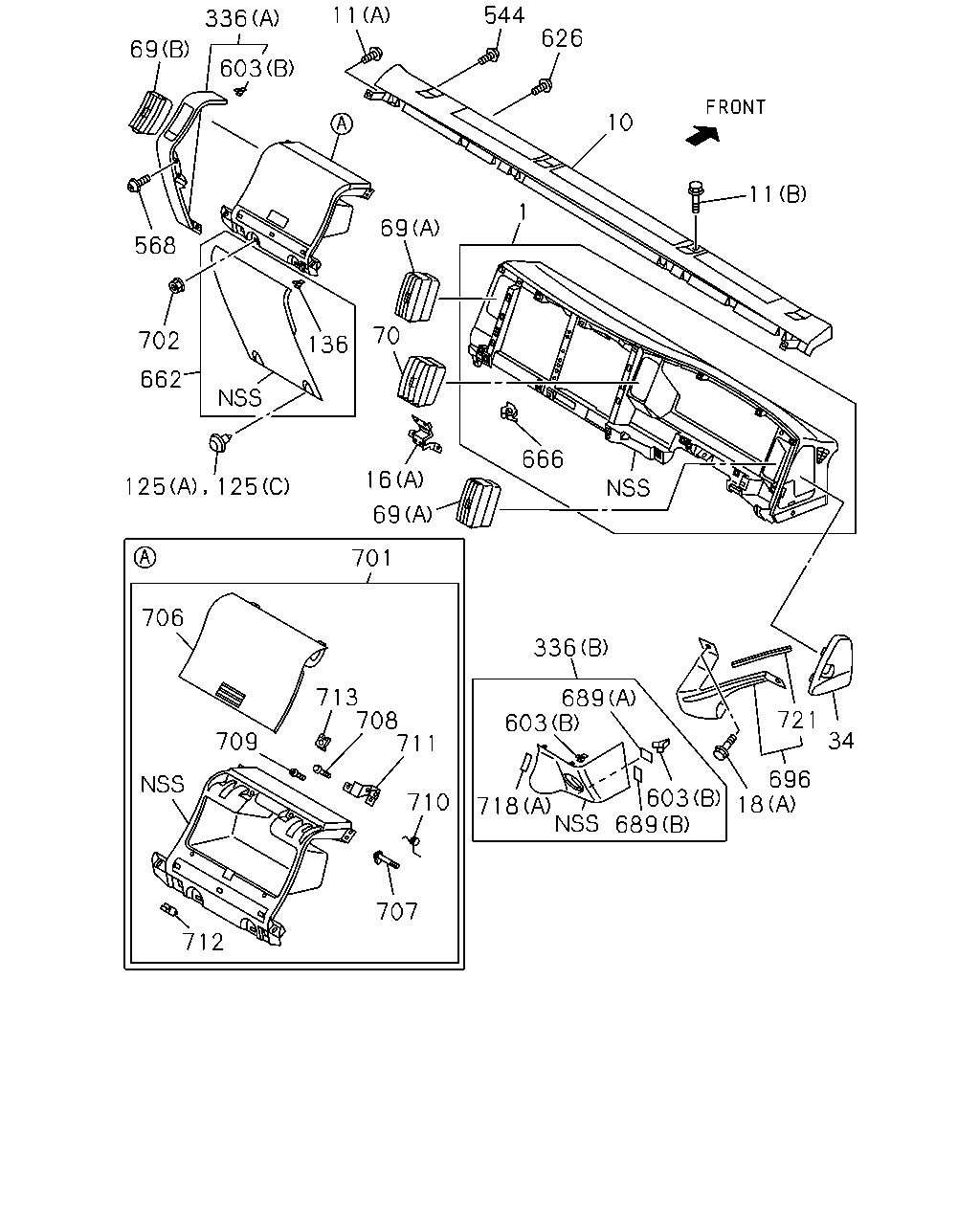

çizim 420996
69 336 11 544 10 626 11 1 666 336 689 603 718 603 689 18 721 34 696 707 710 711 708 713 709 712 706 701 125 125 16 69 136 70 69 568 702 662 603
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
THA 		8-97926-375-1 01 1 1405- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1405- ● ●
11 BOLT; INST PNL
(A) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1405- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1405- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (B) 		8-97585-532-0 01 1 1405- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (A) 		8-97585-612-2 01 1 1405- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1405- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1405- ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1405- ● ●
34 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1405- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1405- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1405- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1405- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1405- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1405- ● ●
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1405- ● ●
136 CLIP; INST COVER 8-98021-271-0 05 1 1405- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1405- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 1405- ● ●
544 SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1405- ● ●
568 BOLT; COVER
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1405- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1405- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1405- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1405- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97414-903-1 01 1 1405- ● ●
666 INSERT; INST PANEL
THA 		8-97926-385-0 30 1 1405- ● ●
689 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1405- ● ●
689 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1405- ● ●
696 BRACKET; KNEE 8-98199-366-0 01 1 1405- ● ●
701 TRAY; INST
THA 		8-97926-379-0 01 1 1405- ● ●
702 NUT; TRAY
M6 FLANGE THA 		0-91180-106-0 02 1 1405- ● ●
706 LID; TRAY INST
THA 		8-97926-392-0 01 1 1405- ● ●
707 SHAFT; TRAY INST LID
THA 		8-97926-393-0 02 1 1405- ● ●
708 STOPPER; TRAY INST LID
THA 		8-97926-394-0 02 1 1405- ● ●
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 1405- ● ●
710 SPRING; TRAY INST LID
THA 		8-97926-398-0 01 1 1405- ● ●
710 SPRING; TRAY INST LID
THA 		8-97926-399-0 01 1 1405- ● ●
711 HOLDER ASM; LID
THA 		8-97926-396-0 01 1 1405- ● ●
711 HOLDER ASM; LID
THA 		8-97926-397-0 01 1 1405- ● ●
712 LOCK; TRAY INST LID
THA 		8-97926-395-0 01 1 1405- ● ●
713 NUT; TRAY INST LID
M5 THA 		8-97926-400-0 04 1 1405- ● ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1405- ● ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1405- ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1405- ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1405- ● ●
721 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1405- ● ●

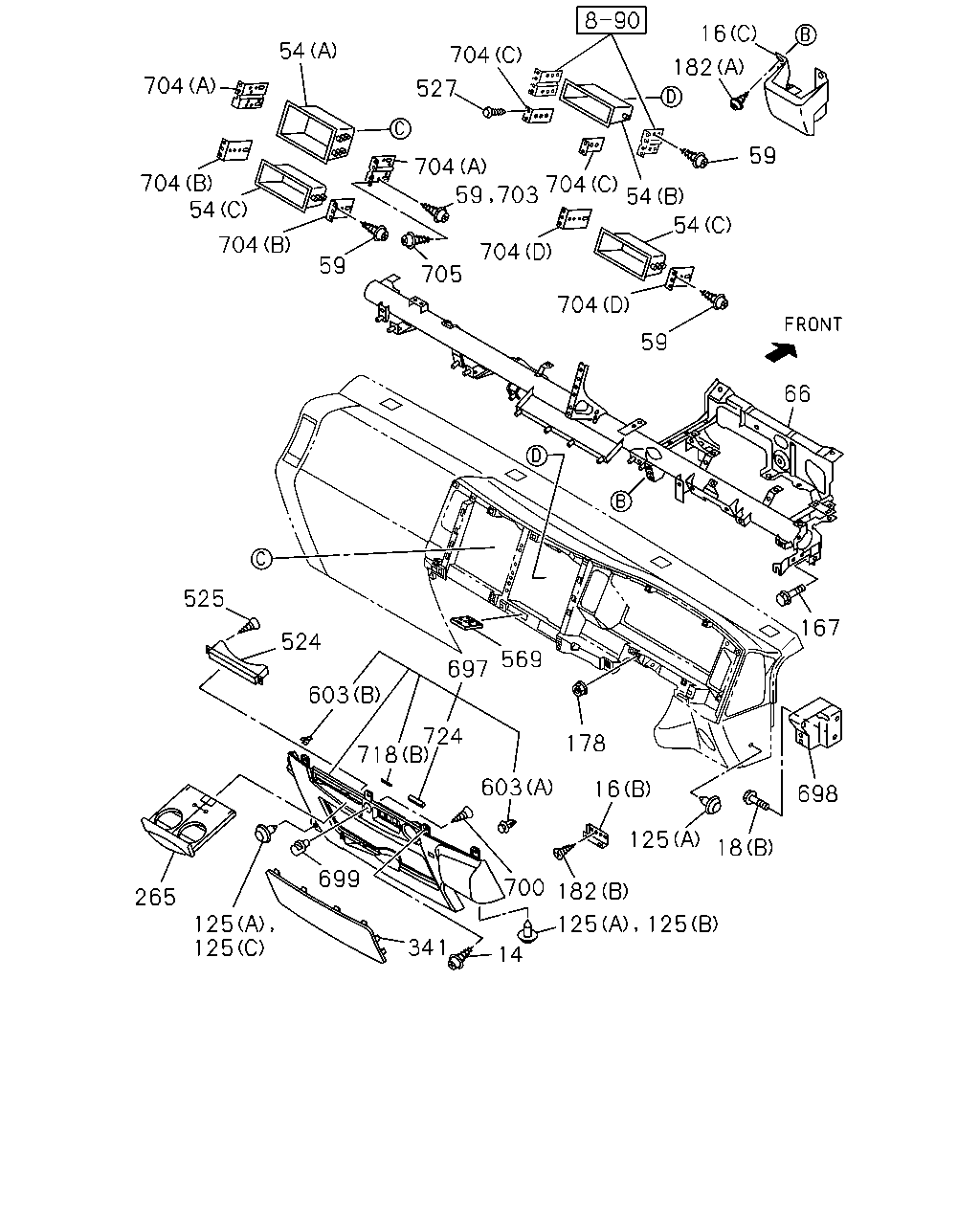

çizim 421075
704 704 54 54 704 704 527 704 59 705 59 16 182 59 54 54 704 703 704 704 59 66 167 698 18 125 16 178 569 697 525 524 603 718 724 603 700 182 125 125 125 125 265 14 341 699
BalonParca AdiParca NoAdetTipApplied Date A B
14 SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1405- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (B) 		8-97585-532-0 01 1 1405- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (A) 		8-97585-612-2 01 1 1405- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1405- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1405- ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1405- ● ●
54 POCKET; CENTER CLUSTER
(C) THA 		8-97926-412-0 01 1 1405- ● ●
54 POCKET; CENTER CLUSTER
EXC. COOLER WO/HEATER<C65> (C) THA 		8-97926-412-0 01 1 1405- ● ●
54 POCKET; CENTER CLUSTER
(B) THA 		8-97926-414-0 01 1 1405- ● ●
54 POCKET; CENTER CLUSTER
(A) THA 		8-97926-874-0 01 1 1405- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1405- ● ●
59 SCREW; CLUSTER POCKET
EXC. COOLER WO/HEATER<C65> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1405- ● ●
66 REINFORCEMENT; INST PANEL 8-98199-364-1 01 1 1405- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1405- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1405- ● ●
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1405- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1405- ● ●
178 NUT; INST PANEL
M6 FLANGE THA 		0-91180-106-0 01 1 1405- ● ●
182 BOLT; BRKT,INST PANEL
COOLER WO/HEATER<C65> (B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1405- ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 1405- ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1405- ● ●
341 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1405- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1405- ● ●
525 SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1405- ● ●
527 CLIP; INST CLUSTER
EXC. COOLER WO/HEATER<C65> DARK GRAY 		8-97098-326-0 01 1 1405- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1405- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1405- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1405- ● ●
697 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1405- ● ●
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1405- ● ●
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1405- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1405- ● ●
700 BOLT; HOOK
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1405- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1405- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1405- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1405- ● ●
704 BRACKET; CENTER POCKET
EXC. COOLER WO/HEATER<C65> (C) 		8-98073-822-0 02 1 1405- ● ●
704 BRACKET; CENTER POCKET
EXC. COOLER WO/HEATER<C65> (D) 		8-98107-549-0 02 1 1405- ● ●
705 SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1405- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. COOLER WO/HEATER<C65> T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1405- ● ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1405- ● ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1405- ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1405- ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1405- ● ●
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1405- ● ●

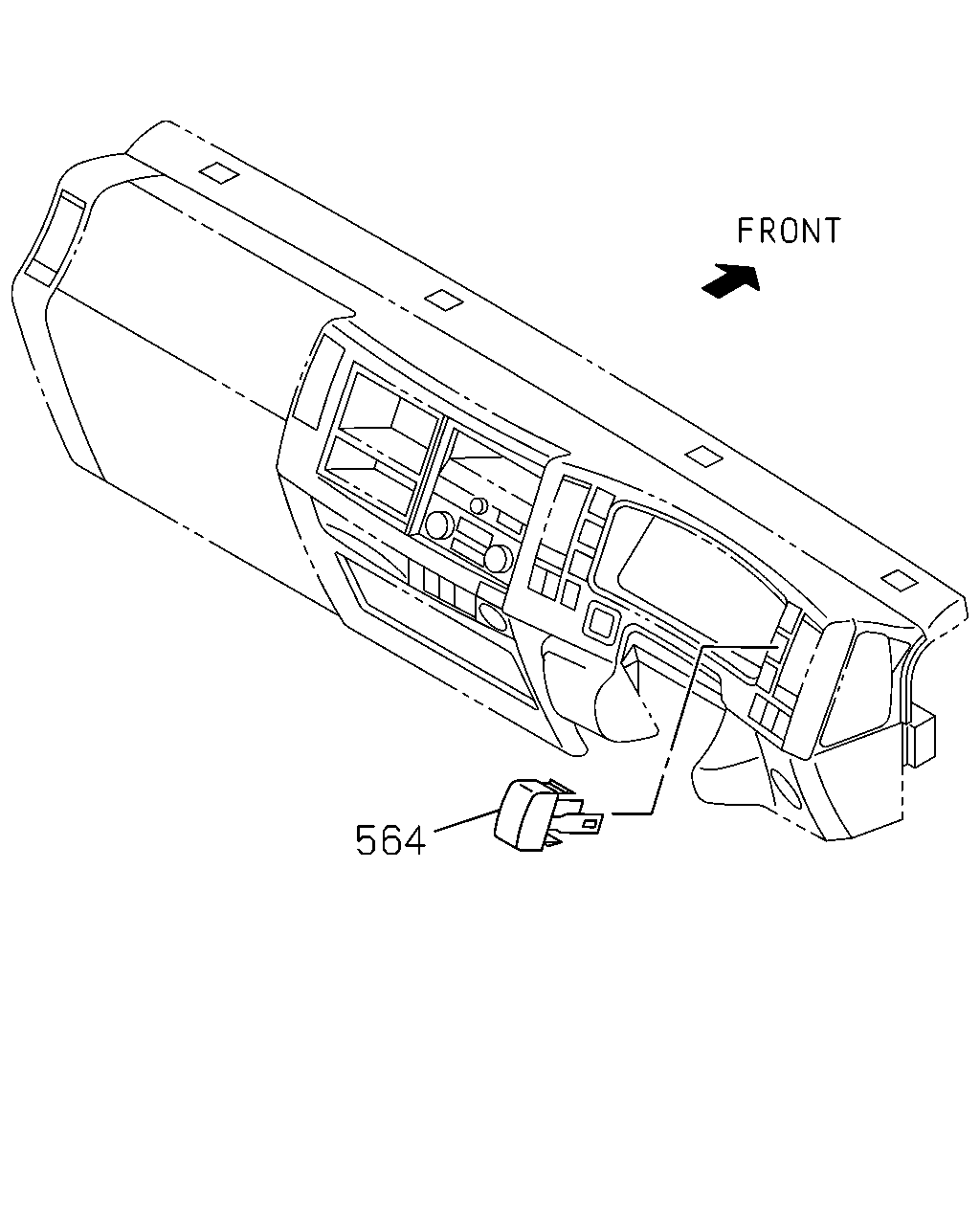

çizim 421929
564
BalonParca AdiParca NoAdetTipApplied Date A B
564 COVER; SW 8-98025-954-1 03 1 1405- ● ●
