7-20 — MIRROR AND MIRROR STAY (#139277) — 28 parça
çizim 421680
18 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
THA 		8-97924-058-2 01 1 1405- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1405- ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1405- ● ●

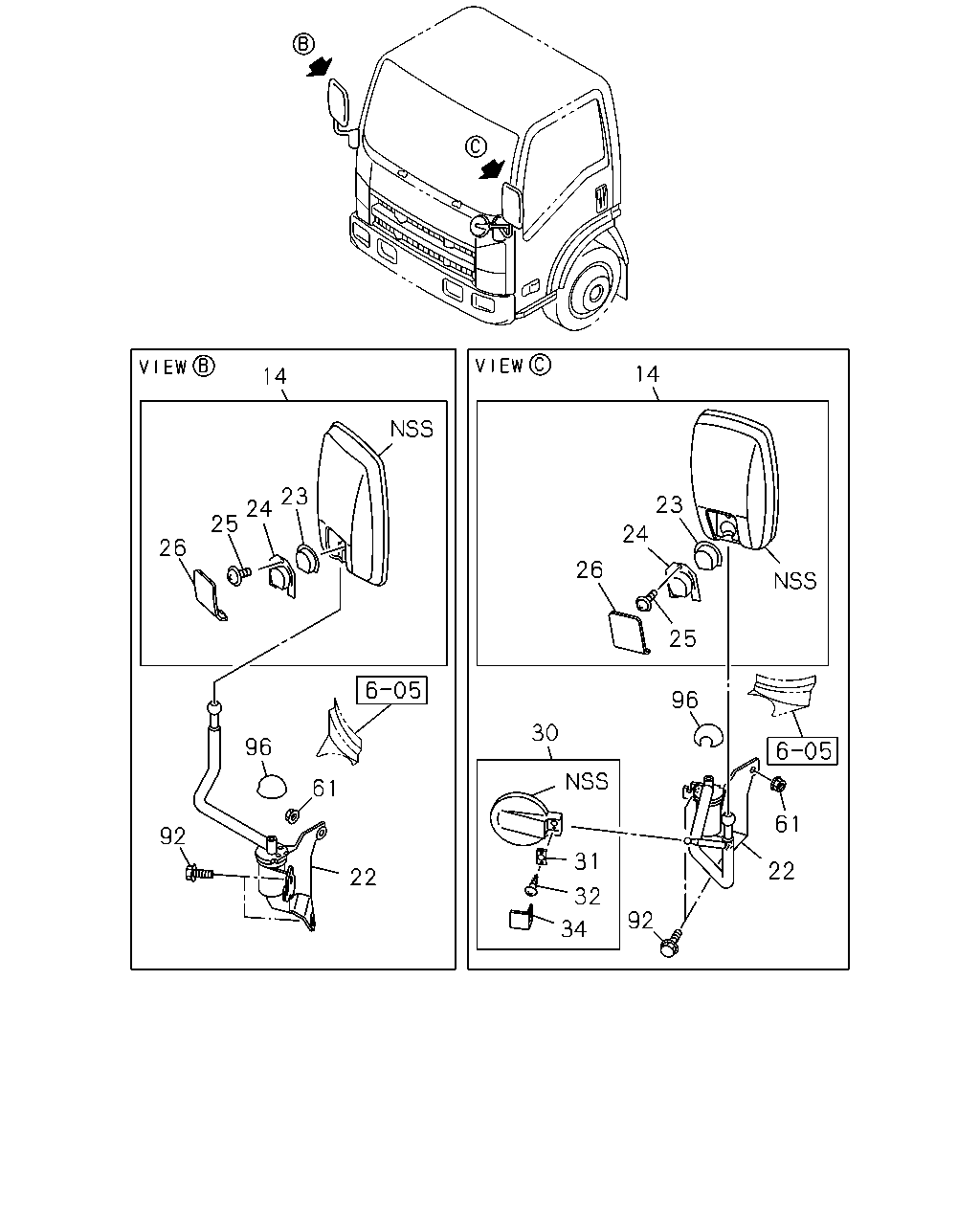

çizim 421764
14 23 24 25 26 96 92 61 22 34 32 31 30 92 22 61 96 25 26 24 23 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>, O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-542-3 01 1 1405- ● ●
14 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>, O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-542-3 01 1 1405- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> UNDER MIRROR<RR9> 		8-98070-507-0 01 1 1405- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> EXC. UNDER MIRROR<RR9> 		8-98070-505-0 01 1 1405- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98038-224-1 01 1 1405- ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98027-519-0 01 1 1405- ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-98147-079-0 01 1 1405- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> 		8-98070-509-0 01 1 1405- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-98147-082-0 01 1 1405- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> EXC. UNDER MIRROR<RR9> 		8-98147-080-0 01 1 1405- ● ●
23 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>, O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.0 		8-94262-545-0 01 1 1405- ● ●
23 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>, O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.0 		8-94262-545-0 01 1 1405- ● ●
24 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>, O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=1.6 		8-94262-546-1 01 1 1405- ● ●
24 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>, O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=1.6 		8-94262-546-1 01 1 1405- ● ●
25 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>, O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M6X30 		8-94279-365-0 01 1 1405- ● ●
25 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>, O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M6X30 		8-94279-365-0 01 1 1405- ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>, O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.3 		8-94262-547-2 01 1 1405- ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>, O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.3 		8-94262-547-2 01 1 1405- ● ●
30 MIRROR; UNDER
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/S IDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-625-2 01 1 1405- ● ●
31 PLATE; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/S IDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-631-0 01 1 1405- ● ●
32 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/S IDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M5X18 		8-94279-372-0 02 1 1405- ● ●
34 CAP; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/S IDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-629-0 01 1 1405- ● ●
61 NUT; STAY,OUTSIDE MIRROR
M8 FLANGE THA 		0-91180-108-0 02 1 1405- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X25 FLANGE THA 		0-28650-825-0 04 1 1405- ● ●
96 CAP; MIRROR STAY 8-98027-552-2 02 1 1405- ● ●
