◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11110 - CYJ NZ JAPAN NEW SHORT TERM 2004 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#13926) — 157 parça

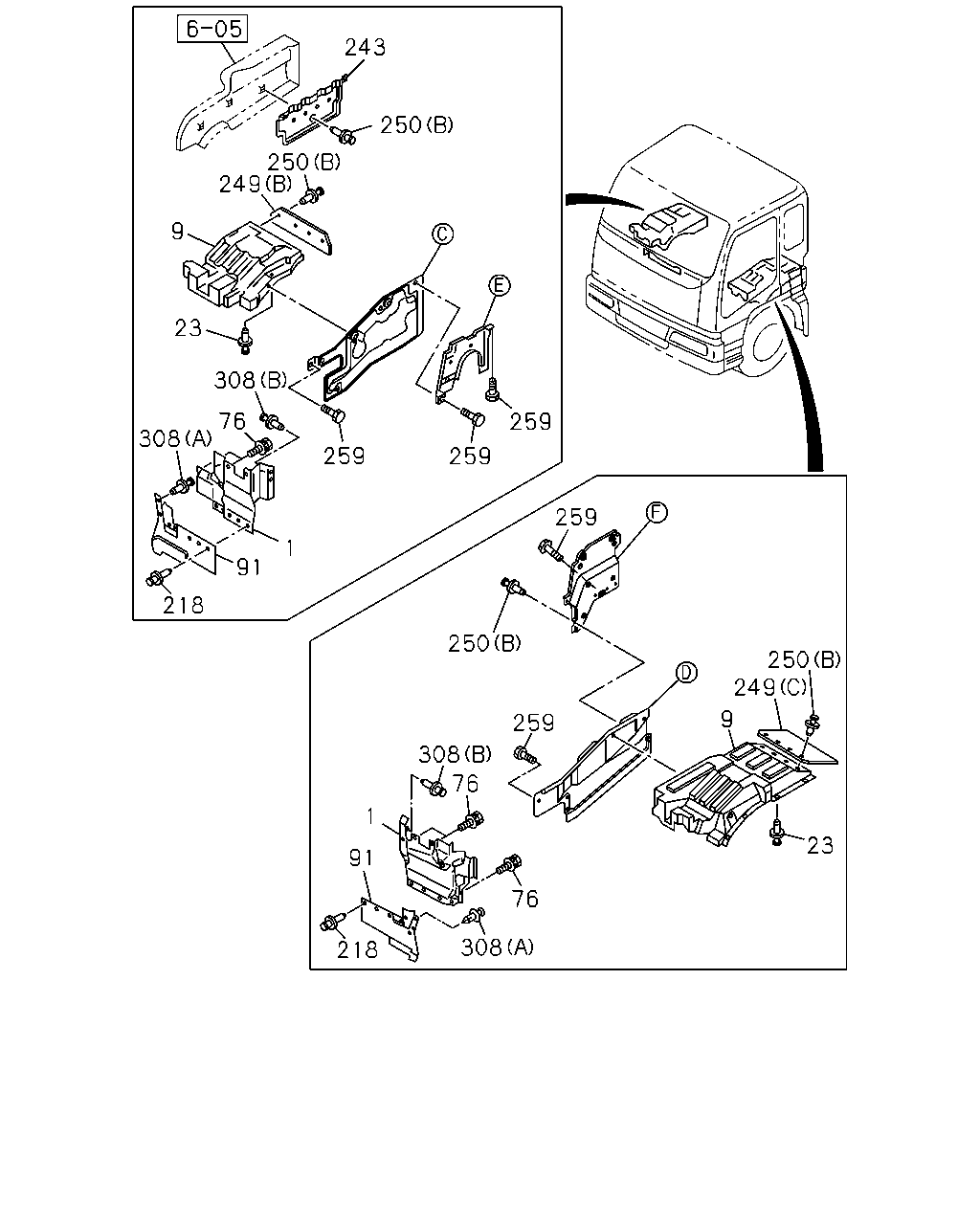

çizim 93133
243 250 250 249 23 308 259 76 308 91 1 218 259 259 259 250 259 308 76 1 91 76 308 218 23 249 250 9
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0710-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0710-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0710-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0710-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0710-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0710-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0710-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0710-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0710-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0710-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0710-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0710-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0710-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0710-0904
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0710-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0710-

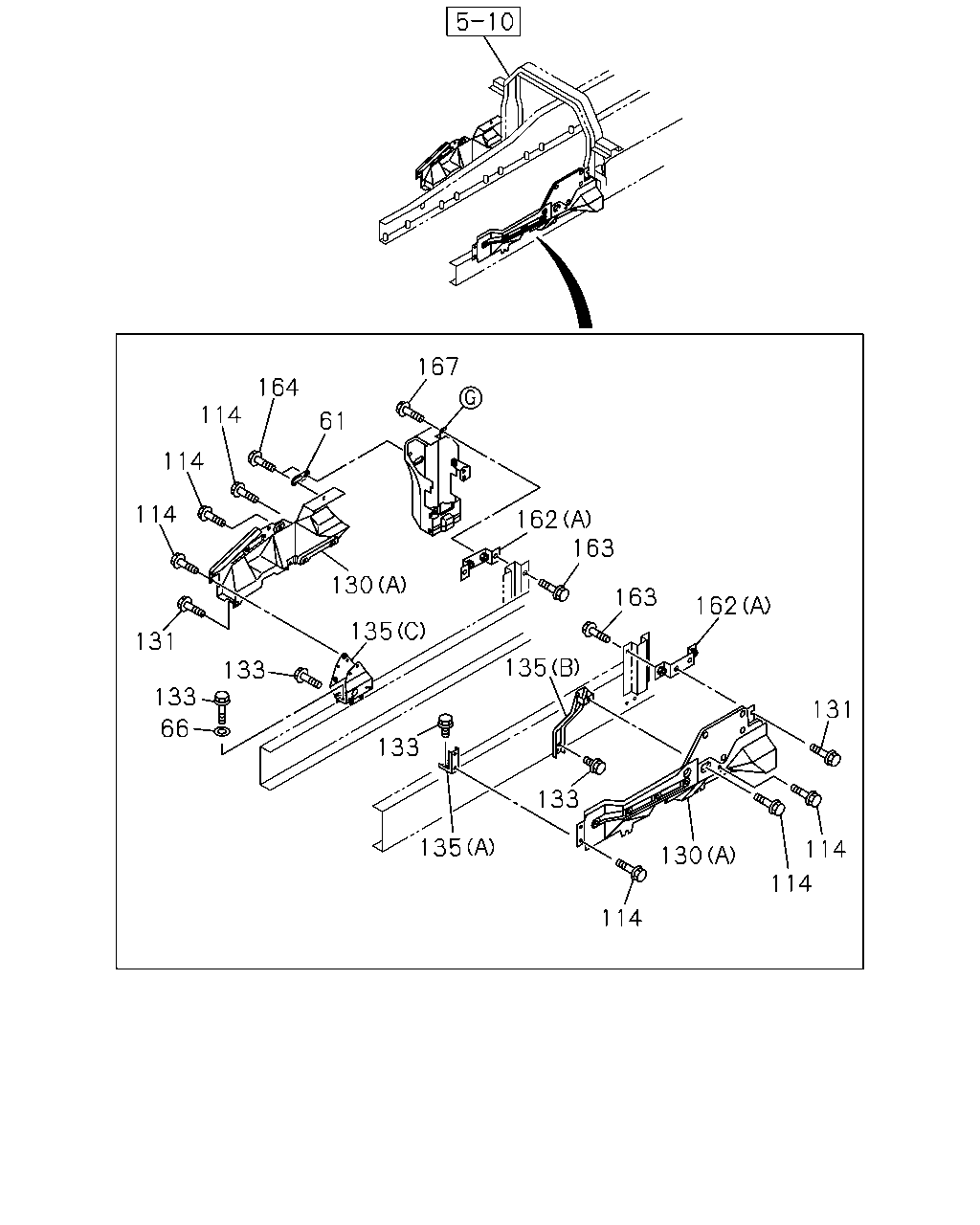

çizim 93158
167 164 114 114 114 61 131 133 130 135 133 66 133 135 114 130 133 135 162 163 163 162 131 114 114
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 1-53441-536-1 01 1 0710-0803
61 BRACKET; COVER 8-98039-501-1 01 1 0804-
66 WASHER; LK
ID=14.2 		0-91510-614-0 02 1 0710-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0710-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0710-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0710-
130 PANEL; SHUTTER NOISE
(C) 		1-79947-078-1 01 1 0710-
131 BOLT; PANEL
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 07 1 0710-0805
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 0806-
133 BOLT; FRAME
M14X45 		0-20801-445-0 02 1 0710-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0710-
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 0710-
135 BRACKET; SIDE PANEL
(C) 		1-33657-840-1 01 1 0710-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0710-
135 BRACKET; SIDE PANEL
(B) 		1-53441-508-1 01 1 0710-
162 BRACKET
(A) 		1-53441-520-0 02 1 0710-
162 BRACKET
(B) 		1-53441-552-1 01 1 0710-
162 BRACKET
(C) 		1-71907-815-0 01 1 0710-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 04 1 0710-

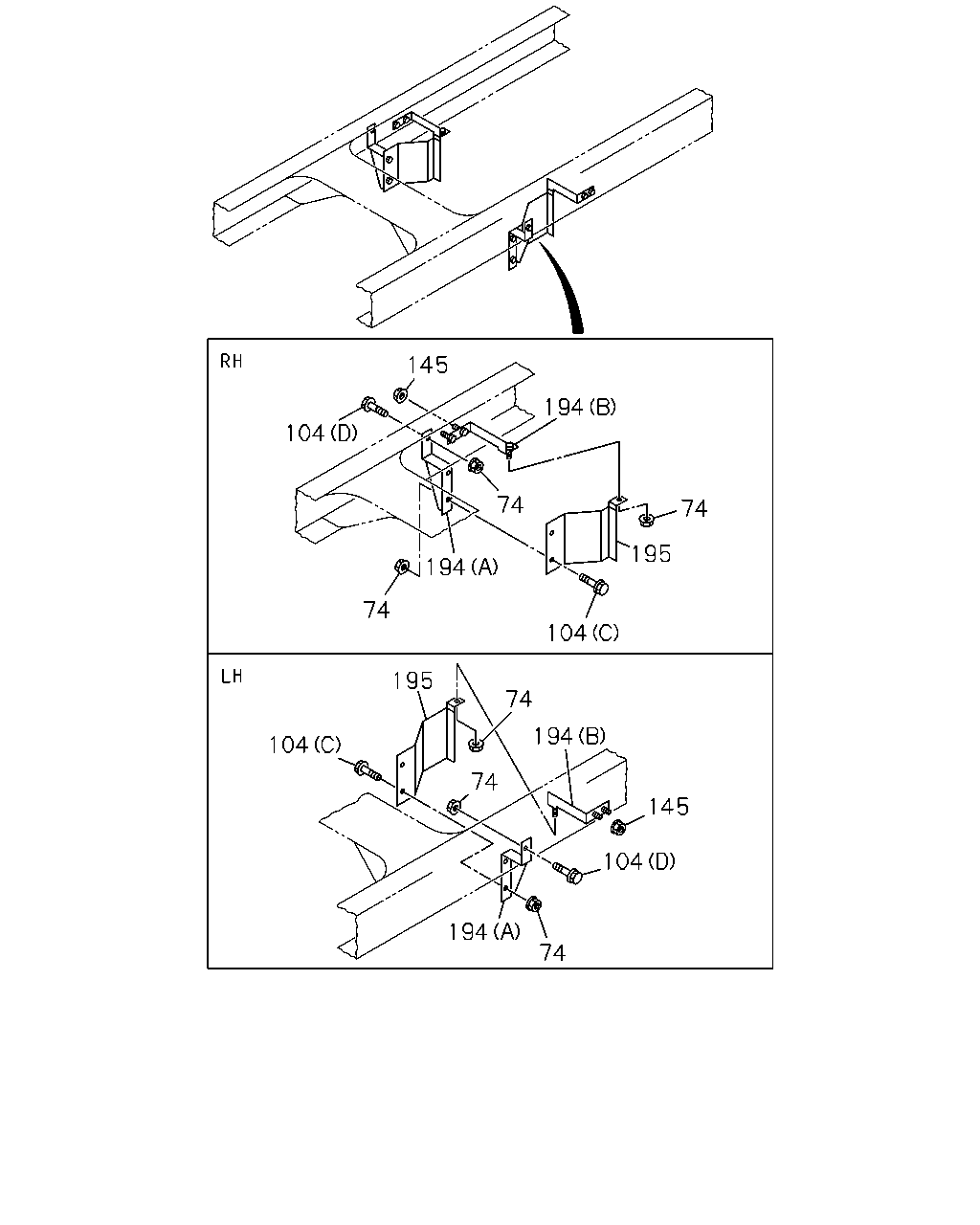

çizim 93473
145 194 104 74 74 195 194 74 104 195 74 194 104 74 145 104 194 74
BalonParca AdiParca NoAdetTipApplied Date
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0710-
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0710-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28650-820-0 04 1 0710-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0710-
104 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710-0808
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809-
145 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 04 1 0710-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-22159-373-0 02 1 0710-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-374-0 01 1 0710-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-375-0 01 1 0710-
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-543-1 01 1 0710-
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-545-0 01 1 0710-
çizim 93544
130 74 73 130 167 167 160 167 122 122 162 160
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0710-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0710-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0710-
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0710-
122 BOLT
M8X30 FLANGE 		0-28650-830-0 04 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0710-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0710-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0710-
130 PANEL; SHUTTER NOISE
(C) 		1-79947-078-1 01 1 0710-
160 COVER ASM; EXH
(A) 		1-79931-418-1 01 1 0710-
160 COVER ASM; EXH
(B) 		1-79931-443-0 01 1 0710-1207
160 COVER ASM; EXH
(B) 		1-79931-441-0 01 1 1208-
162 BRACKET
(A) 		1-53441-520-0 02 1 0710-
162 BRACKET
(B) 		1-53441-552-1 01 1 0710-
162 BRACKET
(C) 		1-71907-815-0 01 1 0710-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 04 1 0710-
çizim 106760
130 130 281 185 249 281 185 249 130 185 130 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0710-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0710-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0710-
130 PANEL; SHUTTER NOISE
(C) 		1-79947-078-1 01 1 0710-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0710-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0710-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0710-
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0710-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0710-

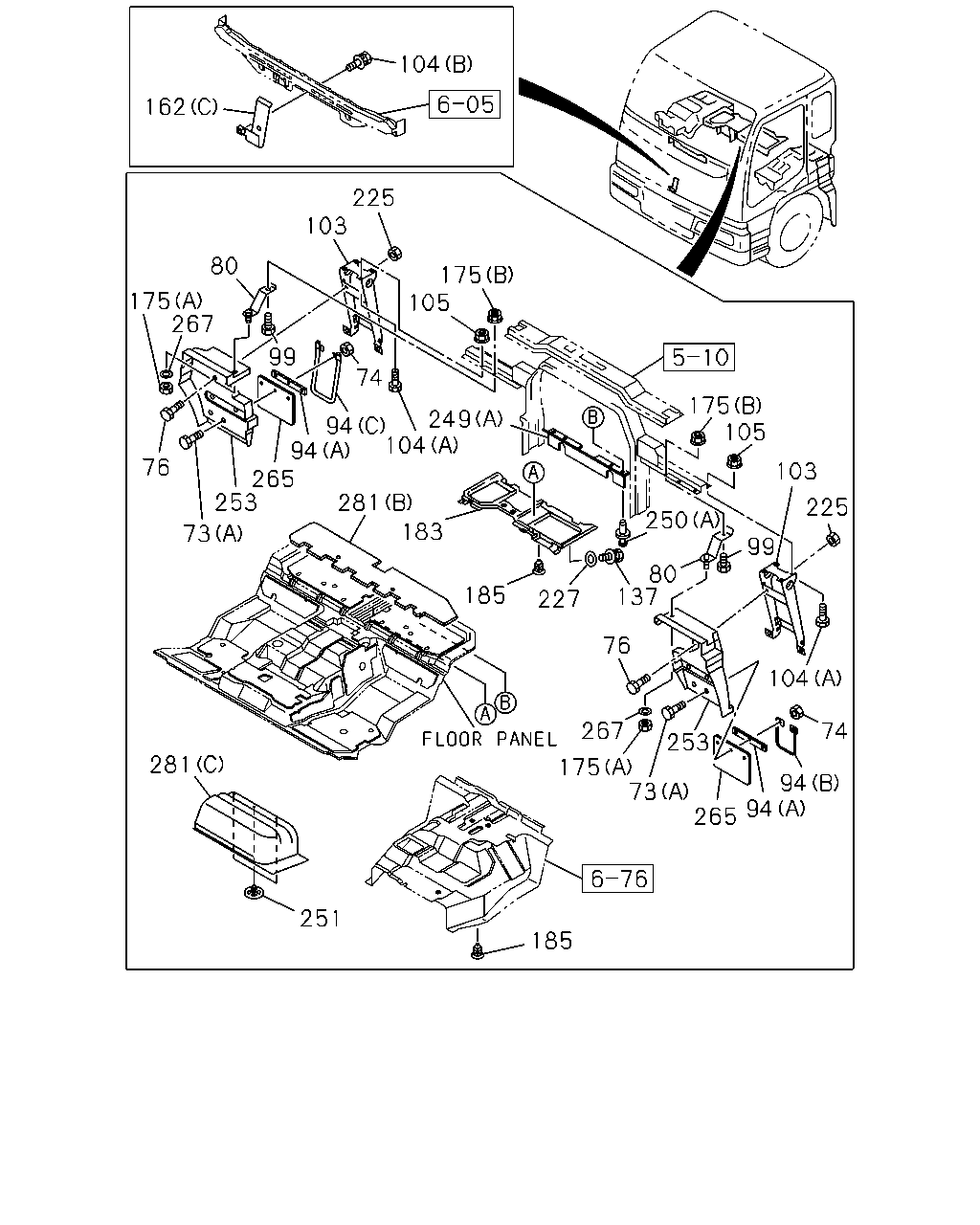

çizim 106782
162 104 225 103 80 175 267 175 105 99 76 73 253 265 94 94 74 249 104 281 183 175 105 103 225 99 250 137 80 227 185 76 104 74 94 94 265 73 253 267 175 185 251 281
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0710-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0710-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0710-
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0710-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0710-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0710-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0710-
94 RETAINER; FLAP RUBBER
(C) 		1-79931-524-0 01 1 0710-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0710-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0710-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 02 1 0710-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28650-820-0 04 1 0710-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0710-
104 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710-0808
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0710-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
162 BRACKET
(A) 		1-53441-520-0 02 1 0710-
162 BRACKET
(B) 		1-53441-552-1 01 1 0710-
162 BRACKET
(C) 		1-71907-815-0 01 1 0710-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0710-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0710-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0710-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0710-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0710-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0710-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0710-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0710-
251 CLIP; NOISE INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 0710-
253 GUARD; MUD 1-79931-064-7 01 1 0710-0901
253 GUARD; MUD 8-98134-759-0 01 1 0902-
253 GUARD; MUD 1-79931-066-7 01 1 0710-0901
253 GUARD; MUD 8-98134-766-1 01 1 0902-
265 RUBBER; FLAP,REAR 1-79931-460-0 02 1 0710-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0710-
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0710-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0710-
