Isuzu WW
▶
TRUCKS
▶
NLR
▶
51507 - NLR/NMR(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

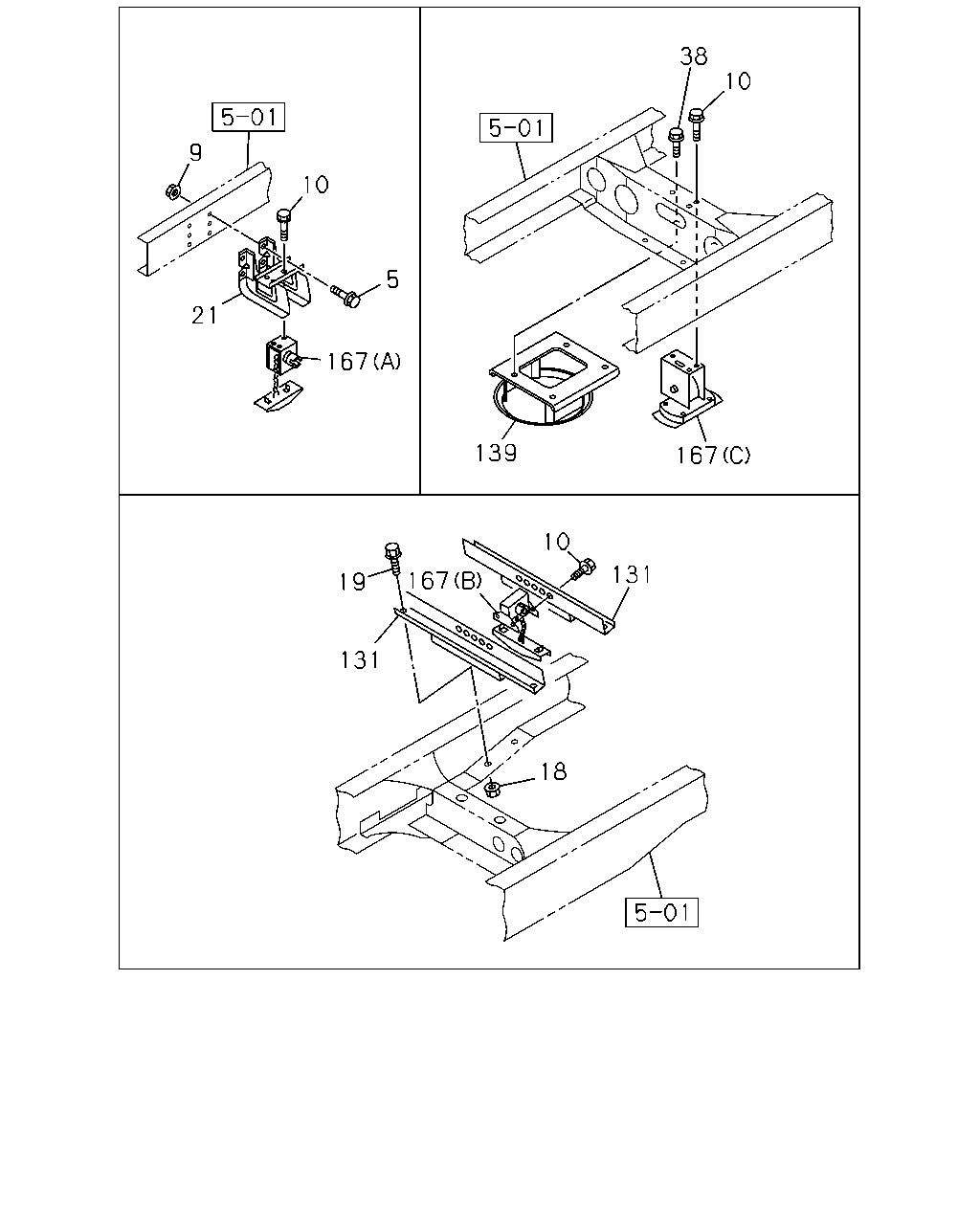

5-30 — SPARE TIRE CARRIER AND COVER
(#139253) — 18 parça
Tümü
A - NMR5SE
B - NMR5SN
9
21
10
5
167
19
131
18
167
131
10
167
139
38
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
BOLT; BRKT TO FRAME
EXC. SINGLE RR TIRE<6TD> M10X25 FLANGE THA
0-28051-025-0
04
1
1405-
●
5
BOLT; BRKT TO FRAME
WHEEL BASE 2400MM<24W> M10X25 FLANGE THA
0-28051-025-0
04
1
1405-
●
9
NUT; BRKT TO FRAME
EXC. SINGLE RR TIRE<6TD> M10 FLANGE THA
0-91180-110-0
04
1
1405-
●
9
NUT; BRKT TO FRAME
WHEEL BASE 2400MM<24W> M10 FLANGE THA
0-91180-110-0
04
1
1405-
●
10
BOLT; TIRE HANGER
M8X20 FLANGE THA
0-28650-820-0
03
1
1405-
●
10
BOLT; TIRE HANGER
WHEEL BASE 2400MM<24W> M8X20 FLANGE THA
0-28650-820-0
03
1
1405-
●
10
BOLT; TIRE HANGER
WHEEL BASE 3300MM<33W> M8X25 FLANGE THA
0-28650-825-0
04
1
1405-
●
18
NUT; MEMBER
WHEEL BASE 3300MM<33W> M10 FLANGE THA
0-91180-110-0
04
1
1405-
●
19
BOLT; C/MBR
WHEEL BASE 3300MM<33W> M10X30 FLANGE THA
0-28651-030-0
04
1
1405-
●
21
BRACKET; SPARE TIRE HANGER
EXC. SINGLE RR TIRE<6TD>
8-98036-085-2
01
1
1405-
●
21
BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM<24W>
8-98036-085-2
01
1
1405-
●
38
BOLT; STOPPER
SINGLE RR TIRE<6TD> M8X20 FLANGE THA
0-28650-820-0
04
1
1405-
●
131
CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM<33W>
8-98035-825-3
02
1
1405-
●
139
STOPPER; SPARE TIRE
SINGLE RR TIRE<6TD>
8-98107-563-2
01
1
1405-
●
167
HANGER; TIRE
SINGLE RR TIRE<6TD> (C)
8-94380-175-1
01
1
1405-
●
167
HANGER; TIRE
EXC. SINGLE RR TIRE<6TD> (A)
8-94382-875-1
01
1
1405-
●
167
HANGER; TIRE
WHEEL BASE 2400MM<24W> (A)
8-94382-875-1
01
1
1405-
●
167
HANGER; TIRE
WHEEL BASE 3300MM<33W> (B) THA
8-97947-858-0
01
1
1405-
●
