Isuzu WW
▶
TRUCKS
▶
NLR
▶
51507 - NLR/NMR(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#139252) — 29 parça
Tümü
A - NMR5SN
B - NMR5SE
◀

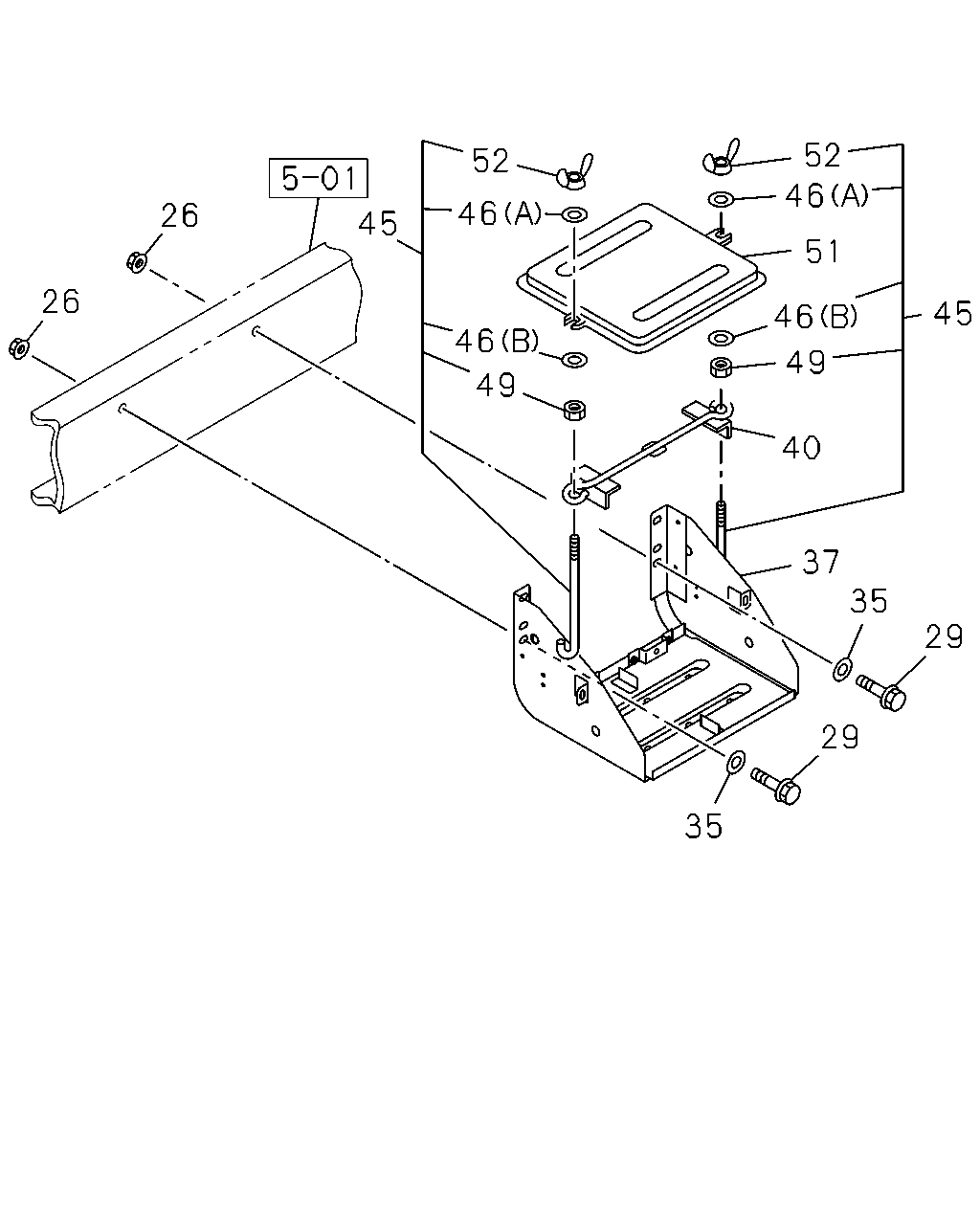

[520A] WHEEL BASE 3300MM (11 parça)

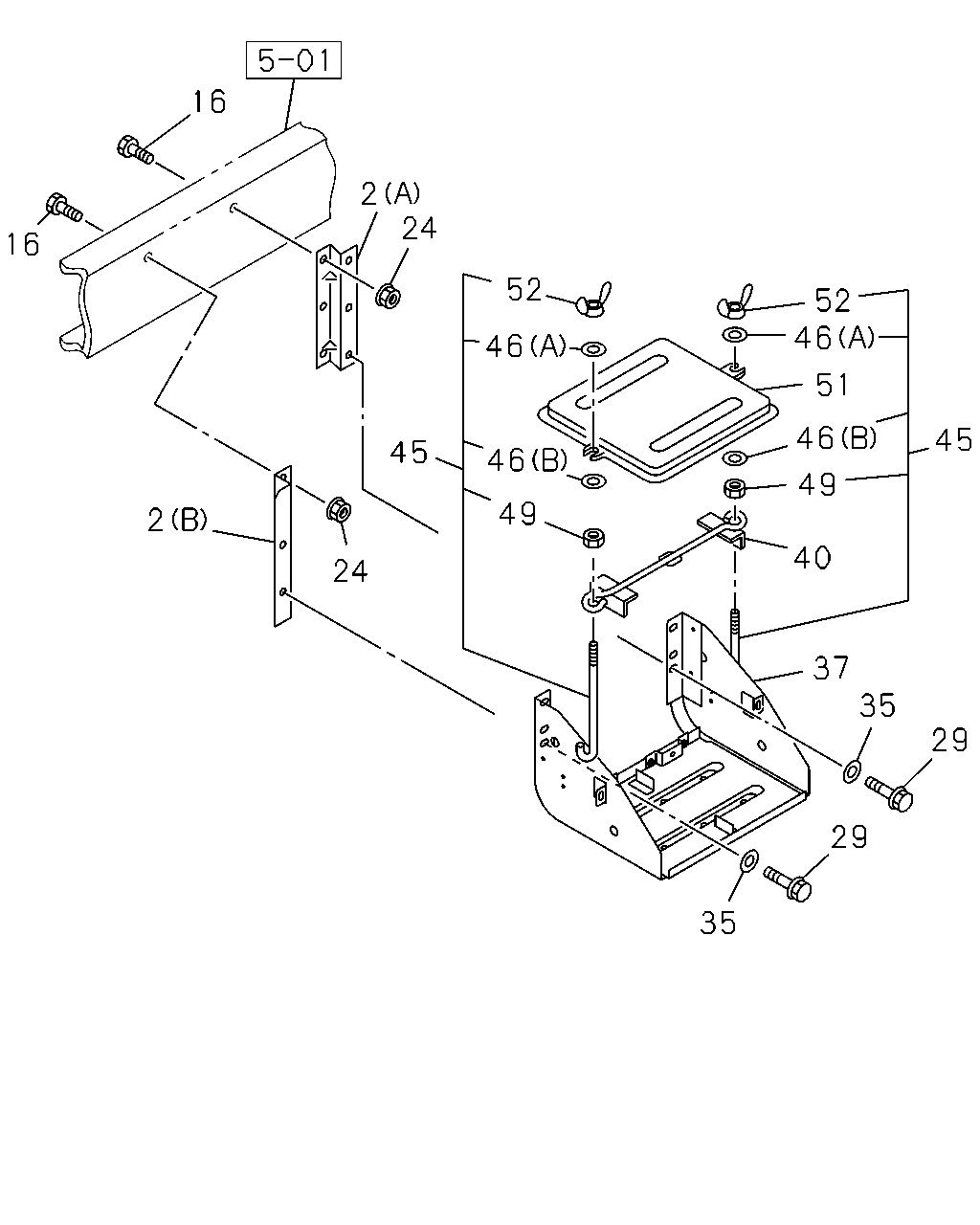

[520A] WHEEL BASE 2400MM (18 parça)
▶
52
46
51
46
49
40
45
37
35
29
29
35
49
46
46
52
45
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
26
NUT; BRKT
WHEEL BASE 3300MM<33W> M10 FLANGE THA
0-91180-210-0
04
1
1405-
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE THA
0-28661-035-0
04
1
1405-
●
●
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
1405-
●
●
37
BRACKET; BATTERY
THA
8-97923-653-1
01
1
1405-
●
●
40
CLAMP; BATTERY
THA
8-97910-232-0
01
1
1405-
●
●
45
ROD; TENSION,BATTERY
THA
8-97926-647-0
02
1
1405-
●
●
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18
0-91614-608-0
02
1
1405-
●
●
46
WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 THA
0-91614-708-0
02
1
1405-
●
●
49
NUT; ROD,BATTERY
M8
0-91110-508-0
02
1
1405-
●
●
51
COVER; BATTERY
THA
8-97915-940-0
01
1
1405-
●
●
52
NUT; WING,COVER FIX
M8 WING NUT THA
0-91118-408-0
02
1
1405-
●
●
16
16
2
24
45
2
24
52
46
46
49
35
29
29
35
37
40
49
46
45
51
46
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BRACKET; BATTERY
(A)
8-97384-069-1
01
1
1405-
●
2
BRACKET; BATTERY
WHEEL BASE 2400MM<24W> (A)
8-97384-069-1
01
1
1405-
●
2
BRACKET; BATTERY
(B)
8-97384-070-1
01
1
1405-
●
2
BRACKET; BATTERY
WHEEL BASE 2400MM<24W> (B)
8-97384-070-1
01
1
1405-
●
16
BOLT; BRKT TO FRAME
M10X35 FLANGE THA
0-28651-035-0
04
1
1405-
●
16
BOLT; BRKT TO FRAME
WHEEL BASE 2400MM<24W> M10X35 FLANGE THA
0-28651-035-0
04
1
1405-
●
24
NUT; BRKT TO FRAME
M10 FLANGE THA
0-91180-110-0
01
1
1405-
●
24
NUT; BRKT TO FRAME
WHEEL BASE 2400MM<24W> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10 FLANGE THA
0-91180-110-0
01
1
1405-
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE THA
0-28661-035-0
04
1
1405-
●
●
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
1405-
●
●
37
BRACKET; BATTERY
THA
8-97923-653-1
01
1
1405-
●
●
40
CLAMP; BATTERY
THA
8-97910-232-0
01
1
1405-
●
●
45
ROD; TENSION,BATTERY
THA
8-97926-647-0
02
1
1405-
●
●
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18
0-91614-608-0
02
1
1405-
●
●
46
WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 THA
0-91614-708-0
02
1
1405-
●
●
49
NUT; ROD,BATTERY
M8
0-91110-508-0
02
1
1405-
●
●
51
COVER; BATTERY
THA
8-97915-940-0
01
1
1405-
●
●
52
NUT; WING,COVER FIX
M8 WING NUT THA
0-91118-408-0
02
1
1405-
●
●
