Isuzu WW
▶
TRUCKS
▶
NLR
▶
51507 - NLR/NMR(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#139251) — 48 parça
Tümü
A - NMR5SE
B - NMR5SN
◀
[515A] CAB LOCK (20 parça)
[515A] TORSION BAR LEVER (6 parça)
[515A] CAB STAY (22 parça)
▶

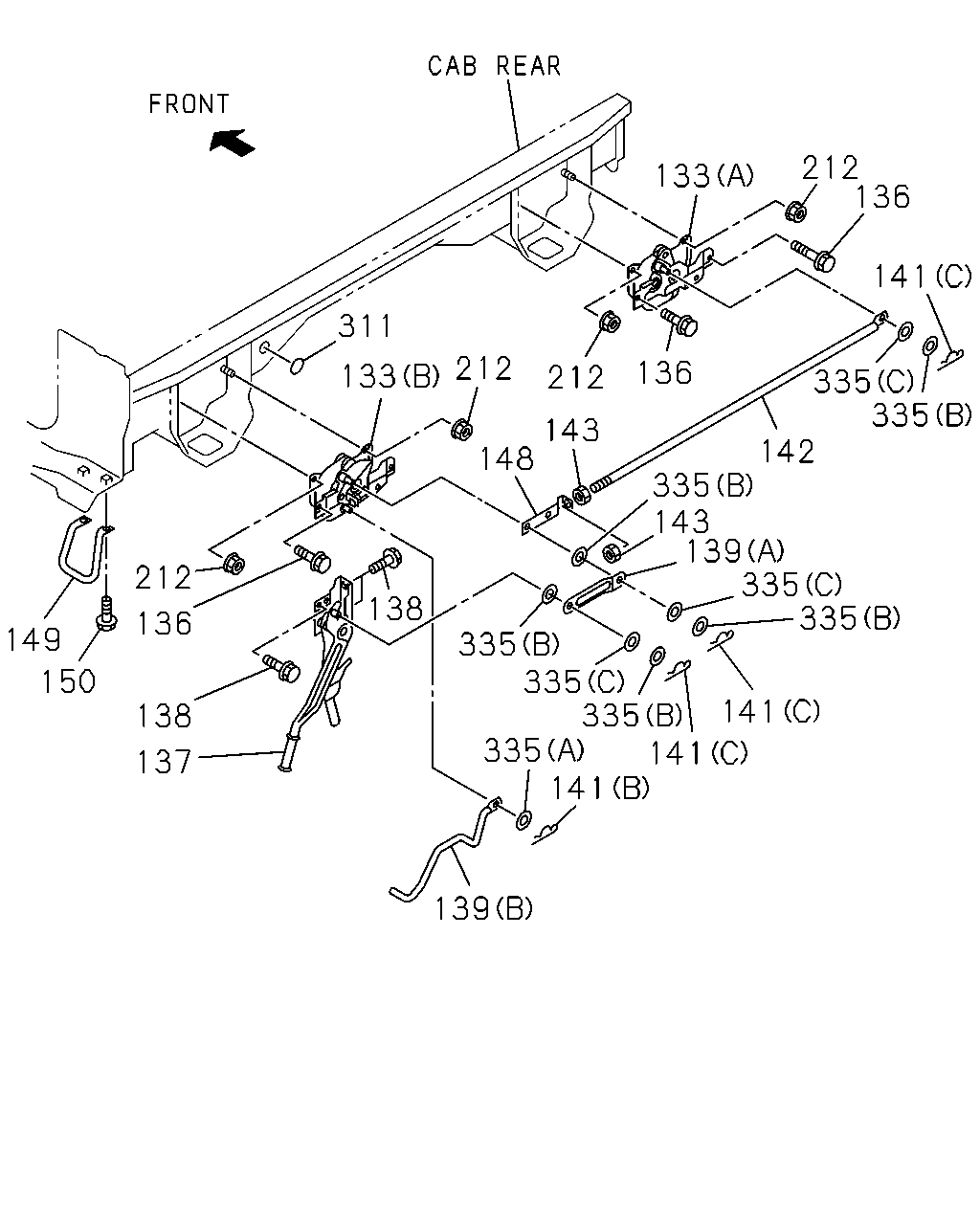

133
212
141
335
142
335
143
212
136
148
133
212
311
138
335
335
335
141
335
335
139
143
141
141
139
335
137
138
136
150
149
212
136
335
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
133
LOCK ASM; CAB
MANUAL TILT CAB<RWZ> (B)
8-97410-270-2
01
1
1405-
●
●
133
LOCK ASM; CAB
MANUAL TILT CAB<RWZ> (A)
8-98182-353-0
01
1
1405-
●
●
136
BOLT; CAB LK
MANUAL TILT CAB<RWZ> M8X20 FLANGE THA
0-28650-820-0
04
1
1405-
●
●
137
CONTROL UNIT; CAB LOCK
MANUAL TILT CAB<RWZ>
8-97411-004-3
01
1
1405-
●
●
138
BOLT; CAB LOCK CONT UNIT
MANUAL TILT CAB<RWZ> M8X20 FLANGE THA
0-28650-820-0
03
1
1405-
●
●
139
ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> (A)
8-97584-483-2
01
1
1405-
●
●
139
ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> (B)
8-98128-201-0
01
1
1405-
●
●
141
PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> (A) L=32.6
1-09987-142-0
01
1
1405-
●
●
141
PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> (B) L=25.3
8-98039-045-1
01
1
1405-
●
●
141
PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> (C) L=34
8-98039-426-1
03
1
1405-
●
●
142
ROD; HOOK TO HOOK
MANUAL TILT CAB<RWZ>
8-97410-272-0
01
1
1405-
●
●
143
NUT; JAW JOINT,HOOK TO HOOK
MANUAL TILT CAB<RWZ> M10 THA
0-91110-510-0
02
1
1405-
●
●
148
JOINT; JAW,HOOK TO HOOK
MANUAL TILT CAB<RWZ>
8-97410-736-0
01
1
1405-
●
●
149
HANDLE; TILT
MANUAL TILT CAB<RWZ>
8-98067-938-0
01
1
1405-
●
●
150
BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> M8X25 FLANGE THA
0-28650-825-0
02
1
1405-
●
●
212
NUT; BRKT,CAB LOCK
MANUAL TILT CAB<RWZ> M8 FLANGE THA
0-91180-108-0
04
1
1405-
●
●
311
SEAL; CAB LOCK
OD=32 BLACK
8-98031-126-0
01
1
1405-
●
●
335
WASHER; CAB LOCK ROD
MANUAL TILT CAB<RWZ> (B) ID=12.5 OD=22
0-91610-512-0
05
1
1405-
●
●
335
WASHER; CAB LOCK ROD
MANUAL TILT CAB<RWZ> (A) ID=8.4 OD=14
5-09550-002-0
01
1
1405-
●
●
335
WASHER; CAB LOCK ROD
MANUAL TILT CAB<RWZ> (C) ID=13 OD=22
8-98060-839-0
03
1
1405-
●
●

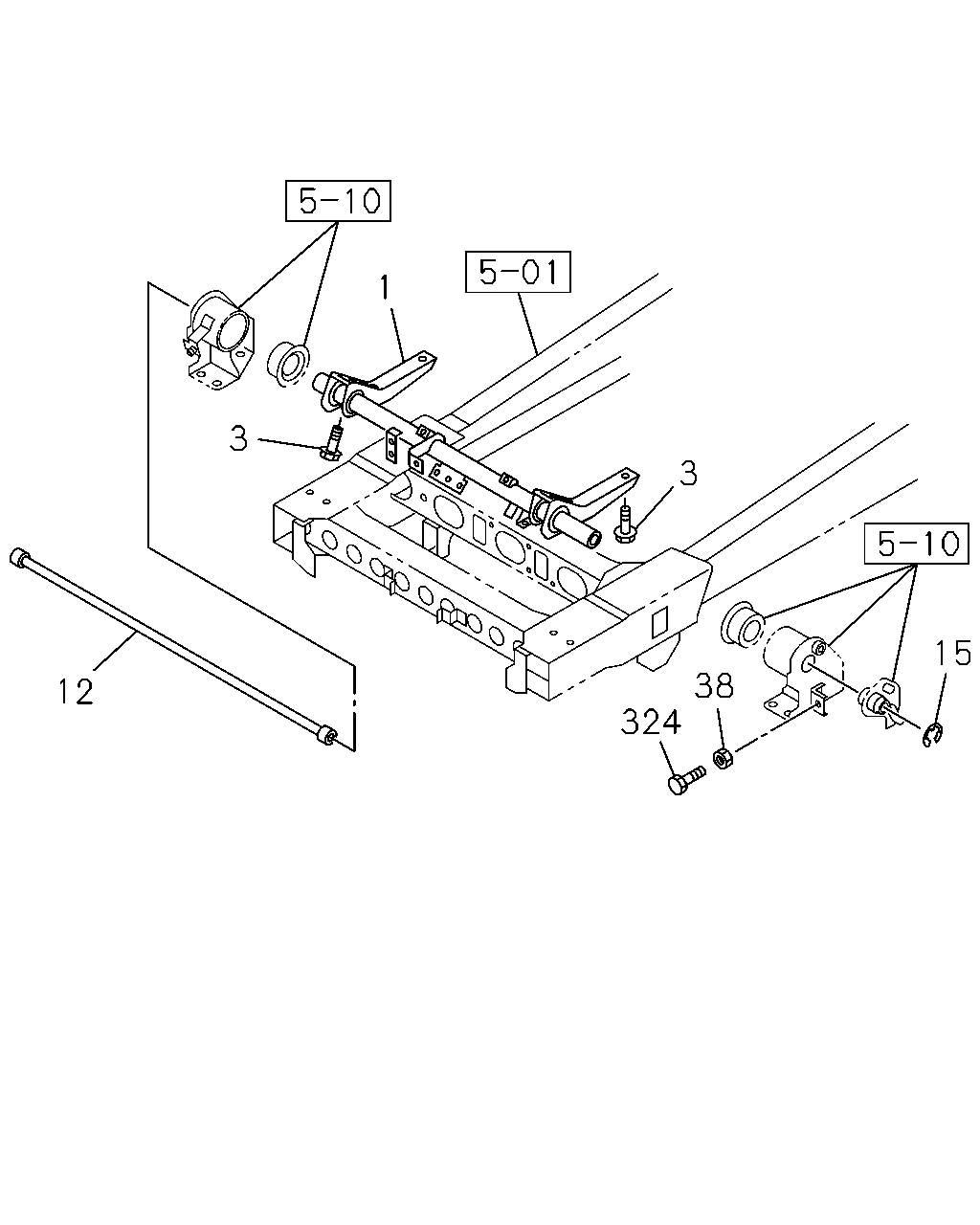

3
1
3
324
15
38
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LEVER; TORSION BAR
MANUAL TILT CAB<RWZ>
8-98001-433-2
01
1
1405-
●
●
3
BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER
8-97359-033-0
06
1
1405-
●
●
12
BAR; TORSION,UPR
MANUAL TILT CAB<RWZ>
8-98001-520-0
01
1
1405-
●
●
15
RING; SNAP,TORSION BAR
MANUAL TILT CAB<RWZ>
8-97359-034-0
01
1
1405-
●
●
38
NUT; LK
MANUAL TILT CAB<RWZ> M14
8-98039-988-0
01
1
1405-
●
●
324
BOLT; ADJUST
MANUAL TILT CAB<RWZ> M14X55
8-98004-319-1
01
1
1405-
●
●

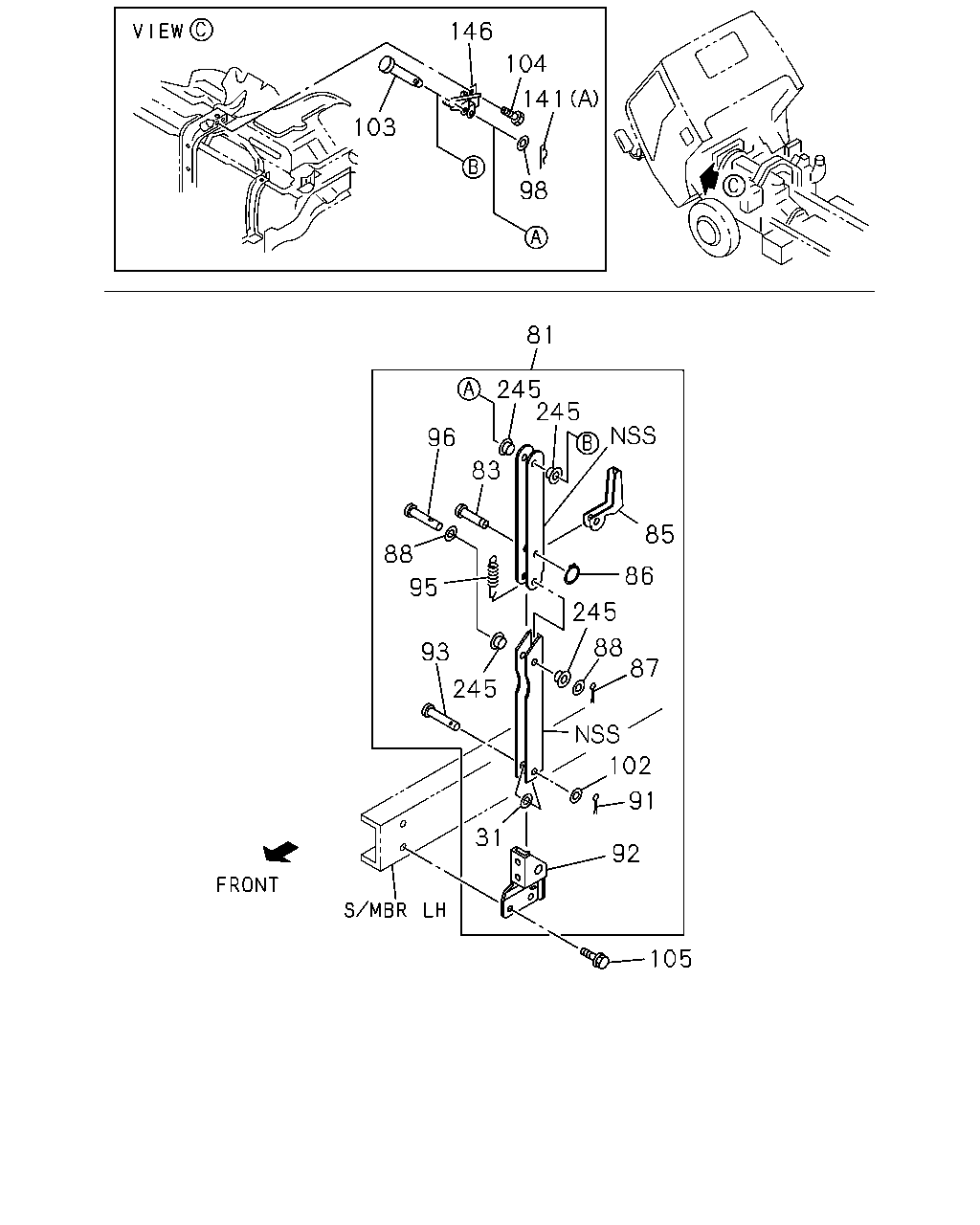

103
146
141
98
81
245
245
85
86
245
88
87
102
91
92
105
31
245
95
93
88
83
96
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
31
WASHER; WAVE
MANUAL TILT CAB<RWZ> ID=13 OD=22
8-98060-839-0
01
1
1405-
●
●
81
STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ>
8-98123-313-0
01
1
1405-
●
●
83
PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ>
8-98122-493-0
01
1
1405-
●
●
85
LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ>
8-94331-481-0
01
1
1405-
●
●
86
RING; SNAP,LOCK LEVER,CAB STAY
MANUAL TILT CAB<RWZ> ID=6
0-91805-506-0
01
1
1405-
●
●
87
PIN; SPLIT,CAB STAY PIN
MANUAL TILT CAB<RWZ> OD=2.8 L=20
0-81123-020-0
01
1
1405-
●
●
88
WASHER; PL,CAB STAY PIN
MANUAL TILT CAB<RWZ> ID=10.5 OD=22 T=1.6
0-91610-610-0
02
1
1405-
●
●
91
PIN; SPLIT,CAB STAY
MANUAL TILT CAB<RWZ> OD=3.7 L=20
0-81124-020-0
01
1
1405-
●
●
92
BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ>
8-97385-586-1
01
1
1405-
●
●
93
PIN; CAB STAY
MANUAL TILT CAB<RWZ>
8-98122-498-0
01
1
1405-
●
●
95
SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ>
8-94160-167-2
01
1
1405-
●
●
96
PIN; JOINT
MANUAL TILT CAB<RWZ>
8-98123-513-0
01
1
1405-
●
●
98
WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=10.5 T=2.0
1-09985-183-0
01
1
1405-
●
●
102
WASHER; PL,CAB STAY
MANUAL TILT CAB<RWZ> ID=12.5 OD=26
0-91610-612-0
01
1
1405-
●
●
103
PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> OD=10 L=48
1-09744-107-0
01
1
1405-
●
●
104
BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> M8X20 FLANGE
0-28660-820-0
03
1
1405-
●
●
105
BOLT; CAB STAY
MANUAL TILT CAB<RWZ> M10X30 FLANGE THA
0-28651-030-0
02
1
1405-
●
●
141
PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> (A) L=32.6
1-09987-142-0
01
1
1405-
●
●
141
PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> (B) L=25.3
8-98039-045-1
01
1
1405-
●
●
141
PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> (C) L=34
8-98039-426-1
03
1
1405-
●
●
146
BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ>
8-98001-523-1
01
1
1405-
●
●
245
BUSHING; CAB STAY
MANUAL TILT CAB<RWZ>
1-62500-587-0
04
1
1405-
●
●
