Isuzu WW
▶
TRUCKS
▶
NLR
▶
51507 - NLR/NMR(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#139250) — 21 parça
Tümü
A - NMR5SE
B - NMR5SN
◀

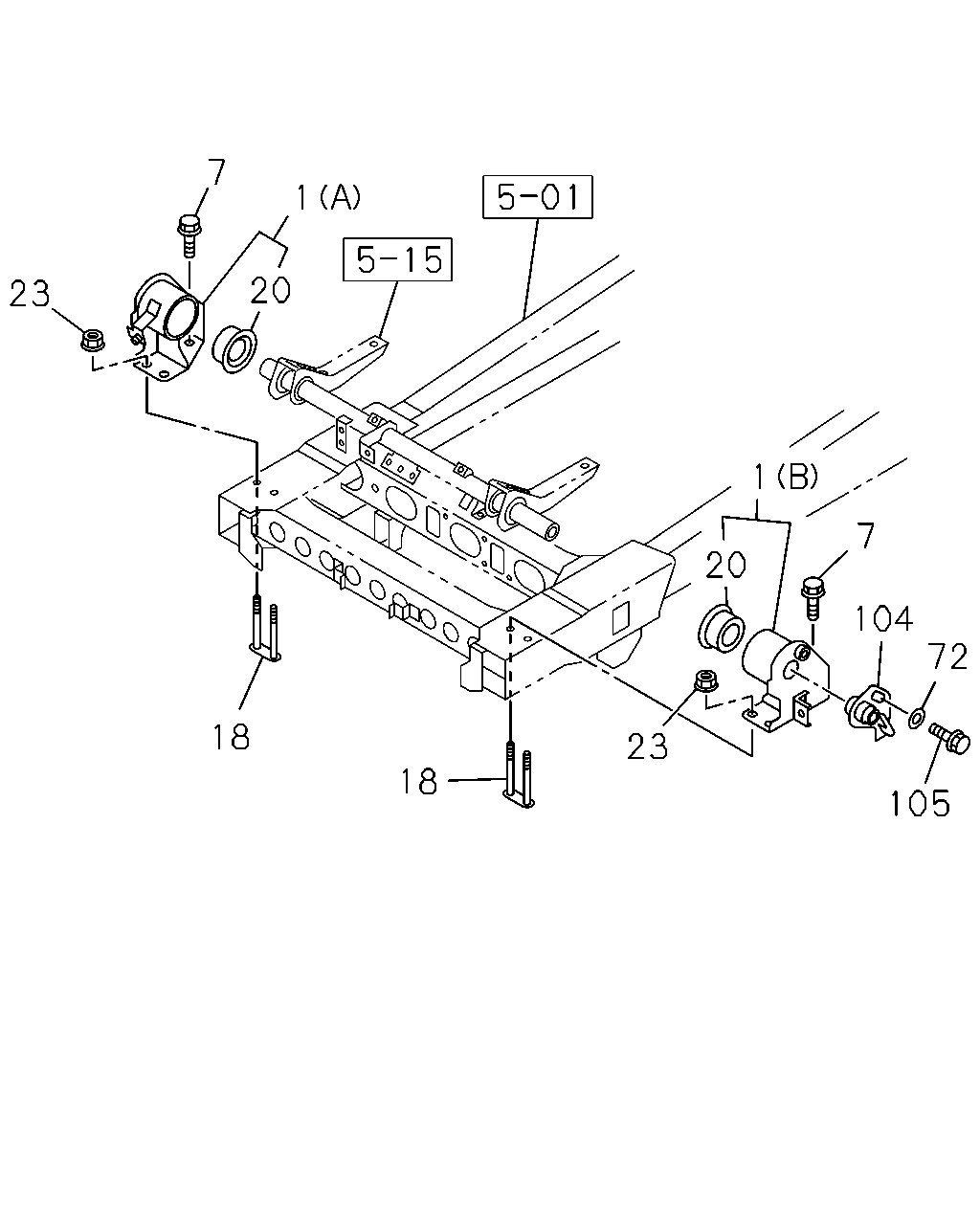

[510A] CAB MTG BRKT FRONT (10 parça)

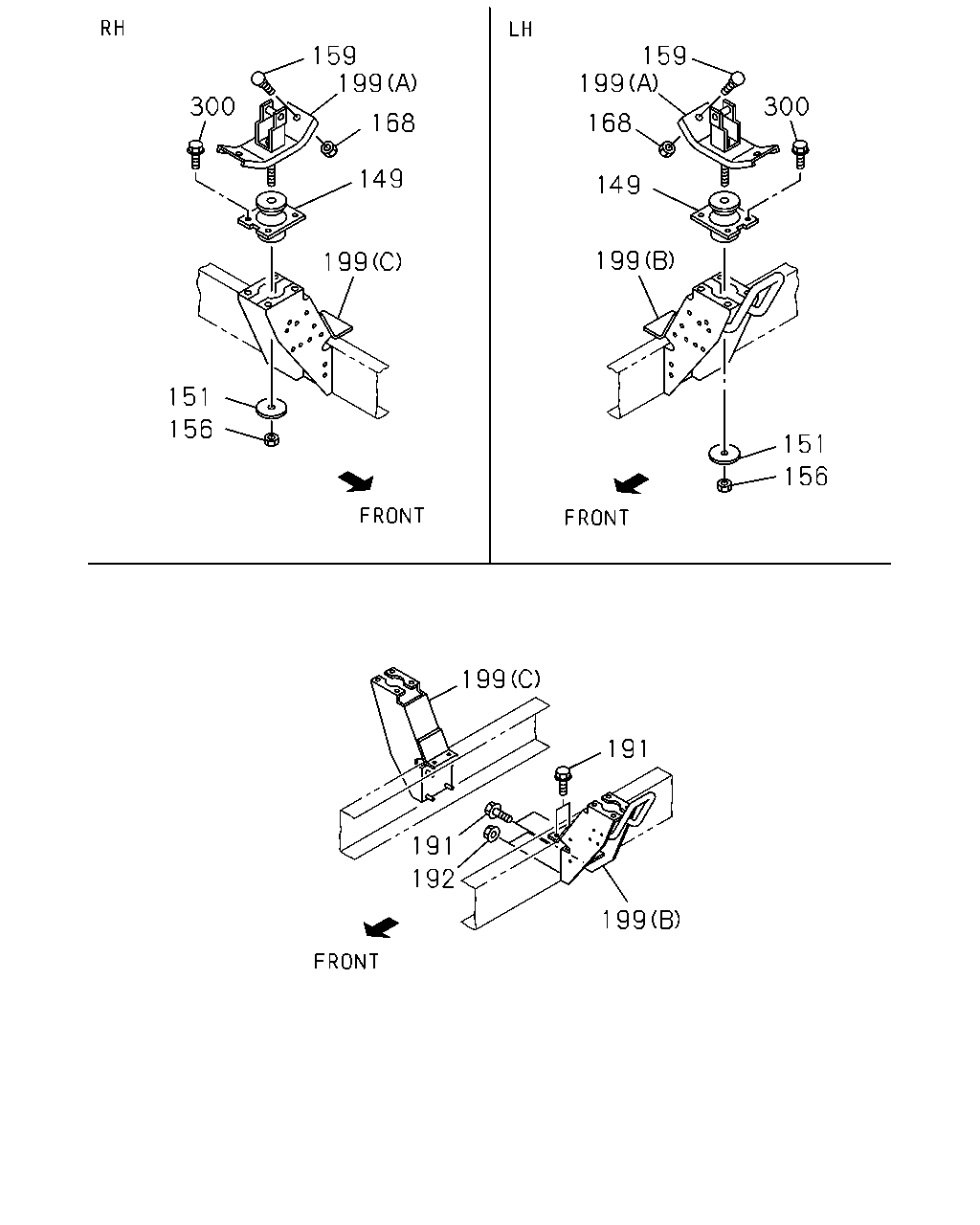

[510A] CAB MTG BRKT REAR (11 parça)
▶
7
23
20
1
18
18
23
20
1
104
72
105
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET; CAB MTG
(B)
8-98021-410-5
01
1
1405-
●
●
1
BRACKET; CAB MTG
(A)
8-98021-407-6
01
1
1405-
●
●
7
BOLT; BRKT,CAB TILT
M14X40 FLANGE
0-28661-440-0
02
1
1405-
●
●
18
PLATE; MTG BRKT FIX
8-98029-285-1
02
1
1405-
●
●
20
RUBBER; MTG,CAB BRKT
8-98007-037-1
01
1
1405-
●
●
20
RUBBER; MTG,CAB BRKT
MANUAL TILT CAB<RWZ>
8-98007-037-1
01
1
1405-
●
●
23
NUT; MTG BRKT
M14
8-98039-989-0
04
1
1405-
●
●
72
WASHER; PL,BRKT TO FRAME
MANUAL TILT CAB<RWZ> ID=15 OD=36
0-91614-714-0
01
1
1405-
●
●
104
BRACKET; CAB FRAME,CAB FRT MTG
MANUAL TILT CAB<RWZ>
8-97383-788-1
01
1
1405-
●
●
105
BOLT; BRKT TO CAB FRAME
MANUAL TILT CAB<RWZ> M14X35 FLANGE
0-28661-435-0
01
1
1405-
●
●
300
159
199
156
151
199
149
168
159
156
151
199
149
168
199
300
199
191
199
192
191
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
149
RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ>
8-98021-561-1
02
1
1405-
●
●
151
WASHER; CAB MTG,RR UPR
MANUAL TILT CAB<RWZ> ID=17 OD=62
8-97359-042-1
02
1
1405-
●
●
156
NUT; CAB MTG RR
MANUAL TILT CAB<RWZ> M16 THA
0-91111-516-0
02
1
1405-
●
●
159
RUBBER; CUSHION,CAB MTG
MANUAL TILT CAB<RWZ>
8-97113-340-0
04
1
1405-
●
●
168
NUT; CUSHION RUBBER,BODY MTG
MANUAL TILT CAB<RWZ> M8 FLANGE THA
0-91180-108-0
04
1
1405-
●
●
191
BOLT; BRKT FIX
M12X35 FLANGE THA
0-28651-235-0
08
1
1405-
●
●
192
NUT; BRKT FIX
M12 FLANGE THA
0-91180-112-0
04
1
1405-
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (C) THA
8-98001-443-4
01
1
1405-
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B) THA
8-98001-444-2
01
1
1405-
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (A)
8-98036-883-0
02
1
1405-
●
●
300
BOLT; MTG RUBBER
M10X20 FLANGE THA
0-28651-020-0
08
1
1405-
●
●
