4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#139237) — 40 parça

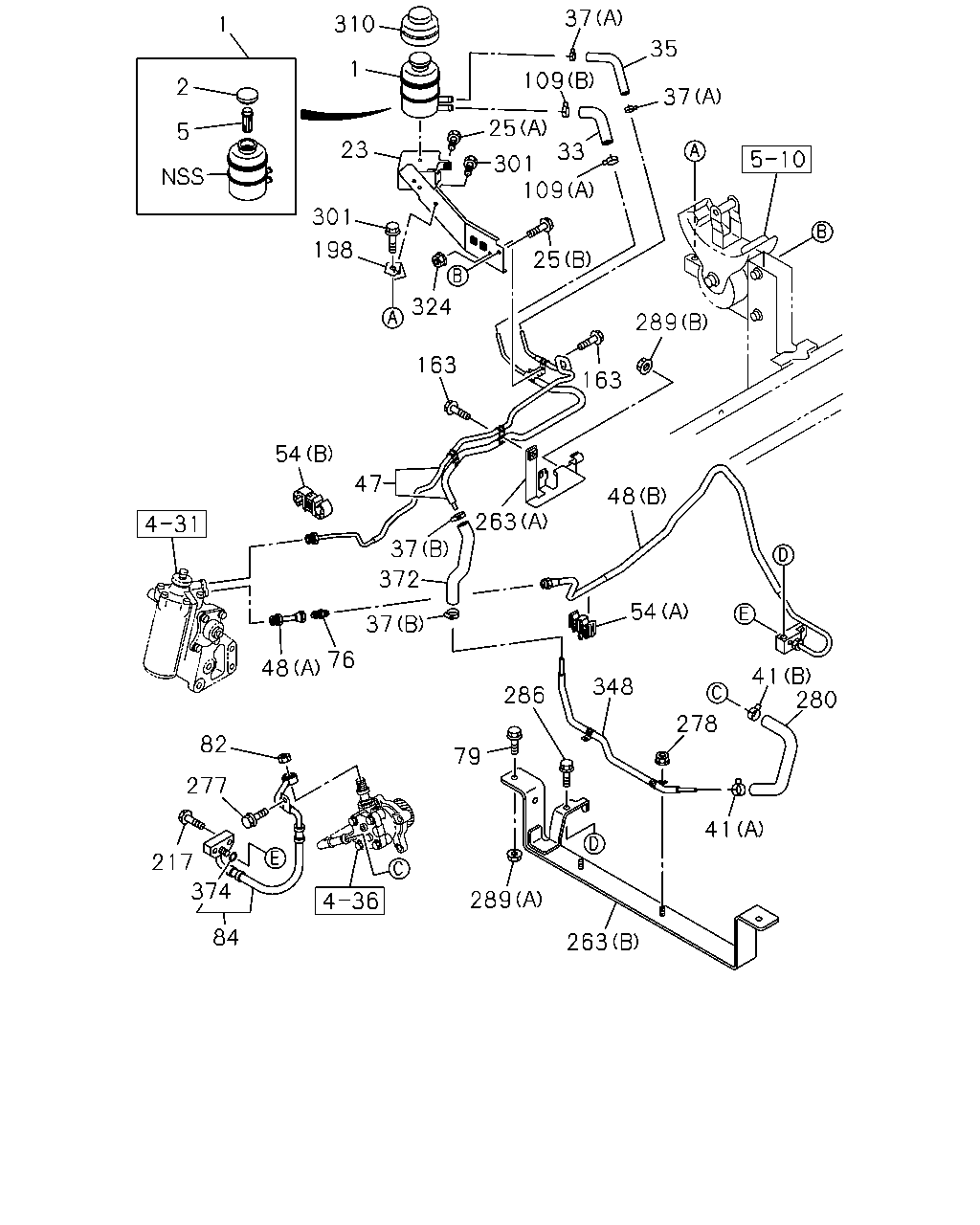

çizim 421320
1 2 310 23 5 301 324 1 198 54 163 47 48 82 76 37 372 37 277 217 374 84 79 286 289 263 41 278 348 37 109 25 109 301 37 35 33 289 25 163 263 48 54 41 280
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 8-97107-987-0 01 1 1405- ● ●
2 CAP; OIL TANK,P/S 8-94146-153-2 01 1 1405- ● ●
5 STRAINER; OIL TANK,P/S 8-97094-732-0 01 1 1405- ● ●
23 BRACKET; OIL TANK,P/S 8-98053-625-2 01 1 1405- ● ●
25 BOLT; OIL TANK BRKT
(A) M6X20 FLANGE 		0-28450-620-0 01 1 1405- ● ●
25 BOLT; OIL TANK BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1405- ● ●
33 HOSE; RUBBER,POWER STRG
THA 		8-98054-267-0 01 1 1405- ● ●
35 HOSE; RETURN,P/S TANK 8-98054-265-0 01 1 1405- ● ●
37 CLIP; HOSE,P/S
(A) ID=16 		8-98008-098-0 02 1 1405- ● ●
37 CLIP; HOSE,P/S
(B) ID=21 		8-98150-355-0 02 1 1405- ● ●
41 CLIP; HOSE,P/S
(A) ID=21.7 		8-97203-074-0 01 1 1405- ● ●
41 CLIP; HOSE,P/S
(B) ID=21 		8-98150-355-0 01 1 1405- ● ●
47 PIPE; RETURN
THA 		8-98173-325-0 01 1 1405- ● ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
(A) THA 		8-98041-027-0 01 1 1405- ● ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
(B) THA 		8-98250-105-0 01 1 1405- ● ●
54 CLIP; OIL PIPE
(B) ID=12 & 12 		1-09709-280-1 01 1 1405- ● ●
54 CLIP; OIL PIPE
(A) ID=10X2 H=37.5 		8-97018-546-0 01 1 1405- ● ●
76 UNION; OIL PIPE
M16 L=42 		0-92123-010-0 01 1 1405- ● ●
79 BOLT; BRKT
M12X30 FLANGE THA 		0-28651-230-0 02 1 1405- ● ●
82 NUT; FLEX HOSE,P/S
M12 SELF LOCK 		8-97028-390-1 01 1 1405- ● ●
84 HOSE; FLEX,P/S
THA 		8-98250-111-0 01 1 1405- ● ●
109 CLIP; RUBBER HOSE
(B) ID=22 		8-97359-141-0 01 1 1405- ● ●
109 CLIP; RUBBER HOSE
(A) ID=21 		8-98150-355-0 01 1 1405- ● ●
163 BOLT; OIL PIPE
M8X25 FLANGE THA 		0-28650-825-0 02 1 1405- ● ●
198 STAY; OIL TANK,POWER STEERING 8-98011-885-1 01 1 1405- ● ●
217 BOLT; FLEX HOSE,P/S
M6X35 FLANGE THA 		0-28650-635-0 02 1 1405- ● ●
263 BRACKET; P/S PIPE
(A) 		8-98008-078-0 01 1 1405- ● ●
263 BRACKET; P/S PIPE
(B) 		8-98250-108-0 01 1 1405- ● ●
277 BOLT; HOSE CLIP
M8X12 FLANGE THA 		0-28050-812-0 01 1 1405- ● ●
278 NUT; HOSE CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1405- ● ●
280 HOSE; P/S OIL PUMP,INL
THA 		8-98041-245-2 01 1 1405- ● ●
286 BOLT; CLIP,P/S HOSE
M8X30 FLANGE THA 		0-28650-830-0 01 1 1405- ● ●
289 NUT; BRKT,POWER STRG
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1405- ● ●
289 NUT; BRKT,POWER STRG
(A) M12 FLANGE THA 		0-91180-112-0 01 1 1405- ● ●
301 BOLT; STAY,OIL TANK
M8X25 FLANGE THA 		0-28650-825-0 02 1 1405- ● ●
310 COVER; OIL TANK 8-97103-394-0 01 1 1405- ● ●
324 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-108-0 01 1 1405- ● ●
348 PIPE; OIL,P/S PRESS
THA 		8-98250-107-0 01 1 1405- ● ●
372 HOSE; RUBBER
L=180 SERVICED BY L=300 		0-09814-300-0 01 1 1405- ● ●
374 GASKET; HOSE,P/S
THA 		8-98139-036-0 01 1 1405- ● ●
