Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#139233) — 256 parça

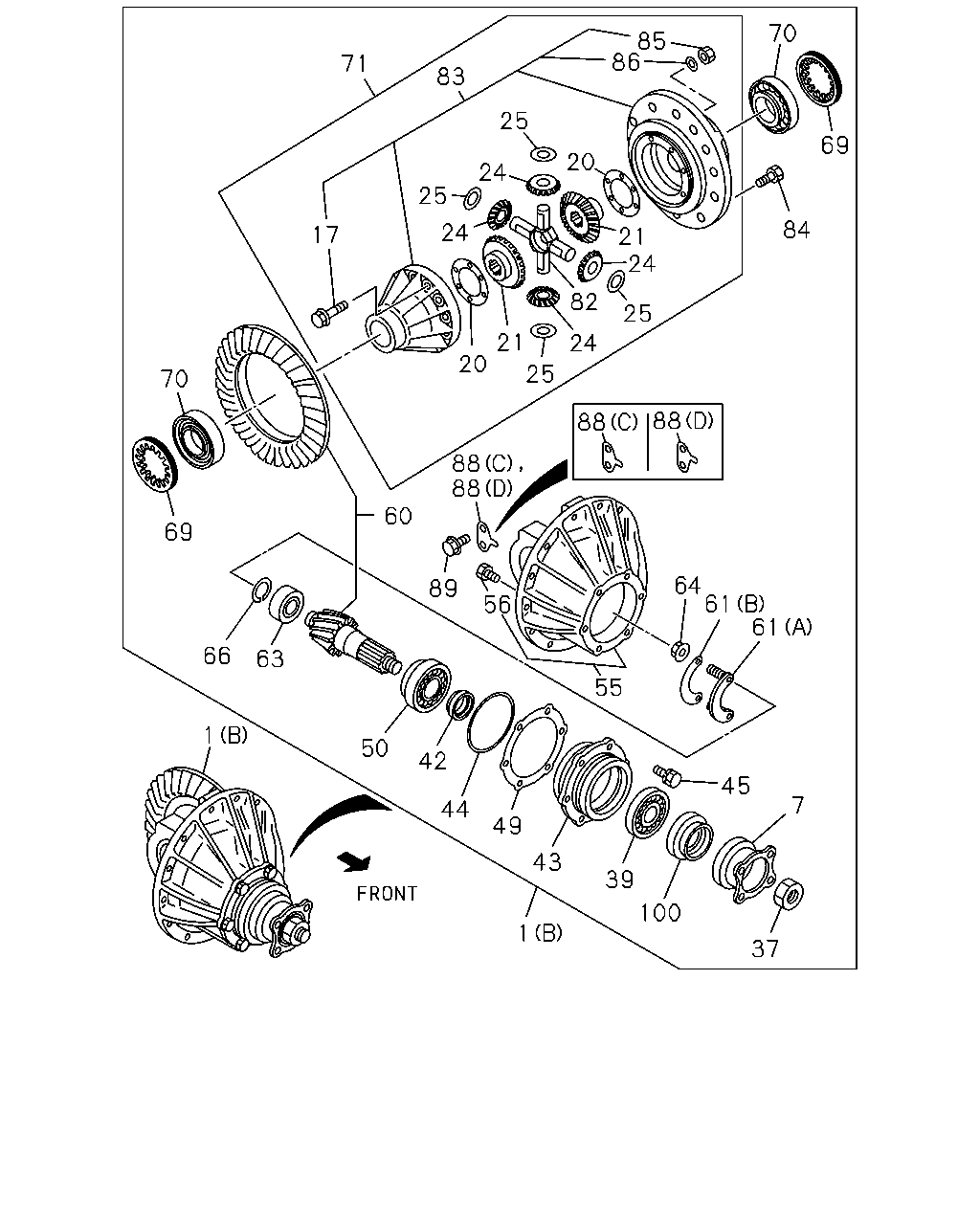

69 70 84 85 86 83 71 25 21 20 24 25 82 24 25 24 24 25 20 21 88 88 88 60 88 61 61 64 45 55 7 37 100 39 43 1 49 44 42 50 1 63 66 69 70 17 56 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR SINGLE RR TIRE<6TD> (A) 41/10	8-98015-135-0	01	1	1405-	●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM<G73> (A) 43/9	8-98015-138-0	01	1	1405-		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> (B) 41/9	8-97388-707-0	01	1	1405-		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> (B) 43/8	8-98065-942-0	01	1	1405-		●
7	FLANGE; FINAL SINGLE RR TIRE<6TD>	8-94477-723-4	01	1	1405-	●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM<G73>	8-94477-723-4	01	1	1405-		●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM<6CP>	8-97073-802-2	01	1	1405-		●
17	BOLT; DIFF CAGE SETTING SINGLE RR TIRE<6TD> M10X75 FLANGE	8-97232-161-0	12	1	1405-	●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10X75 FLANGE	8-97232-161-0	12	1	1405-		●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP>	8-98219-448-0	12	1	1405-		●
20	WASHER; THRUST,SIDE GEAR SINGLE RR TIRE<6TD> T=1.40	9-41562-601-0	02	1	1405-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM<G73> T=1.40	9-41562-601-0	02	1	1405-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=2.80	1-41562-073-0	AR	1	1405-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=2.90	1-41562-074-0	AR	1	1405-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.00	1-41562-075-0	AR	1	1405-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.10	1-41562-076-0	AR	1	1405-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.20	1-41562-077-0	AR	1	1405-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.30	1-41562-078-0	AR	1	1405-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.40	1-41562-079-0	AR	1	1405-		●
21	GEAR; SIDE,DIFF SINGLE RR TIRE<6TD> Z=20	8-97362-599-1	02	1	1405-	●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM<G73> Z=20	8-97362-599-1	02	1	1405-		●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=16	8-98165-935-0	02	1	1405-		●
24	GEAR; PINION,DIFF SINGLE RR TIRE<6TD> Z=10	8-98015-202-0	04	1	1405-	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM<G73> Z=10	8-98015-202-0	04	1	1405-		●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=10	1-41551-050-0	04	1	1405-		●
25	WASHER; THRUST,PINION REAR AXLE HEAVY DUTY 320MM<6CP>	1-41552-020-0	04	1	1405-		●
37	NUT; DRIVING PINION SINGLE RR TIRE<6TD> M24 FLANGE	8-94329-526-1	01	1	1405-	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM<G73> M24 FLANGE	8-94329-526-1	01	1	1405-		●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM<6CP> M30 FLANGE	8-97047-146-0	01	1	1405-		●
39	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT	5-09812-062-1	01	1	1405-		●
39	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NSK	5-09812-063-0	01	1	1405-		●
42	COLLAR; DIST,COLLAPSIBLE SINGLE RR TIRE<6TD> L=19.6	9-41219-603-1	01	1	1405-	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM<G73> L=19.6	9-41219-603-1	01	1	1405-		●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM<6CP>	8-97047-097-0	01	1	1405-		●
43	CAGE; FINAL PINION SINGLE RR TIRE<6TD>	8-94400-890-0	01	1	1405-	●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73>	8-94400-890-0	01	1	1405-		●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP>	8-97047-098-0	01	1	1405-		●
44	GASKET; PINION CAGE SINGLE RR TIRE<6TD>	9-09720-505-0	01	1	1405-	●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73>	9-09720-505-0	01	1	1405-		●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP>	8-97048-053-0	01	1	1405-		●
45	BOLT; FINAL PINION CAGE SINGLE RR TIRE<6TD> M12X38 W/LK WASHER	8-98221-264-0	05	1	1405-	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> M12X38 W/LK WASHER	8-98221-264-0	05	1	1405-		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M12X40 W/LK WASHER	8-98220-227-0	06	1	1405-		●
49	SHIM; FINAL PINION CAGE SINGLE RR TIRE<6TD> ID=132 T=0.10	8-94401-335-0	AR	1	1405-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.10	8-94401-335-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE SINGLE RR TIRE<6TD> ID=132 T=0.12	8-94401-336-0	AR	1	1405-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.12	8-94401-336-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE SINGLE RR TIRE<6TD> ID=132 T=0.14	8-94401-337-0	AR	1	1405-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.14	8-94401-337-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE SINGLE RR TIRE<6TD> ID=132 T=0.16	8-94401-338-0	AR	1	1405-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.16	8-94401-338-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE SINGLE RR TIRE<6TD> ID=132 T=0.18	8-94401-339-0	AR	1	1405-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.18	8-94401-339-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE SINGLE RR TIRE<6TD> ID=132 T=0.20	8-94401-340-0	AR	1	1405-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.20	8-94401-340-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.12	8-97047-298-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.15	8-97047-299-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.20	8-97047-300-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.25	8-97048-418-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.50	8-97048-419-0	AR	1	1405-		●
50	BEARING; FINAL PINION SINGLE RR TIRE<6TD> JTEKT	5-09812-062-1	02	1	1405-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> JTEKT	5-09812-062-1	02	1	1405-		●
50	BEARING; FINAL PINION SINGLE RR TIRE<6TD> NSK	5-09812-063-0	02	1	1405-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> NSK	5-09812-063-0	02	1	1405-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NSK	1-09812-041-2	01	1	1405-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT	1-09812-042-1	01	1	1405-		●
55	CARRIER; DIFF SINGLE RR TIRE<6TD>	8-97307-760-0	01	1	1405-	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM<G73>	8-97307-760-0	01	1	1405-		●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM<6CP>	8-97094-637-0	01	1	1405-		●
56	BOLT; BRG CAP SINGLE RR TIRE<6TD> M14X80	8-94365-377-3	04	1	1405-	●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM<G73> M14X80	8-94365-377-3	04	1	1405-		●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM<6CP> M14X95 FLANGE	1-09070-027-0	04	1	1405-		●
60	GEAR SET; FINAL DRIVE,RR SINGLE RR TIRE<6TD> 41/10	8-98092-055-0	01	1	1405-	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM<G73> 43/9	8-97319-157-0	01	1	1405-		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> 41/9	8-97078-635-1	01	1	1405-		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> 43/8	8-98043-095-0	01	1	1405-		●
61	RETAINER; PILOT BRG,PINION SINGLE RR TIRE<6TD> (A) W/STUD	5-41227-001-0	01	1	1405-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM<G73> (A) W/STUD	5-41227-001-0	01	1	1405-		●
61	RETAINER; PILOT BRG,PINION SINGLE RR TIRE<6TD> (B)	9-41227-601-0	01	1	1405-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM<G73> (B)	9-41227-601-0	01	1	1405-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM<6CP> (A) W/STUD	8-97047-149-0	01	1	1405-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM<6CP> (B)	8-97047-150-0	01	1	1405-		●
63	BEARING; PINION PILOT SINGLE RR TIRE<6TD> NSK	5-09810-008-1	01	1	1405-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM<G73> NSK	5-09810-008-1	01	1	1405-		●
63	BEARING; PINION PILOT SINGLE RR TIRE<6TD> JTEKT	8-97107-548-0	01	1	1405-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM<G73> JTEKT	8-97107-548-0	01	1	1405-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM<6CP> NSK	8-97047-296-0	01	1	1405-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT	8-97047-928-0	01	1	1405-		●
64	NUT; RET SINGLE RR TIRE<6TD> M6 FLANGE THA	0-91180-106-0	02	1	1405-	●
64	NUT; RET M6 FLANGE THA	0-91180-106-0	02	1	1405-		●
66	RING; SNAP,PILOT BRG SINGLE RR TIRE<6TD>	9-09752-002-0	01	1	1405-	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM<G73>	9-09752-002-0	01	1	1405-		●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM<6CP>	8-97047-297-0	01	1	1405-		●
69	NUT; ADJ,DIFF CAGE SINGLE RR TIRE<6TD> M110 H=10	5-41121-001-0	02	1	1405-	●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM<G73> M110 H=10	5-41121-001-0	02	1	1405-		●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M115 H=20	1-41121-039-0	02	1	1405-		●
70	BEARING; DIFF CAGE SINGLE RR TIRE<6TD> NSK	9-00093-602-0	02	1	1405-	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM<G73> NSK	9-00093-602-0	02	1	1405-		●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1405-		●
71	CAGE ASM; DIFF,FINAL DRIVE SINGLE RR TIRE<6TD>	8-98015-181-1	01	1	1405-	●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM<G73>	8-98015-181-1	01	1	1405-		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6>	8-97047-099-4	01	1	1405-		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40>	8-97047-100-4	01	1	1405-		●
82	SPIDER; DIFF PINION SINGLE RR TIRE<6TD>	5-41521-008-0	01	1	1405-	●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM<G73>	5-41521-008-0	01	1	1405-		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM<6CP>	1-41521-035-2	01	1	1405-		●
83	CAGE ASM; DIFF SINGLE RR TIRE<6TD>	8-97319-398-1	01	1	1405-	●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM<G73>	8-97319-398-1	01	1	1405-		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6>	8-98219-705-0	01	1	1405-		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40>	8-98219-707-0	01	1	1405-		●
84	BOLT; FINAL DRIVE GEAR SINGLE RR TIRE<6TD> M14X25	8-97318-938-1	12	1	1405-	●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM<G73> M14X25	8-97318-938-1	12	1	1405-		●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> M16X30	8-97047-147-0	12	1	1405-		●
85	NUT; DIFF CAGE SETTING SINGLE RR TIRE<6TD> M10 FLANGE THA	0-91180-210-0	12	1	1405-	●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10 FLANGE THA	0-91180-210-0	12	1	1405-		●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M12	8-97065-214-0	12	1	1405-		●
86	WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1405-		●
88	PLATE; LK,ADJ NUT SINGLE RR TIRE<6TD> (A)	8-97027-281-0	AR	1	1405-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM<G73> (A)	8-97027-281-0	AR	1	1405-		●
88	PLATE; LK,ADJ NUT SINGLE RR TIRE<6TD> (B)	8-97027-282-0	AR	1	1405-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM<G73> (B)	8-97027-282-0	AR	1	1405-		●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM<6CP> (D)	8-97087-821-0	AR	1	1405-		●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM<6CP> (C) T=2.3	9-41124-015-0	AR	1	1405-		●
89	BOLT; LK PLATE SINGLE RR TIRE<6TD> M8X16 FLANGE THA	0-28050-816-0	02	1	1405-	●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM<G73> M8X16 FLANGE THA	0-28050-816-0	02	1	1405-		●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM<6CP> M8X16 FLANGE THA	0-28050-816-0	04	1	1405-		●
100	SEAL; OIL,FINAL PINION SINGLE RR TIRE<6TD> OD=103	8-94408-083-0	01	1	1405-	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> OD=103	8-94408-083-0	01	1	1405-		●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NOK	1-09625-484-1	01	1	1405-		●

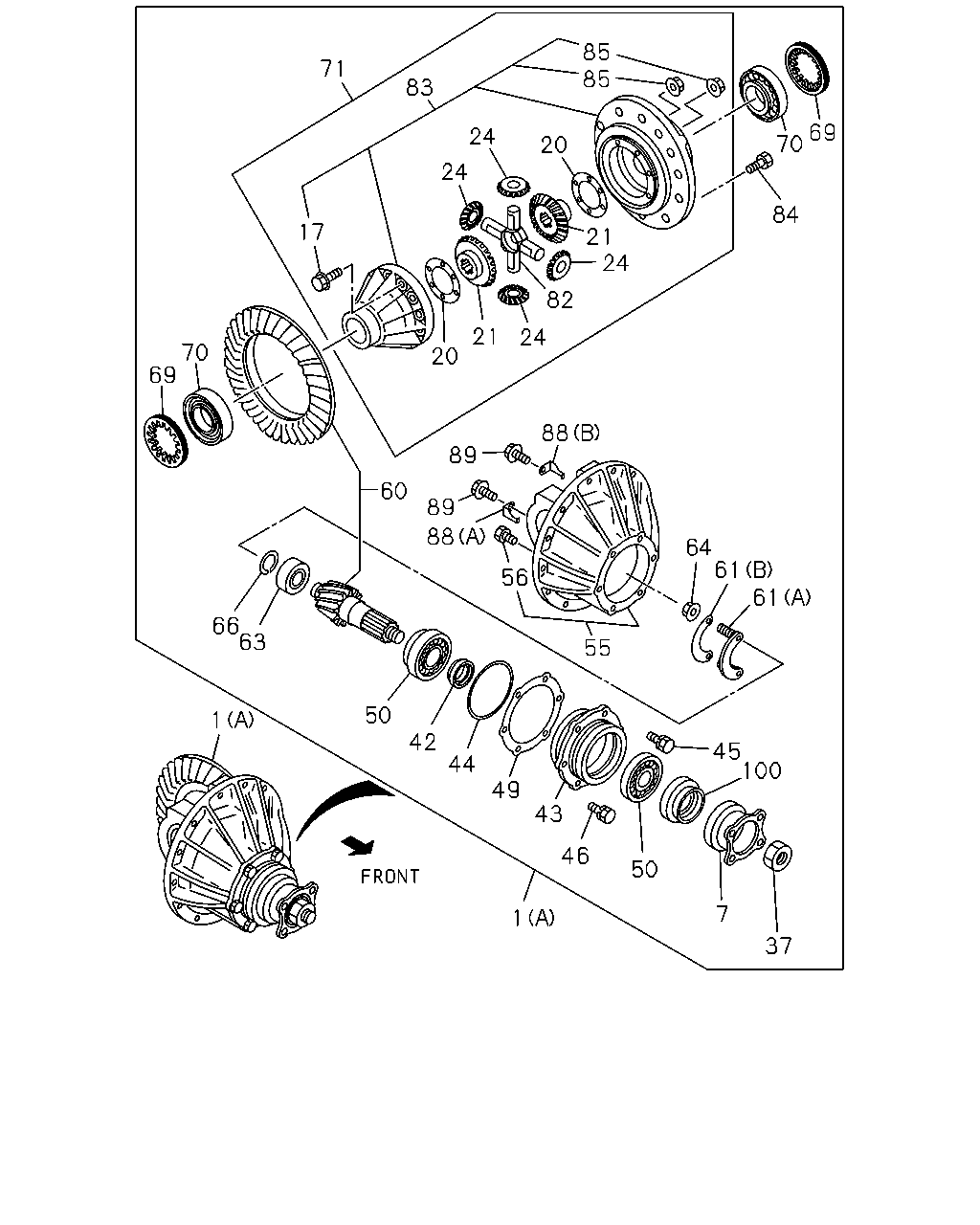

71 85 83 85 69 70 84 24 21 20 24 24 82 24 21 20 88 89 70 69 60 61 61 64 100 45 55 56 89 88 37 7 50 46 43 49 44 42 50 63 66 1 1 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR SINGLE RR TIRE<6TD> (A) 41/10	8-98015-135-0	01	1	1405-	●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM<G73> (A) 43/9	8-98015-138-0	01	1	1405-		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> (B) 41/9	8-97388-707-0	01	1	1405-		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> (B) 43/8	8-98065-942-0	01	1	1405-		●
7	FLANGE; FINAL SINGLE RR TIRE<6TD>	8-94477-723-4	01	1	1405-	●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM<G73>	8-94477-723-4	01	1	1405-		●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM<6CP>	8-97073-802-2	01	1	1405-		●
17	BOLT; DIFF CAGE SETTING SINGLE RR TIRE<6TD> M10X75 FLANGE	8-97232-161-0	12	1	1405-	●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10X75 FLANGE	8-97232-161-0	12	1	1405-		●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP>	8-98219-448-0	12	1	1405-		●
20	WASHER; THRUST,SIDE GEAR SINGLE RR TIRE<6TD> T=1.40	9-41562-601-0	02	1	1405-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM<G73> T=1.40	9-41562-601-0	02	1	1405-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=2.80	1-41562-073-0	AR	1	1405-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=2.90	1-41562-074-0	AR	1	1405-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.00	1-41562-075-0	AR	1	1405-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.10	1-41562-076-0	AR	1	1405-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.20	1-41562-077-0	AR	1	1405-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.30	1-41562-078-0	AR	1	1405-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.40	1-41562-079-0	AR	1	1405-		●
21	GEAR; SIDE,DIFF SINGLE RR TIRE<6TD> Z=20	8-97362-599-1	02	1	1405-	●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM<G73> Z=20	8-97362-599-1	02	1	1405-		●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=16	8-98165-935-0	02	1	1405-		●
24	GEAR; PINION,DIFF SINGLE RR TIRE<6TD> Z=10	8-98015-202-0	04	1	1405-	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM<G73> Z=10	8-98015-202-0	04	1	1405-		●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=10	1-41551-050-0	04	1	1405-		●
37	NUT; DRIVING PINION SINGLE RR TIRE<6TD> M24 FLANGE	8-94329-526-1	01	1	1405-	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM<G73> M24 FLANGE	8-94329-526-1	01	1	1405-		●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM<6CP> M30 FLANGE	8-97047-146-0	01	1	1405-		●
42	COLLAR; DIST,COLLAPSIBLE SINGLE RR TIRE<6TD> L=19.6	9-41219-603-1	01	1	1405-	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM<G73> L=19.6	9-41219-603-1	01	1	1405-		●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM<6CP>	8-97047-097-0	01	1	1405-		●
43	CAGE; FINAL PINION SINGLE RR TIRE<6TD>	8-94400-890-0	01	1	1405-	●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73>	8-94400-890-0	01	1	1405-		●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP>	8-97047-098-0	01	1	1405-		●
44	GASKET; PINION CAGE SINGLE RR TIRE<6TD>	9-09720-505-0	01	1	1405-	●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73>	9-09720-505-0	01	1	1405-		●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP>	8-97048-053-0	01	1	1405-		●
45	BOLT; FINAL PINION CAGE SINGLE RR TIRE<6TD> M12X38 W/LK WASHER	8-98221-264-0	05	1	1405-	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> M12X38 W/LK WASHER	8-98221-264-0	05	1	1405-		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M12X40 W/LK WASHER	8-98220-227-0	06	1	1405-		●
46	BOLT SINGLE RR TIRE<6TD> M14X35 W/LK WASHER	0-50551-435-0	01	1	1405-	●
46	BOLT REAR AXLE HEAVY DUTY 292MM<G73> M14X35 W/LK WASHER	0-50551-435-0	01	1	1405-		●
49	SHIM; FINAL PINION CAGE SINGLE RR TIRE<6TD> ID=132 T=0.10	8-94401-335-0	AR	1	1405-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.10	8-94401-335-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE SINGLE RR TIRE<6TD> ID=132 T=0.12	8-94401-336-0	AR	1	1405-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.12	8-94401-336-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE SINGLE RR TIRE<6TD> ID=132 T=0.14	8-94401-337-0	AR	1	1405-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.14	8-94401-337-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE SINGLE RR TIRE<6TD> ID=132 T=0.16	8-94401-338-0	AR	1	1405-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.16	8-94401-338-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE SINGLE RR TIRE<6TD> ID=132 T=0.18	8-94401-339-0	AR	1	1405-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.18	8-94401-339-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE SINGLE RR TIRE<6TD> ID=132 T=0.20	8-94401-340-0	AR	1	1405-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.20	8-94401-340-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.12	8-97047-298-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.15	8-97047-299-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.20	8-97047-300-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.25	8-97048-418-0	AR	1	1405-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.50	8-97048-419-0	AR	1	1405-		●
50	BEARING; FINAL PINION SINGLE RR TIRE<6TD> JTEKT	5-09812-062-1	02	1	1405-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> JTEKT	5-09812-062-1	02	1	1405-		●
50	BEARING; FINAL PINION SINGLE RR TIRE<6TD> NSK	5-09812-063-0	02	1	1405-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> NSK	5-09812-063-0	02	1	1405-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NSK	1-09812-041-2	01	1	1405-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT	1-09812-042-1	01	1	1405-		●
55	CARRIER; DIFF SINGLE RR TIRE<6TD>	8-97307-760-0	01	1	1405-	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM<G73>	8-97307-760-0	01	1	1405-		●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM<6CP>	8-97094-637-0	01	1	1405-		●
56	BOLT; BRG CAP SINGLE RR TIRE<6TD> M14X80	8-94365-377-3	04	1	1405-	●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM<G73> M14X80	8-94365-377-3	04	1	1405-		●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM<6CP> M14X95 FLANGE	1-09070-027-0	04	1	1405-		●
60	GEAR SET; FINAL DRIVE,RR SINGLE RR TIRE<6TD> 41/10	8-98092-055-0	01	1	1405-	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM<G73> 43/9	8-97319-157-0	01	1	1405-		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> 41/9	8-97078-635-1	01	1	1405-		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> 43/8	8-98043-095-0	01	1	1405-		●
61	RETAINER; PILOT BRG,PINION SINGLE RR TIRE<6TD> (A) W/STUD	5-41227-001-0	01	1	1405-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM<G73> (A) W/STUD	5-41227-001-0	01	1	1405-		●
61	RETAINER; PILOT BRG,PINION SINGLE RR TIRE<6TD> (B)	9-41227-601-0	01	1	1405-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM<G73> (B)	9-41227-601-0	01	1	1405-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM<6CP> (A) W/STUD	8-97047-149-0	01	1	1405-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM<6CP> (B)	8-97047-150-0	01	1	1405-		●
63	BEARING; PINION PILOT SINGLE RR TIRE<6TD> NSK	5-09810-008-1	01	1	1405-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM<G73> NSK	5-09810-008-1	01	1	1405-		●
63	BEARING; PINION PILOT SINGLE RR TIRE<6TD> JTEKT	8-97107-548-0	01	1	1405-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM<G73> JTEKT	8-97107-548-0	01	1	1405-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM<6CP> NSK	8-97047-296-0	01	1	1405-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT	8-97047-928-0	01	1	1405-		●
64	NUT; RET SINGLE RR TIRE<6TD> M6 FLANGE THA	0-91180-106-0	02	1	1405-	●
64	NUT; RET M6 FLANGE THA	0-91180-106-0	02	1	1405-		●
66	RING; SNAP,PILOT BRG SINGLE RR TIRE<6TD>	9-09752-002-0	01	1	1405-	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM<G73>	9-09752-002-0	01	1	1405-		●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM<6CP>	8-97047-297-0	01	1	1405-		●
69	NUT; ADJ,DIFF CAGE SINGLE RR TIRE<6TD> M110 H=10	5-41121-001-0	02	1	1405-	●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM<G73> M110 H=10	5-41121-001-0	02	1	1405-		●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M115 H=20	1-41121-039-0	02	1	1405-		●
70	BEARING; DIFF CAGE SINGLE RR TIRE<6TD> NSK	9-00093-602-0	02	1	1405-	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM<G73> NSK	9-00093-602-0	02	1	1405-		●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1405-		●
71	CAGE ASM; DIFF,FINAL DRIVE SINGLE RR TIRE<6TD>	8-98015-181-1	01	1	1405-	●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM<G73>	8-98015-181-1	01	1	1405-		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6>	8-97047-099-4	01	1	1405-		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40>	8-97047-100-4	01	1	1405-		●
82	SPIDER; DIFF PINION SINGLE RR TIRE<6TD>	5-41521-008-0	01	1	1405-	●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM<G73>	5-41521-008-0	01	1	1405-		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM<6CP>	1-41521-035-2	01	1	1405-		●
83	CAGE ASM; DIFF SINGLE RR TIRE<6TD>	8-97319-398-1	01	1	1405-	●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM<G73>	8-97319-398-1	01	1	1405-		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6>	8-98219-705-0	01	1	1405-		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40>	8-98219-707-0	01	1	1405-		●
84	BOLT; FINAL DRIVE GEAR SINGLE RR TIRE<6TD> M14X25	8-97318-938-1	12	1	1405-	●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM<G73> M14X25	8-97318-938-1	12	1	1405-		●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> M16X30	8-97047-147-0	12	1	1405-		●
85	NUT; DIFF CAGE SETTING SINGLE RR TIRE<6TD> M10 FLANGE THA	0-91180-210-0	12	1	1405-	●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10 FLANGE THA	0-91180-210-0	12	1	1405-		●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M12	8-97065-214-0	12	1	1405-		●
88	PLATE; LK,ADJ NUT SINGLE RR TIRE<6TD> (A)	8-97027-281-0	AR	1	1405-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM<G73> (A)	8-97027-281-0	AR	1	1405-		●
88	PLATE; LK,ADJ NUT SINGLE RR TIRE<6TD> (B)	8-97027-282-0	AR	1	1405-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM<G73> (B)	8-97027-282-0	AR	1	1405-		●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM<6CP> (D)	8-97087-821-0	AR	1	1405-		●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM<6CP> (C) T=2.3	9-41124-015-0	AR	1	1405-		●
89	BOLT; LK PLATE SINGLE RR TIRE<6TD> M8X16 FLANGE THA	0-28050-816-0	02	1	1405-	●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM<G73> M8X16 FLANGE THA	0-28050-816-0	02	1	1405-		●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM<6CP> M8X16 FLANGE THA	0-28050-816-0	04	1	1405-		●
100	SEAL; OIL,FINAL PINION SINGLE RR TIRE<6TD> OD=103	8-94408-083-0	01	1	1405-	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> OD=103	8-94408-083-0	01	1	1405-		●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NOK	1-09625-484-1	01	1	1405-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
