◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51507 - NLR/NMR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#139232) — 152 parça

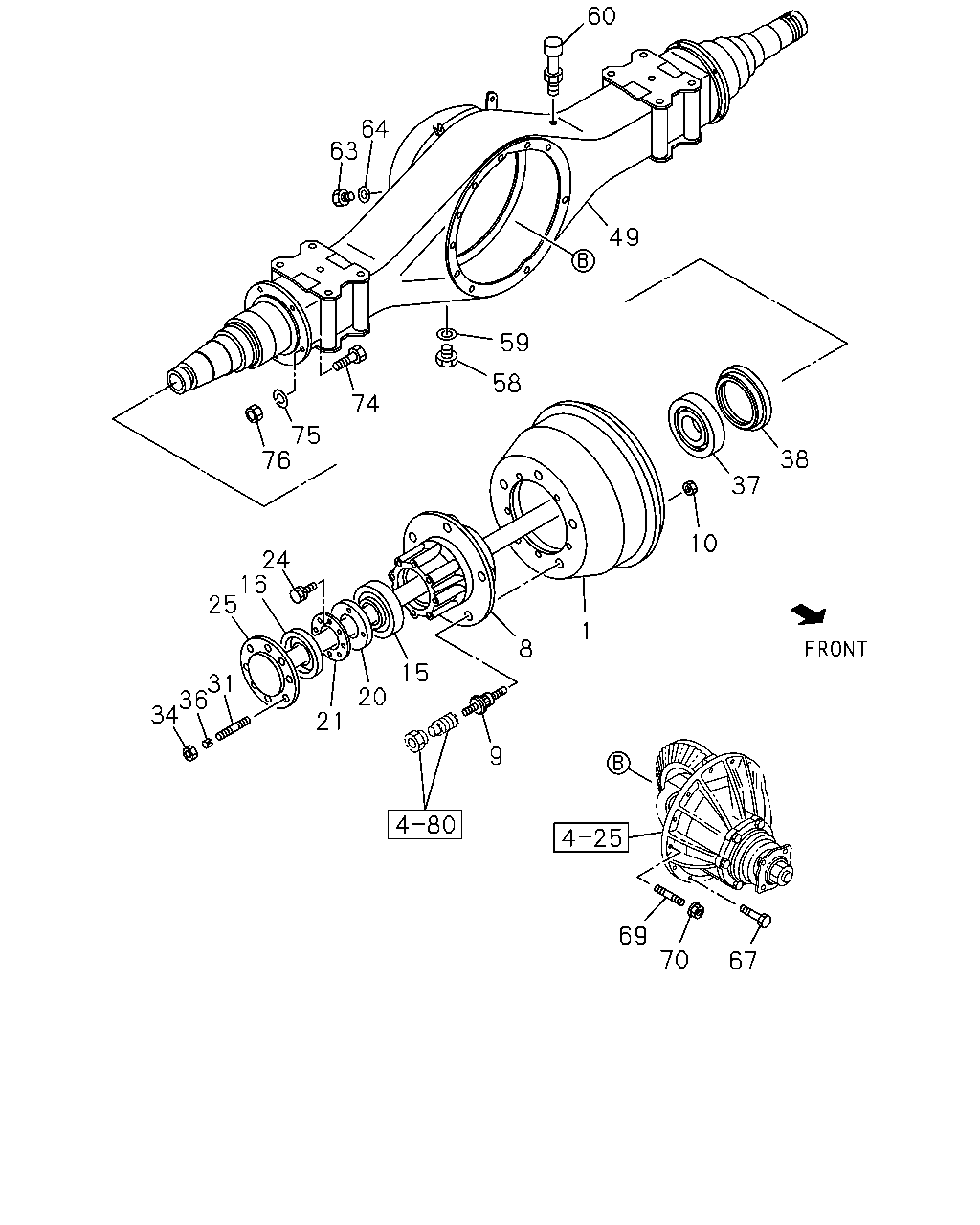

çizim 421538
60 64 63 49 59 58 74 75 76 24 16 25 31 36 34 38 37 10 1 8 9 15 20 21 67 70 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR
SINGLE RR TIRE<6TD> THA 		8-97940-559-0 02 1 1405- ●
1 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 292MM<G73> THA 		8-97940-560-0 02 1 1405- ●
1 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 320MM<6CP> THA 		8-97940-561-0 02 1 1405- ●
8 HUB; RR AXLE
SINGLE RR TIRE<6TD> THA 		8-97940-278-0 02 1 1405- ●
8 HUB; RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> THA 		8-97940-277-0 02 1 1405- ●
8 HUB; RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> THA 		8-97940-279-0 02 1 1405- ●
9 PIN; WHEEL,RR AXLE
SINGLE RR TIRE<6TD> M14X50 RH THREAD THA 		9-42331-605-4 06 1 1405- ●
9 PIN; WHEEL,RR AXLE
SINGLE RR TIRE<6TD> M14X50 LH THREAD 		9-42332-605-4 06 1 1405- ●
9 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 1405- ●
9 PIN; WHEEL,RR AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 1405- ●
9 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 1405- ●
10 NUT; WHEEL PIN,RR AXLE
M20 		0-91110-520-0 10 1 1405- ●
15 BEARING; HUB OUTER,RR AXLE
SINGLE RR TIRE<6TD> NSK THA 		9-00093-082-0 02 1 1405- ●
15 BEARING; HUB OUTER,RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> NSK THA 		9-00093-082-0 02 1 1405- ●
15 BEARING; HUB OUTER,RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> NSK THA 		9-00093-607-0 02 1 1405- ●
15 BEARING; HUB OUTER,RR AXLE
SINGLE RR TIRE<6TD> BEST VALUE PARTS THA 		5-87610-140-0 02 1 1405- ●
15 BEARING; HUB OUTER,RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> BEST VALUE PARTS THA 		5-87610-140-0 02 1 1405- ●
15 BEARING; HUB OUTER,RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> BEST VALUE PARTS THA 		5-87610-139-0 02 1 1405- ●
16 SEAL; OIL,RR HUB,OUTER
SINGLE RR TIRE<6TD> NOK 		8-98202-911-0 02 1 1405- ●
16 SEAL; OIL,RR HUB,OUTER
REAR AXLE HEAVY DUTY 292MM<G73> NOK 		8-98202-911-0 02 1 1405- ●
16 SEAL; OIL,RR HUB,OUTER
REAR AXLE HEAVY DUTY 320MM<6CP> NOK 		8-98202-912-0 02 1 1405- ●
20 NUT; BRG,RR HUB
SINGLE RR TIRE<6TD> M52 		8-98236-850-0 02 1 1405- ●
20 NUT; BRG,RR HUB
REAR AXLE HEAVY DUTY 292MM<G73> M52 		8-98236-850-0 02 1 1405- ●
20 NUT; BRG,RR HUB
REAR AXLE HEAVY DUTY 320MM<6CP> M55 		8-97137-094-0 02 1 1405- ●
21 WASHER; LK,BRG NUT
SINGLE RR TIRE<6TD> ID=52 		9-09853-214-0 02 1 1405- ●
21 WASHER; LK,BRG NUT
REAR AXLE HEAVY DUTY 292MM<G73> ID=52 		9-09853-214-0 02 1 1405- ●
21 WASHER; LK,BRG NUT
REAR AXLE HEAVY DUTY 320MM<6CP> ID=55 		9-09653-002-0 02 1 1405- ●
24 BOLT; LK WASHER
SINGLE RR TIRE<6TD> M6X10 FLANGE THA 		0-28050-610-0 04 1 1405- ●
24 BOLT; LK WASHER
M6X10 FLANGE THA 		0-28050-610-0 04 1 1405- ●
25 SHAFT; AXLE,RR
SINGLE RR TIRE<6TD> 		8-94366-192-0 02 1 1405- ●
25 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM<G73> 		8-97032-496-0 02 1 1405- ●
25 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM<6CP> 		8-98098-425-0 02 1 1405- ●
31 STUD; AXLE SHAFT TO HUB
SINGLE RR TIRE<6TD> M10X30 L=49 		8-97359-803-0 12 1 1405- ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 1405- ●
34 NUT; AXLE SHAFT
SINGLE RR TIRE<6TD> M10 FLANGE THA 		0-91180-210-0 12 1 1405- ●
34 NUT; AXLE SHAFT
M10 FLANGE THA 		0-91180-210-0 16 1 1405- ●
36 WASHER; SPECIAL,AXLE SHAFT
SINGLE RR TIRE<6TD> ID=10.5 		8-97360-004-0 12 1 1405- ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 1405- ●
37 BEARING; HUB INNER,RR AXLE
SINGLE RR TIRE<6TD> NSK THA 		9-00093-081-0 02 1 1405- ●
37 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> NSK THA 		9-00093-081-0 02 1 1405- ●
37 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> NSK THA 		9-00093-624-0 02 1 1405- ●
37 BEARING; HUB INNER,RR AXLE
SINGLE RR TIRE<6TD> BEST VALUE PARTS THA 		5-87610-142-0 02 1 1405- ●
37 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> BEST VALUE PARTS THA 		5-87610-142-0 02 1 1405- ●
37 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> BEST VALUE PARTS THA 		5-87610-141-0 02 1 1405- ●
38 SEAL; OIL,RR HUB,INNER
SINGLE RR TIRE<6TD> TKK 		8-94336-314-1 02 1 1405- ●
38 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 292MM<G73> TKK 		8-94336-314-1 02 1 1405- ●
38 SEAL; OIL,RR HUB,INNER
SINGLE RR TIRE<6TD> NOK 		8-94367-959-0 02 1 1405- ●
38 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 292MM<G73> NOK 		8-94367-959-0 02 1 1405- ●
38 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 320MM<6CP> TKK 		8-94336-316-1 02 1 1405- ●
38 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 320MM<6CP> NOK 		8-94367-958-0 02 1 1405- ●
49 CASE; RR AXLE
SINGLE RR TIRE<6TD> 		8-98061-921-0 01 1 1405- ●
49 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> 		8-97032-861-5 01 1 1405- ●
49 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> 		8-97122-348-4 01 1 1405- ●
58 PLUG; DRAIN,AXLE CASE
SINGLE RR TIRE<6TD> M16X12.5 		8-97307-060-0 01 1 1405- ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 1405- ●
59 GASKET; DRAIN PLUG
SINGLE RR TIRE<6TD> ID=16.2 OD=24 THA 		9-09571-416-0 01 1 1405- ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 THA 		9-09571-416-0 01 1 1405- ●
60 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 1405- ● ●
63 PLUG; OIL FILLER,AXLE CASE
SINGLE RR TIRE<6TD> M20X10.5 		8-98009-333-0 01 1 1405- ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 1405- ●
64 GASKET; OIL FILLER,AXLE CASE
SINGLE RR TIRE<6TD> ID=20 OD=30 THA 		8-94462-734-0 01 1 1405- ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 THA 		8-94462-734-0 01 1 1405- ●
67 BOLT; FINAL DRIVE SETTING
SINGLE RR TIRE<6TD> M10X40 W/LK WASHER 		0-50561-040-0 11 1 1405- ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM<G73> M10X40 W/LK WASHER 		0-50561-040-0 11 1 1405- ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM<6CP> M10X40 W/LK WASHER 		0-50561-040-0 07 1 1405- ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM<6CP> M10X50 W/LK WASHER 		0-50561-050-0 04 1 1405- ●
69 STUD; AXLE CASE
SINGLE RR TIRE<6TD> M10X40.5 L=52.5 		8-97359-802-0 02 1 1405- ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 1405- ●
70 NUT; CARRIER
SINGLE RR TIRE<6TD> M10 FLANGE THA 		0-91180-210-0 02 1 1405- ●
70 NUT; CARRIER
M10 FLANGE THA 		0-91180-210-0 02 1 1405- ●
74 BOLT; RR BRK ASM SETTING
SINGLE RR TIRE<6TD> 		8-98007-877-0 12 1 1405- ●
74 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 12 1 1405- ●
75 WASHER; LK,RR BRK ASM SETTING
SINGLE RR TIRE<6TD> ID=10.2 		0-91510-810-0 12 1 1405- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 		0-91510-612-0 12 1 1405- ●
76 NUT; RR BRK ASM SETTING
SINGLE RR TIRE<6TD> M10 THA 		0-91110-510-0 12 1 1405- ●
76 NUT; RR BRK ASM SETTING
M12 		0-91110-512-0 12 1 1405- ●

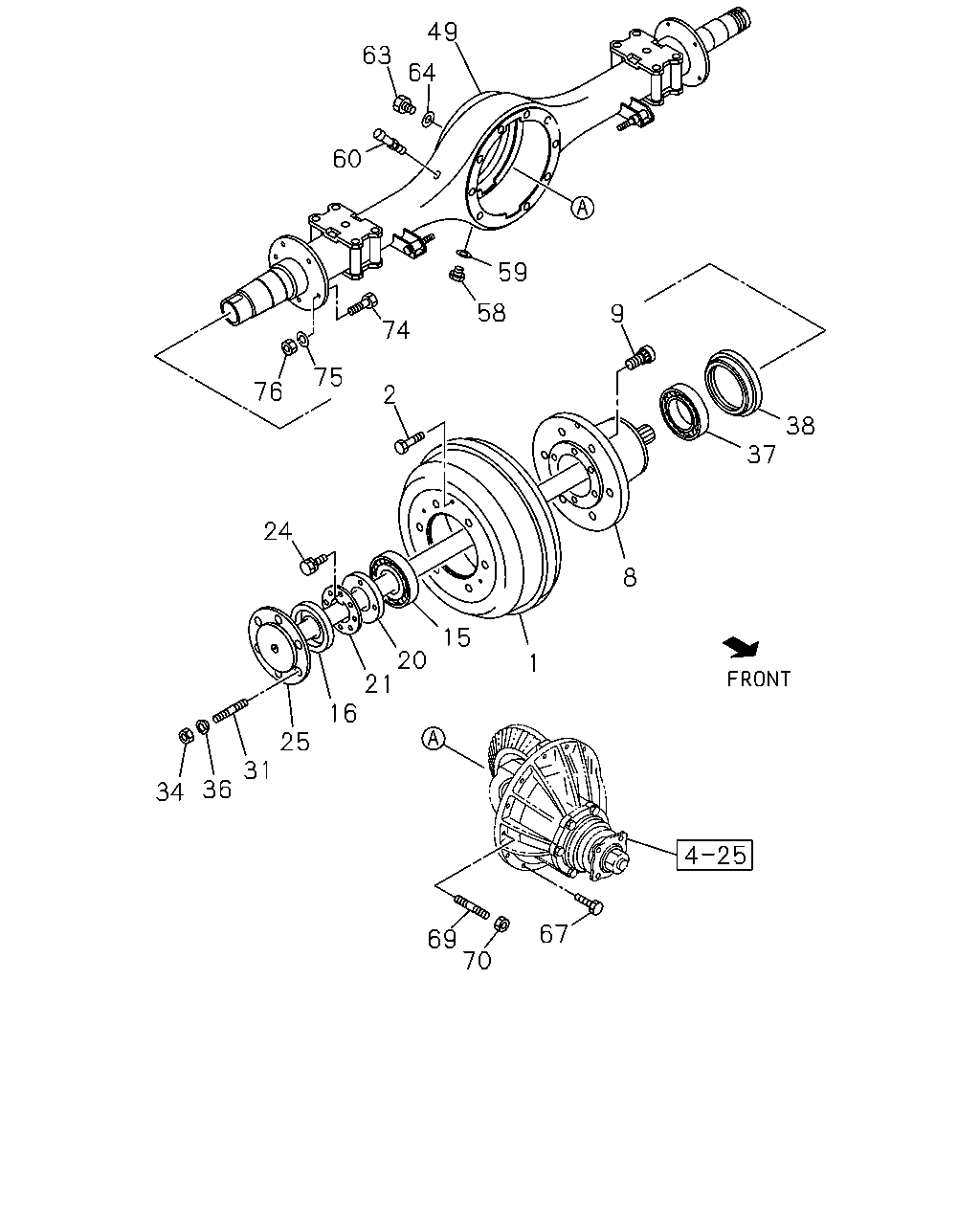

çizim 421698
67 70 69 8 1 15 20 21 16 25 31 36 34 38 37 9 59 58 74 2 75 76 24 60 63 49 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR
SINGLE RR TIRE<6TD> THA 		8-97940-559-0 02 1 1405- ●
1 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 292MM<G73> THA 		8-97940-560-0 02 1 1405- ●
1 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 320MM<6CP> THA 		8-97940-561-0 02 1 1405- ●
2 BOLT; BRK DRUM
SINGLE RR TIRE<6TD> M8X18 		0-20800-618-0 02 1 1405- ●
8 HUB; RR AXLE
SINGLE RR TIRE<6TD> THA 		8-97940-278-0 02 1 1405- ●
8 HUB; RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> THA 		8-97940-277-0 02 1 1405- ●
8 HUB; RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> THA 		8-97940-279-0 02 1 1405- ●
9 PIN; WHEEL,RR AXLE
SINGLE RR TIRE<6TD> M14X50 RH THREAD THA 		9-42331-605-4 06 1 1405- ●
9 PIN; WHEEL,RR AXLE
SINGLE RR TIRE<6TD> M14X50 LH THREAD 		9-42332-605-4 06 1 1405- ●
9 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 1405- ●
9 PIN; WHEEL,RR AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 1405- ●
9 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 1405- ●
15 BEARING; HUB OUTER,RR AXLE
SINGLE RR TIRE<6TD> NSK THA 		9-00093-082-0 02 1 1405- ●
15 BEARING; HUB OUTER,RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> NSK THA 		9-00093-082-0 02 1 1405- ●
15 BEARING; HUB OUTER,RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> NSK THA 		9-00093-607-0 02 1 1405- ●
15 BEARING; HUB OUTER,RR AXLE
SINGLE RR TIRE<6TD> BEST VALUE PARTS THA 		5-87610-140-0 02 1 1405- ●
15 BEARING; HUB OUTER,RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> BEST VALUE PARTS THA 		5-87610-140-0 02 1 1405- ●
15 BEARING; HUB OUTER,RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> BEST VALUE PARTS THA 		5-87610-139-0 02 1 1405- ●
16 SEAL; OIL,RR HUB,OUTER
SINGLE RR TIRE<6TD> NOK 		8-98202-911-0 02 1 1405- ●
16 SEAL; OIL,RR HUB,OUTER
REAR AXLE HEAVY DUTY 292MM<G73> NOK 		8-98202-911-0 02 1 1405- ●
16 SEAL; OIL,RR HUB,OUTER
REAR AXLE HEAVY DUTY 320MM<6CP> NOK 		8-98202-912-0 02 1 1405- ●
20 NUT; BRG,RR HUB
SINGLE RR TIRE<6TD> M52 		8-98236-850-0 02 1 1405- ●
20 NUT; BRG,RR HUB
REAR AXLE HEAVY DUTY 292MM<G73> M52 		8-98236-850-0 02 1 1405- ●
20 NUT; BRG,RR HUB
REAR AXLE HEAVY DUTY 320MM<6CP> M55 		8-97137-094-0 02 1 1405- ●
21 WASHER; LK,BRG NUT
SINGLE RR TIRE<6TD> ID=52 		9-09853-214-0 02 1 1405- ●
21 WASHER; LK,BRG NUT
REAR AXLE HEAVY DUTY 292MM<G73> ID=52 		9-09853-214-0 02 1 1405- ●
21 WASHER; LK,BRG NUT
REAR AXLE HEAVY DUTY 320MM<6CP> ID=55 		9-09653-002-0 02 1 1405- ●
24 BOLT; LK WASHER
SINGLE RR TIRE<6TD> M6X10 FLANGE THA 		0-28050-610-0 04 1 1405- ●
24 BOLT; LK WASHER
M6X10 FLANGE THA 		0-28050-610-0 04 1 1405- ●
25 SHAFT; AXLE,RR
SINGLE RR TIRE<6TD> 		8-94366-192-0 02 1 1405- ●
25 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM<G73> 		8-97032-496-0 02 1 1405- ●
25 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM<6CP> 		8-98098-425-0 02 1 1405- ●
31 STUD; AXLE SHAFT TO HUB
SINGLE RR TIRE<6TD> M10X30 L=49 		8-97359-803-0 12 1 1405- ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 1405- ●
34 NUT; AXLE SHAFT
SINGLE RR TIRE<6TD> M10 FLANGE THA 		0-91180-210-0 12 1 1405- ●
34 NUT; AXLE SHAFT
M10 FLANGE THA 		0-91180-210-0 16 1 1405- ●
36 WASHER; SPECIAL,AXLE SHAFT
SINGLE RR TIRE<6TD> ID=10.5 		8-97360-004-0 12 1 1405- ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 1405- ●
37 BEARING; HUB INNER,RR AXLE
SINGLE RR TIRE<6TD> NSK THA 		9-00093-081-0 02 1 1405- ●
37 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> NSK THA 		9-00093-081-0 02 1 1405- ●
37 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> NSK THA 		9-00093-624-0 02 1 1405- ●
37 BEARING; HUB INNER,RR AXLE
SINGLE RR TIRE<6TD> BEST VALUE PARTS THA 		5-87610-142-0 02 1 1405- ●
37 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> BEST VALUE PARTS THA 		5-87610-142-0 02 1 1405- ●
37 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> BEST VALUE PARTS THA 		5-87610-141-0 02 1 1405- ●
38 SEAL; OIL,RR HUB,INNER
SINGLE RR TIRE<6TD> TKK 		8-94336-314-1 02 1 1405- ●
38 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 292MM<G73> TKK 		8-94336-314-1 02 1 1405- ●
38 SEAL; OIL,RR HUB,INNER
SINGLE RR TIRE<6TD> NOK 		8-94367-959-0 02 1 1405- ●
38 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 292MM<G73> NOK 		8-94367-959-0 02 1 1405- ●
38 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 320MM<6CP> TKK 		8-94336-316-1 02 1 1405- ●
38 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 320MM<6CP> NOK 		8-94367-958-0 02 1 1405- ●
49 CASE; RR AXLE
SINGLE RR TIRE<6TD> 		8-98061-921-0 01 1 1405- ●
49 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> 		8-97032-861-5 01 1 1405- ●
49 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> 		8-97122-348-4 01 1 1405- ●
58 PLUG; DRAIN,AXLE CASE
SINGLE RR TIRE<6TD> M16X12.5 		8-97307-060-0 01 1 1405- ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 1405- ●
59 GASKET; DRAIN PLUG
SINGLE RR TIRE<6TD> ID=16.2 OD=24 THA 		9-09571-416-0 01 1 1405- ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 THA 		9-09571-416-0 01 1 1405- ●
60 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 1405- ● ●
63 PLUG; OIL FILLER,AXLE CASE
SINGLE RR TIRE<6TD> M20X10.5 		8-98009-333-0 01 1 1405- ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 1405- ●
64 GASKET; OIL FILLER,AXLE CASE
SINGLE RR TIRE<6TD> ID=20 OD=30 THA 		8-94462-734-0 01 1 1405- ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 THA 		8-94462-734-0 01 1 1405- ●
67 BOLT; FINAL DRIVE SETTING
SINGLE RR TIRE<6TD> M10X40 W/LK WASHER 		0-50561-040-0 11 1 1405- ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM<G73> M10X40 W/LK WASHER 		0-50561-040-0 11 1 1405- ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM<6CP> M10X40 W/LK WASHER 		0-50561-040-0 07 1 1405- ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM<6CP> M10X50 W/LK WASHER 		0-50561-050-0 04 1 1405- ●
69 STUD; AXLE CASE
SINGLE RR TIRE<6TD> M10X40.5 L=52.5 		8-97359-802-0 02 1 1405- ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 1405- ●
70 NUT; CARRIER
SINGLE RR TIRE<6TD> M10 FLANGE THA 		0-91180-210-0 02 1 1405- ●
70 NUT; CARRIER
M10 FLANGE THA 		0-91180-210-0 02 1 1405- ●
74 BOLT; RR BRK ASM SETTING
SINGLE RR TIRE<6TD> 		8-98007-877-0 12 1 1405- ●
74 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 12 1 1405- ●
75 WASHER; LK,RR BRK ASM SETTING
SINGLE RR TIRE<6TD> ID=10.2 		0-91510-810-0 12 1 1405- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 		0-91510-612-0 12 1 1405- ●
76 NUT; RR BRK ASM SETTING
SINGLE RR TIRE<6TD> M10 THA 		0-91110-510-0 12 1 1405- ●
76 NUT; RR BRK ASM SETTING
M12 		0-91110-512-0 12 1 1405- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
