3-60 — BRAKE PIPING; VACUUM (#139227) — 52 parça

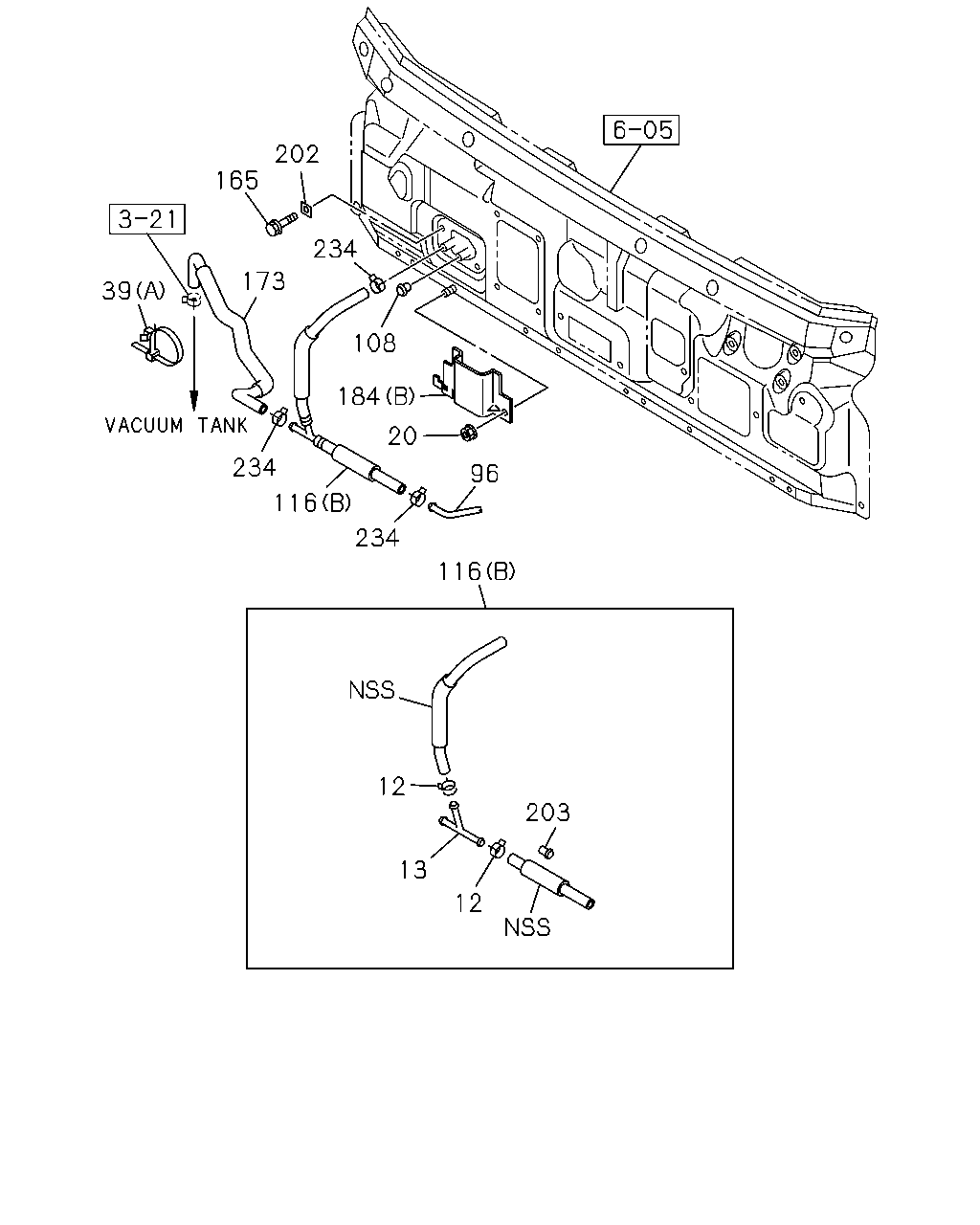

çizim 420761
96 20 116 203 12 13 12 234 116 234 184 108 234 173 165 202 39
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
ID=15.5 THA 		8-98008-097-0 02 1 1405- ● ●
13 JOINT; HOSE,VAC
THA 		8-98035-106-0 01 1 1405- ● ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL<6WC> M6 FLANGE THA 		0-91180-106-0 01 1 1405- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 1405- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 1405- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 1405- ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP
THA 		8-98039-736-1 01 1 1405- ● ●
108 GROMMET; PIPE 9-09956-353-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
(C) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97924-102-1 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
(A) THA 		8-98094-547-0 01 1 1405- ● ●
165 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1405- ● ●
173 HOSE; VAC,VAC TANK SIDE
THA 		8-98107-558-0 01 1 1405- ● ●
184 BRACKET; UNION FIX
(A) 		8-98183-467-1 01 1 1405- ● ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 1405- ● ●
202 SEAL 8-97856-616-0 02 1 1405- ● ●
203 VALVE; CHECK 8-94386-540-0 01 1 1405- ● ●
234 CLAMP; PIPE
ID=16 		8-94238-568-0 03 1 1405- ● ●

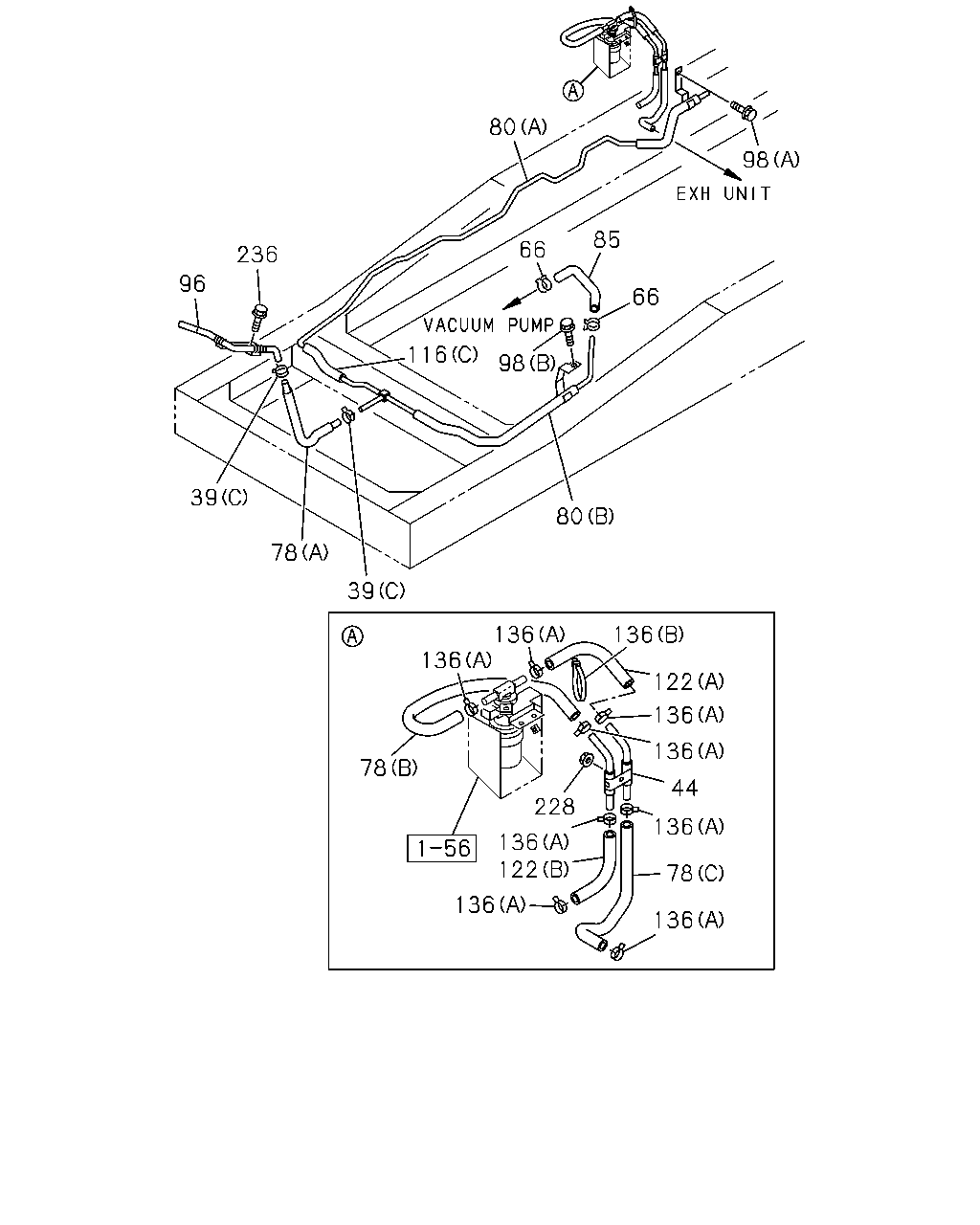

çizim 420816
80 66 66 85 236 96 39 39 78 136 78 136 136 136 136 122 136 136 44 136 78 136 228 122 80 98 116 98
BalonParca AdiParca NoAdetTipApplied Date A B
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 1405- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 1405- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 1405- ● ●
44 PIPE; VAC,MAG VLV
THA 		8-97924-419-0 01 1 1405- ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-98008-098-0 02 1 1405- ● ●
78 HOSE; VAC,PIPE TO PIPE
(A) THA 		8-97389-745-1 01 1 1405- ● ●
78 HOSE; VAC,PIPE TO PIPE
(B) THA 		8-97924-420-1 01 1 1405- ● ●
78 HOSE; VAC,PIPE TO PIPE
(C) THA 		8-98189-223-0 01 1 1405- ● ●
80 PIPE; VAC,ENG SIDE
(A) THA 		8-98065-063-2 01 1 1405- ●
80 PIPE; VAC,ENG SIDE
WHEEL BASE 2400MM<24W> (A) THA 		8-98065-063-2 01 1 1405- ●
80 PIPE; VAC,ENG SIDE
(B) THA 		8-98064-345-2 01 1 1405- ● ●
80 PIPE; VAC,ENG SIDE
WHEEL BASE 3300MM<33W> (A) THA 		8-98056-002-2 01 1 1405- ●
85 HOSE; VAC,ENG SIDE
THA 		8-97924-679-0 01 1 1405- ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP
THA 		8-98039-736-1 01 1 1405- ● ●
98 BOLT; VAC PIPE FIX
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1405- ● ●
98 BOLT; VAC PIPE FIX
(A) M10X30 FLANGE THA 		0-28651-030-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
(C) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97924-102-1 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
(A) THA 		8-98094-547-0 01 1 1405- ● ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
(A) THA 		8-97924-421-1 01 1 1405- ● ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
(B) THA 		8-98189-226-0 01 1 1405- ● ●
136 CLIP; VAC HOSE
(B) L=140 THA 		8-97920-656-0 01 1 1405- ● ●
136 CLIP; VAC HOSE
(A) ID=16 		8-98008-098-0 02 1 1405- ● ●
136 CLIP; VAC HOSE
(A) ID=16 		8-98008-098-0 04 1 1405- ● ●
228 NUT; PIPE
M6 FLANGE THA 		0-91180-106-0 01 1 1405- ● ●
236 BOLT; PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 1405- ● ●
çizim 421125
116 39 39 184
BalonParca AdiParca NoAdetTipApplied Date A B
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 1405- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 1405- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 1405- ● ●
116 HOSE; VAC,M/VAC
(C) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97924-102-1 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
(A) THA 		8-98094-547-0 01 1 1405- ● ●
184 BRACKET; UNION FIX
(A) 		8-98183-467-1 01 1 1405- ● ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 1405- ● ●
