3-55 — BRAKE PIPING; OIL,REAR (#139225) — 12 parça

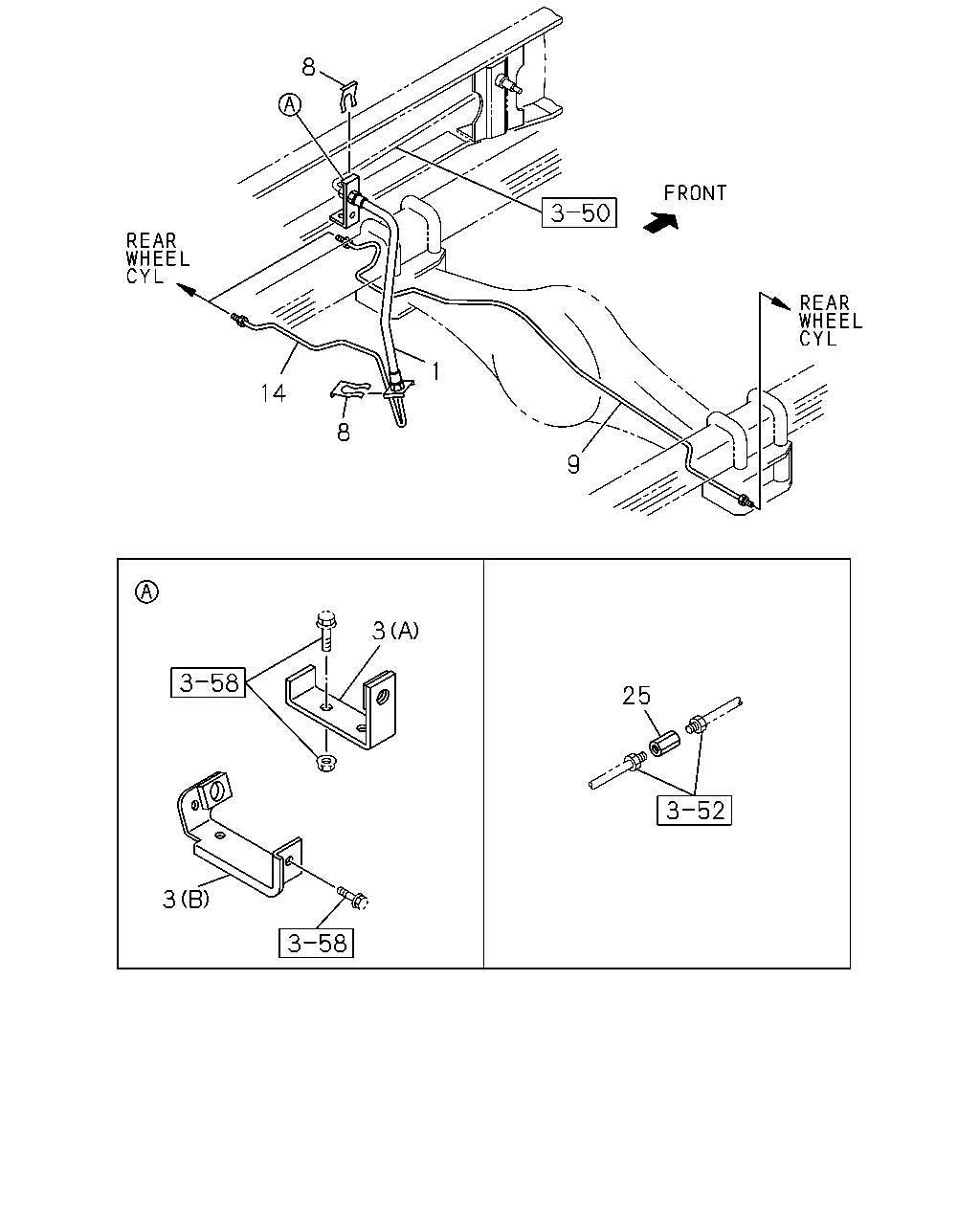

çizim 421113
8 1 14 9 8 3 3 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=370 THA 		8-97035-574-0 01 1 1405- ● ●
3 BRACKET; FLEX HOSE,RR BRK
SINGLE RR TIRE<6TD> (B) 		8-97251-436-0 01 1 1405- ●
3 BRACKET; FLEX HOSE,RR BRK
EXC. SINGLE RR TIRE<6TD> (A) 		8-97205-198-0 01 1 1405- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 1405- ●
8 CLIP; RR BRK 8-97360-054-0 02 1 1405- ● ●
9 PIPE; BRK,RR AXLE
SINGLE RR TIRE<6TD> THA 		8-98021-864-0 01 1 1405- ●
9 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM<G73> THA 		8-98067-256-0 01 1 1405- ●
9 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM<6CP> THA 		8-98021-873-0 01 1 1405- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
SINGLE RR TIRE<6TD> THA 		8-98021-860-0 01 1 1405- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM<G73> THA 		8-98067-255-0 01 1 1405- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM<6CP> THA 		8-98021-872-0 01 1 1405- ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1405- ● ●
