3-01 — FRONT WHEEL BRAKE (#139215) — 70 parça

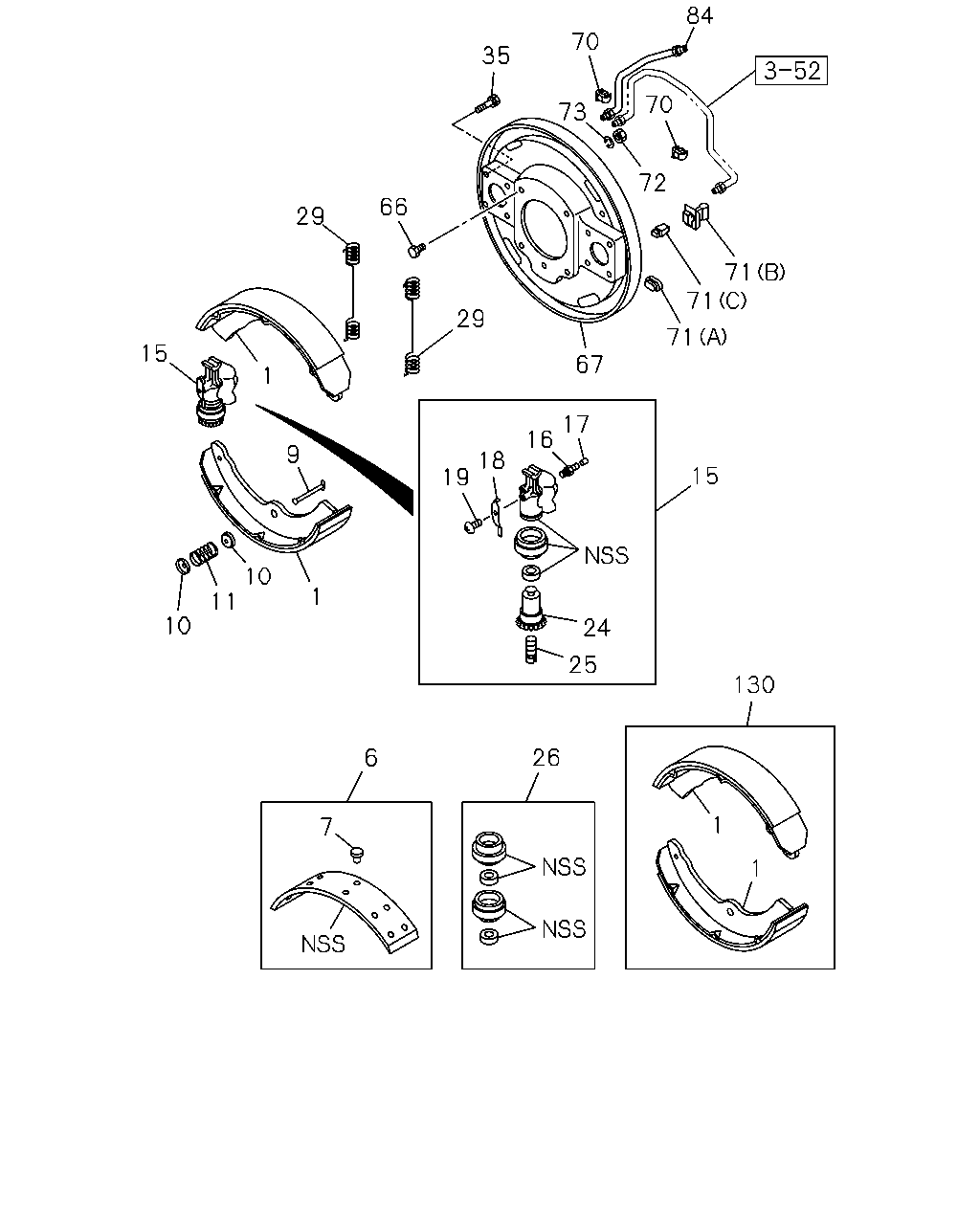

çizim 420772
84 70 72 71 71 71 15 130 26 6 7 19 18 16 17 24 25 1 10 11 10 15 1 9 29 66 29 67 73 70 35 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT 8-97520-655-0 04 1 1405- ●
1 SHOE; BRK,FRT
G.V.W. 5.0-5.5TON<RPT> 		8-97520-655-0 04 1 1405- ●
1 SHOE; BRK,FRT
G.V.W. 6.5-7.0TON<RPW> 		8-97287-778-0 04 1 1405- ●
6 LINING KIT; FRT BRK
G.V.W. 6.5-7.0TON<RPW> 		5-87831-801-0 01 1 1405- ●
7 RIVET; LINING,FRT BRK
G.V.W. 6.5-7.0TON<RPW> 		1-09732-029-0 40 1 1405- ●
9 PIN; SHOE HOLDER 8-97520-659-0 04 1 1405- ●
9 PIN; SHOE HOLDER
G.V.W. 5.0-5.5TON<RPT> 		8-97520-664-0 04 1 1405- ●
9 PIN; SHOE HOLDER
G.V.W. 6.5-7.0TON<RPW> 		5-47162-001-0 04 1 1405- ●
10 CUP; SHOE HOLDING 8-97520-658-0 08 1 1405- ●
10 CUP; SHOE HOLDING
G.V.W. 5.0-5.5TON<RPT> 		8-97520-658-0 08 1 1405- ●
10 CUP; SHOE HOLDING
G.V.W. 6.5-7.0TON<RPW> 		9-47165-096-0 08 1 1405- ●
11 SPRING; SHOE HOLDING 8-97520-657-0 04 1 1405- ●
11 SPRING; SHOE HOLDING
G.V.W. 5.0-5.5TON<RPT> 		8-97520-657-0 04 1 1405- ●
11 SPRING; SHOE HOLDING
G.V.W. 6.5-7.0TON<RPW> 		5-09580-101-1 04 1 1405- ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97179-357-0 01 1 1405- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 5.0-5.5TON<RPT> REAR 		8-97179-357-0 01 1 1405- ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97179-358-0 01 1 1405- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 5.0-5.5TON<RPT> REAR 		8-97179-358-0 01 1 1405- ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97179-359-0 01 1 1405- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 5.0-5.5TON<RPT> FRONT 		8-97179-359-0 01 1 1405- ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97179-360-0 01 1 1405- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 5.0-5.5TON<RPT> FRONT 		8-97179-360-0 01 1 1405- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.5-7.0TON<RPW> REAR 		8-97139-810-0 01 1 1405- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.5-7.0TON<RPW> REAR 		8-97139-811-0 01 1 1405- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.5-7.0TON<RPW> FRONT 		8-97139-812-0 01 1 1405- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.5-7.0TON<RPW> FRONT 		8-97139-813-0 01 1 1405- ●
16 SCREW; BLEEDER,FRT BRK 8-98050-476-0 02 1 1405- ● ●
17 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 1405- ● ●
18 STOPPER; ADJ SCREW 8-94128-486-0 04 1 1405- ● ●
19 SCREW; STOPPER SETTING 8-94128-727-0 04 1 1405- ● ●
24 PISTON; FRT WHEEL CYL 8-97078-621-0 04 1 1405- ●
24 PISTON; FRT WHEEL CYL
G.V.W. 5.0-5.5TON<RPT> 		8-97078-621-0 04 1 1405- ●
24 PISTON; FRT WHEEL CYL
G.V.W. 6.5-7.0TON<RPW> 		8-94414-700-1 04 1 1405- ●
25 SCREW; ADJ,FRT WHEEL CYL 8-97078-623-0 04 1 1405- ●
25 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 5.0-5.5TON<RPT> 		8-97078-623-0 04 1 1405- ●
25 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 6.5-7.0TON<RPW> 		8-94414-702-0 04 1 1405- ●
26 CUP SET; FRT WHEEL CYL 5-87831-602-0 01 1 1405- ●
26 CUP SET; FRT WHEEL CYL
G.V.W. 5.0-5.5TON<RPT> 		5-87831-602-0 01 1 1405- ●
26 CUP SET; FRT WHEEL CYL
G.V.W. 6.5-7.0TON<RPW> 		5-87831-598-0 01 1 1405- ●
29 SPRING; RETURN,FRT BRK SHOE 8-97078-739-0 04 1 1405- ●
29 SPRING; RETURN,FRT BRK SHOE
G.V.W. 5.0-5.5TON<RPT> 		8-97078-739-0 04 1 1405- ●
29 SPRING; RETURN,FRT BRK SHOE
G.V.W. 6.5-7.0TON<RPW> 		5-09583-118-0 04 1 1405- ●
35 BOLT; FRT WHEEL CYL 8-97520-660-0 16 1 1405- ●
35 BOLT; FRT WHEEL CYL
G.V.W. 5.0-5.5TON<RPT> 		8-97520-665-0 16 1 1405- ●
35 BOLT; FRT WHEEL CYL
G.V.W. 6.5-7.0TON<RPW> 		8-97078-643-0 16 1 1405- ●
66 BOLT; OIL SHIELD COVER
M12X33 		8-98009-493-2 08 1 1405- ● ●
67 PLATE; BACK,FRT BRK 8-97520-651-0 01 1 1405- ●
67 PLATE; BACK,FRT BRK 8-97520-652-0 01 1 1405- ●
67 PLATE; BACK,FRT BRK
G.V.W. 5.0-5.5TON<RPT> 		8-97520-662-0 01 1 1405- ●
67 PLATE; BACK,FRT BRK
G.V.W. 5.0-5.5TON<RPT> 		8-97520-663-0 01 1 1405- ●
67 PLATE; BACK,FRT BRK
G.V.W. 6.5-7.0TON<RPW> 		8-97302-592-0 01 1 1405- ●
67 PLATE; BACK,FRT BRK
G.V.W. 6.5-7.0TON<RPW> 		8-97302-593-0 01 1 1405- ●
70 CLIP; PIPE HOLD 8-94128-306-0 04 1 1405- ●
70 CLIP; PIPE HOLD
G.V.W. 5.0-5.5TON<RPT> 		8-94128-306-0 04 1 1405- ●
70 CLIP; PIPE HOLD
G.V.W. 6.5-7.0TON<RPW> 		8-94128-306-0 02 1 1405- ●
71 GROMMET; CHECK HOLE
(C) 		8-97520-661-0 02 1 1405- ●
71 GROMMET; CHECK HOLE
G.V.W. 5.0-5.5TON<RPT> (C) 		8-97520-661-0 02 1 1405- ●
71 GROMMET; CHECK HOLE
(B) 		9-09756-034-0 04 1 1405- ● ●
71 GROMMET; CHECK HOLE
G.V.W. 6.5-7.0TON<RPW> (A) 		8-94171-287-0 02 1 1405- ●
72 NUT; OIL SHIELD COVER
M12 		0-91110-512-0 08 1 1405- ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		0-91510-812-0 08 1 1405- ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE
THA 		8-97940-701-0 01 1 1405- ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 5.0-5.5TON<RPT> THA 		8-97940-701-0 01 1 1405- ●
84 PIPE; BRK,WHEEL CYL TO HOSE
THA 		8-97940-702-0 01 1 1405- ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 5.0-5.5TON<RPT> THA 		8-97940-702-0 01 1 1405- ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.5-7.0TON<RPW> THA 		8-97940-697-0 01 1 1405- ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.5-7.0TON<RPW> THA 		8-97940-698-0 01 1 1405- ●
130 SHOE KIT; BRK,FRT 5-87832-331-0 01 1 1405- ●
130 SHOE KIT; BRK,FRT
G.V.W. 5.0-5.5TON<RPT> 		5-87832-331-0 01 1 1405- ●
130 SHOE KIT; BRK,FRT
G.V.W. 6.5-7.0TON<RPW> 		5-87832-047-0 01 1 1405- ●
