◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51507 - NLR/NMR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-81 - POWER TAKE OFF; TRANSMISSION SIDE ▶
2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#139213) — 41 parça

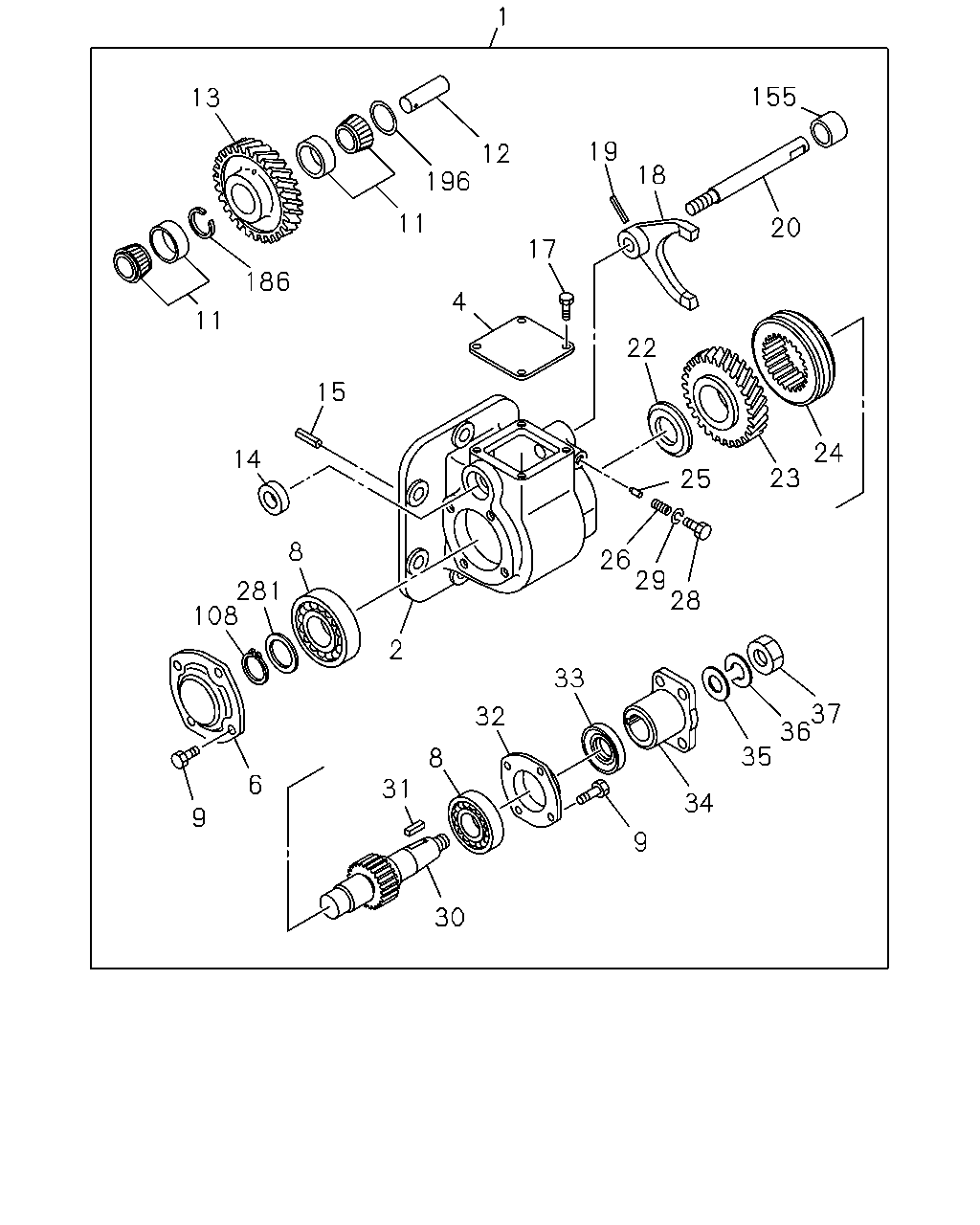

çizim 421009
13 1 11 186 11 196 12 9 108 6 281 8 14 15 4 17 19 155 18 20 22 26 24 23 29 33 28 32 8 31 2 25 30 9 35 34 36 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> IDENTIFICATION=YG 		8-98233-783-1 01 1 1405- ● ●
2 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		8-97308-689-2 01 1 1405-1409 ● ●
2 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		8-98282-381-0 01 1 1410- ● ●
4 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		8-98046-613-0 01 1 1405- ● ●
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		8-98233-778-0 01 1 1405- ● ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=25 OD=62 		8-94343-031-1 02 1 1405- ● ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M8X20 FLANGE THA 		0-28050-820-0 08 1 1405- ● ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> NSK 		8-97106-734-0 02 1 1405- ● ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		9-38211-606-0 01 1 1405- ● ●
13 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> Z=31 		8-97308-700-0 01 1 1405- ● ●
14 SEAL; OIL,GEAR CASE,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		8-98028-789-0 01 1 1405- ● ●
15 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> L=16 		9-09878-613-0 01 1 1405- ● ●
17 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M8X20 FLANGE THA 		0-28050-820-0 04 1 1405- ● ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		8-97224-702-0 01 1 1405- ● ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> L=25 OD=5 		8-94135-771-0 01 1 1405- ● ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		8-98046-623-0 01 1 1405- ● ●
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		9-38245-603-1 01 1 1405- ● ●
23 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> Z=27 		8-98120-609-0 01 1 1405- ● ●
24 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		8-97231-316-1 01 1 1405- ● ●
25 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		8-94169-071-0 01 1 1405- ● ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		9-09940-380-0 01 1 1405- ● ●
28 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M8 		8-98038-424-0 01 1 1405- ● ●
29 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=8.2 THA 		0-91510-808-0 01 1 1405- ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		8-98233-777-0 01 1 1405- ● ●
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> L=25 		8-98068-088-0 01 1 1405- ● ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		8-97305-794-0 01 1 1405- ● ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		1-38159-007-0 01 1 1405- ● ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		8-98223-519-0 01 1 1405- ● ●
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=15 		0-91610-514-0 01 1 1405- ● ●
36 WASHER; LK,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=14.2 		0-91510-814-0 01 1 1405- ● ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M14 		0-91111-514-0 01 1 1405- ● ●
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=23.2 		9-09180-025-0 01 1 1405- ● ●
155 PLUG; SHIFTER ROD
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		8-98037-770-0 01 1 1405- ● ●
186 RING; SNAP,IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> 		8-97106-730-0 01 1 1405- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> T=1.50 		8-97106-724-0 02 1 1405- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> T=1.60 		8-97106-725-0 02 1 1405- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> T=1.65 		8-97106-726-0 02 1 1405- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> T=1.70 		8-97106-727-0 02 1 1405- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> T=1.80 		8-97106-728-0 02 1 1405- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> T=1.85 		8-97106-729-0 02 1 1405- ● ●
281 SHIM; OUTPUT SHAFT
PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> T=1.85 		8-97106-729-0 01 1 1405- ● ●
