◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51507 - NLR/NMR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#139210) — 83 parça

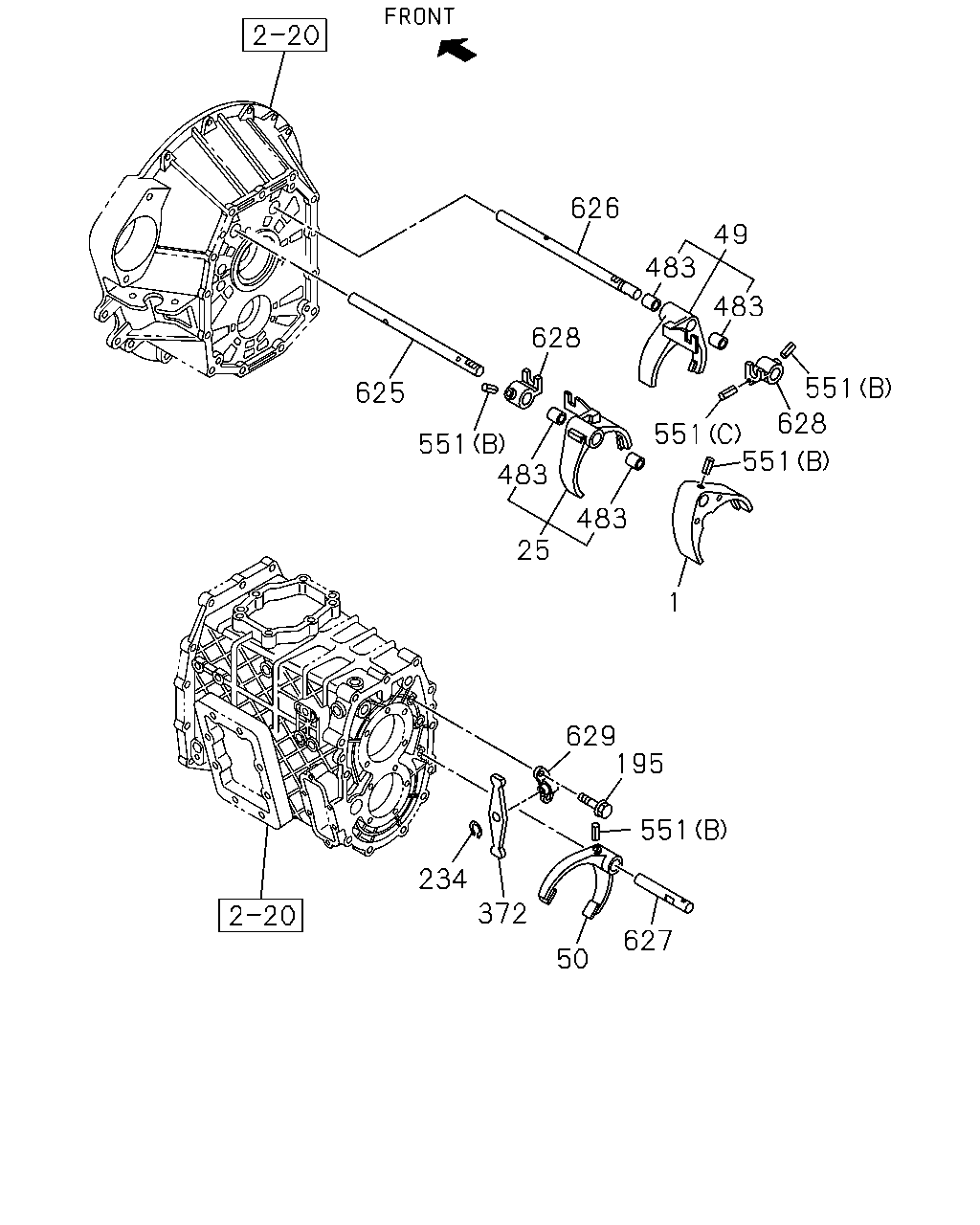

çizim 420799
625 551 628 483 25 483 551 626 483 49 483 551 628 551 234 372 50 627 551 195 629 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1405- ● ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1405-1407 ● ●
25 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ● ●
49 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1405- ●
49 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1405- ●
50 ARM; SHIFT,6TH 8-97241-325-1 01 1 1405- ●
195 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1405- ● ●
234 RING; SNAP
ID=12 		8-94460-357-0 01 1 1405- ●
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1405- ●
372 LEVER; RELAY,6TH 8-97241-343-0 01 1 1405- ●
483 BUSHING; SHIFT ARM 8-97241-326-2 02 1 1405- ● ●
483 BUSHING; SHIFT ARM 8-97241-326-2 02 1 1405- ● ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1405- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1405- ● ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1405- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 01 1 1405- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 1405- ● ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 1405- ●
627 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1405- ●
628 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1405- ●
629 BRIDGE; LEVER 8-97237-107-1 01 1 1405- ●
629 BRIDGE; LEVER 8-97241-345-1 01 1 1405- ●

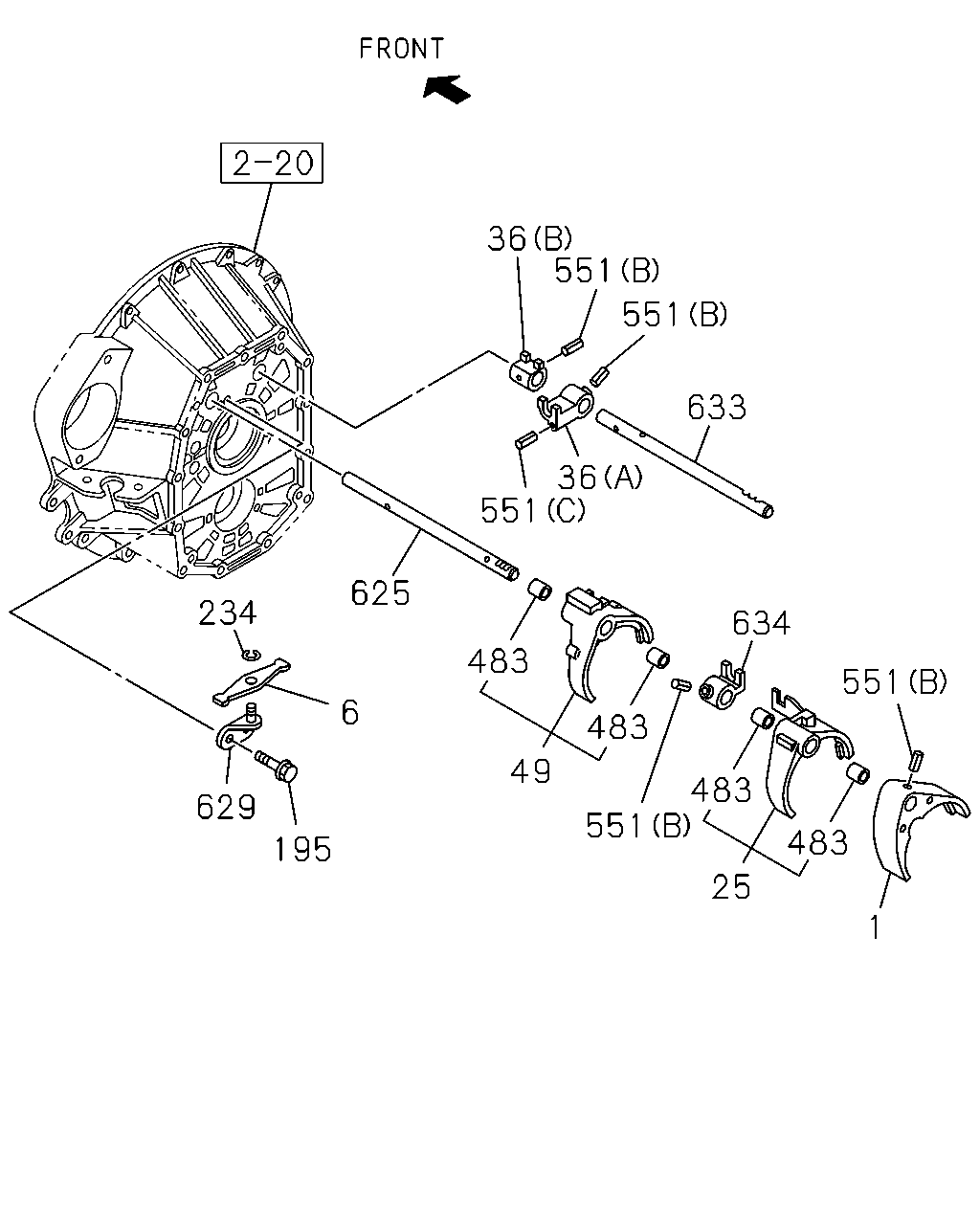

çizim 420914
36 551 551 633 36 551 625 234 6 629 195 483 49 551 25 1 483 483 483 634 551
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1405- ● ●
6 LEVER; RELAY 8-97241-344-0 01 1 1405- ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1405-1407 ● ●
25 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ● ●
36 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1405- ●
36 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1405- ●
49 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1405- ●
49 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1405- ●
195 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1405- ● ●
234 RING; SNAP
ID=12 		8-94460-357-0 01 1 1405- ●
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1405- ●
483 BUSHING; SHIFT ARM 8-97241-326-2 02 1 1405- ● ●
483 BUSHING; SHIFT ARM 8-97241-326-2 02 1 1405- ● ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1405- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1405- ● ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1405- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 01 1 1405- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 1405- ● ●
629 BRIDGE; LEVER 8-97237-107-1 01 1 1405- ●
629 BRIDGE; LEVER 8-97241-345-1 01 1 1405- ●
633 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 1405- ●
634 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1405- ●

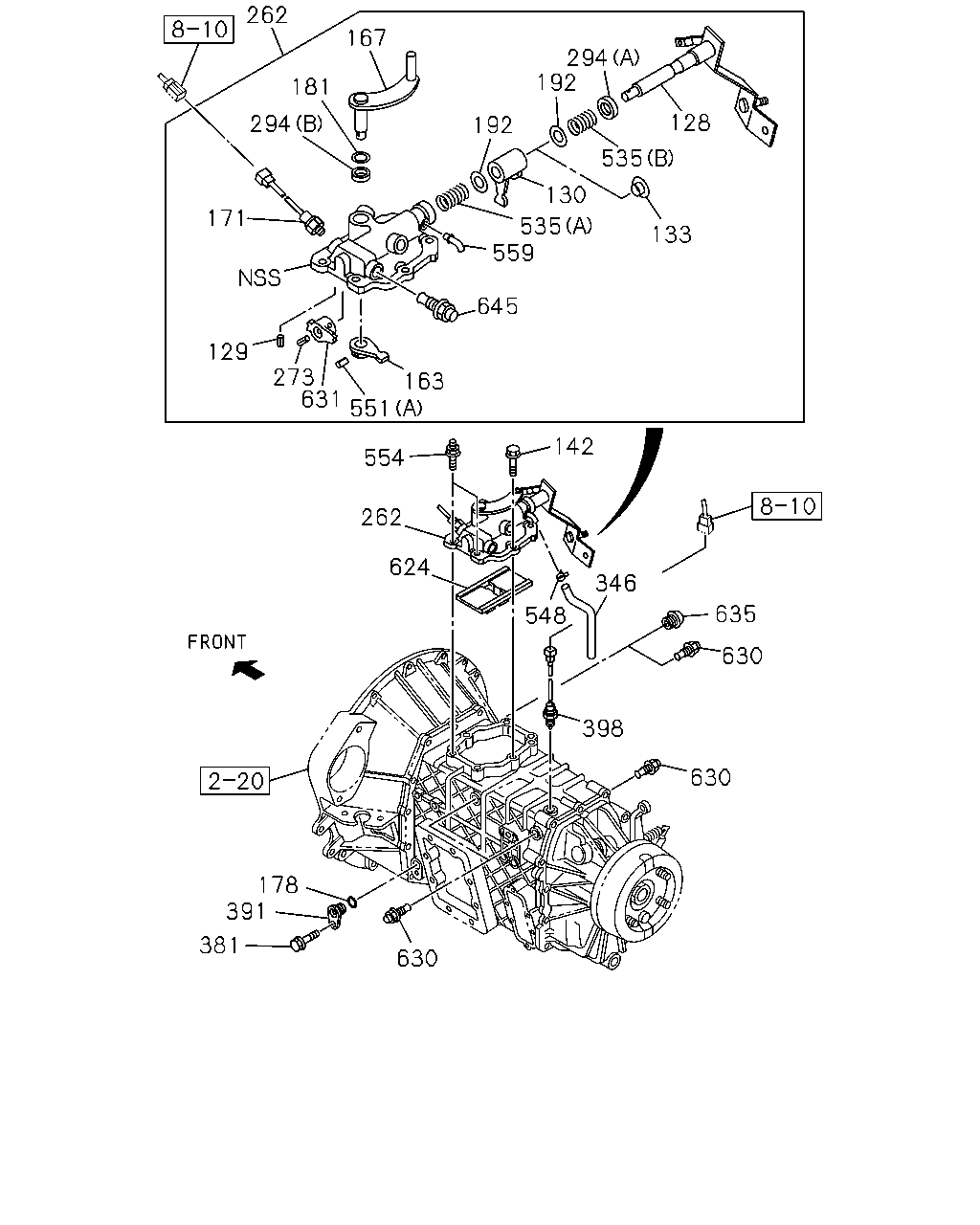

çizim 421053
262 167 181 294 171 129 273 631 551 163 645 559 535 130 192 192 294 535 128 133 554 262 624 178 391 381 630 630 398 548 630 635 346 142
BalonParca AdiParca NoAdetTipApplied Date A B
128 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 1405- ●
128 LEVER; SHIFT,EXTERNAL 8-97363-226-0 01 1 1405- ●
129 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1405- ● ●
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1405- ● ●
133 SEAT; SPR 8-97305-667-0 01 1 1405- ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 1405- ● ●
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1405- ● ●
167 LEVER; SELECT,EXTERNAL 8-98039-436-0 01 1 1405- ● ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1405- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1405- ● ●
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1405- ● ●
192 WASHER; PL 8-97305-661-0 01 1 1405- ●
192 WASHER; PL 8-97305-661-0 02 1 1405- ●
262 BOX ASM; SHIFT CONT 8-98241-002-1 01 1 1405- ●
262 BOX ASM; SHIFT CONT 8-98240-993-1 01 1 1405- ●
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 1405- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1405- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1405- ● ●
346 HOSE; AIR 8-97309-855-0 01 1 1405- ● ●
381 BOLT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1405- ● ●
391 PLUG; SW HOLE 8-97300-273-1 01 1 1405- ● ●
398 SWITCH; REV LAMP 8-98256-418-0 01 1 1405- ● ●
535 SPRING; LEVER
(A) 		8-97323-771-0 01 1 1405- ●
535 SPRING; LEVER
(B) 		8-97323-772-0 01 1 1405- ●
535 SPRING; LEVER
(A) 		8-97305-659-0 01 1 1405- ●
535 SPRING; LEVER
(B) 		8-97305-660-0 01 1 1405- ●
548 CLIP; HOSE 8-97031-674-0 01 1 1405- ● ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1405- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1405- ● ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1405- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 01 1 1405- ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1405- ● ●
559 PIPE; BREATHER 8-97358-318-0 01 1 1405- ● ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1405- ● ●
630 DETENT ASM 8-98019-536-0 03 1 1405- ●
630 DETENT ASM 8-98019-536-0 04 1 1405- ●
631 STOPPER; SPRING 8-97305-666-0 01 1 1405- ● ●
635 PLUG; DETENT 8-97380-892-0 01 1 1405- ●
645 DETENT ASM 8-98019-536-0 01 1 1405- ● ●
