2-26 — MANUAL TRANSMISSION GEAR (#139209) — 165 parça

268 408 510 108 507 325 135 314 132 511 507 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1405-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1405-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1405-	●	●
108	SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1405-	●
108	SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1405-		●
132	SHAFT; REV	8-97252-655-0	01	1	1405-	●	●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1405-	●	●
268	PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1405-	●
268	PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1405-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1405-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1405-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1405-		●
408	SPRING (B)	8-94148-196-0	03	1	1405-	●	●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1405-	●	●
510	PIN; STRAIGHT,ANTI LASH	9-08160-825-0	03	1	1405-	●	●
511	RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1405-	●	●

118 115 506 508 528 423 527 408 529 300 480 325 507 108 132 314 135 511 507 93 510 408 268 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1405-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1405-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1405-	●	●
108	SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1405-	●
108	SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1405-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1405-		●
118	GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	1405-		●
132	SHAFT; REV	8-97252-655-0	01	1	1405-	●	●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1405-	●	●
268	PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1405-	●
268	PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1405-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	1405-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.8	8-97254-728-0	01	1	1405-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	1405-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	1405-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1405-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1405-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1405-		●
408	SPRING (B)	8-94148-196-0	03	1	1405-	●	●
423	SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	1405-		●
480	WASHER; THRUST,6TH	8-97253-123-1	01	1	1405-		●
506	COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	1405-		●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1405-	●	●
508	RING; BLOCK,6TH Z=45	8-97309-532-0	01	1	1405-		●
510	PIN; STRAIGHT,ANTI LASH	9-08160-825-0	03	1	1405-	●	●
511	RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1405-	●	●
527	INSERT; 6TH	8-94448-202-2	03	1	1405-		●
528	SLEEVE; 6TH Z=45	8-94421-871-1	01	1	1405-		●
529	PLATE; STOPPER,6TH	8-97248-952-0	01	1	1405-		●

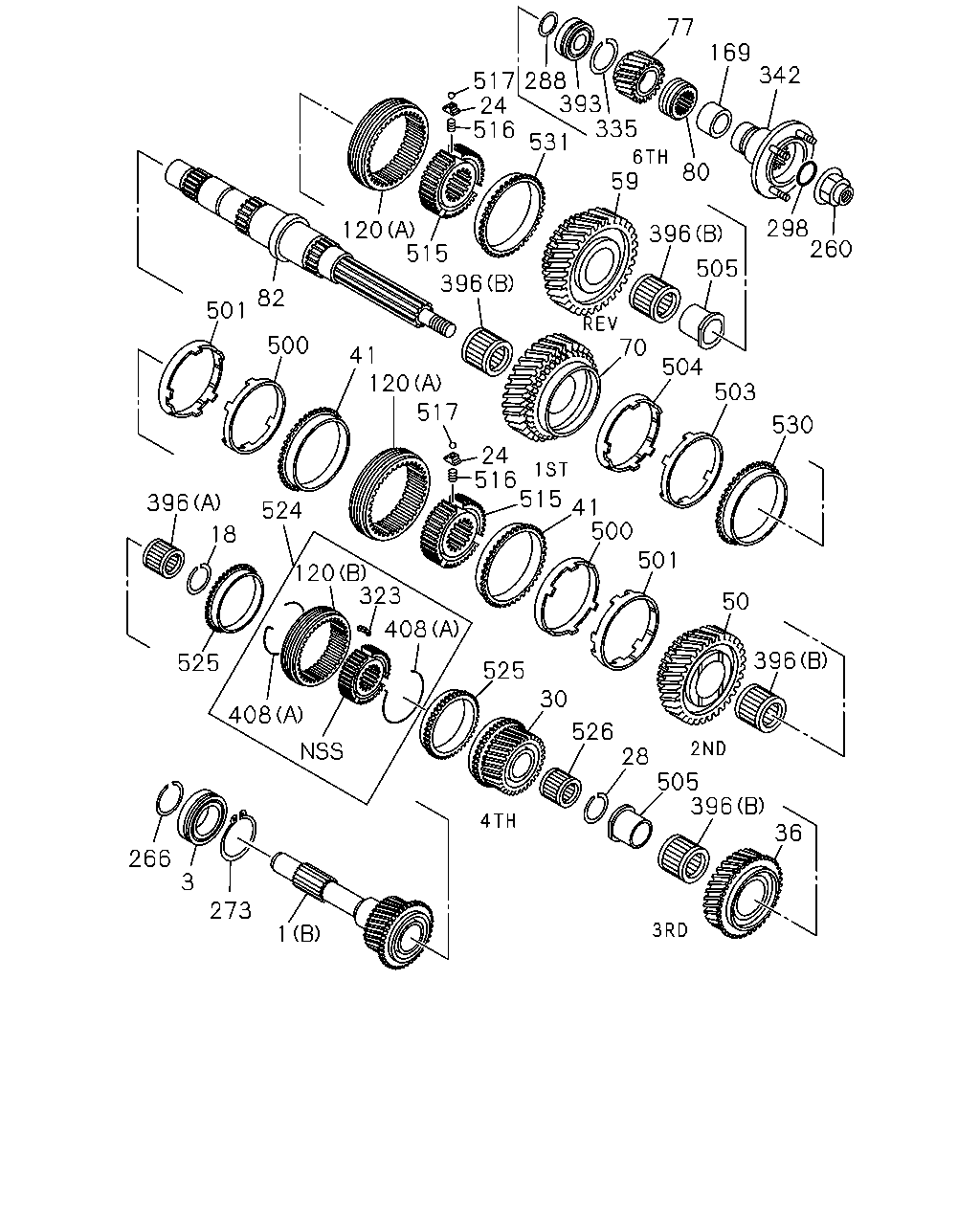

517 24 516 531 120 515 396 41 500 82 501 396 524 18 120 323 525 408 266 3 273 1 36 396 505 28 526 30 525 408 396 50 501 500 41 515 516 24 517 120 530 503 504 70 505 396 59 335 393 288 80 77 169 342 298 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS (A) Z=28	8-98031-848-0	01	1	1405-	●
1	SHAFT; TOP GEAR,TRANS (B) Z=26	8-98021-266-0	01	1	1405-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1405-	●	●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1405-	●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	06	1	1405-	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1405-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	1405-		●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1405-	●	●
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1405-	●	●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1405-	●	●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1405-	●	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1405-	●	●
77	GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	1405-		●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1405-	●	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1405-	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1405-		●
120	SLEEVE (A) Z=45	8-98258-279-0	02	1	1405-	●	●
120	SLEEVE (B) Z=45	8-94421-871-1	01	1	1405-	●	●
169	COLLAR; MAINSHAFT	8-97252-937-1	01	1	1405-		●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1405-	●	●
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	1405-	●	●
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1405-	●	●
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1405-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1405-	●	●
323	INSERT	8-94448-202-2	03	1	1405-	●	●
335	RING; SNAP,BEARING	8-97254-722-0	01	1	1405-	●	●
342	FLANGE; OUTPUT	8-98031-640-0	01	1	1405-	●	●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	1405-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1405-	●	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1405-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1405-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1405-		●
408	SPRING (B)	8-94148-196-0	03	1	1405-	●	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1405-	●	●
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1405-	●	●
503	RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1405-	●	●
504	RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1405-	●	●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1405-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1405-	●	●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1405-	●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1405-	●	●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1405-	●	●
525	RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1405-	●	●
526	BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1405-	●	●
530	RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1405-	●	●
531	RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1405-	●	●

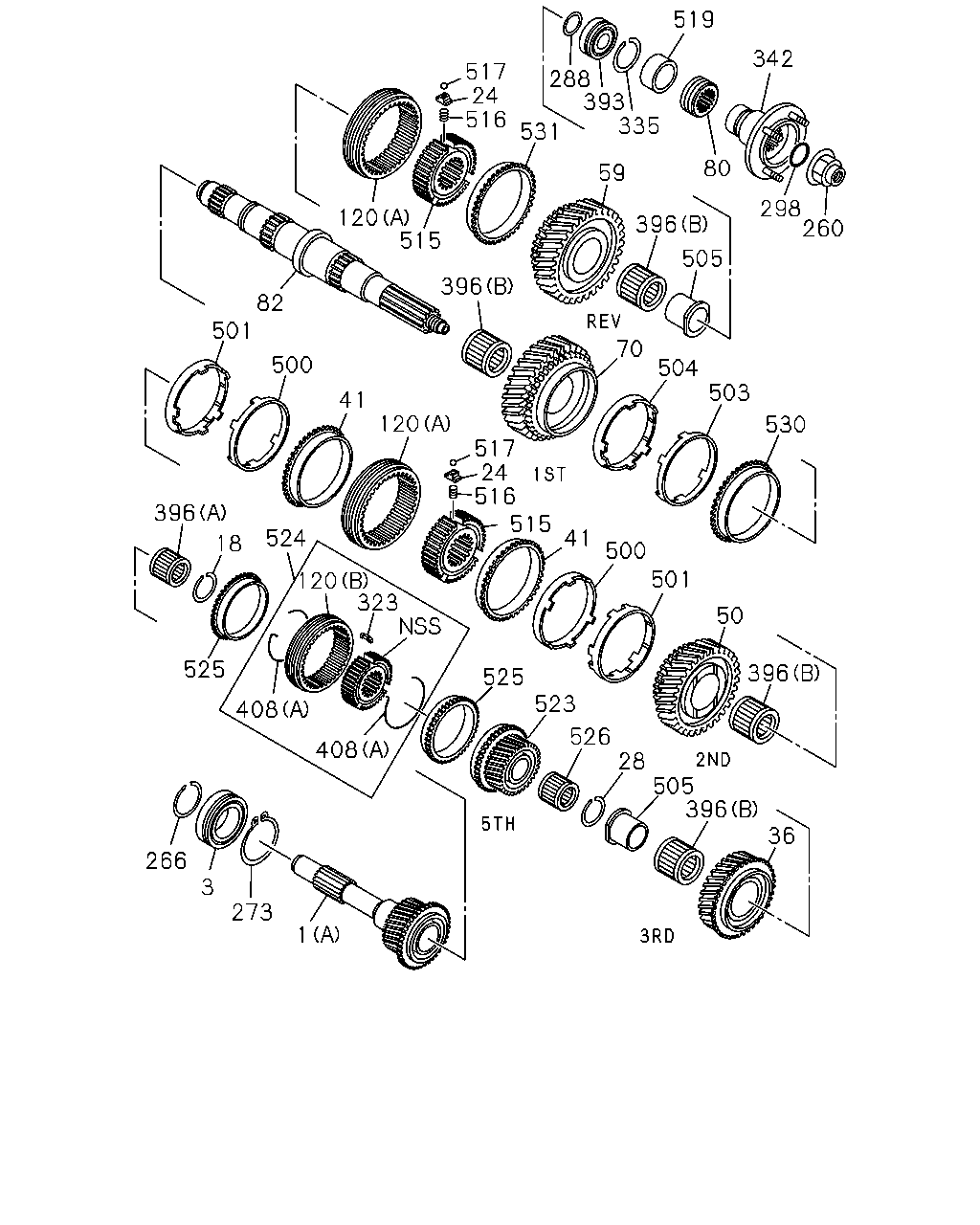

342 519 260 298 80 335 393 288 517 24 516 531 59 396 505 530 503 504 70 396 515 120 82 501 500 41 120 517 24 516 515 41 500 501 50 396 36 396 505 28 526 523 525 1 273 3 266 525 408 408 323 120 524 18 396

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS (A) Z=28	8-98031-848-0	01	1	1405-	●
1	SHAFT; TOP GEAR,TRANS (B) Z=26	8-98021-266-0	01	1	1405-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1405-	●	●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1405-	●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	06	1	1405-	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1405-	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1405-	●	●
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1405-	●	●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1405-	●	●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1405-	●	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1405-	●	●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1405-	●	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1405-	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1405-		●
120	SLEEVE (A) Z=45	8-98258-279-0	02	1	1405-	●	●
120	SLEEVE (B) Z=45	8-94421-871-1	01	1	1405-	●	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1405-	●	●
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	1405-	●	●
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1405-	●	●
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1405-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1405-	●	●
323	INSERT	8-94448-202-2	03	1	1405-	●	●
335	RING; SNAP,BEARING	8-97254-722-0	01	1	1405-	●	●
342	FLANGE; OUTPUT	8-98031-640-0	01	1	1405-	●	●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	1405-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1405-	●	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1405-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1405-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1405-		●
408	SPRING (B)	8-94148-196-0	03	1	1405-	●	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1405-	●	●
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1405-	●	●
503	RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1405-	●	●
504	RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1405-	●	●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1405-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1405-	●	●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1405-	●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1405-	●	●
519	COLLAR; MAINSHAFT END,5TH	8-97252-940-0	01	1	1405-	●
523	GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	1405-	●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1405-	●	●
525	RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1405-	●	●
526	BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1405-	●	●
530	RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1405-	●	●
531	RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1405-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
