◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51507 - NLR/NMR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#139205) — 12 parça

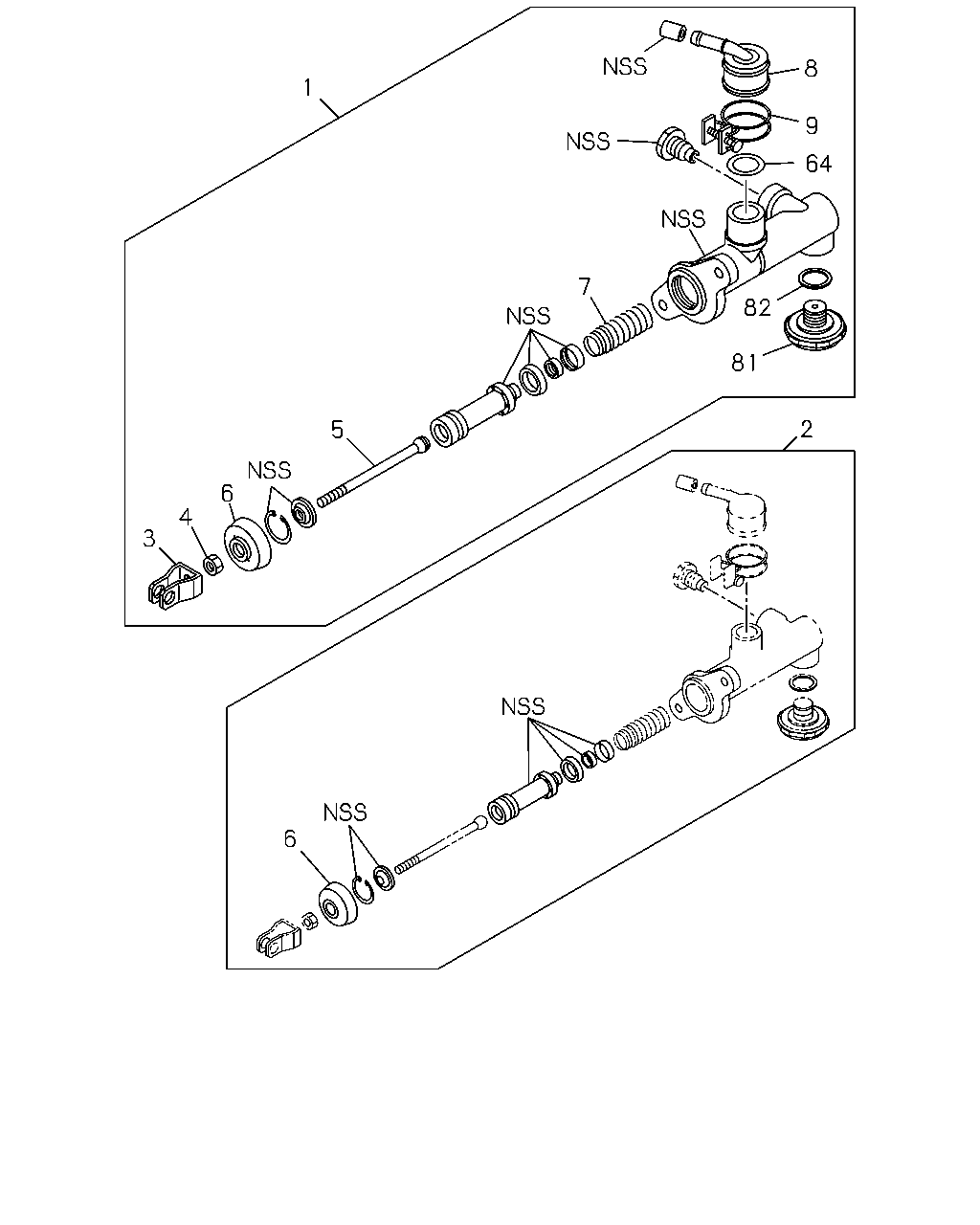

çizim 420043
1 3 4 6 5 7 81 2 82 64 9 8 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER 8-98117-641-0 01 1 1405- ● ●
2 REPAIR KIT; CLU M/CYL 5-87832-226-0 01 1 1405- ● ●
3 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 1405- ● ●
4 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 1405- ● ●
5 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 1405- ● ●
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 1405- ● ●
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 1405- ● ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 1405- ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1405- ● ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 1405- ● ●
81 DAMPER; MASTER CYL 8-97190-913-0 01 1 1405- ● ●
82 GASKET; DAMPER 8-97191-396-0 01 1 1405- ● ●
