1-31 — AIR DUCT (#139194) — 63 parça

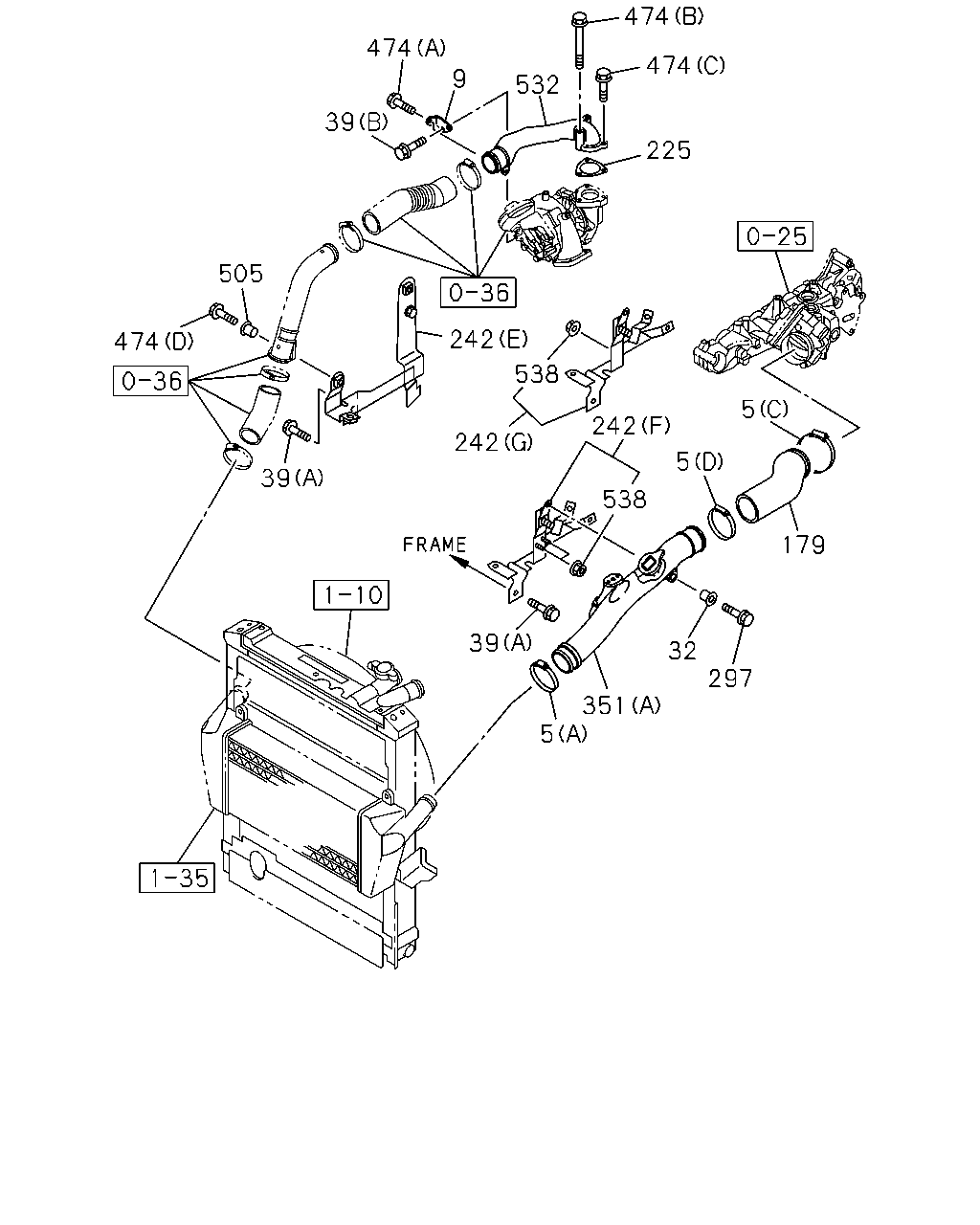

çizim 420299
474 39 9 532 474 474 225 242 505 474 39 39 5 351 32 5 5 179 297 538 242 538 242
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1405- ● ●
5 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 1405- ● ●
5 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 1405- ● ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 1405- ● ●
9 BRACKET; INT PIPE 8-98009-086-0 01 1 1405- ● ●
32 RUBBER; AIR DUCT MTG
OD=23 		8-97105-689-6 01 1 1405- ● ●
39 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 02 1 1405- ● ●
39 BOLT; BRKT
(B) M8X14 FLANGE 		8-97378-075-0 01 1 1405- ● ●
179 HOSE; AIR INT 8-97950-128-0 01 1 1405- ● ●
225 GASKET; AIR PIPE 8-97202-328-1 01 1 1405- ● ●
242 BRACKET; AIR DUCT
(E) 		8-97384-140-2 01 1 1405- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 1405- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1405- ● ●
242 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 1405- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 1405- ● ●
242 BRACKET; AIR DUCT
(F) 		8-98100-224-2 01 1 1405-1411 ● ●
242 BRACKET; AIR DUCT
(G) 		8-98108-313-1 01 1 1412- ● ●
297 BOLT; DUCT
M8X35 FLANGE THA 		0-28650-835-0 01 1 1405- ● ●
351 DUCT; AIR
(A) 		8-98067-267-0 01 1 1405- ● ●
351 DUCT; AIR
(B) 		8-98115-594-0 01 1 1405- ● ●
474 BOLT; PIPE
(B) M6X70 FLANGE 		0-28050-670-0 02 1 1405- ● ●
474 BOLT; PIPE
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1405- ● ●
474 BOLT; PIPE
(C) M6X30 FLANGE THA 		0-28650-630-0 01 1 1405- ● ●
474 BOLT; PIPE
(D) M8X35 FLANGE THA 		0-28650-835-0 01 1 1405- ● ●
505 RUBBER; MTG
OD=23 		8-97105-689-6 01 1 1405- ● ●
532 PIPE; INTAKE 8-98237-771-1 01 1 1405- ● ●
538 NUT; PLATE,AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 1405- ● ●

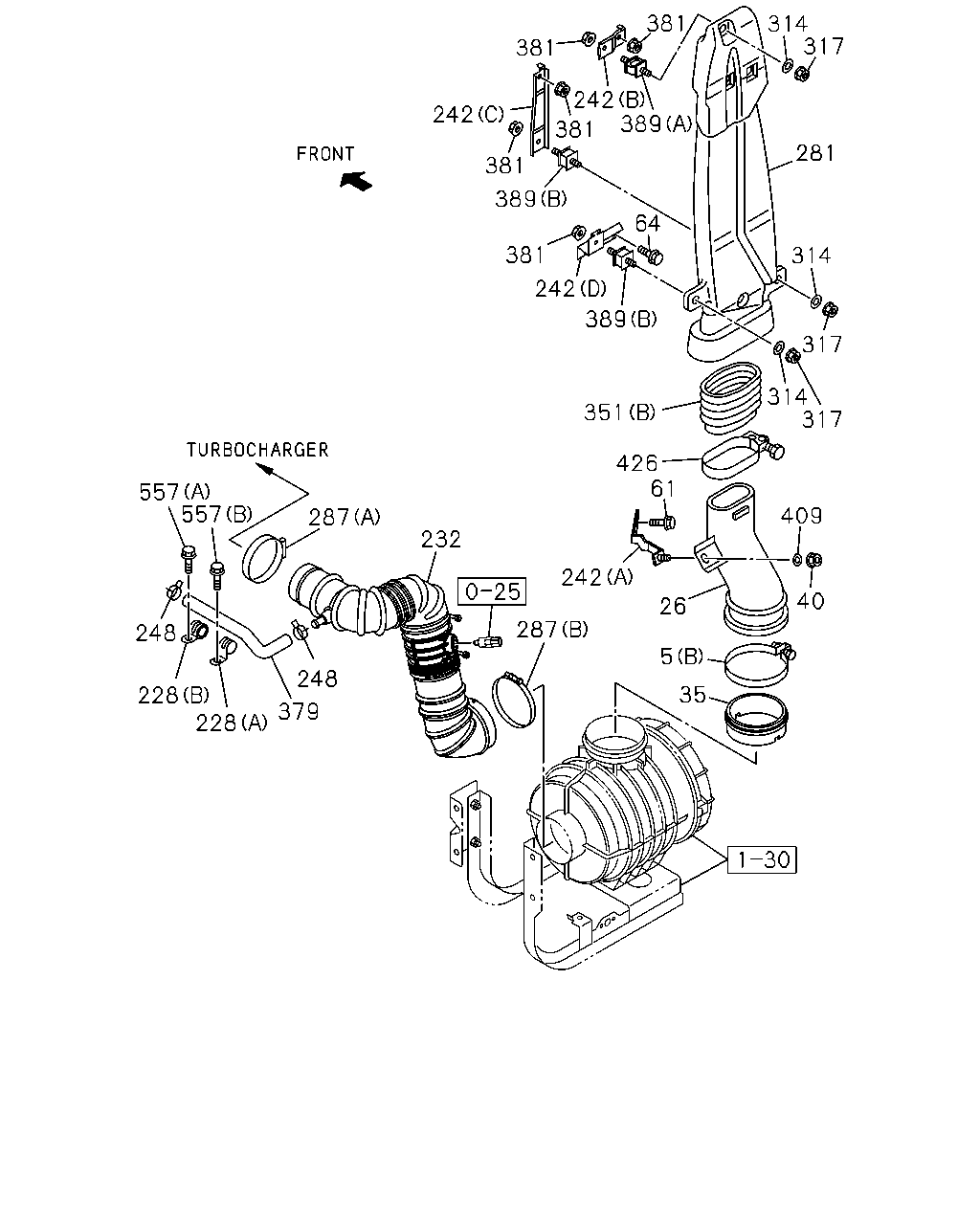

çizim 421390
314 317 281 314 317 314 317 409 40 35 5 26 61 426 351 389 242 64 381 389 381 242 381 381 242 381 389 242 287 232 248 379 228 228 248 287 557 557
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1405- ● ●
5 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 1405- ● ●
5 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 1405- ● ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 1405- ● ●
26 DUCT; AIR INT 8-98023-339-0 01 1 1405- ● ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1405- ● ●
40 NUT; AIR INT DUCT
M10 FLANGE THA 		0-91180-110-0 01 1 1405- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1405- ● ●
64 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1405- ● ●
228 CLIP; PCV HOSE
(B) ID=22 L=22 		8-98120-916-0 01 1 1405- ● ●
228 CLIP; PCV HOSE
(A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1405- ● ●
232 HOSE; CONN 8-98048-540-0 01 1 1405-1409 ● ●
232 HOSE; CONN 8-98269-834-0 01 1 1410- ● ●
242 BRACKET; AIR DUCT
(E) 		8-97384-140-2 01 1 1405- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 1405- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1405- ● ●
242 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 1405- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 1405- ● ●
242 BRACKET; AIR DUCT
(F) 		8-98100-224-2 01 1 1405-1411 ● ●
242 BRACKET; AIR DUCT
(G) 		8-98108-313-1 01 1 1412- ● ●
248 CLIP; RUBBER HOSE
ID=21.7 		8-97203-074-0 02 1 1405- ● ●
281 DUCT; AIR,VERTICAL INT
THA 		8-97948-671-0 01 1 1405- ● ●
287 CLIP; AIR DUCT
(A) ID=65-85 		8-98133-350-0 01 1 1405- ● ●
287 CLIP; AIR DUCT
(B) ID=117 		9-09915-075-1 01 1 1405- ● ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 1405- ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER THA 		8-97581-234-0 03 1 1405- ● ●
351 DUCT; AIR
(A) 		8-98067-267-0 01 1 1405- ● ●
351 DUCT; AIR
(B) 		8-98115-594-0 01 1 1405- ● ●
379 HOSE; RUBBER
THA 		8-98045-343-0 01 1 1405- ● ●
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER THA 		8-97581-234-0 05 1 1405- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1405- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1405- ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 1405- ● ●
426 CLIP; DUCT
D=101.6 		9-09915-502-1 01 1 1405- ● ●
557 BOLT; HOSE CLIP
(A) M6X10 FLANGE THA 		0-28050-610-0 01 1 1405- ● ●
557 BOLT; HOSE CLIP
(B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 1405- ● ●
