◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51507 - NLR/NMR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#139189) — 14 parça

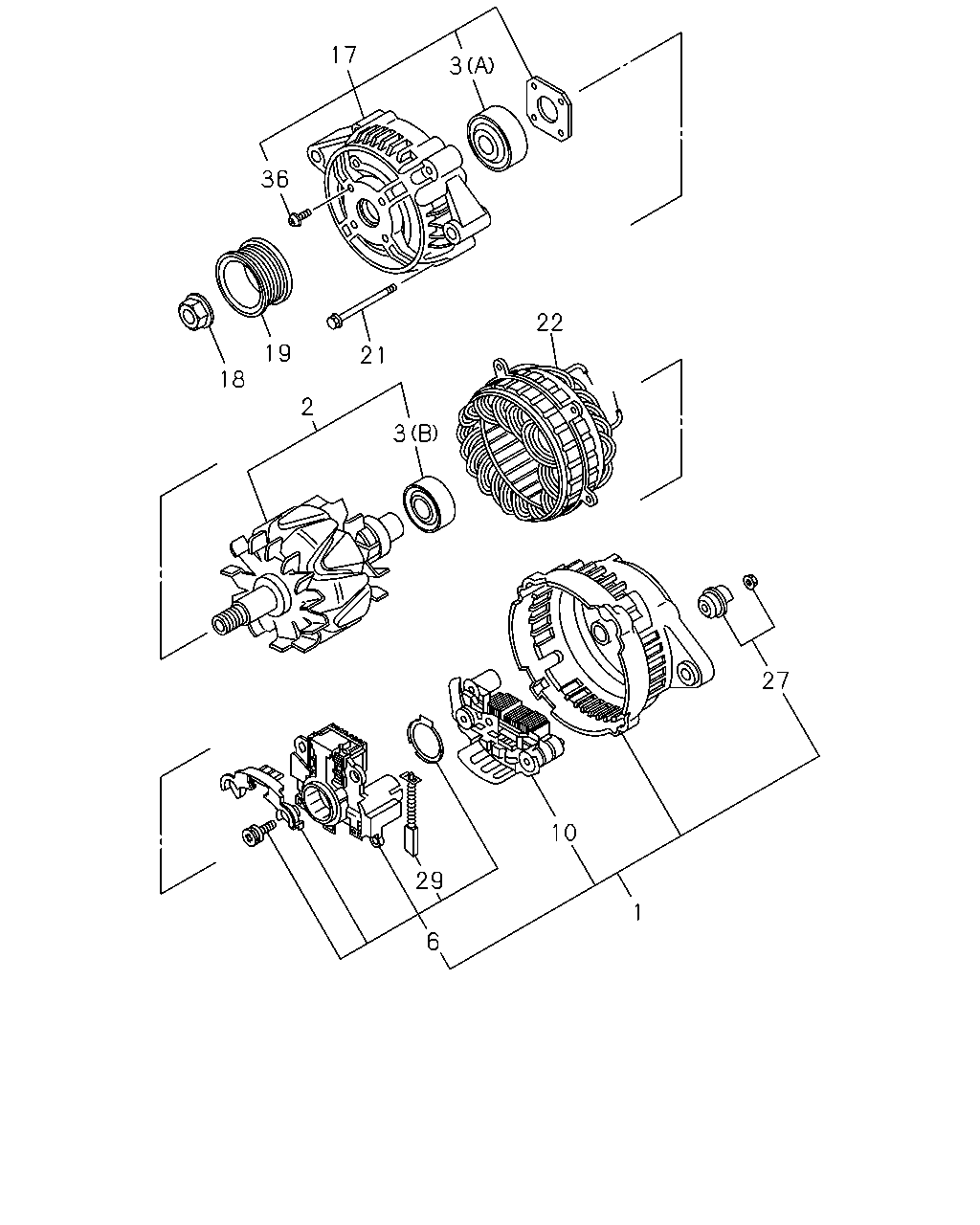

çizim 421225
1 10 6 29 3 22 27 2 21 19 18 36 17 3
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
THA ASM PART: A = 8-97948-540-0 		8-98251-118-0 01 1 -
2 ROTOR; GEN
THA ASM PART: A = 8-97948-540-0 		8-98251-115-0 01 1 -
3 BEARING; ROTOR,GEN
(A), THA ASM PART: A = 8-97948-540-0 		8-98251-113-0 01 1 -
3 BEARING; ROTOR,GEN
(B), THA ASM PART: A = 8-97948-540-0 		8-98251-116-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
THA ASM PART: A = 8-97948-540-0 		8-98251-121-0 01 1 -
10 RECTIFIER; GEN
THA ASM PART: A = 8-97948-540-0 		8-98251-119-0 01 1 -
17 COVER ASM; FRT,GEN
THA ASM PART: A = 8-97948-540-0 		8-98251-110-0 01 1 -
18 NUT; PULLEY,GEN
THA ASM PART: A = 8-97948-540-0 		8-98281-812-0 01 1 -
19 PULLEY; GEN
THA ASM PART: A = 8-97948-540-0 		8-98251-123-0 01 1 -
21 BOLT; THROUGH,GEN
THA ASM PART: A = 8-97948-540-0 		8-98281-813-0 01 1 -
22 STATOR; GEN
THA ASM PART: A = 8-97948-540-0 		8-98251-117-0 01 1 -
27 NUT; RECTIFIER,GEN
THA ASM PART: A = 8-97948-540-0 		8-98251-120-0 01 1 -
29 BRUSH; GEN
THA ASM PART: A = 8-97948-540-0 		8-98251-125-0 01 1 -
36 SCREW; FRT COVER
THA ASM PART: A = 8-97948-540-0 		8-98281-814-0 01 1 -
