0-52 — OIL AND VACUUM PIPING; ENGINE (#139184) — 33 parça

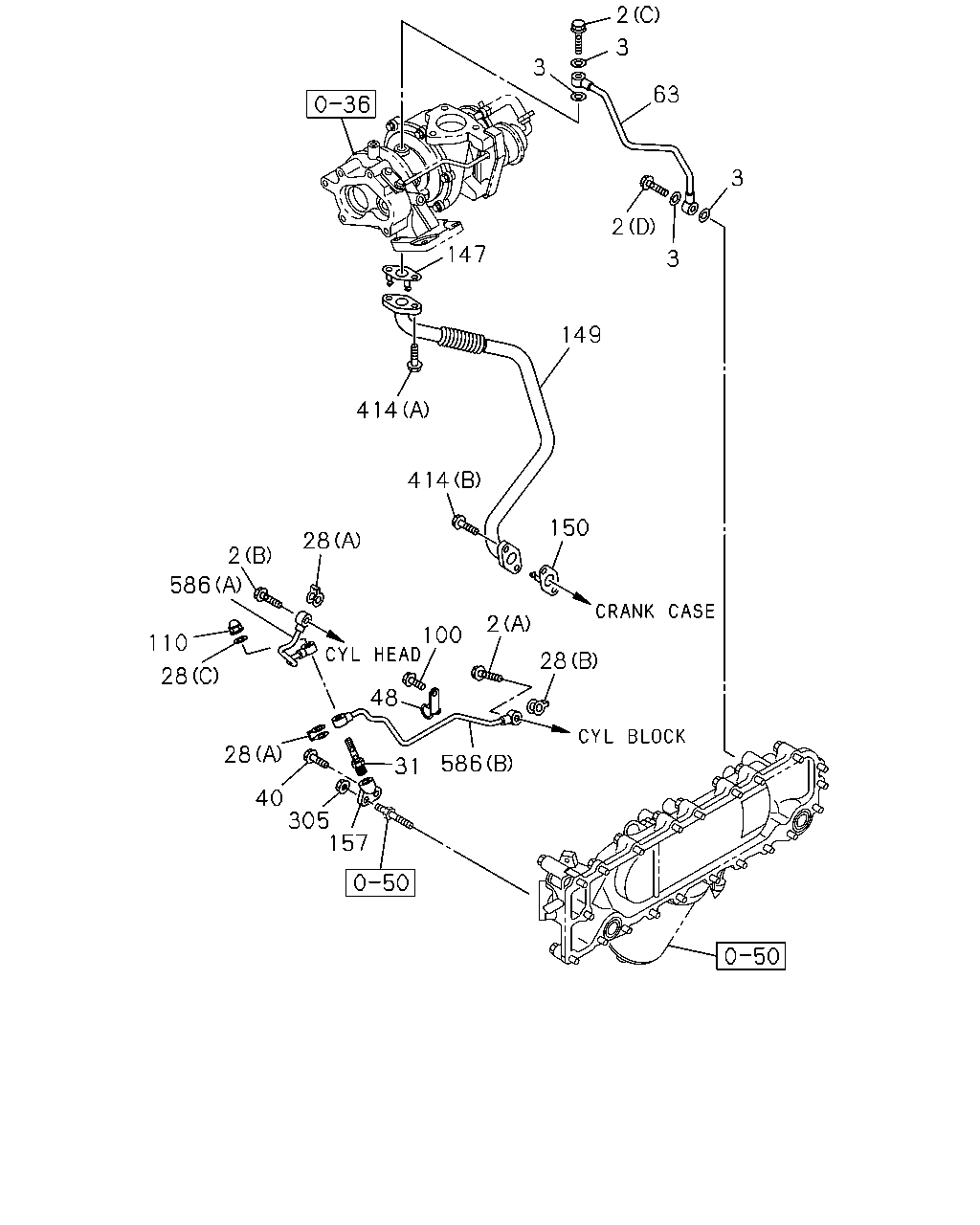

2 3 3 63 3 2 3 147 149 414 414 150 2 28 100 28 2 586 110 28 28 40 305 157 31 48 586

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE ENGINE MADE IN THAILAND<6ZP> (A) M14X27 FLANGE	1-09675-086-0	01	1	1405-
2	BOLT; EYE,OIL PIPE ENGINE MADE IN THAILAND<6ZP> (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1405-
2	BOLT; EYE,OIL PIPE ENGINE MADE IN THAILAND<6ZP> (C) M10X27	8-94443-535-0	01	1	1405-
2	BOLT; EYE,OIL PIPE ENGINE MADE IN THAILAND<6ZP> (D) M10X24 THA	8-97944-505-1	01	1	1405-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> ID=10.2 OD=16.0 THA	9-09571-410-0	04	1	1405-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	1405-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> (A) ID=8.2	8-97251-046-0	02	1	1405-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1405-
31	NIPPLE; OIL PIPE ENGINE MADE IN THAILAND<6ZP> THA	8-98044-067-1	01	1	1405-
40	BOLT; OIL PIPE ENGINE MADE IN THAILAND<6ZP> M6X12 FLANGE THA	0-28050-612-0	01	1	1405-
48	CLIP; OIL PIPE ENGINE MADE IN THAILAND<6ZP> ID=7 L=28	8-98121-233-0	01	1	1405-
63	PIPE; OIL,TURBOCHARGER FEED ENGINE MADE IN THAILAND<6ZP>	8-97381-488-0	01	1	1405-
100	BOLT; CLIP ENGINE MADE IN THAILAND<6ZP> M8X12 FLANGE THA	0-28050-812-0	01	1	1405-
110	NUT; CAP OIL PIPE ENGINE MADE IN THAILAND<6ZP> M8 CAP NUT FLANGE	8-98251-964-0	01	1	1405-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> THA	8-98132-017-0	01	1	1405-
149	PIPE; OIL RETURN,TURBOCHARGER ENGINE MADE IN THAILAND<6ZP>	8-97381-489-2	01	1	1405-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP>	8-98029-476-0	01	1	1405-
157	BRACKET; OIL PIPE ENGINE MADE IN THAILAND<6ZP>	8-98043-093-0	01	1	1405-
305	NUT; BRKT,OIL PIPE ENGINE MADE IN THAILAND<6ZP> M6 FLANGE THA	0-91180-106-0	01	1	1405-
414	BOLT; OIL PIPE ENGINE MADE IN THAILAND<6ZP> (A) M6X16 HEX SOCKET THA	0-58330-616-0	02	1	1405-
414	BOLT; OIL PIPE ENGINE MADE IN THAILAND<6ZP> (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1405-
586	PIPE; OIL,TENSIONER ENGINE MADE IN THAILAND<6ZP> (A)	8-98039-566-0	01	1	1405-
586	PIPE; OIL,TENSIONER ENGINE MADE IN THAILAND<6ZP> (B)	8-98039-567-0	01	1	1405-

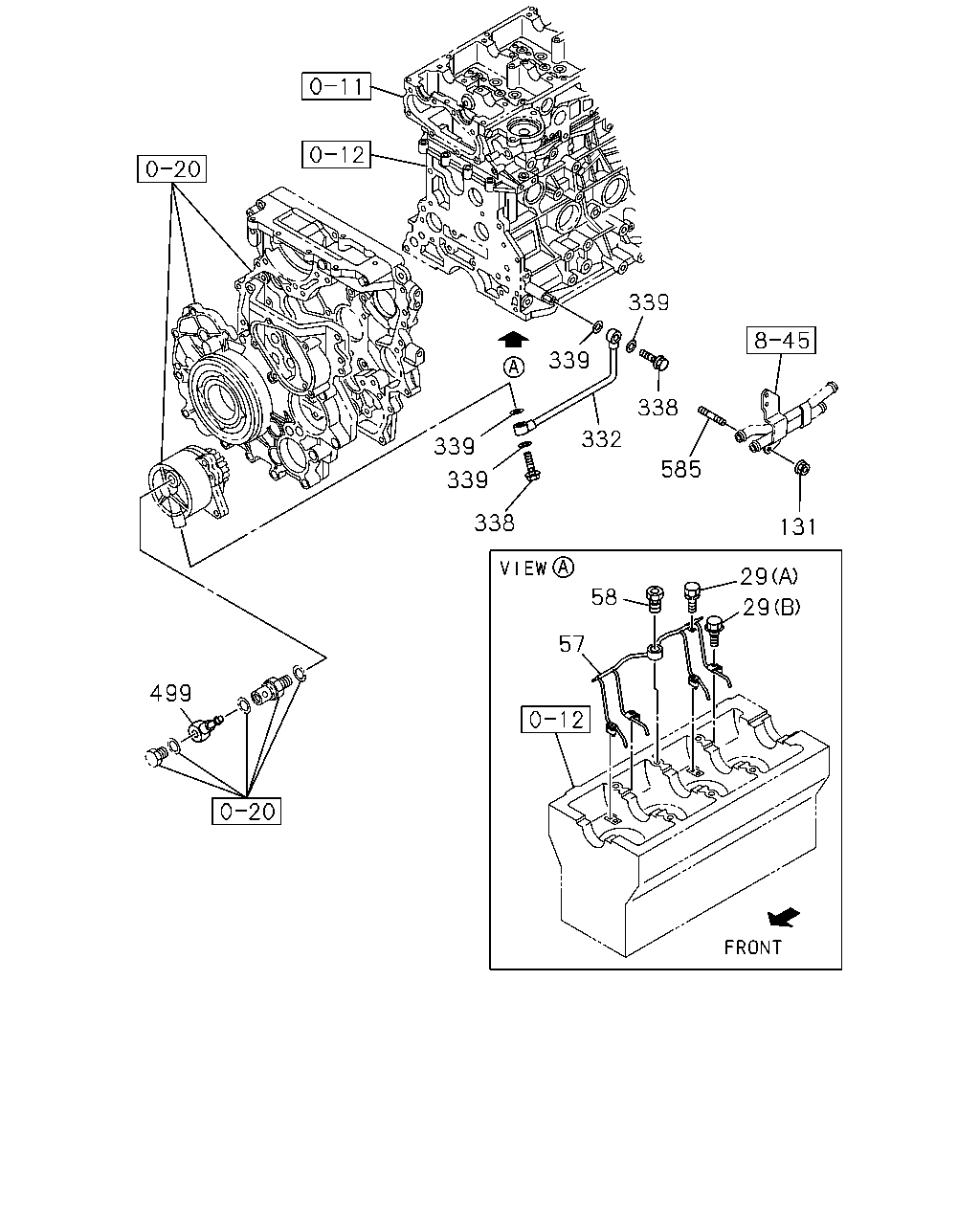

339 339 338 332 585 131 29 29 58 57 338 339 339 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	BOLT; OIL PIPE,OIL JET ENGINE MADE IN THAILAND<6ZP> (A) M8X10 FLANGE THA	0-28050-810-0	01	1	1405-
29	BOLT; OIL PIPE,OIL JET ENGINE MADE IN THAILAND<6ZP> (B) M6X20 FLANGE THA	8-97380-673-1	04	1	1405-
57	PIPE; OIL,OIL JET ENGINE MADE IN THAILAND<6ZP> THA	8-97312-132-3	01	1	1405-
58	VALVE; RELIEF,OIL JET,PISTON COOLING ENGINE MADE IN THAILAND<6ZP> THA	8-97379-464-0	01	1	1405-
131	NUT; UNION ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA	5-09440-010-0	01	1	1405-
332	PIPE; OIL,C/BL TO VAC PUMP ENGINE MADE IN THAILAND<6ZP> THA	8-98038-929-0	01	1	1405-
338	BOLT; JOINT,OIL PIPE ENGINE MADE IN THAILAND<6ZP> M8X20 EYE-BOLT THA	8-97910-296-1	02	1	1405-
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	1405-
499	PIPE; VACUUM ENGINE MADE IN THAILAND<6ZP>	8-98027-553-0	01	1	1405-
585	STUD; CLIP ENGINE MADE IN THAILAND<6ZP> M8X18 L=30 THA	0-41010-818-0	01	1	1405-
