◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51507 - NLR/NMR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#139183) — 6 parça

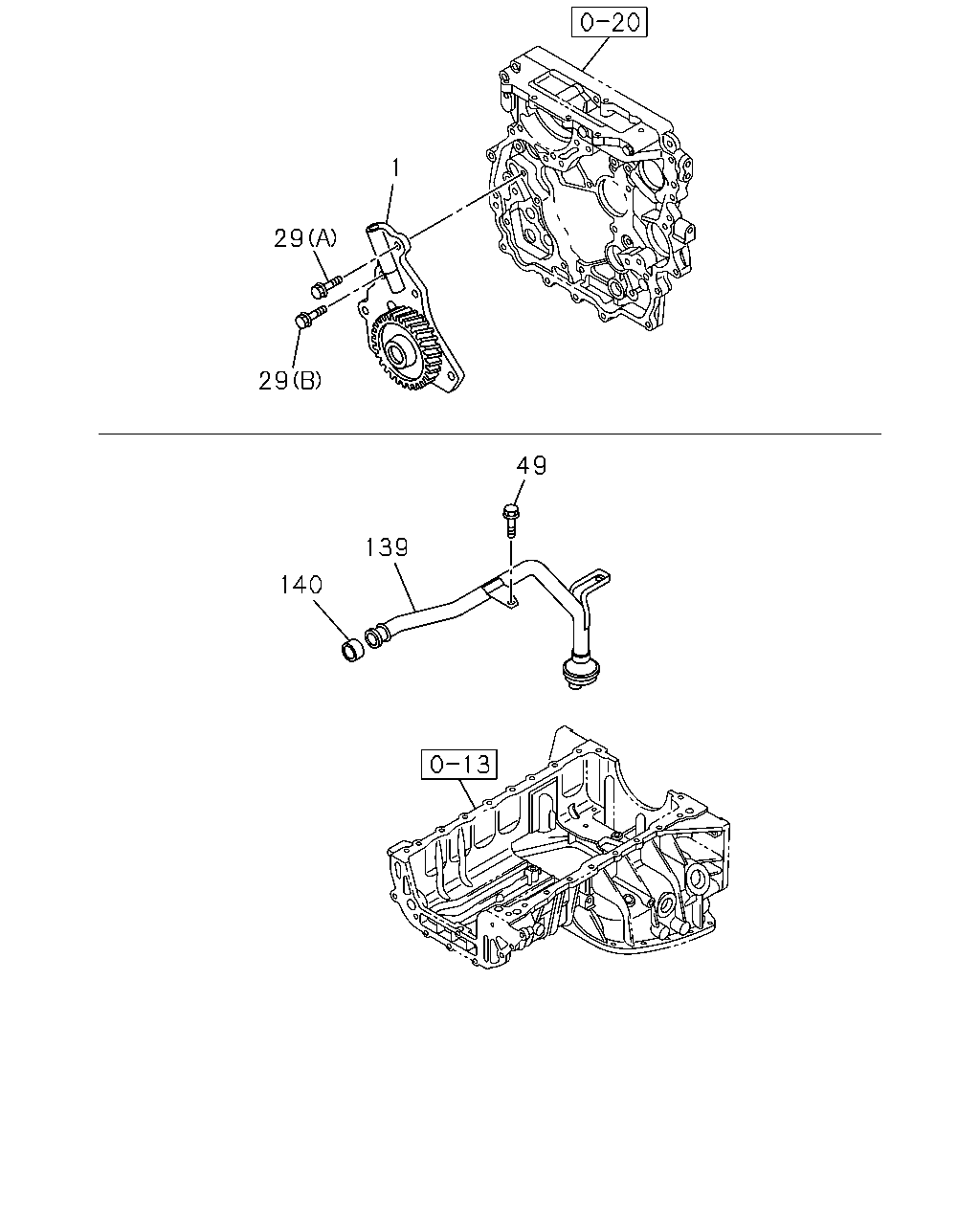

çizim 421358
1 29 29 49 139 140
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL
KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> THA 		8-98232-624-1 01 1 1405-
29 BOLT; OIL PUMP
KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> (B) M8X30 FLANGE THA 		0-28050-830-0 04 1 1405-
29 BOLT; OIL PUMP
KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> (A) M8X45 FLANGE THA 		0-28050-845-0 02 1 1405-
49 BOLT; STRAINER,OIL PUMP
KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> M8X16 FLANGE THA 		0-28050-816-0 02 1 1405-
139 PIPE; OIL STRAINER
KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> 		8-98149-035-0 01 1 1405-
140 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> THA 		8-97356-150-0 01 1 1405-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
