◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51507 - NLR/NMR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#139180) — 58 parça

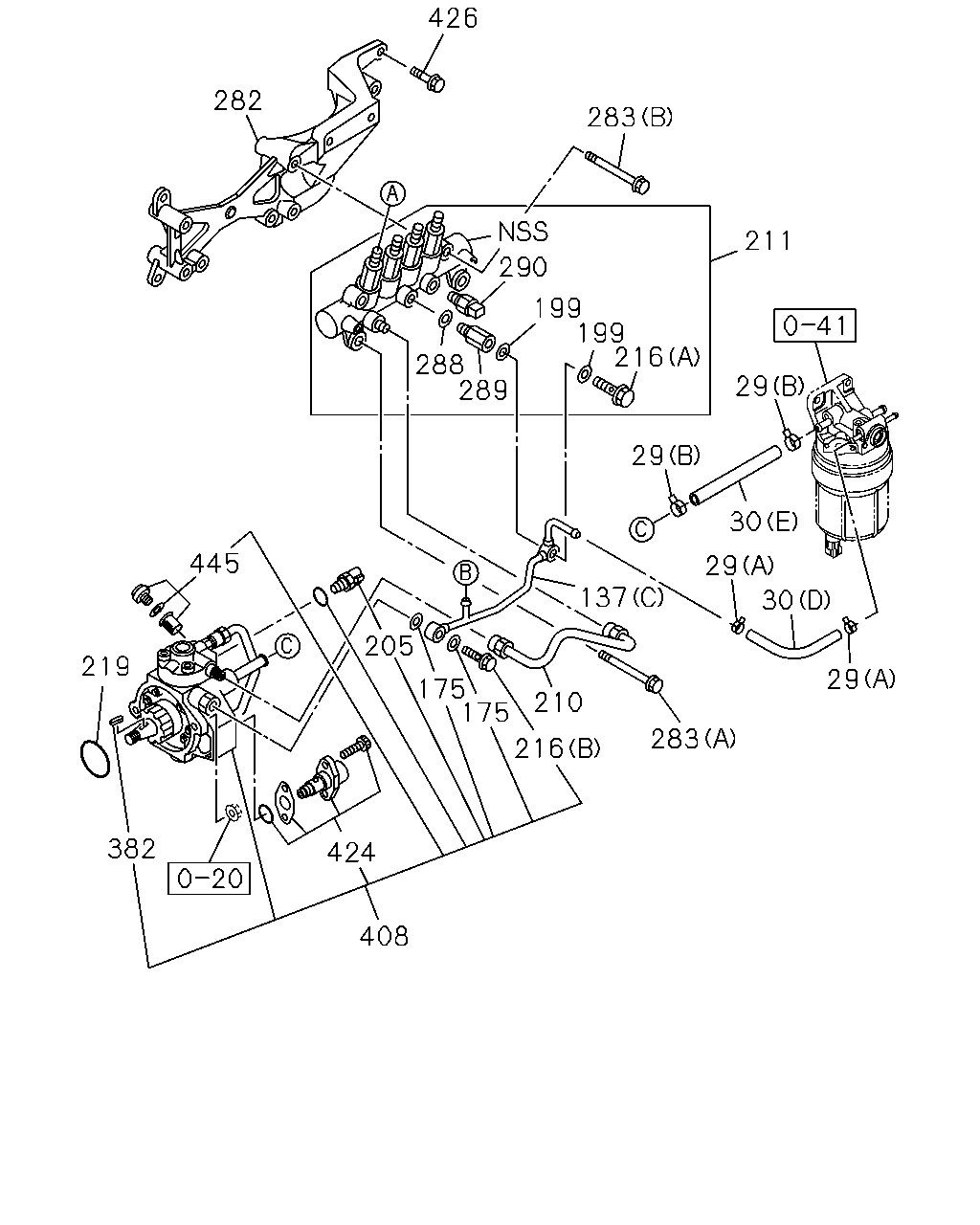

çizim 420223
282 426 283 290 288 289 199 199 216 211 29 30 29 30 29 283 137 29 210 216 175 175 205 445 219 382 424 408
BalonParca AdiParca NoAdetTipApplied Date
29 CLIP; HOSE
ENGINE MADE IN THAILAND<6ZP> (A) ID=12 WO/PVC COATING THA 		8-94123-526-1 02 1 1405-
29 CLIP; HOSE
ENGINE MADE IN THAILAND<6ZP> (B) ID=16 		8-94392-924-0 02 1 1405-
29 CLIP; HOSE
ENGINE MADE IN THAILAND<6ZP> (C) ID=10.5 THA 		8-97944-126-0 10 1 1405-
30 HOSE; RUBBER,FUEL LEAK
ENGINE MADE IN THAILAND<6ZP> (D) L=110 		8-97377-894-0 01 1 1405-
30 HOSE; RUBBER,FUEL LEAK
ENGINE MADE IN THAILAND<6ZP> (E) L=265 		8-98169-863-0 01 1 1405-
30 HOSE; RUBBER,FUEL LEAK
ENGINE MADE IN THAILAND<6ZP> (A) L=130 THA 		8-98053-692-0 01 1 1405-
30 HOSE; RUBBER,FUEL LEAK
ENGINE MADE IN THAILAND<6ZP> (B) L=96 THA 		8-98053-693-0 03 1 1405-
30 HOSE; RUBBER,FUEL LEAK
ENGINE MADE IN THAILAND<6ZP> (C) THA 		8-98112-034-0 01 1 1405-
137 PIPE ASM; LEAK OFF
ENGINE MADE IN THAILAND<6ZP> (C) 		8-98009-699-0 01 1 1405-
137 PIPE ASM; LEAK OFF
ENGINE MADE IN THAILAND<6ZP> (D) 		8-98036-510-0 01 1 1405-
137 PIPE ASM; LEAK OFF
ENGINE MADE IN THAILAND<6ZP> (B) 		8-98161-061-0 03 1 1405-
137 PIPE ASM; LEAK OFF
ENGINE MADE IN THAILAND<6ZP> (A) 		8-98161-062-0 01 1 1405-
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ENGINE MADE IN THAILAND<6ZP> ID=10.2 OD=15.2 		1-09630-083-0 02 1 1405-
199 GASKET; EYE BOLT
ENGINE MADE IN THAILAND<6ZP> 		8-97602-218-0 02 1 1405-
205 SENSOR; FUEL TEMP
ENGINE MADE IN THAILAND<6ZP> 		8-98023-581-0 01 1 1405-
210 PIPE; INJ,C/R
ENGINE MADE IN THAILAND<6ZP> THA 		8-97388-902-0 01 1 1405-
211 RAIL ASM; COMMON
ENGINE MADE IN THAILAND<6ZP> 		8-98011-888-2 01 1 1405-
216 BOLT; EYE
ENGINE MADE IN THAILAND<6ZP> (A) 		8-98043-033-0 01 1 1405-
216 BOLT; EYE
ENGINE MADE IN THAILAND<6ZP> (B) THA 		9-88130-088-0 01 1 1405-
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> ID=49.7 THA 		1-09623-541-0 01 1 1405-
282 BRACKET; COMMON RAIL
ENGINE MADE IN THAILAND<6ZP> 		8-98147-694-0 01 1 1405-
283 BOLT; COMMON RAIL
ENGINE MADE IN THAILAND<6ZP> (A) M8X70 FLANGE THA 		0-28050-870-0 02 1 1405-
283 BOLT; COMMON RAIL
ENGINE MADE IN THAILAND<6ZP> (B) M8X81 FLANGE THA 		8-97354-584-0 02 1 1405-
288 GASKET
ENGINE MADE IN THAILAND<6ZP> ID=11 OD=16.3 		1-15641-046-0 01 1 1405-
289 LIMITER; FUEL PRESS
ENGINE MADE IN THAILAND<6ZP> THA 		8-98032-549-0 01 1 1405-
290 SENSOR; PRESS
ENGINE MADE IN THAILAND<6ZP> 		8-98119-790-0 01 1 1405-
382 KEY; DRIVE SHAFT
ENGINE MADE IN THAILAND<6ZP> THA 		8-98161-995-0 01 1 1405-
408 PUMP ASM; FUEL,SUPPLY
ENGINE MADE IN THAILAND<6ZP> THA 		8-97381-555-5 01 1 1405-
424 OVERHAUL KIT; SUPPLY PUMP
ENGINE MADE IN THAILAND<6ZP> THA 		8-98145-501-1 01 1 1405-
426 BOLT; BRACKET
ENGINE MADE IN THAILAND<6ZP> M8X60 FLANGE THA 		0-28050-860-0 01 1 1405-
445 SCREW; FILTER,INLET
ENGINE MADE IN THAILAND<6ZP> THA 		8-98204-986-0 01 1 1405-

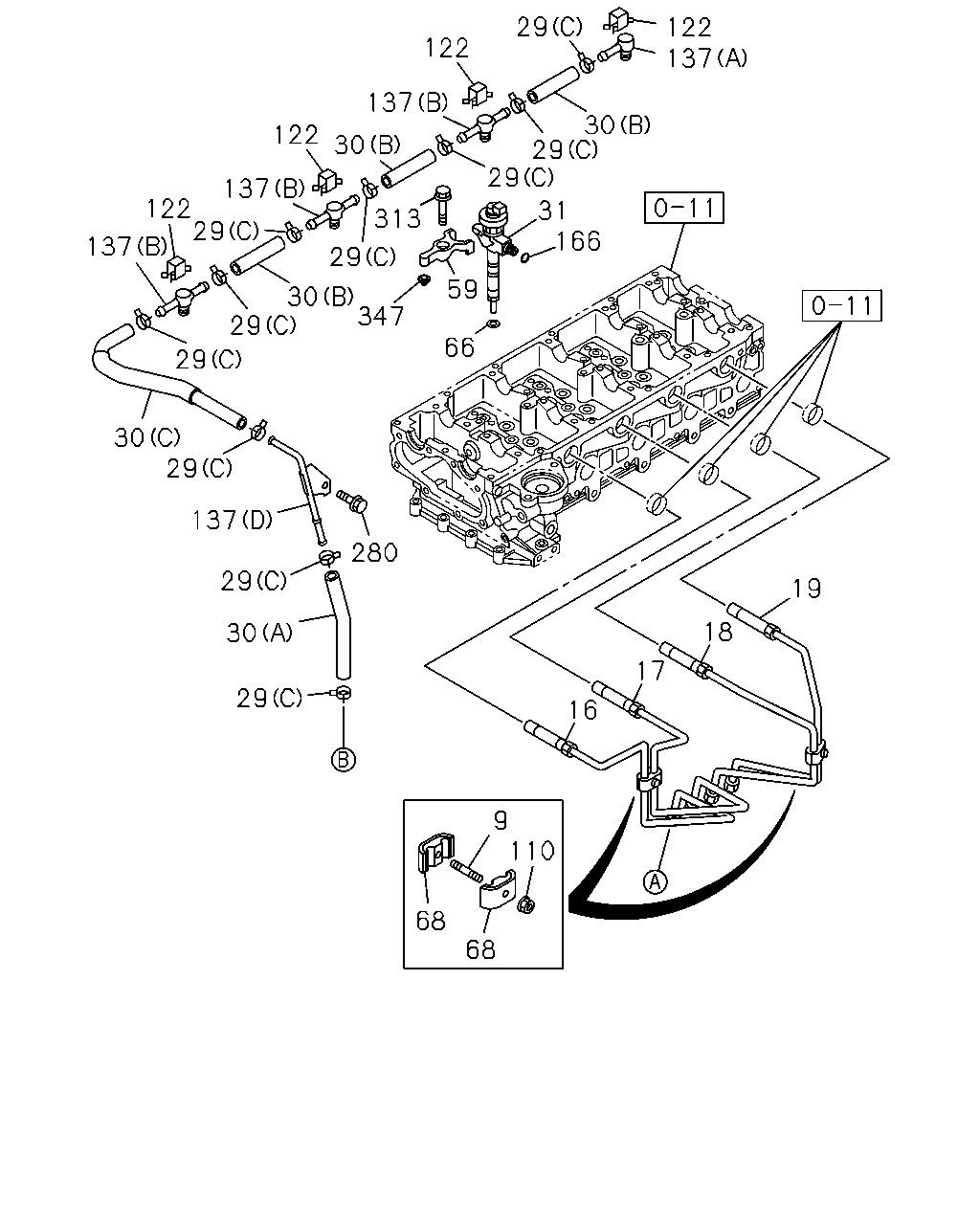

çizim 421394
137 122 137 122 30 137 122 29 122 137 30 29 29 31 166 59 313 29 30 29 29 29 30 29 137 29 30 29 280 347 66 9 110 68 68 16 17 18 19
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
ENGINE MADE IN THAILAND<6ZP> M6X25 L=36 THA 		8-97214-234-1 02 1 1405-
16 PIPE; INJ NO.1
ENGINE MADE IN THAILAND<6ZP> THA 		8-98011-606-0 01 1 1405-
17 PIPE; INJ NO.2
ENGINE MADE IN THAILAND<6ZP> THA 		8-98043-684-0 01 1 1405-
18 PIPE; INJ NO.3
ENGINE MADE IN THAILAND<6ZP> THA 		8-98011-608-0 01 1 1405-
19 PIPE; INJ NO.4
ENGINE MADE IN THAILAND<6ZP> THA 		8-98011-609-0 01 1 1405-
29 CLIP; HOSE
ENGINE MADE IN THAILAND<6ZP> (A) ID=12 WO/PVC COATING THA 		8-94123-526-1 02 1 1405-
29 CLIP; HOSE
ENGINE MADE IN THAILAND<6ZP> (B) ID=16 		8-94392-924-0 02 1 1405-
29 CLIP; HOSE
ENGINE MADE IN THAILAND<6ZP> (C) ID=10.5 THA 		8-97944-126-0 10 1 1405-
30 HOSE; RUBBER,FUEL LEAK
ENGINE MADE IN THAILAND<6ZP> (D) L=110 		8-97377-894-0 01 1 1405-
30 HOSE; RUBBER,FUEL LEAK
ENGINE MADE IN THAILAND<6ZP> (E) L=265 		8-98169-863-0 01 1 1405-
30 HOSE; RUBBER,FUEL LEAK
ENGINE MADE IN THAILAND<6ZP> (A) L=130 THA 		8-98053-692-0 01 1 1405-
30 HOSE; RUBBER,FUEL LEAK
ENGINE MADE IN THAILAND<6ZP> (B) L=96 THA 		8-98053-693-0 03 1 1405-
30 HOSE; RUBBER,FUEL LEAK
ENGINE MADE IN THAILAND<6ZP> (C) THA 		8-98112-034-0 01 1 1405-
31 NOZZLE ASM; INJ
ENGINE MADE IN THAILAND<6ZP> 		8-98011-604-5 04 1 1405-
59 CLAMP; NOZZLE HOLDER
ENGINE MADE IN THAILAND<6ZP> THA 		8-98092-539-0 04 1 1405-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> 		8-98181-540-0 04 1 1405-
68 CLIP; INJ PIPE
ENGINE MADE IN THAILAND<6ZP> THA 		8-97213-481-0 04 1 1405-
110 NUT; CLIP
ENGINE MADE IN THAILAND<6ZP> M6 FLANGE THA 		0-91180-106-0 02 1 1405-
122 CLIP; LEAK OFF PIPE
ENGINE MADE IN THAILAND<6ZP> 		8-97315-286-0 04 1 1405-
137 PIPE ASM; LEAK OFF
ENGINE MADE IN THAILAND<6ZP> (C) 		8-98009-699-0 01 1 1405-
137 PIPE ASM; LEAK OFF
ENGINE MADE IN THAILAND<6ZP> (D) 		8-98036-510-0 01 1 1405-
137 PIPE ASM; LEAK OFF
ENGINE MADE IN THAILAND<6ZP> (B) 		8-98161-061-0 03 1 1405-
137 PIPE ASM; LEAK OFF
ENGINE MADE IN THAILAND<6ZP> (A) 		8-98161-062-0 01 1 1405-
166 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> ID=11 OD=14.8 THA 		9-09566-111-0 04 1 1405-
280 BOLT; CLIP,FUEL HOSE
ENGINE MADE IN THAILAND<6ZP> M8X12 FLANGE THA 		0-28050-812-0 01 1 1405-
313 BOLT; BRKT,INJ NOZZLE
ENGINE MADE IN THAILAND<6ZP> M8X50 W/WASHER THA 		8-98095-575-0 04 1 1405-
347 PIN
ENGINE MADE IN THAILAND<6ZP> THA 		8-98165-035-0 04 1 1405-
