◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51507 - NLR/NMR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#139174) — 8 parça

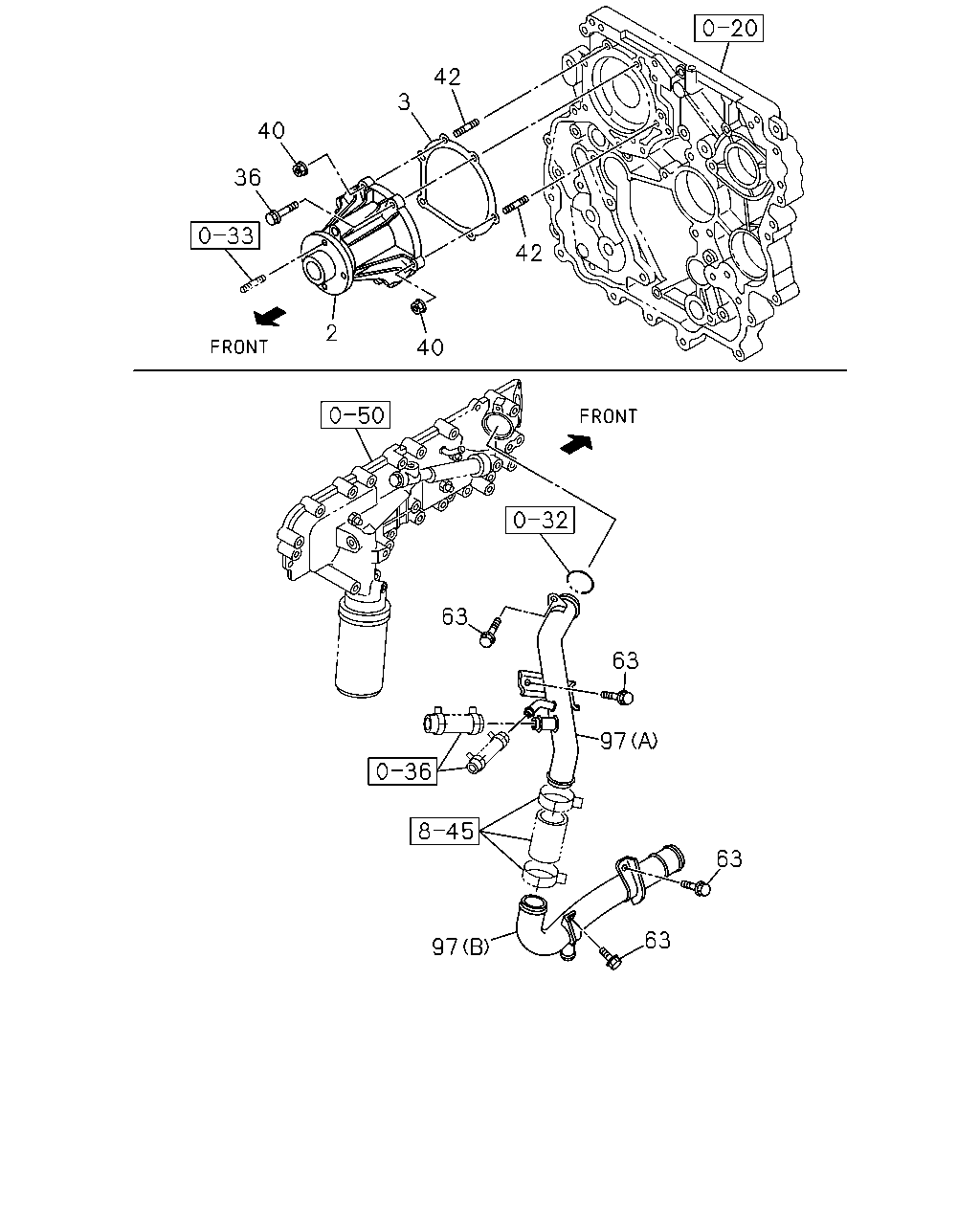

çizim 420966
42 3 40 36 2 40 42 63 97 63 63 97 63
BalonParca AdiParca NoAdetTipApplied Date
2 PUMP ASM; WATER
ENGINE MADE IN THAILAND<6ZP> THA 		8-98182-973-1 01 1 1405-
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> THA 		8-97312-156-0 01 1 1405-
36 BOLT; WATER PUMP TO C/BL
ENGINE MADE IN THAILAND<6ZP> M8X60 FLANGE THA 		0-28050-860-0 04 1 1405-
40 NUT; WATER PUMP
ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA 		0-91180-208-0 02 1 1405-
42 STUD; WATER PUMP
ENGINE MADE IN THAILAND<6ZP> M8X28 L=40 THA 		0-41010-828-0 02 1 1405-
63 BOLT; INL PIPE
ENGINE MADE IN THAILAND<6ZP> M8X16 FLANGE THA 		0-28050-816-0 04 1 1405-
97 PIPE; WATER
ENGINE MADE IN THAILAND<6ZP> (A) 		8-97381-499-2 01 1 1405-
97 PIPE; WATER
ENGINE MADE IN THAILAND<6ZP> (B) 		8-98009-676-3 01 1 1405-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
