◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51507 - NLR/NMR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27 - EXHAUST MANIFOLD ▶
0-27 — EXHAUST MANIFOLD (#139173) — 9 parça

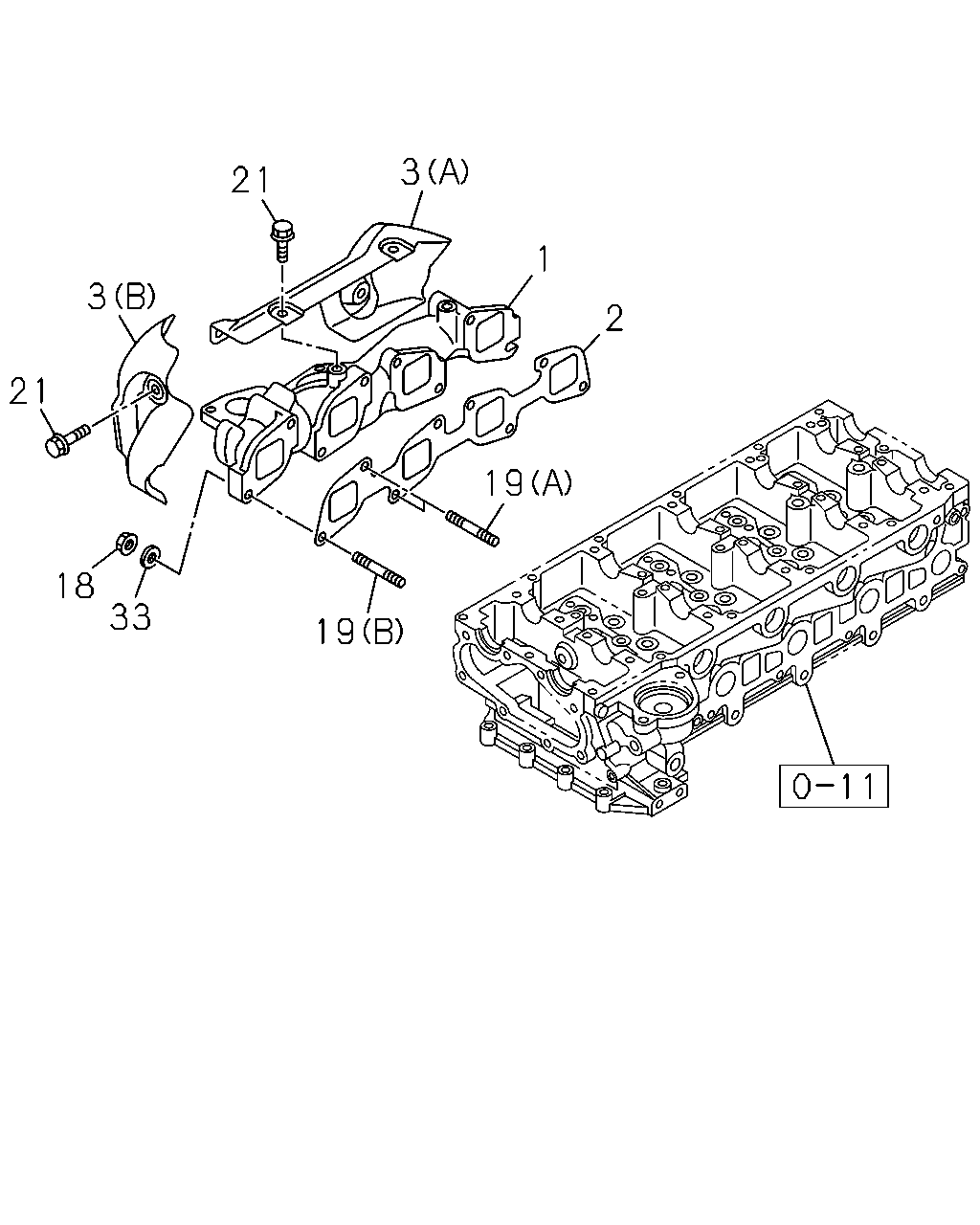

çizim 420120
33 18 21 3 21 3 1 2 19 19
BalonParca AdiParca NoAdetTipApplied Date
1 MANIFOLD; EXHAUST
ENGINE MADE IN THAILAND<6ZP> 		8-98033-941-1 01 1 1405-
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> THA 		8-98229-782-0 01 1 1405-
3 PROTECTOR; HEAT,EXH MANIF
ENGINE MADE IN THAILAND<6ZP> (A) THA 		8-97381-503-4 01 1 1405-
3 PROTECTOR; HEAT,EXH MANIF
ENGINE MADE IN THAILAND<6ZP> (B) THA 		8-98011-523-0 01 1 1405-
18 NUT; EXH MANIF
ENGINE MADE IN THAILAND<6ZP> M10 FLANGE 		8-97381-617-0 08 1 1405-
19 STUD; MANIF TO CYL HD
ENGINE MADE IN THAILAND<6ZP> (A) M10X70 L=83 THA 		8-98048-446-0 04 1 1405-
19 STUD; MANIF TO CYL HD
ENGINE MADE IN THAILAND<6ZP> (B) M10X33 L=48 THA 		8-97379-383-0 04 1 1405-
21 BOLT; HEAT PROTECTOR
ENGINE MADE IN THAILAND<6ZP> M8X12 FLANGE THA 		0-28050-812-0 07 1 1405-
33 WASHER; EXH MANIF
ENGINE MADE IN THAILAND<6ZP> ID=10.5 THA 		5-09500-013-0 08 1 1405-
