◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51507 - NLR/NMR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#139172) — 10 parça

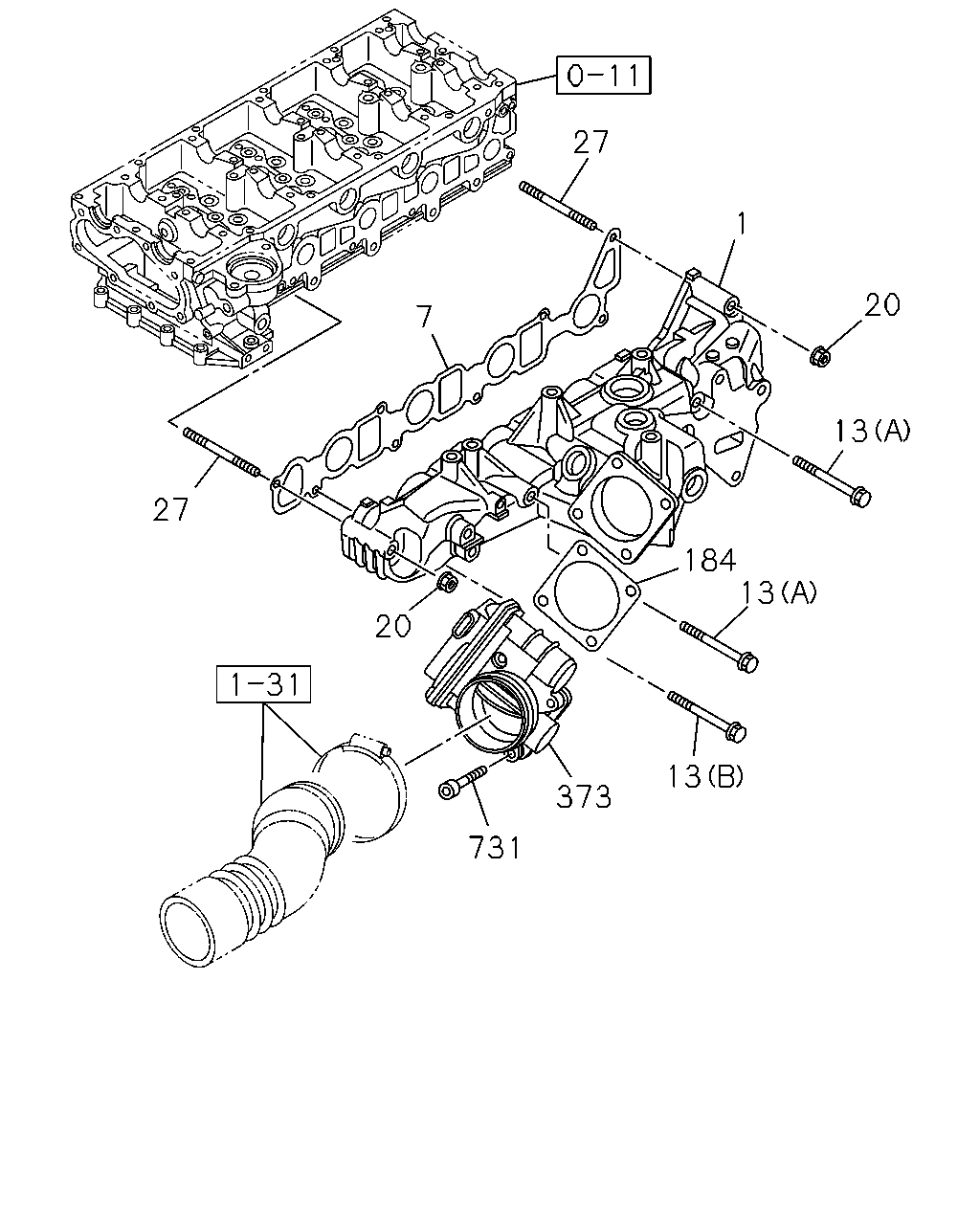

çizim 421273
27 20 731 13 373 184 13 13 20 1 27 7
BalonParca AdiParca NoAdetTipApplied Date
1 MANIFOLD; INL
ENGINE MADE IN THAILAND<6ZP> 		8-98024-411-1 01 1 1405-
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> THA 		8-97312-067-1 01 1 1405-
13 BOLT; INL MANIF
ENGINE MADE IN THAILAND<6ZP> (A) M8X110 FLANGE THA 		0-28055-811-0 02 1 1405-
13 BOLT; INL MANIF
ENGINE MADE IN THAILAND<6ZP> (B) M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 1405-
20 NUT; INL MANIF
ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA 		0-91180-208-0 02 1 1405-
27 STUD; INL MANIF
ENGINE MADE IN THAILAND<6ZP> M8X71 L=83 THA 		8-97367-083-0 02 1 1405-
184 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> THA 		8-97366-784-1 01 1 1405-
373 THROTTLE ASM; INT
ENGINE MADE IN THAILAND<6ZP> 		8-98040-003-4 01 1 1405-
731 BOLT; THROTTLE ASM
ENGINE MADE IN THAILAND<6ZP> M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 1405-

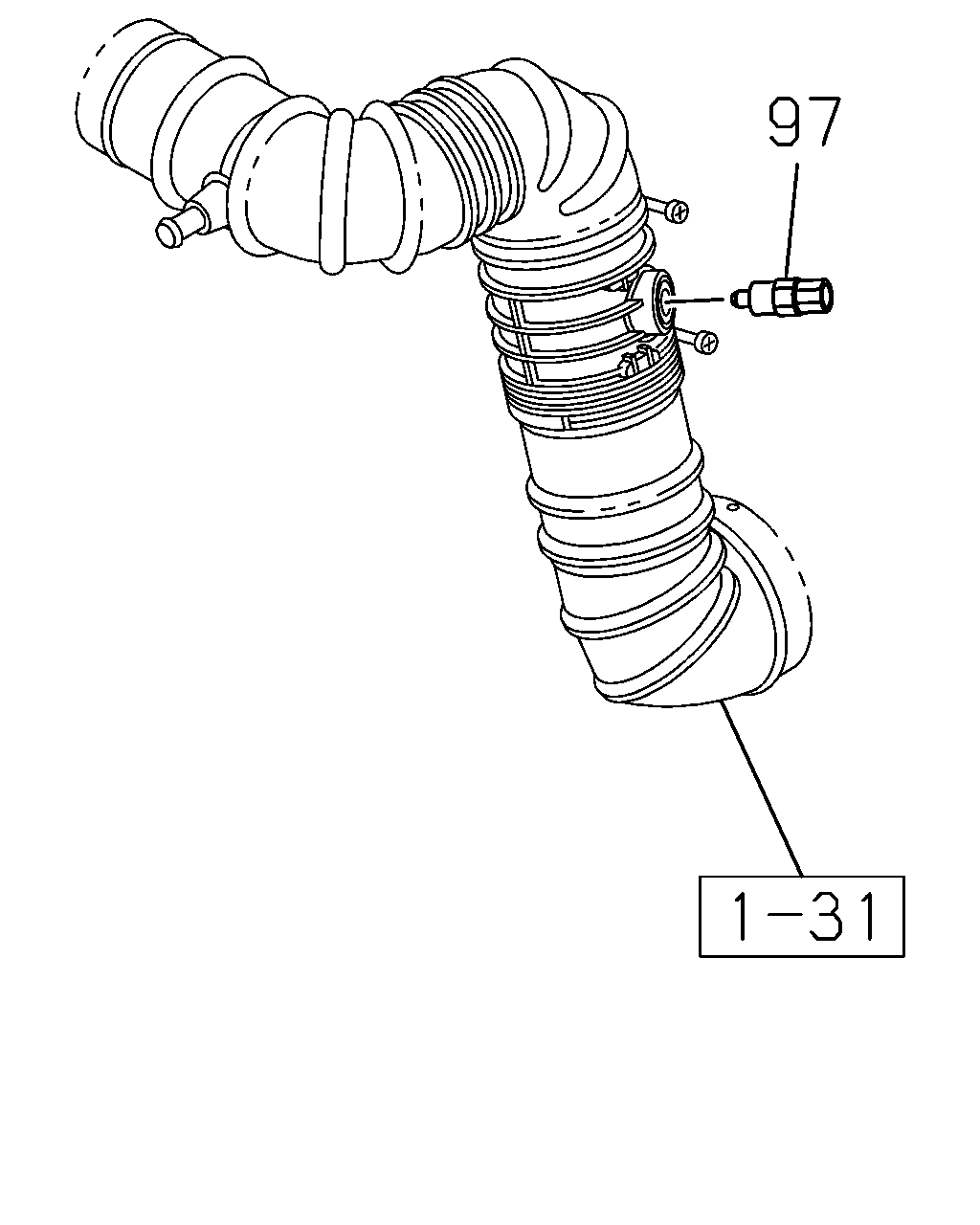

çizim 421375
97
BalonParca AdiParca NoAdetTipApplied Date
97 SENSOR; INTAKE,AIR TEMPERATURE 8-12146-830-0 01 1 1405-
