0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#139170) — 49 parça

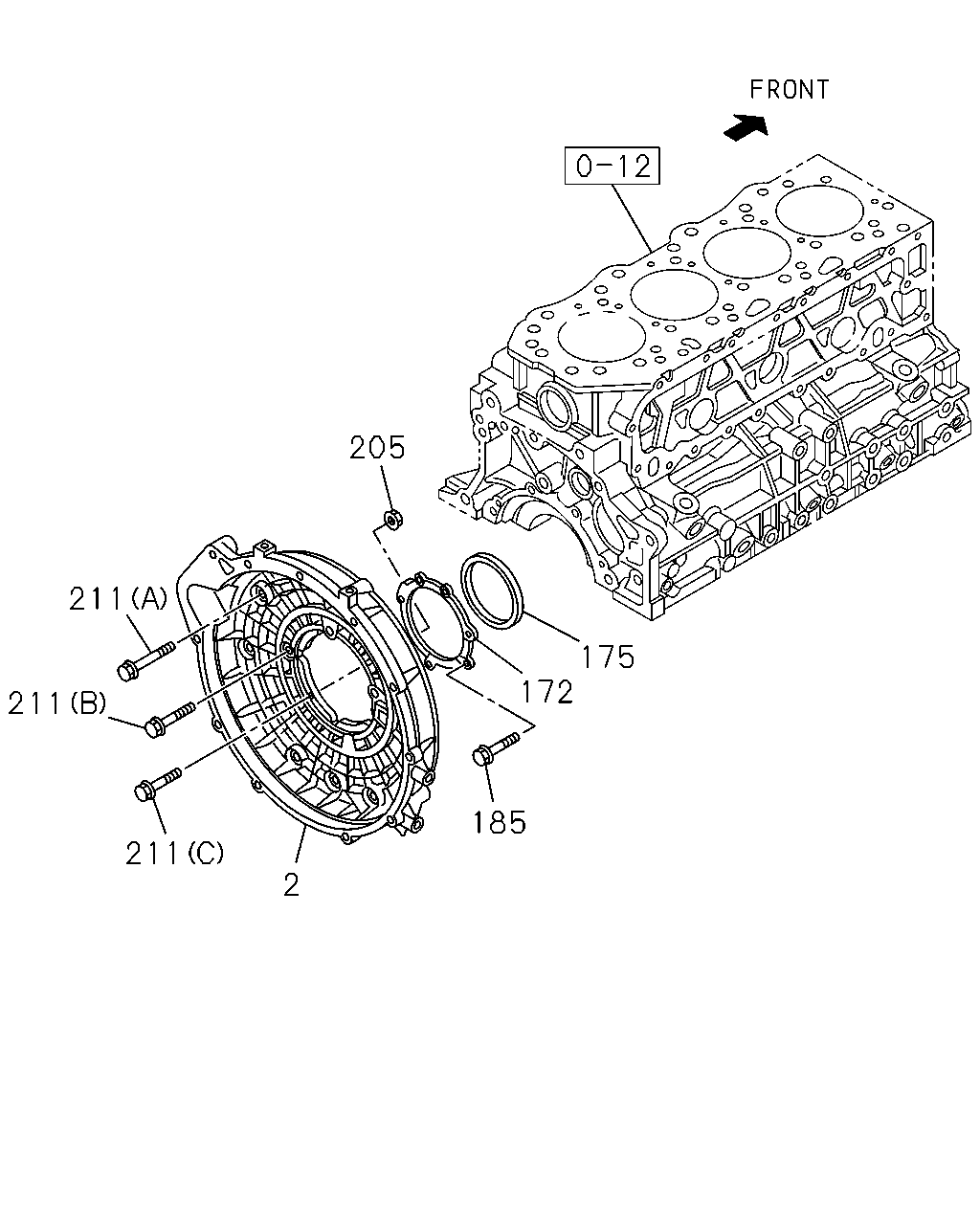

çizim 420096
205 175 172 185 2 211 211 211
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; FLYWHEEL
ENGINE MADE IN THAILAND<6ZP> 		8-98252-203-0 01 1 1405-
172 RETAINER; CR/SHF
ENGINE MADE IN THAILAND<6ZP> THA 		8-97379-826-0 01 1 1405-
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> 		8-97071-561-1 01 1 1405-
185 BOLT; RET TO C/BL
ENGINE MADE IN THAILAND<6ZP> M8X25 FLANGE THA 		0-28650-825-0 05 1 1405-
205 NUT; HSG
ENGINE MADE IN THAILAND<6ZP> M10 FLANGE THA 		0-91180-210-0 01 1 1405-
211 BOLT; HSG
ENGINE MADE IN THAILAND<6ZP> (A) M12X35 FLANGE THA 		0-28651-235-0 06 1 1405-
211 BOLT; HSG
ENGINE MADE IN THAILAND<6ZP> (C) M10X43 THA 		9-09606-535-0 01 1 1405-
211 BOLT; HSG
ENGINE MADE IN THAILAND<6ZP> (B) M12X25 THA 		8-97916-324-1 03 1 1405-

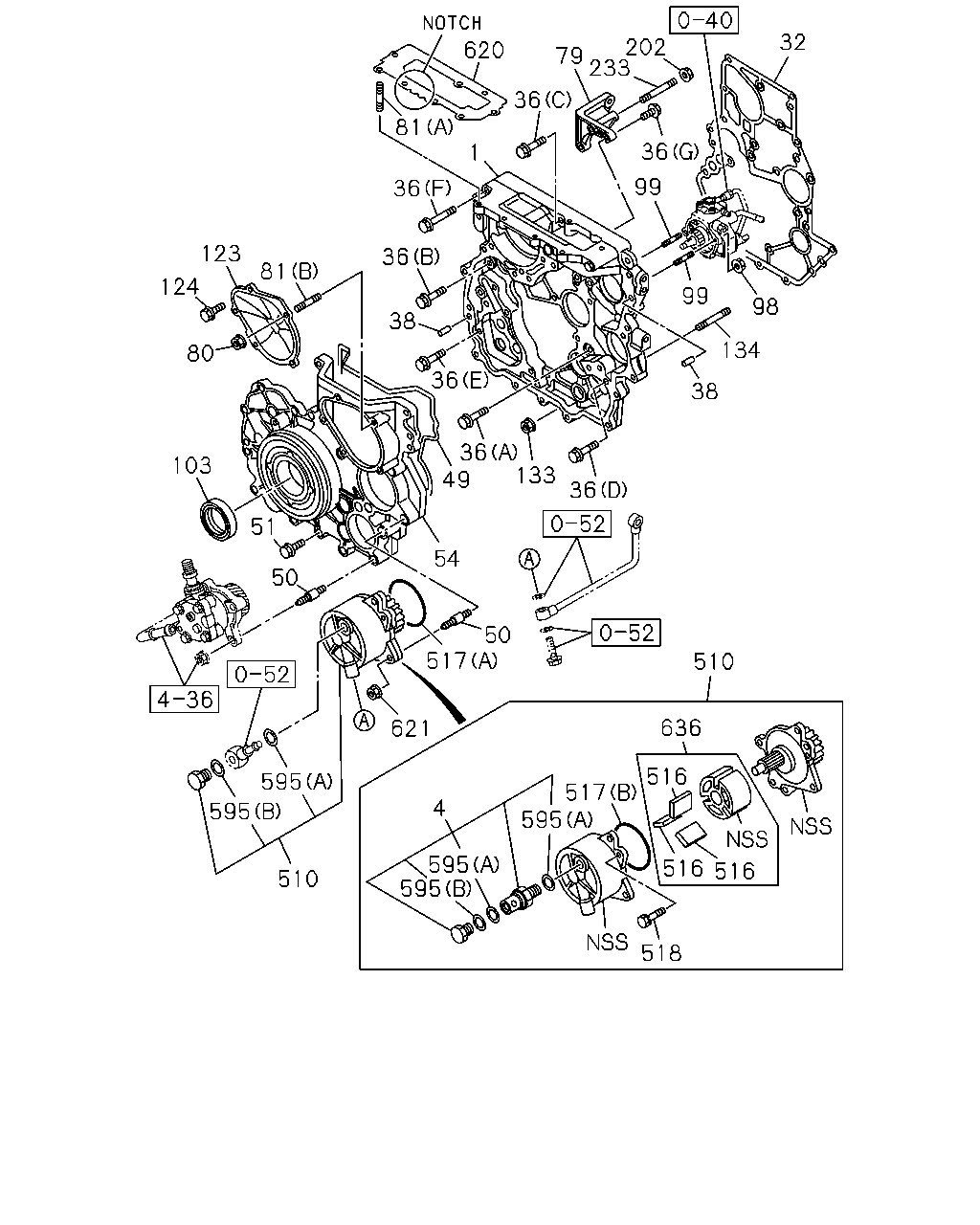

çizim 421335
32 202 79 620 36 233 36 99 98 99 134 38 36 133 36 36 38 36 36 1 81 81 123 124 80 103 49 54 51 50 517 50 510 636 516 516 516 517 595 595 4 595 510 595 595 518 621
BalonParca AdiParca NoAdetTipApplied Date
1 CASE; TIMING GEAR
ENGINE MADE IN THAILAND<6ZP> THA 		8-98074-747-1 01 1 1405-
4 VALVE ASM; CHECK
ENGINE MADE IN THAILAND<6ZP> 		8-98049-521-0 01 1 1405-
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> THA 		8-97312-221-2 01 1 1405-
36 BOLT; GEAR CASE
ENGINE MADE IN THAILAND<6ZP> (A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1405-
36 BOLT; GEAR CASE
ENGINE MADE IN THAILAND<6ZP> (B) M8X20 FLANGE THA 		0-28050-820-0 12 1 1405-
36 BOLT; GEAR CASE
ENGINE MADE IN THAILAND<6ZP> (C) M8X35 FLANGE THA 		0-28050-835-0 01 1 1405-
36 BOLT; GEAR CASE
ENGINE MADE IN THAILAND<6ZP> (D) M8X45 FLANGE THA 		0-28050-845-0 02 1 1405-
36 BOLT; GEAR CASE
ENGINE MADE IN THAILAND<6ZP> (F) M8X60 FLANGE THA 		0-28050-860-0 01 1 1405-
36 BOLT; GEAR CASE
ENGINE MADE IN THAILAND<6ZP> (E) M8X25 FLANGE THA 		0-28650-825-0 01 1 1405-
36 BOLT; GEAR CASE
ENGINE MADE IN THAILAND<6ZP> (G) M8X30 FLANGE THA 		0-28650-830-0 03 1 1405-
38 PIN; GEAR CASE COVER
ENGINE MADE IN THAILAND<6ZP> OD=10 L=20 THA 		9-08151-020-0 02 1 1405-
49 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> THA 		8-97945-298-0 01 1 1405-
50 STUD
ENGINE MADE IN THAILAND<6ZP> M8X27,M8X14 L=64.5 THA 		8-97354-808-2 06 1 1405-
51 BOLT; GEAR CASE COVER
ENGINE MADE IN THAILAND<6ZP> THA 		8-97354-697-1 14 1 1405-
54 COVER; GEAR CASE
ENGINE MADE IN THAILAND<6ZP> 		8-98165-119-1 01 1 1405-1405
54 COVER; GEAR CASE
ENGINE MADE IN THAILAND<6ZP> 		8-98253-700-1 01 1 1406-
79 BRACKET; GEAR CASE COVER
ENGINE MADE IN THAILAND<6ZP> THA 		8-98107-106-0 01 1 1405-
80 NUT; COVER
ENGINE MADE IN THAILAND<6ZP> M6 FLANGE THA 		0-91180-206-0 02 1 1405-
81 STUD; GEAR CASE COVER FIX
ENGINE MADE IN THAILAND<6ZP> (B) M6X16 L=25 THA 		0-41010-616-0 02 1 1405-
81 STUD; GEAR CASE COVER FIX
ENGINE MADE IN THAILAND<6ZP> (A) M8X30 L=48 THA 		0-49140-830-0 02 1 1405-
98 NUT; STUD,INJ PUMP
ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA 		0-91180-208-0 02 1 1405-
99 STUD; INJ PUMP
ENGINE MADE IN THAILAND<6ZP> M8X30 L=48 THA 		0-49140-830-0 02 1 1405-
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> 		8-98158-110-0 01 1 1405-
123 COVER; TIMING,LWR
ENGINE MADE IN THAILAND<6ZP> THA 		8-98158-145-0 01 1 1405-
124 BOLT; TIMING COVER
ENGINE MADE IN THAILAND<6ZP> M6X16 FLANGE THA 		0-28050-616-0 03 1 1405-
133 NUT; TIMING GEAR CASE
ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA 		0-91180-208-0 02 1 1405-
134 STUD; TIMING GEAR CASE
ENGINE MADE IN THAILAND<6ZP> M8X20 L=32 THA 		0-41010-820-0 02 1 1405-
202 NUT; BRKT
ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA 		0-91180-208-0 01 1 1405-
233 STUD; BRKT
ENGINE MADE IN THAILAND<6ZP> M8X71 L=83 THA 		8-97367-083-0 01 1 1405-
510 PUMP ASM; VACUUM
ENGINE MADE IN THAILAND<6ZP> 		8-98251-764-0 01 1 1405-
516 VANE; VAC PUMP
ENGINE MADE IN THAILAND<6ZP> 		8-98051-275-0 03 1 1405-
517 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> (B) 		8-98251-769-0 01 1 1405-
517 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> (A) THA 		9-09566-271-0 01 1 1405-
518 BOLT; VAC PUMP
ENGINE MADE IN THAILAND<6ZP> 		8-98049-523-0 03 1 1405-
595 GASKET; VLV
ENGINE MADE IN THAILAND<6ZP> (B) ID=12 		8-98018-518-0 01 1 1405-
595 GASKET; VLV
ENGINE MADE IN THAILAND<6ZP> (A) ID=18 		8-98018-519-0 02 1 1405-
620 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> T=1.40 1-NOTCH THA 		8-97328-828-2 01 1 1405-
620 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> T=1.45 2-NOTCH THA 		8-97331-631-2 01 1 1405-
620 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> T=1.50 3-NOTCH THA 		8-97331-632-2 01 1 1405-
621 NUT; VAC PUMP
ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA 		0-91180-208-0 03 1 1405-
636 ROTOR & VANE ASM; VAC PUMP
ENGINE MADE IN THAILAND<6ZP> 		8-98049-520-0 01 1 1405-
