◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51507 - NLR/NMR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#139169) — 35 parça

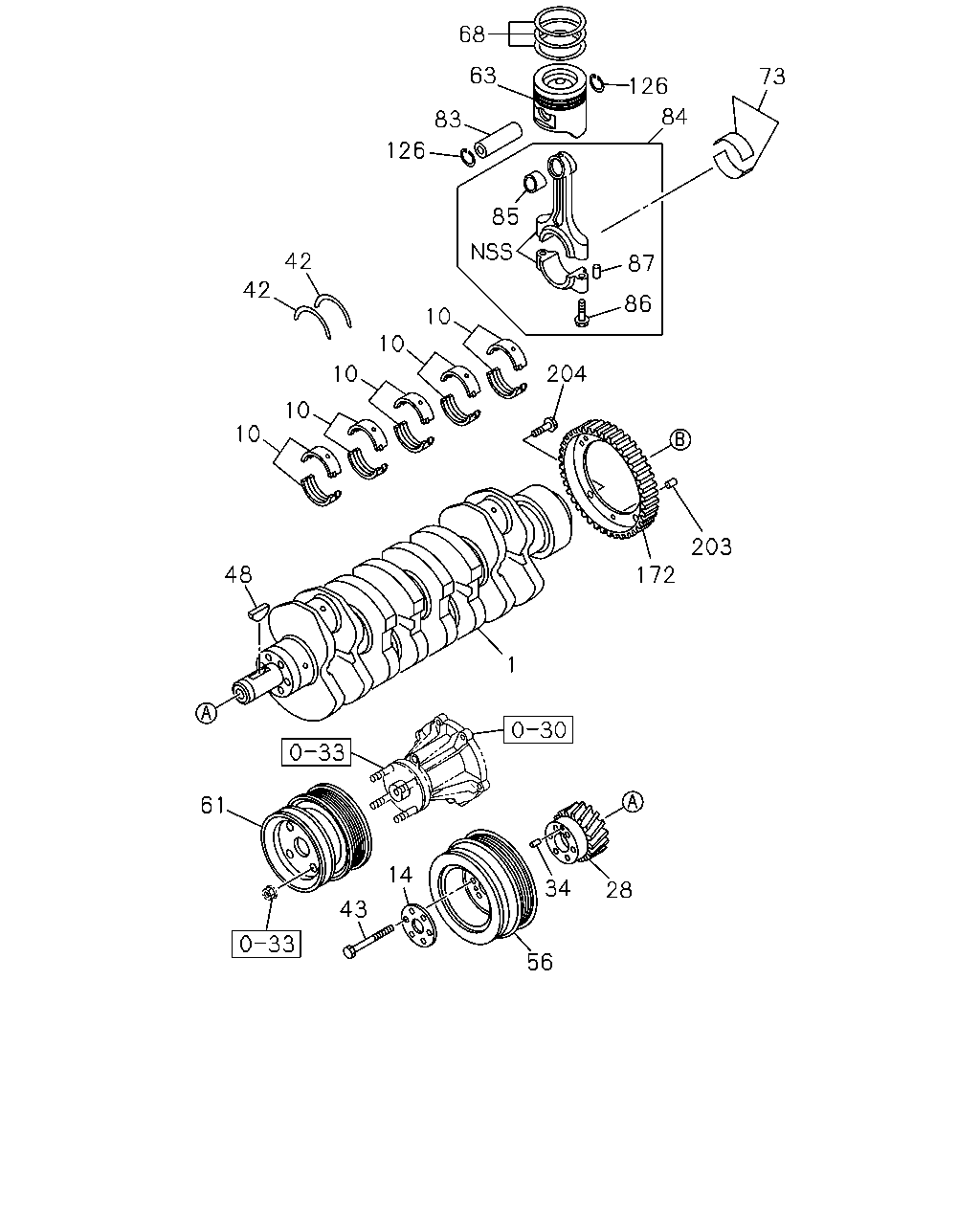

çizim 420110
68 63 126 73 84 83 126 85 87 86 204 10 10 10 10 10 42 42 203 172 1 48 61 28 34 14 43 56
BalonParca AdiParca NoAdetTipApplied Date
1 CRANKSHAFT
ENGINE MADE IN THAILAND<6ZP> THA 		8-98182-878-1 01 1 1405-
10 METAL SET; CRANKSHAFT,STANDARD
ENGINE MADE IN THAILAND<6ZP> GRADE 1 		8-97387-964-0 05 1 1405-
10 METAL SET; CRANKSHAFT,STANDARD
ENGINE MADE IN THAILAND<6ZP> GRADE 2 		8-97387-965-0 05 1 1405-
10 METAL SET; CRANKSHAFT,STANDARD
ENGINE MADE IN THAILAND<6ZP> GRADE 3 		8-97387-966-0 05 1 1405-
10 METAL SET; CRANKSHAFT,STANDARD
ENGINE MADE IN THAILAND<6ZP> CRANK 1,2,4,5 GRADE 4 		8-97387-967-0 04 1 1405-
10 METAL SET; CRANKSHAFT,STANDARD
ENGINE MADE IN THAILAND<6ZP> CRANK 1,2,4,5 GRADE 5 		8-97387-968-0 04 1 1405-
10 METAL SET; CRANKSHAFT,STANDARD
ENGINE MADE IN THAILAND<6ZP> CRANK 3 GRADE 9 		8-98053-576-0 01 1 1405-
10 METAL SET; CRANKSHAFT,STANDARD
ENGINE MADE IN THAILAND<6ZP> CRANK 3 GRADE 0 		8-98053-578-0 01 1 1405-
14 WASHER; PULLEY DAMPER
ENGINE MADE IN THAILAND<6ZP> ID=23 OD=72 T=3 		8-98165-125-0 01 1 1405-
28 GEAR; CR/SHF
ENGINE MADE IN THAILAND<6ZP> Z=44 		8-98154-945-1 01 1 1405-
34 PIN; GEAR SETTING
ENGINE MADE IN THAILAND<6ZP> OD=5 L=10 		9-08160-510-0 01 1 1405-
42 WASHER; THRUST,CR/SHF
ENGINE MADE IN THAILAND<6ZP> THA 		8-97354-055-1 02 1 1405-
43 BOLT; CR/SHF PULLEY
ENGINE MADE IN THAILAND<6ZP> M10X90 		8-98165-234-1 06 1 1405-
48 KEY; WOODRUFF,CR/SHF
ENGINE MADE IN THAILAND<6ZP> 		8-94201-641-0 01 1 1405-
56 PULLEY; CR/SHF DAMPER
ENGINE MADE IN THAILAND<6ZP> 2-GROOVE THA 		8-98154-943-1 01 1 1405-
61 PULLEY; FAN DRIVE
ENGINE MADE IN THAILAND<6ZP> 2-GROOVE THA 		8-97362-215-2 01 1 1405-
63 PISTON
ENGINE MADE IN THAILAND<6ZP> GRADE=A THA 		8-98043-703-0 04 1 1405-
63 PISTON
ENGINE MADE IN THAILAND<6ZP> GRADE=B THA 		8-98043-704-0 04 1 1405-
63 PISTON
ENGINE MADE IN THAILAND<6ZP> GRADE=C THA 		8-98043-705-0 04 1 1405-
68 RING SET; PISTON,STANDARD
ENGINE MADE IN THAILAND<6ZP> 		8-98185-780-0 04 1 1405-
73 METAL SET; CONN ROD,STANDARD
ENGINE MADE IN THAILAND<6ZP> 		8-97358-234-0 04 1 1405-
83 PIN; PISTON
ENGINE MADE IN THAILAND<6ZP> THA 		8-98150-333-0 04 1 1405-
84 ROD ASM; CONN
ENGINE MADE IN THAILAND<6ZP> THA 		8-97357-716-3 04 1 1405-
85 BUSHING; CONNROD
ENGINE MADE IN THAILAND<6ZP> AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 1405-
86 BOLT; CONNROD
ENGINE MADE IN THAILAND<6ZP> M11X44.5 		8-98048-538-0 08 1 1405-
87 PIN; CONNROD BIG END
ENGINE MADE IN THAILAND<6ZP> OD=5 L=8 THA 		9-08160-508-0 08 1 1405-
126 RING; SNAP,PISTON PIN
ENGINE MADE IN THAILAND<6ZP> 		8-94460-687-0 08 1 1405-
172 ROTOR; CRANK SENSOR
ENGINE MADE IN THAILAND<6ZP> THA 		8-97312-337-0 01 1 1405-
203 PIN; ROTOR
ENGINE MADE IN THAILAND<6ZP> OD=5 L=8 THA 		9-08160-508-0 01 1 1405-
204 BOLT; ROTOR
ENGINE MADE IN THAILAND<6ZP> THA 		8-97944-142-1 03 1 1405-

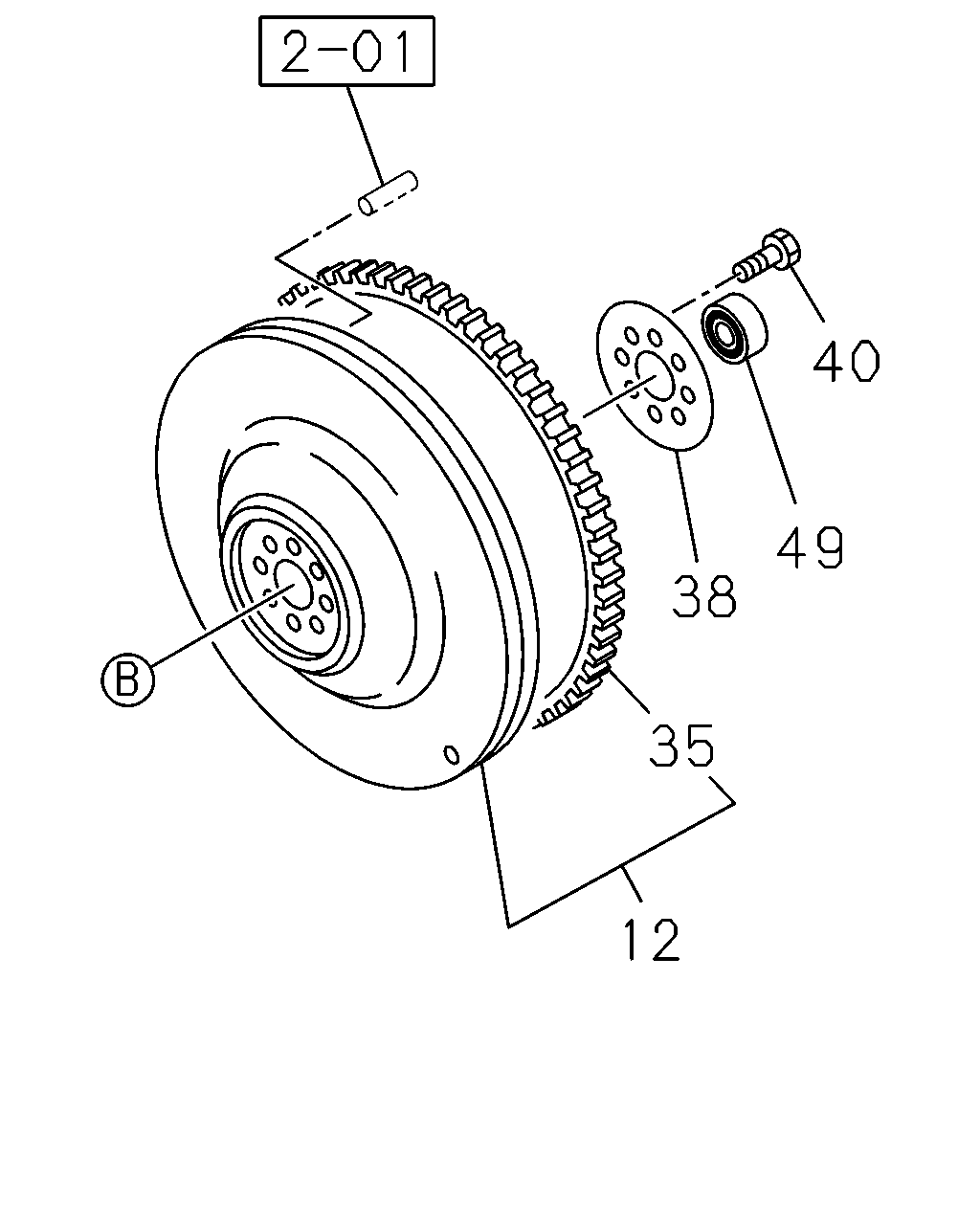

çizim 421312
40 35 12 38 49
BalonParca AdiParca NoAdetTipApplied Date
12 FLYWHEEL
ENGINE MADE IN THAILAND<6ZP> 		8-98148-063-1 01 1 1405-
35 GEAR; RING
ENGINE MADE IN THAILAND<6ZP> Z=138 		8-97046-366-1 01 1 1405-
38 WASHER; FLYWHEEL
ENGINE MADE IN THAILAND<6ZP> THA 		8-94133-970-1 01 1 1405-
40 BOLT; FLYWHEEL
ENGINE MADE IN THAILAND<6ZP> M13X45 		8-94418-050-0 08 1 1405-
49 BEARING; PILOT
ENGINE MADE IN THAILAND<6ZP> 		8-97325-153-0 01 1 1405-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
