0-12 — CYLINDER BLOCK (#139166) — 38 parça

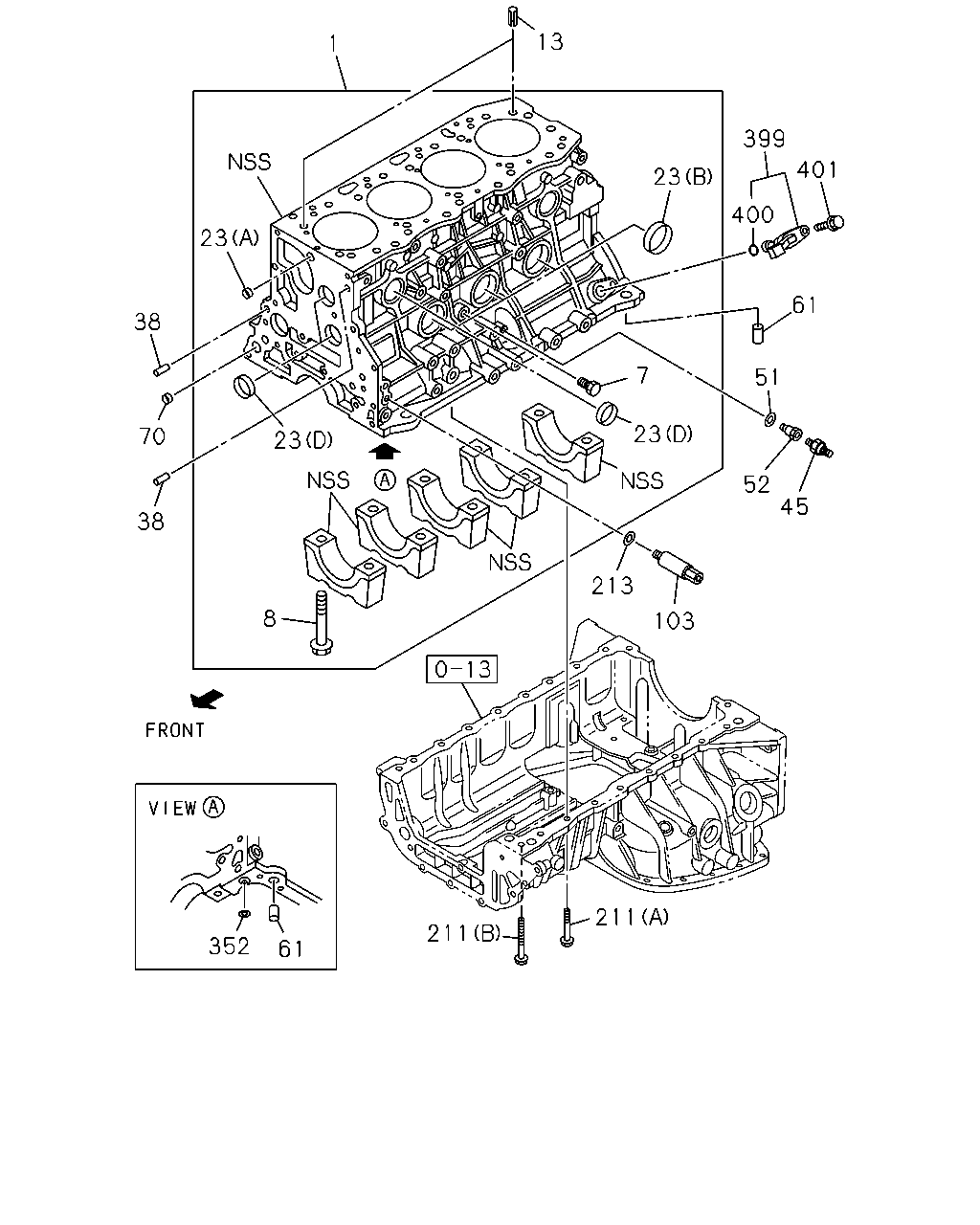

1 13 23 399 401 400 61 51 52 45 7 23 103 213 211 211 61 352 8 23 38 70 38 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL ENGINE MADE IN THAILAND<6ZP>	8-98239-516-0	01	1	1405-
1	BLOCK ASM; CYL ENGINE MADE IN THAILAND<6ZP>	8-98223-994-0	01	1	1405-
7	PLUG; WATER DRAIN ENGINE MADE IN THAILAND<6ZP> PT1/4	9-09664-001-0	01	1	1405-1405
7	PLUG; WATER DRAIN ENGINE MADE IN THAILAND<6ZP> PT1/4	9-09664-001-0	02	1	1406-
8	BOLT; BRG CAP ENGINE MADE IN THAILAND<6ZP> M14X89 FLANGE THA	8-97941-068-0	10	1	1406-
8	BOLT; BRG CAP ENGINE MADE IN THAILAND<6ZP> M14X89 FLANGE	8-94432-642-0	10	1	1405-
13	DOWEL; C/BL TO HD ENGINE MADE IN THAILAND<6ZP> OD=14	8-94453-344-0	02	1	1405-
23	CUP; SEALING,C/BL FRT & RR ENGINE MADE IN THAILAND<6ZP> (A) OD=18	5-11219-008-0	02	1	1405-
23	CUP; SEALING,C/BL FRT & RR ENGINE MADE IN THAILAND<6ZP> (D) OD=32	5-11219-015-0	04	1	1405-
23	CUP; SEALING,C/BL FRT & RR ENGINE MADE IN THAILAND<6ZP> (B) OD=45	8-97036-550-1	03	1	1405-
23	CUP; SEALING,C/BL FRT & RR ENGINE MADE IN THAILAND<6ZP> (C) OD=36	5-11219-018-0	02	1	1405-
38	PIN; TIMING GEAR CASE ENGINE MADE IN THAILAND<6ZP> OD=10 L=20 THA	9-08151-020-0	02	1	1405-
45	SWITCH; OIL PRESSURE ENGINE MADE IN THAILAND<6ZP>	8-97176-230-0	01	1	1405-
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> THA	8-97912-498-0	01	1	1405-
52	NIPPLE; OIL PRESS WARNING SW,C/BL ENGINE MADE IN THAILAND<6ZP>	8-98089-872-0	01	1	1405-1501
52	NIPPLE; OIL PRESS WARNING SW,C/BL ENGINE MADE IN THAILAND<6ZP>	8-94167-750-2	01	1	1502-
61	PIN; STRAIGHT ENGINE MADE IN THAILAND<6ZP> THA	8-97920-964-1	02	1	1405-
70	CUP; SEALING,FRT & RR ENGINE MADE IN THAILAND<6ZP> OD=16	5-11129-006-0	06	1	1405-
103	NIPPLE; OIL FEED ENGINE MADE IN THAILAND<6ZP> THA	8-97316-983-4	01	1	1405-
211	BOLT; CRANKCASE ENGINE MADE IN THAILAND<6ZP> (A) M8X25 FLANGE THA	0-28650-825-0	19	1	1405-
211	BOLT; CRANKCASE ENGINE MADE IN THAILAND<6ZP> (B) M8X40 FLANGE THA	0-28650-840-0	01	1	1405-
213	GASKET; NIPPLE,OIL FEED ENGINE MADE IN THAILAND<6ZP> ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1405-
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> THA	9-09566-116-0	01	1	1405-
399	SENSOR; CRANKSHAFT POSITION ENGINE MADE IN THAILAND<6ZP>	8-97312-108-1	01	1	1405-
400	GASKET; CRANKSHAFT POSITION SENSOR ENGINE MADE IN THAILAND<6ZP> ID=14.2 OD=18.8	8-97369-404-0	01	1	1405-
401	BOLT; SENSOR ENGINE MADE IN THAILAND<6ZP> M6X16 FLANGE THA	0-28050-616-0	01	1	1405-

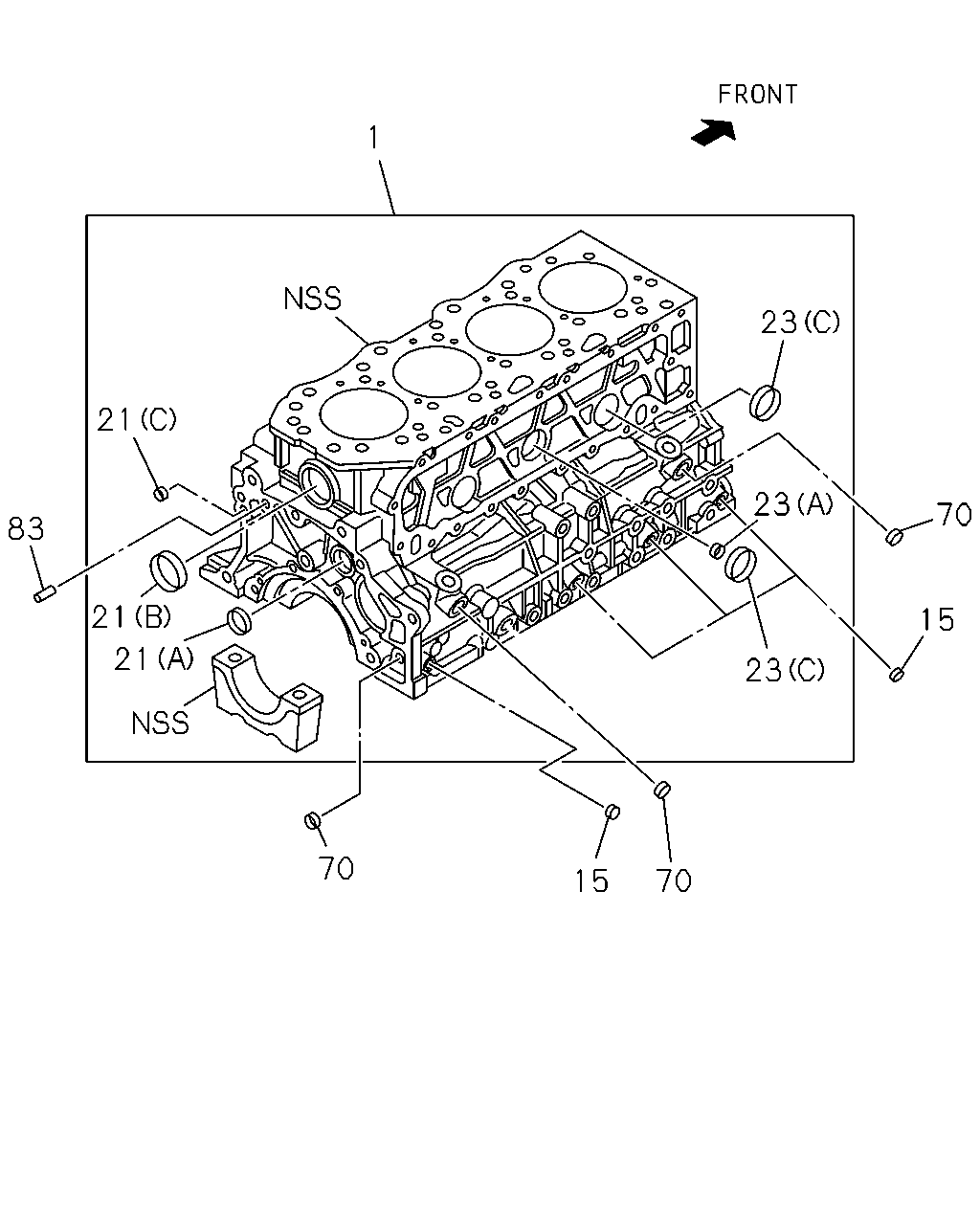

70 15 70 21 21 21 83 23 23 23 70 15 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL ENGINE MADE IN THAILAND<6ZP>	8-98239-516-0	01	1	1405-
1	BLOCK ASM; CYL ENGINE MADE IN THAILAND<6ZP>	8-98223-994-0	01	1	1405-
15	PLUG; OIL GALLERY ENGINE MADE IN THAILAND<6ZP> PT1/8	1-09605-050-0	04	1	1405-
21	CUP; SEALING,RR ENGINE MADE IN THAILAND<6ZP> (C) OD=12.3	5-09600-013-0	01	1	1405-
21	CUP; SEALING,RR ENGINE MADE IN THAILAND<6ZP> (A) OD=38	5-11219-017-0	01	1	1405-
21	CUP; SEALING,RR ENGINE MADE IN THAILAND<6ZP> (B) OD=36	5-11219-018-0	01	1	1405-
23	CUP; SEALING,C/BL FRT & RR ENGINE MADE IN THAILAND<6ZP> (A) OD=18	5-11219-008-0	02	1	1405-
23	CUP; SEALING,C/BL FRT & RR ENGINE MADE IN THAILAND<6ZP> (D) OD=32	5-11219-015-0	04	1	1405-
23	CUP; SEALING,C/BL FRT & RR ENGINE MADE IN THAILAND<6ZP> (B) OD=45	8-97036-550-1	03	1	1405-
23	CUP; SEALING,C/BL FRT & RR ENGINE MADE IN THAILAND<6ZP> (C) OD=36	5-11219-018-0	02	1	1405-
70	CUP; SEALING,FRT & RR ENGINE MADE IN THAILAND<6ZP> OD=16	5-11129-006-0	06	1	1405-
83	PIN; FLYWHEEL HSG ENGINE MADE IN THAILAND<6ZP> OD=10 L=32 THA	9-08161-032-0	01	1	1405-
