Isuzu WW
▶
TRUCKS
▶
NLR
▶
51507 - NLR/NMR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

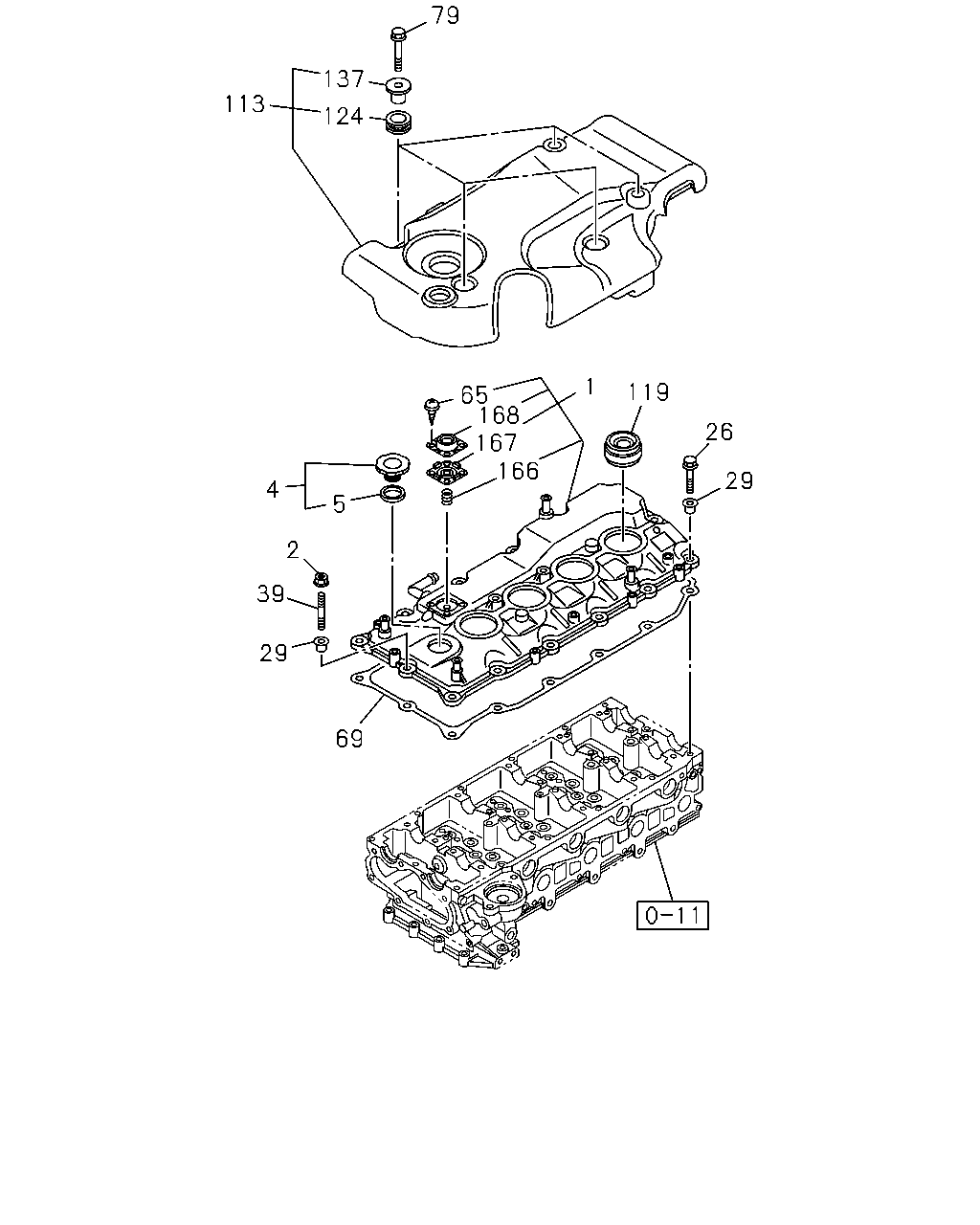

0-10 — CYLINDER HEAD COVER
(#139164) — 17 parça
113
137
79
124
119
26
29
1
65
167
168
166
5
4
2
39
29
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
ENGINE MADE IN THAILAND<6ZP> THA
8-98226-103-0
01
1
1405-
2
NUT; COVER,HD
ENGINE MADE IN THAILAND<6ZP> M6 FLANGE THA
0-91180-206-0
01
1
1405-
4
CAP; OIL FILLER
ENGINE MADE IN THAILAND<6ZP> THA
8-97912-543-0
01
1
1405-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> ID=32 OD=40 THA
8-97918-298-0
01
1
1405-
26
BOLT; CYL HD COVER
ENGINE MADE IN THAILAND<6ZP> M6X30 FLANGE THA
0-28650-630-0
13
1
1405-
29
RUBBER; MTG,HD COVER
ENGINE MADE IN THAILAND<6ZP> THA
8-97361-811-1
14
1
1405-
39
STUD; COVER,HD
ENGINE MADE IN THAILAND<6ZP> M6X30 L=38 THA
0-41010-630-0
01
1
1405-
65
SCREW; ADAPTER
ENGINE MADE IN THAILAND<6ZP> M5X10 W/LK WASHER THA
8-97366-592-0
04
1
1405-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> THA
8-97945-338-0
01
1
1405-
79
BOLT; COVER
ENGINE MADE IN THAILAND<6ZP> M8X20 FLANGE THA
0-28050-820-0
05
1
1405-
113
COVER; CYL HEAD COVER
ENGINE MADE IN THAILAND<6ZP>
8-98158-904-1
01
1
1405-
119
COVER; SEAL,NOZZLE
ENGINE MADE IN THAILAND<6ZP> THA
8-98037-543-0
04
1
1405-
124
RUBBER; MTG,COVER
ENGINE MADE IN THAILAND<6ZP>
8-98036-119-0
05
1
1405-
137
BUSHING; MTG RUBBER,COVER
ENGINE MADE IN THAILAND<6ZP>
8-98036-120-0
05
1
1405-
166
SPRING; VENTILATOR
ENGINE MADE IN THAILAND<6ZP> THA
8-97365-998-0
01
1
1405-
167
DIAPHRAGM; VENTILATOR
ENGINE MADE IN THAILAND<6ZP> THA
8-98226-101-0
01
1
1405-
168
COVER; VENTILATOR
ENGINE MADE IN THAILAND<6ZP> THA
8-97365-992-0
01
1
1405-
