◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#139158) — 103 parça

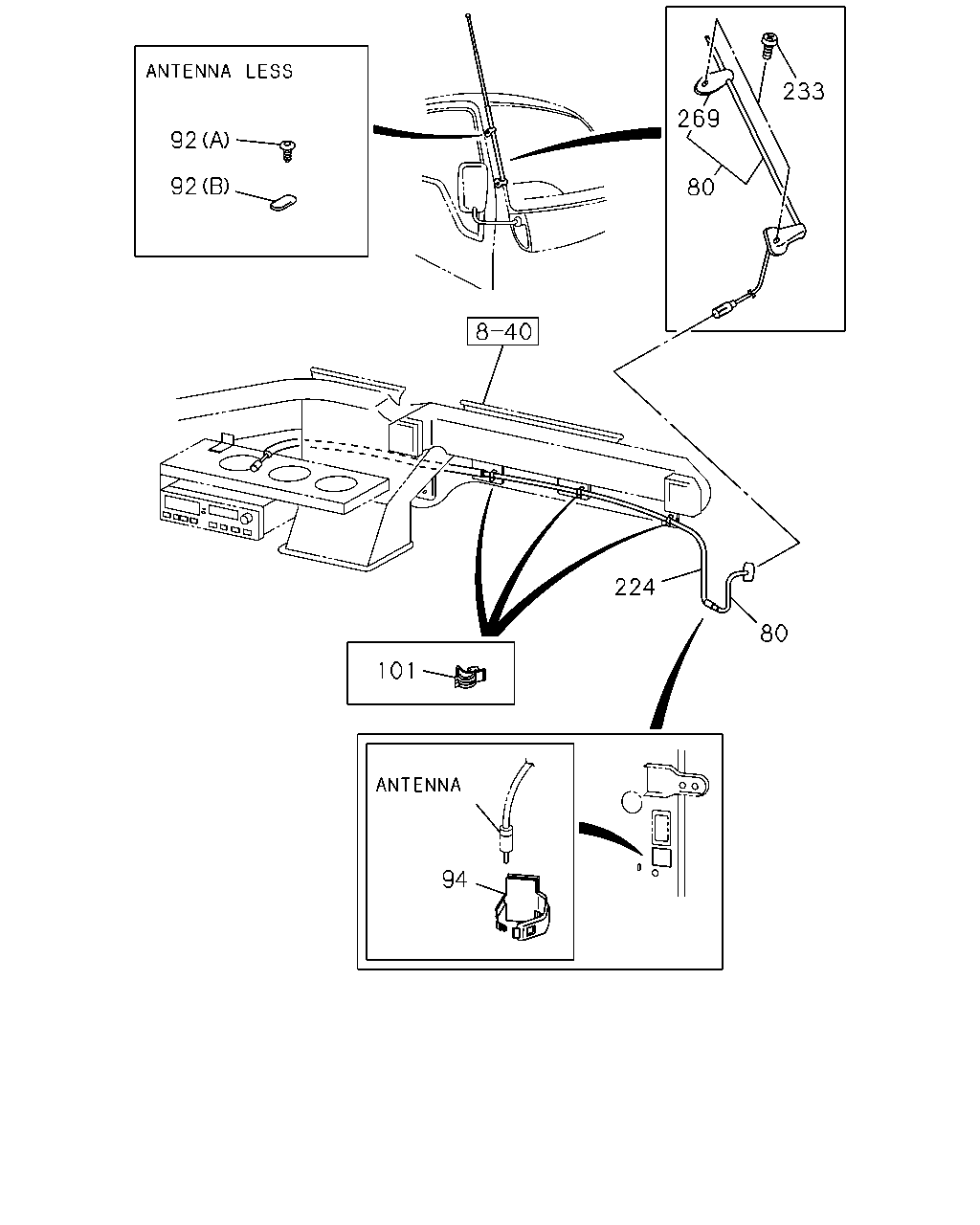

çizim 420675
233 269 92 92 80 8 40 224 80 101 94
BalonParca AdiParca NoAdetTipApplied Date
80 ANTENNA
ANTENNA<U73> TAI 		8-97965-355-0 01 1 9701-9905
80 ANTENNA
TAI 		8-97965-355-0 01 1 9906-0002
80 ANTENNA
TAI 		8-97967-198-0 01 1 0003-0411
80 ANTENNA
TAI 		8-97967-198-0 01 1 0412-
92 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (A) OD=12 L=14.8 		8-94279-921-0 01 1 9701-9905
92 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B) 		8-97088-275-2 01 1 9701-9905
94 CLIP; ANTENNA FEEDER
ANTENNA<U73> 		1-09987-155-0 01 1 9701-9905
94 CLIP; ANTENNA FEEDER 1-09987-155-2 01 1 9906-0411
94 CLIP; ANTENNA FEEDER 1-09987-155-3 01 1 0412-
101 CLIP; FEEDER TO BRKT
ANTENNA<U73> ID=7 		5-09707-053-0 03 1 9701-9905
101 CLIP; FEEDER TO BRKT
ID=7 		5-09707-053-0 03 1 9906-0411
101 CLIP; FEEDER TO BRKT
ID=7 		5-09707-053-0 03 1 0412-
224 CABLE; EXT,FEEDER
ANTENNA<U73> TAI 		8-97965-352-0 01 1 9701-9905
224 CABLE; EXT,FEEDER
TAI 		8-97965-352-0 01 1 9906-0411
224 CABLE; EXT,FEEDER
TAI 		8-97965-352-0 01 1 0412-
233 SCREW
ANTENNA<U73> M6X20 		8-97120-686-0 01 1 9701-9701
233 SCREW
ANTENNA<U73> M6X16 		8-97123-696-0 01 1 9701-9701
269 SUPPORT KIT; ANTENNA
ANTENNA<U73> TAI 		8-97967-074-0 01 1 9701-9905
269 SUPPORT KIT; ANTENNA
TAI 		8-97967-074-0 01 1 9906-0002
269 SUPPORT KIT; ANTENNA
TAI 		8-97257-888-0 01 1 0003-0411
269 SUPPORT KIT; ANTENNA
TAI 		8-97257-888-0 01 1 0412-

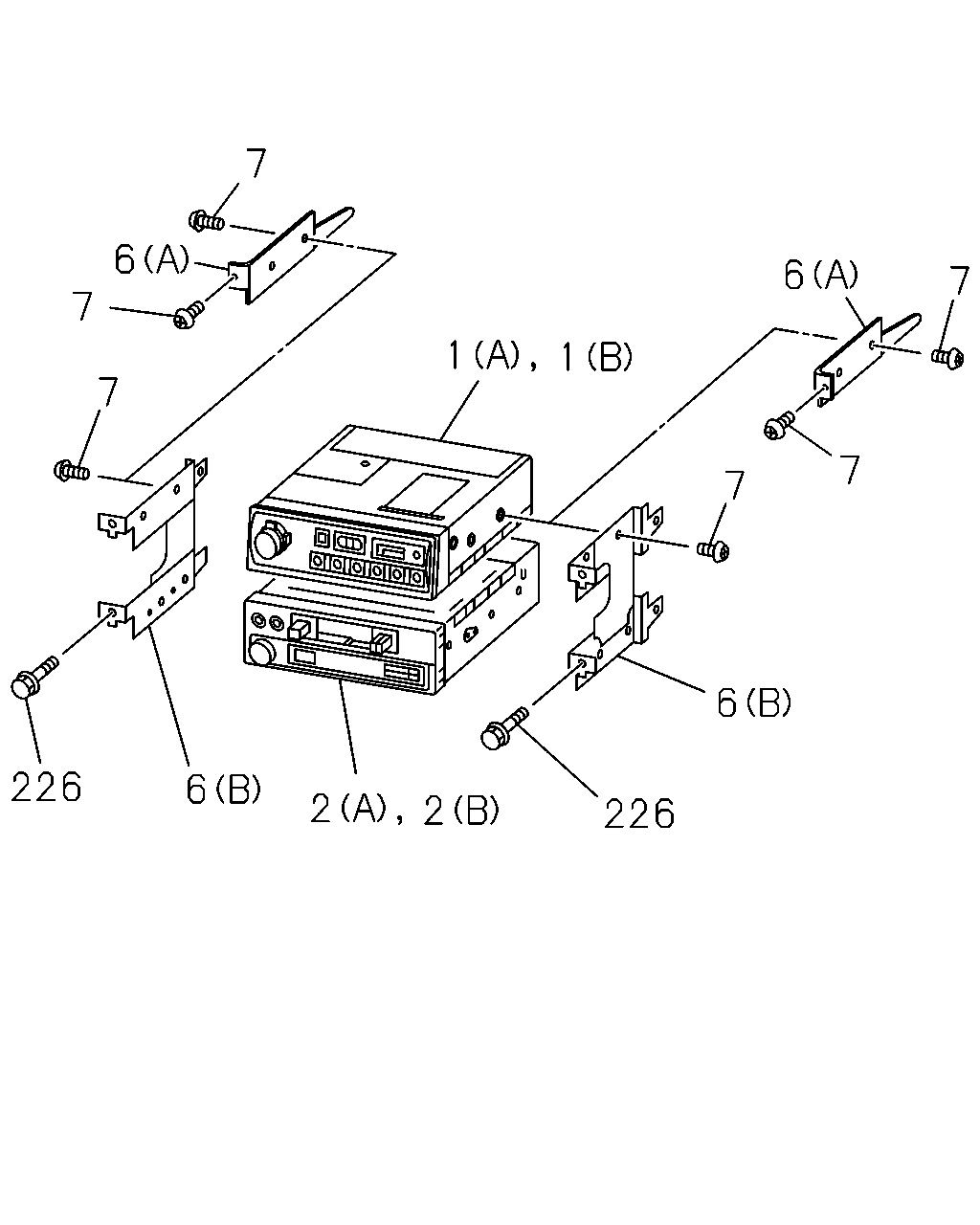

çizim 420924
7 6 6 7 7 1 1 7 7 7 6 226 6 2 2 226
BalonParca AdiParca NoAdetTipApplied Date
1 RADIO
RADIO AM W/SPEAKER(RS2) TUNER BAND ASIA<7DN> (B) SANYO AM 		8-97088-264-0 01 1 9701-9905
1 RADIO
RADIO AM/FM 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> (A) FUJITSU AM/FM 		8-97088-266-0 01 1 9701-9905
2 RADIO & CASSETTE DECK ASM
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> (A) CLARION TAI 		8-97965-351-0 01 1 9701-9905
2 RADIO & CASSETTE DECK ASM
(A) CLARION TAI 		8-97965-351-0 01 1 9906-0411
2 RADIO & CASSETTE DECK ASM
(A) CLARION TAI 		8-97965-351-0 01 1 0412-0610
2 RADIO & CASSETTE DECK ASM
(B) CLARION TAI 		1-84122-032-3 01 1 0611-
6 BRACKET; RADIO TO PANEL
RADIO AM W/SPEAKER(RS2),RADIO AM/FM 2 SPEAKERS(6GZ) (A) TAI 		8-97853-615-2 01 1 9701-9702
6 BRACKET; RADIO TO PANEL
RADIO AM W/SPEAKER(RS2),RADIO AM/FM 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) TAI 		8-97853-615-2 01 1 9703-9905
6 BRACKET; RADIO TO PANEL
(A) TAI 		8-97853-615-2 01 1 9906-0411
6 BRACKET; RADIO TO PANEL
(A) TAI 		8-97853-615-2 01 1 0412-
6 BRACKET; RADIO TO PANEL
RADIO AM W/SPEAKER(RS2),RADIO AM/FM 2 SPEAKERS(6GZ) (A) TAI 		8-97853-614-2 01 1 9701-9702
6 BRACKET; RADIO TO PANEL
RADIO AM W/SPEAKER(RS2),RADIO AM/FM 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) TAI 		8-97853-614-2 01 1 9703-9905
6 BRACKET; RADIO TO PANEL
(A) TAI 		8-97853-614-2 01 1 9906-0411
6 BRACKET; RADIO TO PANEL
(A) TAI 		8-97853-614-2 01 1 0412-
6 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-97859-104-1 01 1 9701-9702
6 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-97859-103-1 01 1 9701-9702
7 SCREW; RADIO
RADIO AM W/SPEAKER(RS2),RADIO AM/FM 2 SPEAKERS(6GZ) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9701-9702
7 SCREW; RADIO
RADIO AM W/SPEAKER(RS2),RADIO AM/FM 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9703-9905
7 SCREW; RADIO
M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9906-0411
7 SCREW; RADIO
M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0412-0604
7 SCREW; RADIO
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605-
7 SCREW; RADIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X10 W/LK+PL WASHER 		9-03920-510-0 08 1 9701-9702
226 BOLT; BRKT
RADIO AM W/SPEAKER(RS2),RADIO AM/FM 2 SPEAKERS(6GZ) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9701-9702
226 BOLT; BRKT
RADIO AM W/SPEAKER(RS2),RADIO AM/FM 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9703-9905
226 BOLT; BRKT
M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9906-0411
226 BOLT; BRKT
M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0412-
226 BOLT; BRKT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9701-9702
çizim 420934
1 1 3 2 268 2 34
BalonParca AdiParca NoAdetTipApplied Date
1 RADIO
RADIO AM W/SPEAKER(RS2) TUNER BAND ASIA<7DN> (B) SANYO AM 		8-97088-264-0 01 1 9701-9905
1 RADIO
RADIO AM/FM 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> (A) FUJITSU AM/FM 		8-97088-266-0 01 1 9701-9905
2 RADIO & CASSETTE DECK ASM
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> (A) CLARION TAI 		8-97965-351-0 01 1 9701-9905
2 RADIO & CASSETTE DECK ASM
(A) CLARION TAI 		8-97965-351-0 01 1 9906-0411
2 RADIO & CASSETTE DECK ASM
(A) CLARION TAI 		8-97965-351-0 01 1 0412-0610
2 RADIO & CASSETTE DECK ASM
(B) CLARION TAI 		1-84122-032-3 01 1 0611-
3 ATTACH KIT; AM/FM RADIO
RADIO AM W/SPEAKER(RS2) TUNER BAND ASIA<7DN> SANYO 		8-97093-557-0 01 1 9701-9905
34 COVER; RADIO HOLE
EXC. RADIO AM W/SPEAKER(RS2),RADIO AM/FM 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97856-203-3 01 1 9701-9905
268 KNOB; VOL
TAI 		8-97386-201-0 01 1 0611-
çizim 420935
6 30 222 116 222 171 222 5 48 117 221 49 221
BalonParca AdiParca NoAdetTipApplied Date
5 HARNESS; EXT
RADIO AM/FM 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE2 SPEAKERS(6VL) TAI 		8-97965-608-0 02 1 9702-9905
5 HARNESS; EXT
TAI 		8-97965-608-0 02 1 9906-0411
5 HARNESS; EXT
TAI 		8-97965-608-0 02 1 0412-
6 BRACKET; RADIO TO PANEL
RADIO AM W/SPEAKER(RS2),RADIO AM/FM 2 SPEAKERS(6GZ) (A) TAI 		8-97853-615-2 01 1 9701-9702
6 BRACKET; RADIO TO PANEL
RADIO AM W/SPEAKER(RS2),RADIO AM/FM 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) TAI 		8-97853-615-2 01 1 9703-9905
6 BRACKET; RADIO TO PANEL
(A) TAI 		8-97853-615-2 01 1 9906-0411
6 BRACKET; RADIO TO PANEL
(A) TAI 		8-97853-615-2 01 1 0412-
6 BRACKET; RADIO TO PANEL
RADIO AM W/SPEAKER(RS2),RADIO AM/FM 2 SPEAKERS(6GZ) (A) TAI 		8-97853-614-2 01 1 9701-9702
6 BRACKET; RADIO TO PANEL
RADIO AM W/SPEAKER(RS2),RADIO AM/FM 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) TAI 		8-97853-614-2 01 1 9703-9905
6 BRACKET; RADIO TO PANEL
(A) TAI 		8-97853-614-2 01 1 9906-0411
6 BRACKET; RADIO TO PANEL
(A) TAI 		8-97853-614-2 01 1 0412-
6 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-97859-104-1 01 1 9701-9702
6 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-97859-103-1 01 1 9701-9702
48 SPEAKER; AUDIO
ANTENNA<U73> EXC. RADIO AM W/SPEAKER(RS2) TAI 		8-97965-354-0 02 1 9701-9905
48 SPEAKER; AUDIO
TAI 		8-97965-354-0 02 1 9906-0411
48 SPEAKER; AUDIO
TAI 		8-97965-354-0 02 1 0412-0610
48 SPEAKER; AUDIO 8-97317-001-1 02 1 0611-
49 SCREW; SPEAKER
ANTENNA<U73> EXC. RADIO AM W/SPEAKER(RS2) M5X14 TAI 		8-94279-325-0 06 1 9701-9905
49 SCREW; SPEAKER
M5X14 TAI 		8-94279-325-0 06 1 9906-0411
49 SCREW; SPEAKER
M5X14 TAI 		8-94279-325-0 06 1 0412-0612
49 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0701-
116 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> EXC. RADIO AM W/SPEAKER(RS2) 		8-97852-325-3 01 1 9701-9905
116 PANEL; SPEAKER,FRT DOOR
TAI 		8-97840-302-0 01 1 9906-0411
116 PANEL; SPEAKER,FRT DOOR
TAI 		8-97840-302-0 01 1 0412-
116 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> EXC. RADIO AM W/SPEAKER(RS2) 		8-97852-324-3 01 1 9701-9905
116 PANEL; SPEAKER,FRT DOOR
TAI 		8-97840-301-0 01 1 9906-0411
116 PANEL; SPEAKER,FRT DOOR
TAI 		8-97840-301-0 01 1 0412-
117 SCREW; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/SPEAKER(RS2) M5X14 TAI 		8-94279-325-0 06 1 9701-9905
117 SCREW; SPEAKER PANEL
M5X14 TAI 		8-94279-325-0 06 1 9906-0411
117 SCREW; SPEAKER PANEL
M5X14 TAI 		8-94279-325-0 06 1 0412-
171 COVER; SPEAKER
ANTENNA<U73> EXC. RADIO AM W/SPEAKER(RS2) 		8-97852-331-4 02 1 9701-9905
171 COVER; SPEAKER 8-97852-331-4 02 1 9906-0411
171 COVER; SPEAKER 8-97852-331-4 02 1 0412-
221 SEAL; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/SPEAKER(RS2) (A) 		8-97852-327-4 02 1 9701-9905
221 SEAL; SPEAKER PANEL
(A) 		8-97852-327-5 02 1 9906-0411
221 SEAL; SPEAKER PANEL
(A) 		8-97852-327-5 02 1 0412-
221 SEAL; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/SPEAKER(RS2) (B) 		8-97852-601-1 02 1 9701-9905
221 SEAL; SPEAKER PANEL
(B) 		8-97852-601-2 02 1 9906-0411
221 SEAL; SPEAKER PANEL
(B) 		8-97852-601-2 02 1 0412-
222 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/SPEAKER(RS2) (A) 		1-09987-144-0 02 1 9701-9905
222 GROMMET; SCREW,SPEAKER PANEL
(A) 		1-09987-144-0 02 1 9906-0411
222 GROMMET; SCREW,SPEAKER PANEL
(A) 		1-09987-144-0 02 1 0412-
222 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/SPEAKER(RS2) (B) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 06 1 9701-9705
222 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/SPEAKER(RS2) (B) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 06 1 9706-9905
222 GROMMET; SCREW,SPEAKER PANEL
(B) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 06 1 9906-0411
222 GROMMET; SCREW,SPEAKER PANEL
(B) D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 06 1 0412-
